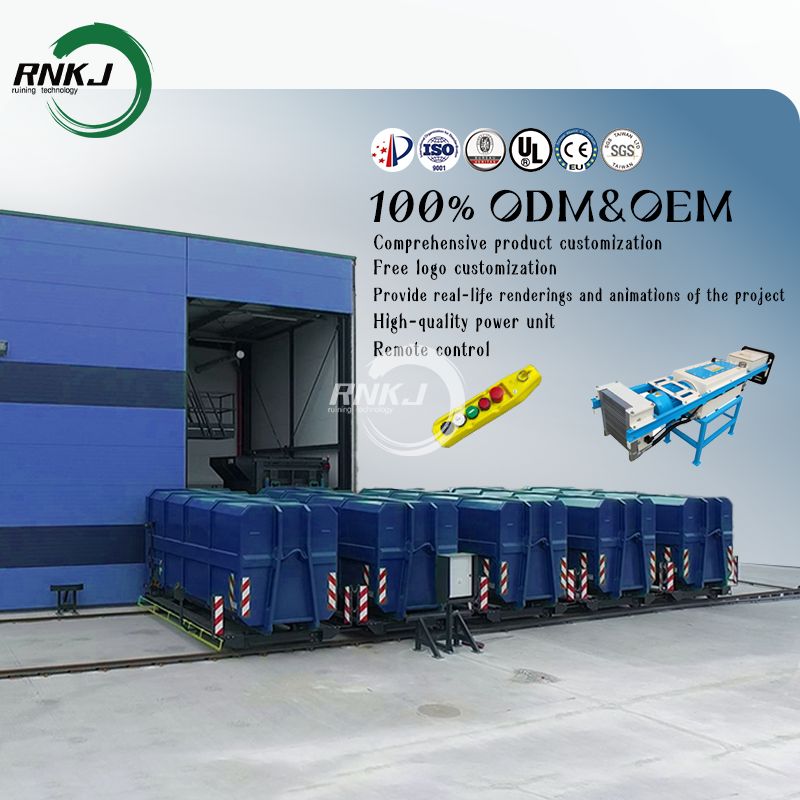

Split Type Trash Compression Station is a sanitation equipment that separates the trash compression unit from the storage container. It usually adopts a configuration mode of "one machine with two containers" or "one machine with multiple containers". After the trash is compressed in the compression unit, it is pushed into the storage container for temporary storage. The full storage container can be transported to the garbage disposal site by a grab truck, while the compression unit can continue to work with an empty container. This design significantly enhances the flexibility and efficiency of garbage transportation, and is particularly suitable for areas with large and concentrated garbage production.
Product Type
Product Advantage
Efficient operation, enhanced transportation efficiency: Through the "mainframe + container" separation design, garbage compression and container transportation can be carried out simultaneously, avoiding the interruption of operations caused by traditional integrated equipment during transportation. Each container can carry up to 2 tons of garbage, and the annual transportation trips can be reduced by approximately 30%, significantly lowering operating costs.
Strong adaptability to site conditions: The modular structure is more flexible in terms of the space requirements for setting up the station. The smallest model only requires approximately 25 square meters of civil construction area, making it particularly suitable for the renovation projects of small-sized garbage stations in old urban areas, communities, etc. For example, the modular garbage station of Hunan Yuhuan Environmental Protection can adjust the layout of the main unit and the box according to actual needs, and is adaptable to various complex terrains.
Controllable pollution, outstanding environmental protection performance: Adopting a full-sealed compression process, the wastewater generated during the garbage compression process can be transported along with the box, blocking the spread of odors and secondary pollution at the source. Some manufacturers' products are also equipped with environmental protection facilities such as sewage treatment systems and odor control devices, further enhancing environmental friendliness.
Intelligent and automated operation: The Split Type Trash Compression Station is equipped with an intelligent control system, which enables the entire process of garbage compression, storage, and transportation to be carried out automatically. This reduces manual intervention and lowers the workload and safety risks for sanitation workers. For example, the intelligent control system of Hunan Yuhuan Environmental Protection supports remote monitoring and fault alarm functions, making it convenient for the daily maintenance and management of the equipment.

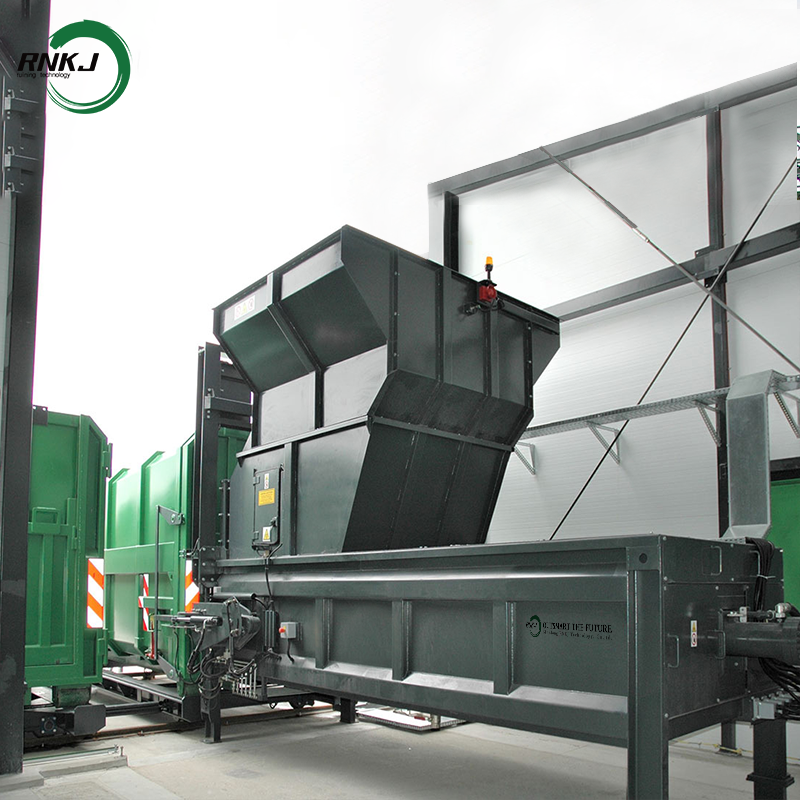

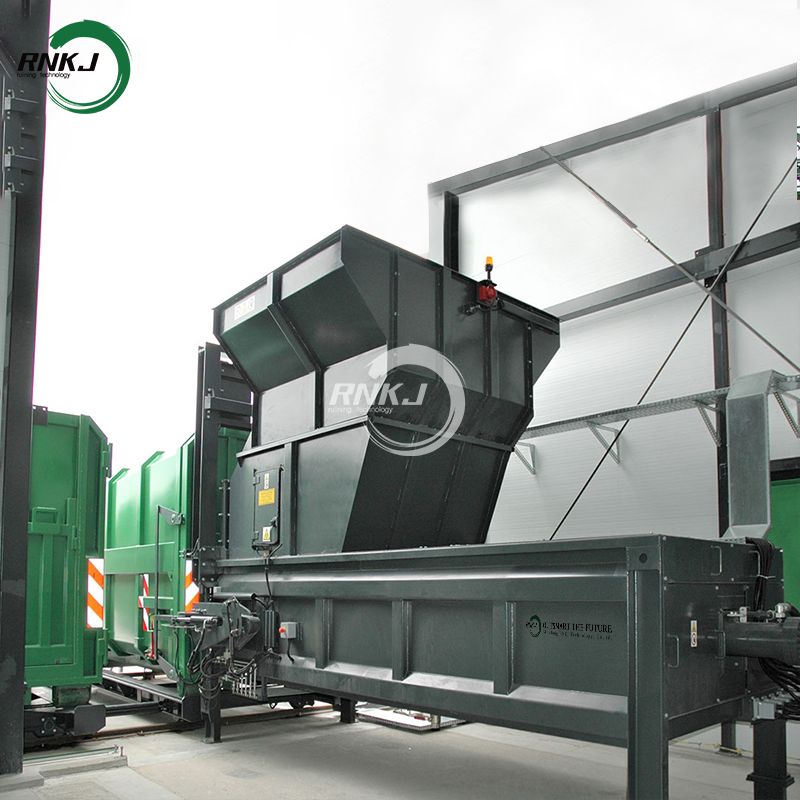

Core StructureCompressor unit: As a core component, it is responsible for the compression processing of waste. Usually, horizontal or vertical compression techniques are adopted. Through the hydraulic system, it provides powerful compression force to compress the waste to a certain ratio, thereby reducing the volume of the waste.
Storage container: Used for temporarily storing the compressed garbage. The container has excellent sealing and pressure resistance properties, capable of withstanding the tremendous pressure of the compressed garbage and preventing the leakage of garbage and sewage. The capacity of the storage container can be customized according to the requirements, and common specifications include 8 cubic meters, 10 cubic meters, 12 cubic meters, etc.
Hydraulic system: Provides power for the compression unit and other moving components. A high-quality hydraulic system should have features such as high stability, low noise, and low energy consumption, ensuring the long-term reliable operation of the equipment.
Electrical control system: Enables the automation of equipment operations and intelligent management. It includes components such as PLC controllers, touch screen operation interfaces, and sensors, which can monitor and adjust the garbage compression process and the operating status of the equipment in real time.
Auxiliary facilities: The Split Type Trash Compression Station is also equipped with auxiliary facilities such as a feeding system, deodorization system, and sewage treatment system, which further enhance the functionality and environmental performance of the equipment.
Working PrincipleGarbage Disposal: The domestic waste is fed into the hopper of the compression main unit through the feeding system. The feeding method can be selected according to actual needs, such as manual feeding, automatic bucket feeding, and truck feeding, etc.
Compression Processing: Start the compression main unit and the hydraulic system drives the compression head to compress the garbage. During the compression process, the moisture in the garbage will be squeezed out and collected in the sewage tank through the diversion channel.
Temporary Storage of Garbage: The compressed garbage is pushed into the storage box. When the box is full, the compression operation can be stopped and the garbage can be transported for disposal.
Box Transportation: The boom truck lifts the fully loaded storage box and transports it to the garbage treatment site for unloading. After the empty box is returned, it is connected to the compression main unit and put back into use.
Equipment Maintenance: Regularly clean, lubricate and inspect the equipment to ensure its normal operation. For example, clean the residual garbage in the compression main unit, check the oil level and pressure of the hydraulic system, and tighten the electrical connections, etc.
Product Parameters
Performance Parameters | |
Equipment Model | ZYG-15/17/20 |
Compacted Density (t/㎡) | ≥0.75 |
Motor Power (kW) | 11/15/22 |
Hydraulic System Set Pressure (MPa) | 16~20 |
Case Volume (㎡) | 15/17/20 |
Power Supply (V) | 380v, 3-phase, 50HZ |
FeatureEfficient operation
"Single machine, multiple boxes" configuration, no need to wait for the transfer vehicle to return, equipment utilization rate increased by 50%,
Lift truck transportation, one vehicle can carry multiple boxes, reducing vehicle purchase costs and operating costs
Environmental protection performance
Fully enclosed design, with concentrated collection of leachate, effectively preventing secondary pollution
Optional odor removal system to reduce odor dispersion, in line with environmental protection standards
Flexible adaptation
The footprint is small, requiring only a small amount of civil engineering work, solving the problem of urban site selection
The box and the main unit can be arranged separately. The layout can be flexibly adjusted according to the site, making it suitable for scenarios with limited space.
Easy maintenance
Modular design allows individual components to be repaired and replaced, reducing maintenance complexity and costs
Separate chassis structure, allowing for maintenance without affecting garbage collection operations
Economical and practical
The construction period is short, the economic performance is good, and the return on investment is high.
The density of compressed waste increases, and the frequency of transportation is reduced by 40-60%, significantly reducing transportation costs.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
