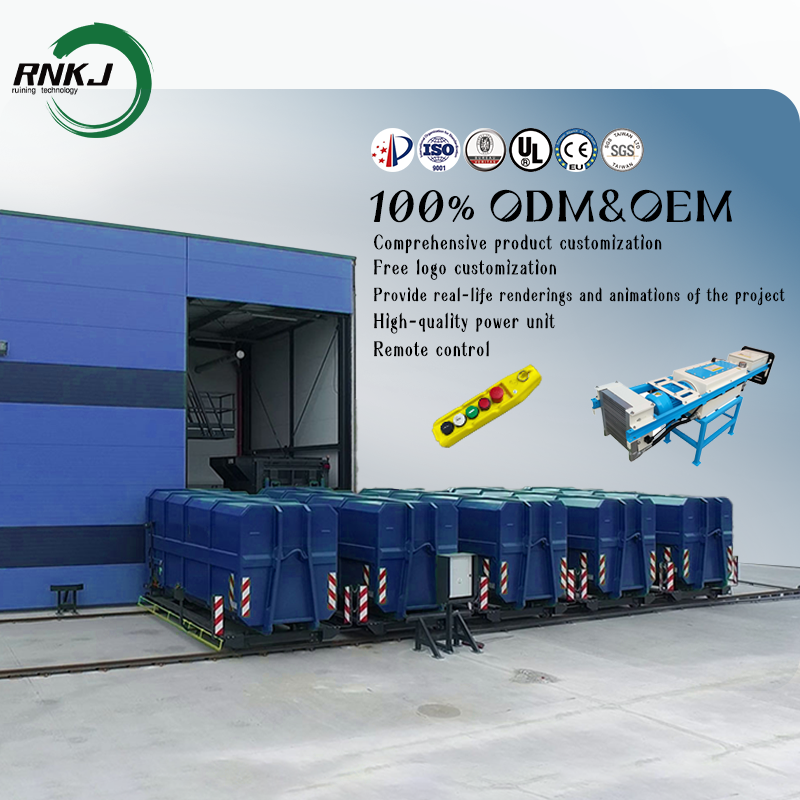

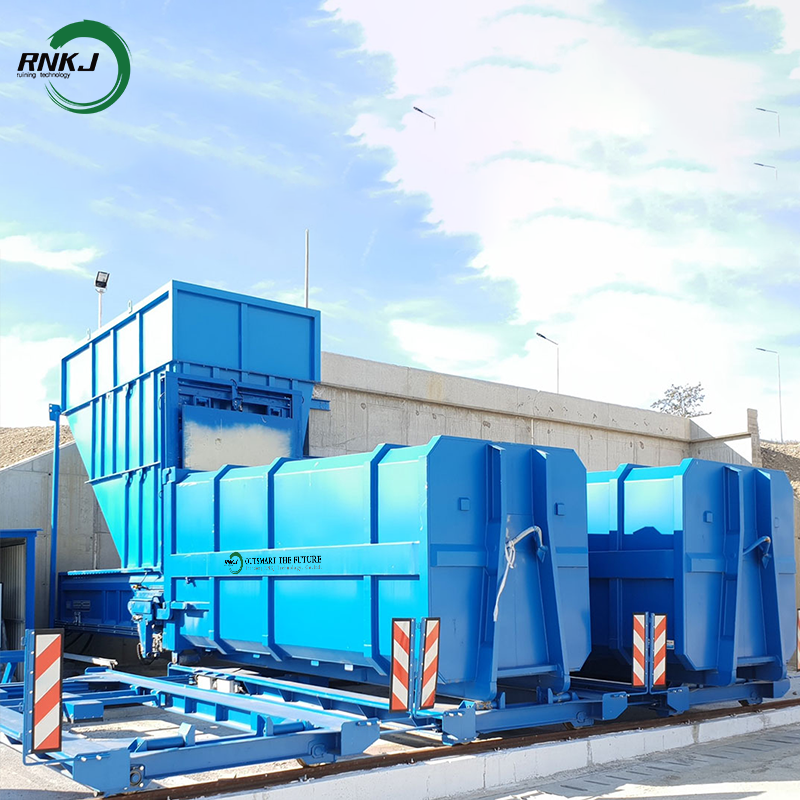

The Separate-type Garbage Compression Station is one of the most widely used processing equipment in current domestic waste transfer stations. Its core feature is the separate design of the compression machine and the garbage storage box, supporting configurations of one machine with multiple boxes or one machine with two boxes, enabling flexible separation of compression and transfer, significantly improving the efficiency of waste treatment and the utilization rate of the equipment.
Product Type
Core Structure CompositionCompressor assembly
Compression body, compression pusher, compression cylinder, pusher guide device
Function: Provide the core compression force, push the garbage into the box, with high compression density
Loading device
Dump bucket, second floor platform, large funnel, tipping mechanism
Function: Receive garbage and send it to the compression chamber
Box body docking system
Push-pull box mechanism, box holding device, lifting door mechanism, moving box platform
Function: Achieve a tight connection between the box body and the main unit, lift the gate, move the box body, and ensure the sealing during the compression process
Garbage container
Enclosed container, gate, discharge outlet, reinforcing ribs
Functions: Store compressed garbage, prevent odor and leakage, collect compressed wastewater
Hydraulic system
Oil pump, oil tank, electromagnetic valve group, hydraulic piping
Function: Provide power, system pressure, compressive force
Control system
PLC controller, touch screen, remote control, sensor, alarm device
Functions: Automated control, supports manual / automatic / remote control modes, fault diagnosis and warning
Product Advantage
Efficient and flexible "one machine with multiple boxes" mode
The main unit is fixed, only the box bodies are moved. The transportation vehicles can be reused for transportation, improving equipment utilization rate
After the full boxes are replaced with empty ones, continuous operation can be achieved 24 hours a day without any downtime
The turnover frequency of transportation vehicles is reduced, and transportation costs are lowered
Compression performance
Horizontal direct compression process, garbage is compressed evenly and the density is stable, reducing the risk of secondary pollution
High compression force, suitable for handling various types of household waste, including kitchen waste, plastics, paper, and mixed garbage
Sealed compression, reduces odor diffusion and collects and treats wastewater centrally
Adaptable, easy to install
Small in size, simple in civil engineering requirements, short construction period, and low investment
Different feeding methods can be selected according to the site conditions, without the need for large-scale renovation of existing facilities
Modular design of equipment, convenient maintenance, simple replacement of wear parts, and short downtime
Intelligence and Security
PLC control system automatically completes the compression cycle, reducing manual intervention and lowering operational risks
Multiple safety protections prevent equipment damage and personnel injuries
Optional remote monitoring system enables real-time monitoring of equipment operation status and enables preventive maintenance
Working PrincipleThe workflow of the separate-type garbage compression station includes "compression - transportation - recycling"
Box positioning: The telescopic garbage truck places the empty box at the compression station, and the push-pull box mechanism pulls the box to the position where it aligns with the main unit. The box clamping device locks in place, and the lifting door mechanism raises the box gate.
Garbage loading: The garbage collection vehicle discharges the garbage into the compression chamber through the hopper or the second platform. Sensors detect the material level.
Continuous compression: The PLC starts the compression cylinder, and the push head pushes the garbage into the box; after the push head returns to its original position, more garbage is fed and compressed until the box is full.
Box sealing: After compression, the lifting door mechanism lowers the gate, the box clamping device releases, and the push-pull box mechanism pushes the full box to the transfer station.
Transfer and cycle: The telescopic vehicle transports the full box to the landfill, while another empty box is sent to the compression station at the same time, achieving continuous operation.
Environmental treatment: The wastewater generated during compression flows into the sewage well through the box drainage port, and is treated to meet the standards before being discharged; some equipment is equipped with an odor removal system to reduce the spread of odors.
Product ParametersPerformance Parameters | |
Equipment Model | ZYG-15/17/20 |
Compacted Density (t/㎡) | ≥0.75 |
Motor Power (kW) | 11/15/22 |
Hydraulic System Set Pressure (MPa) | 16~20 |
Case Volume (㎡) | 15/17/20 |
Power Supply (V) | 380v, 3-phase, 50HZ |
Application Scenario The separate-type Garbage Compression Station is widely applied in:
Urban domestic waste classification transfer stations
Large-scale garbage collection and treatment centers in counties and towns
Garbage treatment stations in industrial parks, universities, and large communities
Front-end compression and transfer links of waste incineration plants and landfill sites
Choose our Separate-type Garbage Compression Station. Not only will it significantly enhance the efficiency of garbage disposal and reduce operating costs, but it will also effectively minimize secondary pollution. It is an important equipment for upgrading urban sanitation infrastructure.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
