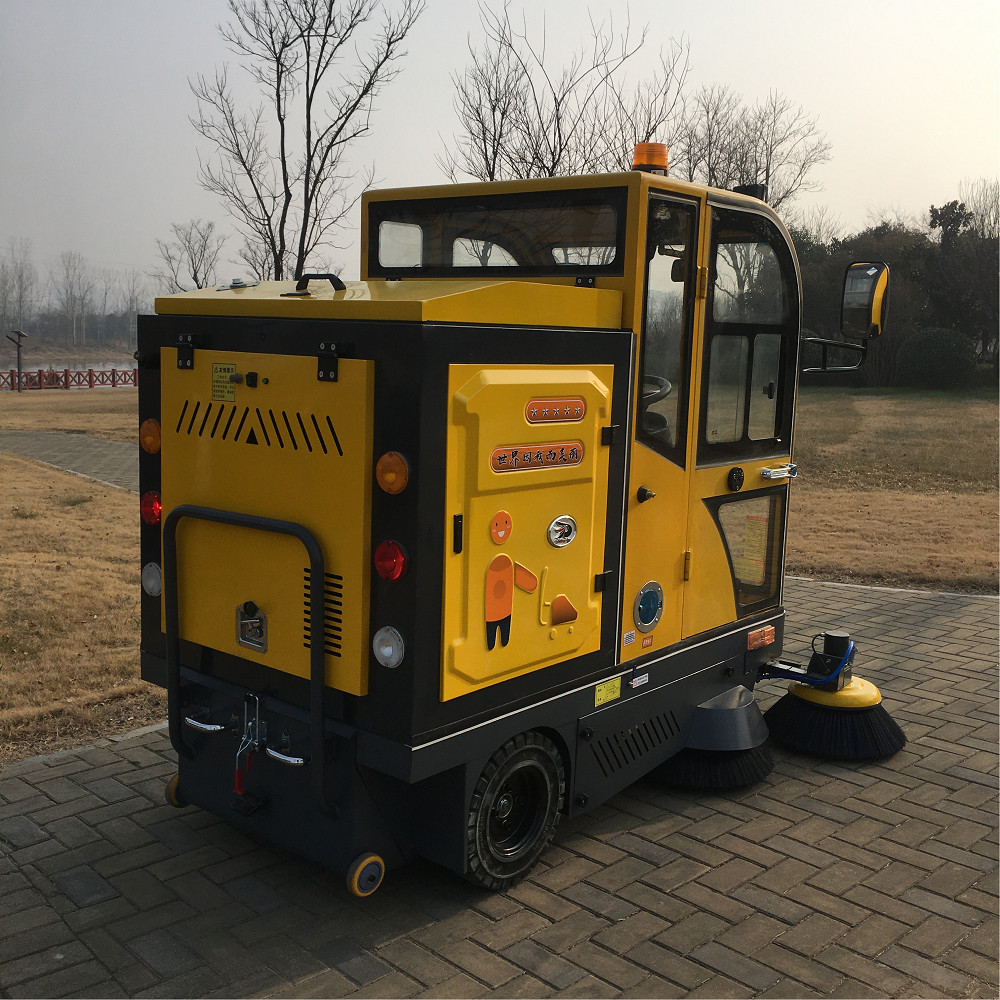

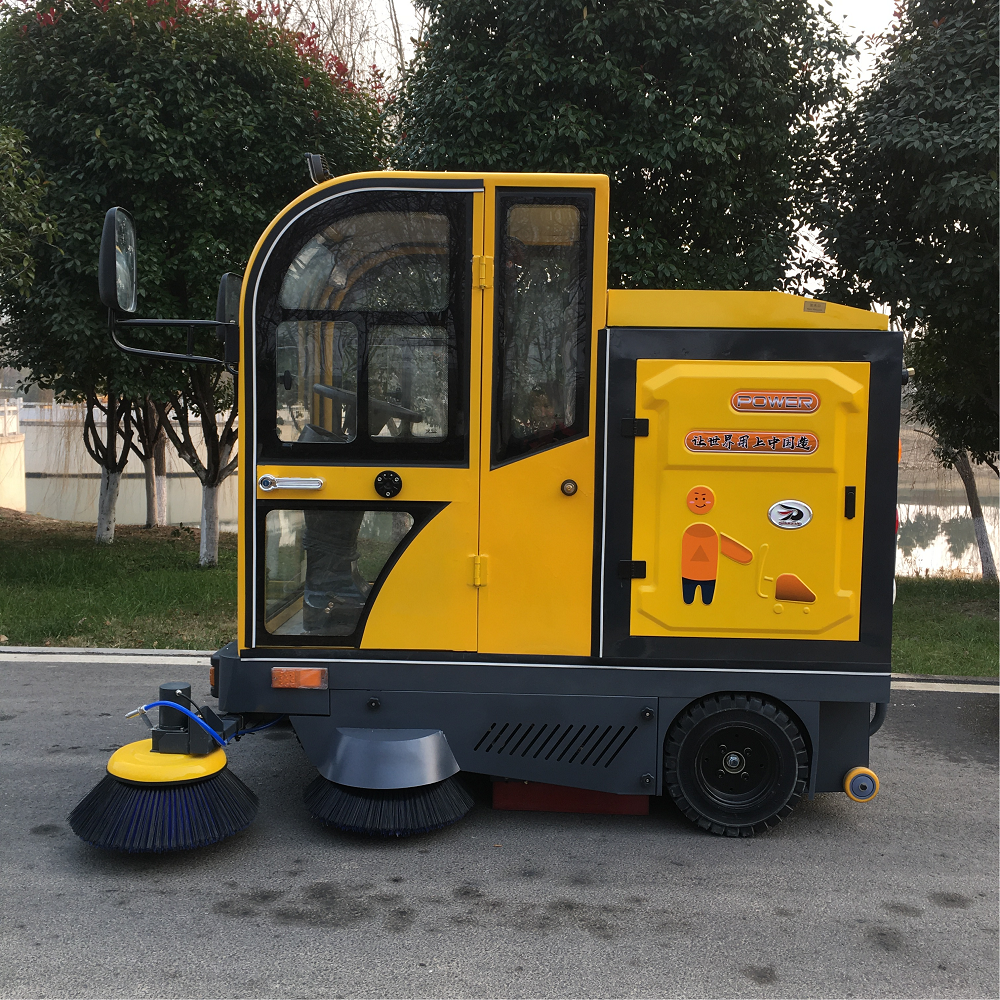

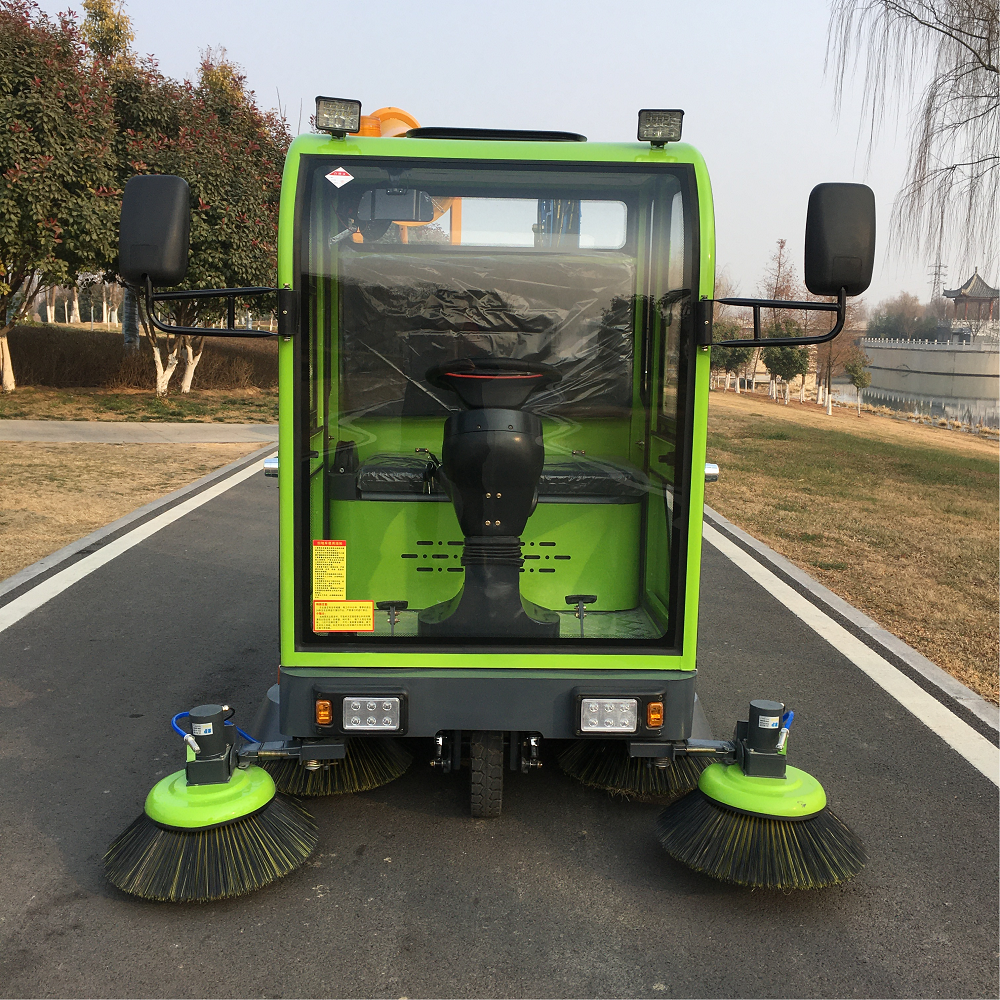

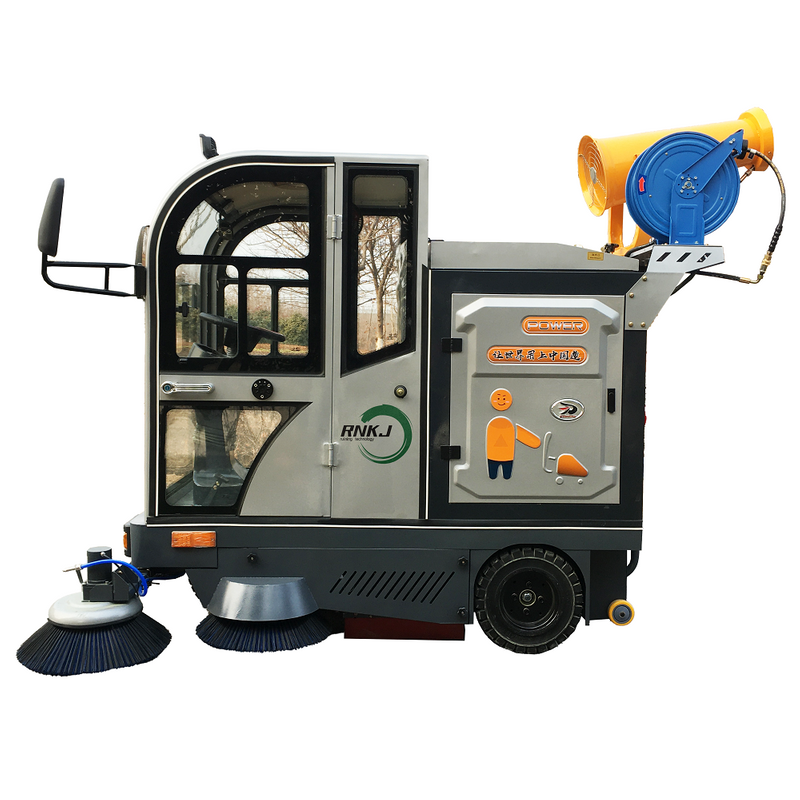

Road Sweeper is a cleaning equipment specially designed for factory workshops, warehouses, logistics parks, municipal roads, mines, airports, ports, and other industrial and large-scale public places. The core function of Road Sweeper is to clean ground garbage through mechanical structures (main brush, side brush), and to handle dust together with the dust collection system. It can efficiently clean various types of garbage such as dust, sand and stones, metal debris, oil stains, fallen leaves, plastic fragments, etc.
Appearance:
The whole vehicle is crafted from sheet metal and shaped via a one-piece stamping process, boasting excellent structural stability, strong collision resistance, and high resistance to deformation or damage. Its front is fitted with premium tempered glass that ensures clear visibility and long-lasting durability.
The vehicle body is finished with electrostatic painting using automotive-grade processes, which endows it with outstanding impact resistance, strong coating adhesion, and superior corrosion resistance.
The exterior structure is thoughtfully designed for both practicality and versatility, making the vehicle well-suited for year-round use in both summer and winter. In hot weather, the operator compartment comes equipped with a skylight and fans; additionally, the left and right side doors are detachable at will, and the rear window supports free ventilation, effectively achieving the triple effects of air circulation, temperature reduction, and sun shading. For cold winters, a fully enclosed operator cabin is adopted, featuring excellent sealing performance and remarkable heat retention to keep the interior warm.
Product Advantages
Configuration
1. Equipped with LED headlights and rear tail operation safety warning lights, making the night cleaning brighter and safer.
2. Built-in reverse camera, sunroof, and fan.
3. High-power suction motor, enlarged filter, ensuring no dust during cleaning, front-mounted water spraying device, hydraulic shock absorption, front and rear solid anti-puncture tires.
4. Rear high-pressure cleaning, electric continuous rinsing for 20 minutes, approximately 40,000 square meters.

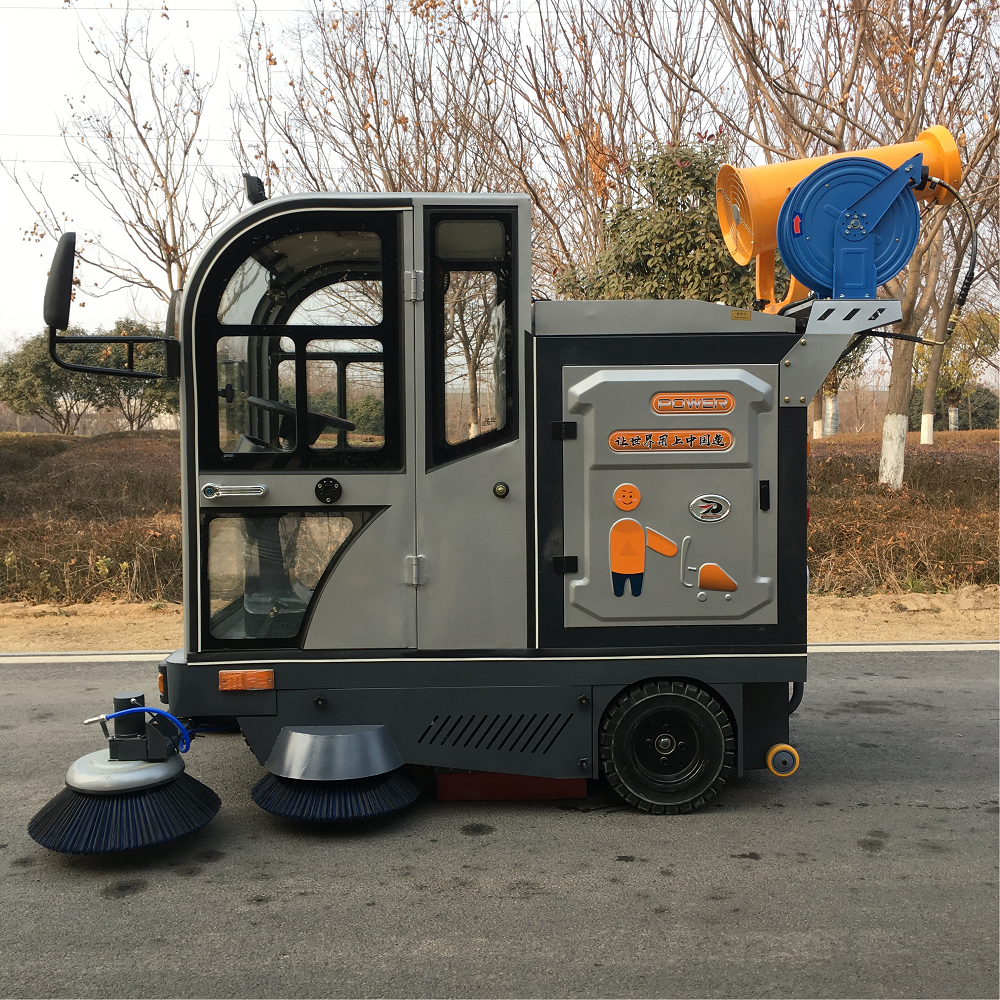

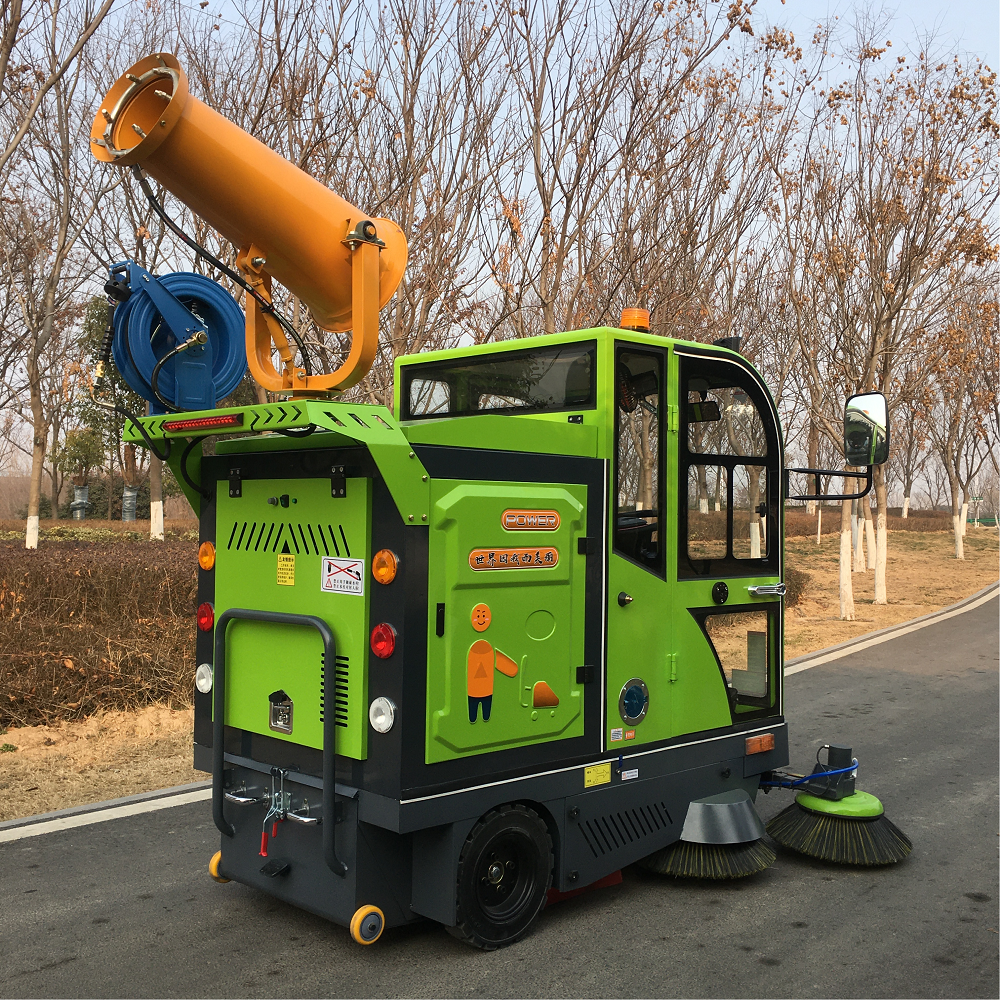

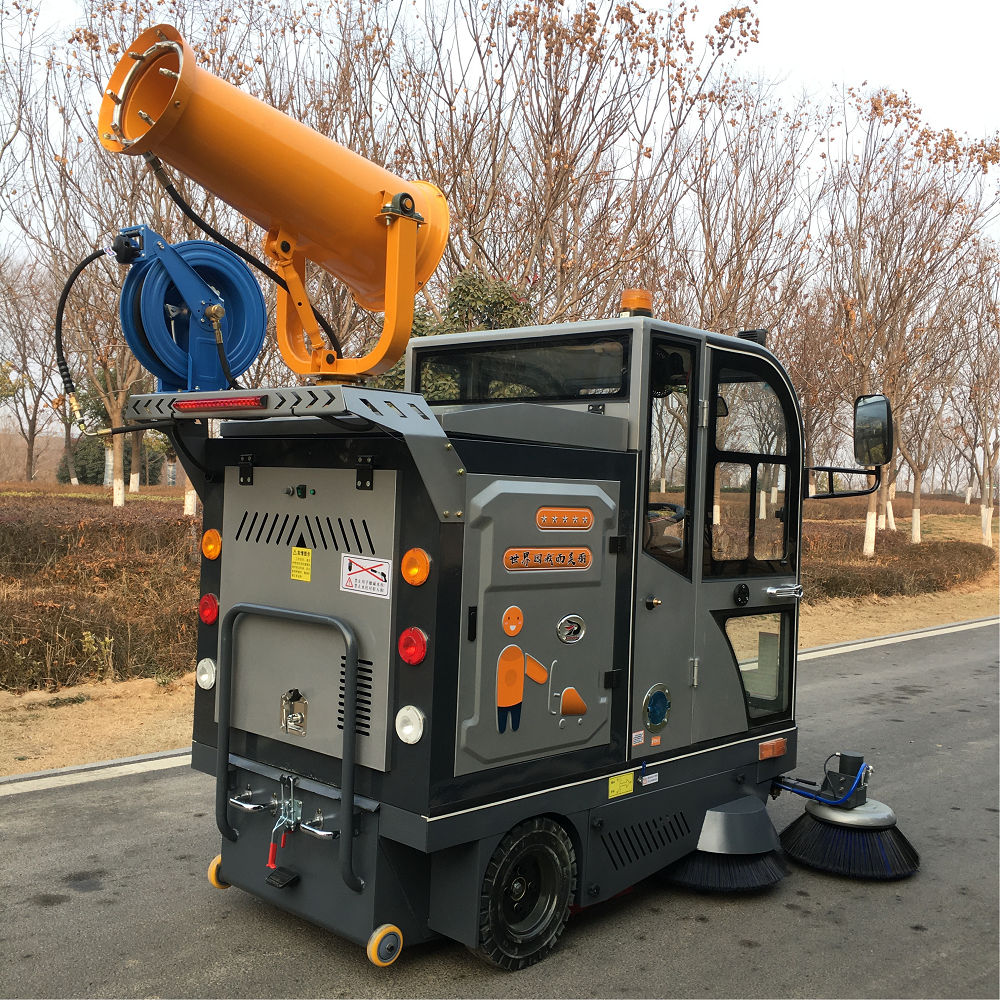

5. Can be equipped with fog cannons (range 10M), disinfection tools, and a 150L large capacity water tank.
Multiple configurations available
Performance:
1. The rear axle of the car is equipped with dual disc brakes that are anti-lock and have strong power and good climbing performance. It has three-speed transmission, allowing for flexible operation and making work more convenient. It adopts automatic dust removal, eliminating the inconvenience of frequent manual dust removal during cleaning.
2. The constant temperature controller is durable and has an automatic overload protection system, making cleaning safer.
3. The car-mounted parking brake prevents the vehicle from sliding downhill.
4. The high-strength and wear-resistant edge brush can sweep away bricks, sand, stones, dust, etc. with ease.
5. High-pressure cleaning instructions: 10-meter high-pressure hose automatic reel + handheld high-pressure gun + four water sweeping head sprayers + vehicle head waterway spray start-stop control valve + 150L special plastic water tank. It has a fire-fighting water filling port + water tank cleaning port + water tank drainage port.
6. The effective water sweeping width is 4 meters, and the single tank water sweeping area is 40,000 square meters. The single tank continuous cleaning time is at least 20 minutes.
7. The working pressure can be adjusted (electrically) from 50 to 100 BAR.
Technical Parameters
| Product Parameters | |
| Cleaning width | 1900mm |
| Main brush width | 700 mm |
| Work efficiency | 8000-15000㎡/h |
| Bin capacity | 180L |
| Travel motor | 800W |
| Roller brush motor | 1000W |
| Side brush motor | 4*100W |
| Walking speed | 0-12km/h |
| Vacuum filtered square | 20m² |
| Water tank | 150L |
| Power source | 48V |
| Battery capacity | 48V100Ah-150Ah (optional) |
| Size | 1950*1900*2300mm |
| Weight | 700KG |
| Sweeping area of a single tank | 30000㎡ |
| Continuous rinse time | 20 minutes |
Advantages of Road Sweepers
High Cleaning Efficiency
Integrating sweeping and suction functions in one, the road sweeper can swiftly clear away dust, fallen leaves, paper scraps, pebbles and other debris on road surfaces. Compared with manual cleaning, it significantly boosts work efficiency.
Cost-Effective Operation
A single road sweeper can replace multiple manual cleaners, thus cutting down labor costs substantially. Meanwhile, mechanical operation minimizes the wear and tear of cleaning tools, which helps reduce the overall cost of cleaning work in the long run.
Superior Cleaning Performance
With a wide cleaning coverage and uniform cleaning force, the road sweeper can effectively remove various types of garbage while preventing secondary dust pollution. Its cleaning effect is far superior to that of manual cleaning.
Eco-Friendly & Energy-Saving
The majority of road sweepers are electrically powered, which reduces fossil fuel consumption and lowers carbon emissions. This fully aligns with the trend of green and sustainable development.
High Level of Automation
Modern road sweepers are equipped with advanced automation technologies, including automatic obstacle avoidance, preset cleaning route planning and automatic charging. These features not only alleviate the labor intensity of operators but also improve the precision of cleaning work.
Cleaning Objects
Can clean up more kinds of garbage or objects.
Optional Charger And Plug
For any other chargers and plugs, please contact us.
Scrubber Series Parameters
Tell me your needs and recommend a more suitable solution for you.
Application Cases
Applicable Scenarios
Our equipment is suitable for a variety of road conditions, Please contact us for more information.
Factory
FAQ
Q1: What is the warranty period?
A: 12 months for the whole machine, excluding wearing/fragile parts.
Q2: How is your product positioned?
A: We focus on high-end electric cleaning equipment, especially floor scrubbers and compact sweepers. They are designed for sidewalks, bike lanes, narrow streets, factories, malls, schools, and other areas where large machines cannot operate.
Q3: What are your company’s advantages?
A:1. Strong R&D team with continuous product innovation.
2. Years of experience in floor scrubbers and small sweepers, with a complete product line.
3. Strict quality control — each unit goes through 60+ functional tests.
4. Fast response and reliable global after-sales service.
5. Certified with ISO9001 and multiple patents.
Q4: What battery options are available?
A: Standard lead-acid, optional lithium.
Q5: Can you do OEM/custom branding?
A: Yes, available on request.
Q6: How is after-sales service handled?
A: Within warranty, replacement parts are free. Just provide proof of the faulty part, and we’ll send a new one.
Q7: How can I become your agent/distributor?
A: We welcome global partners. Please contact us for details.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
