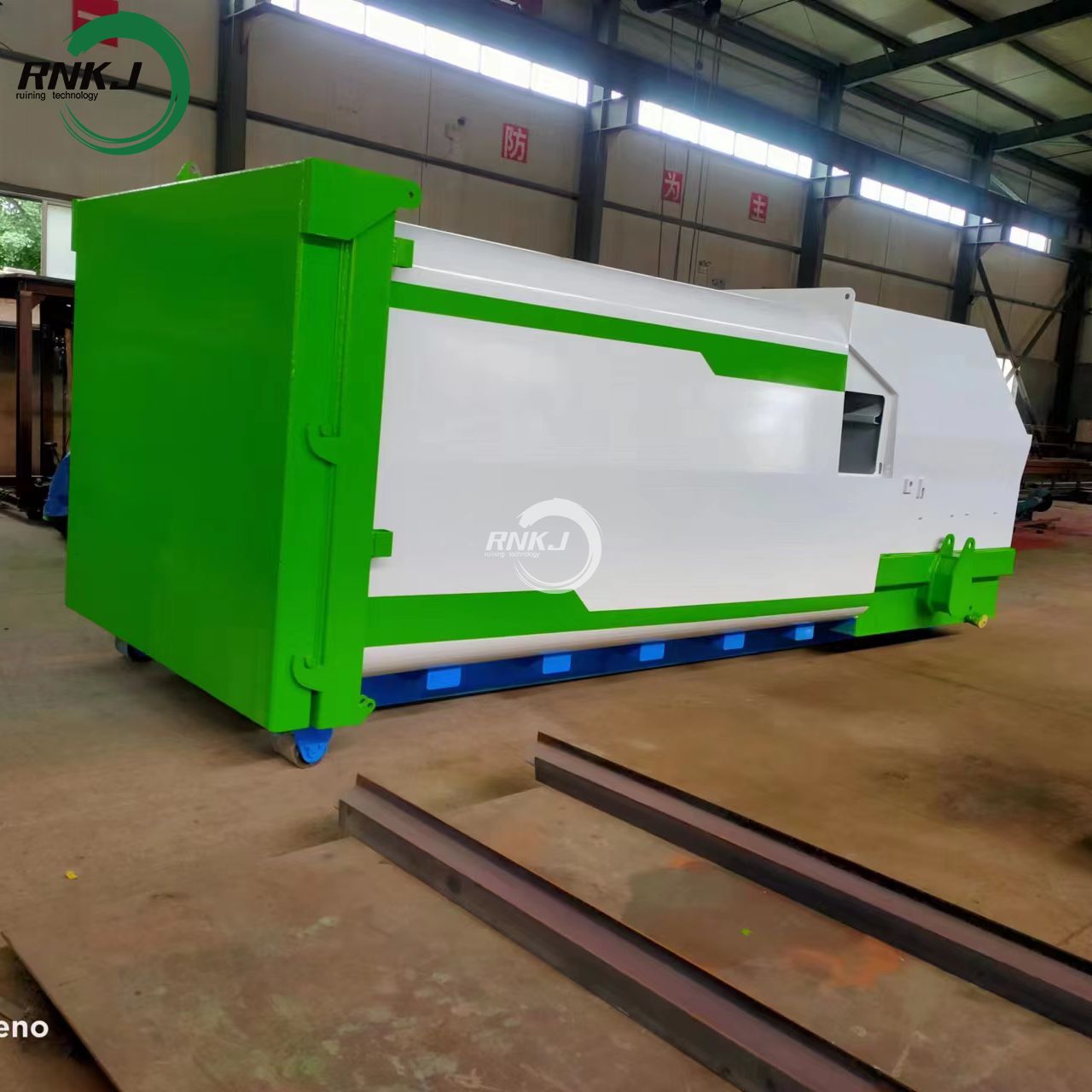

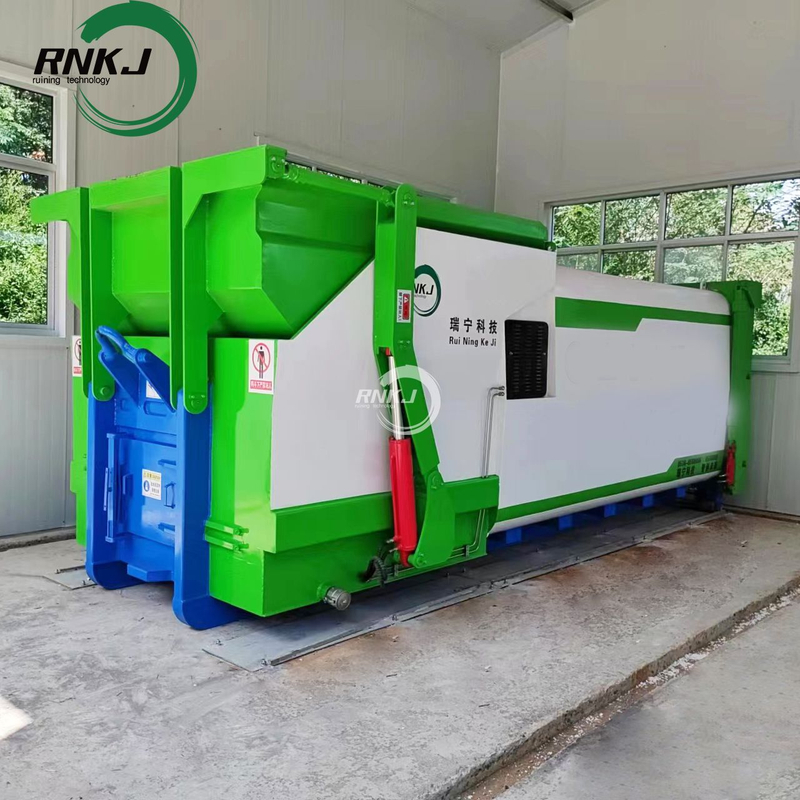

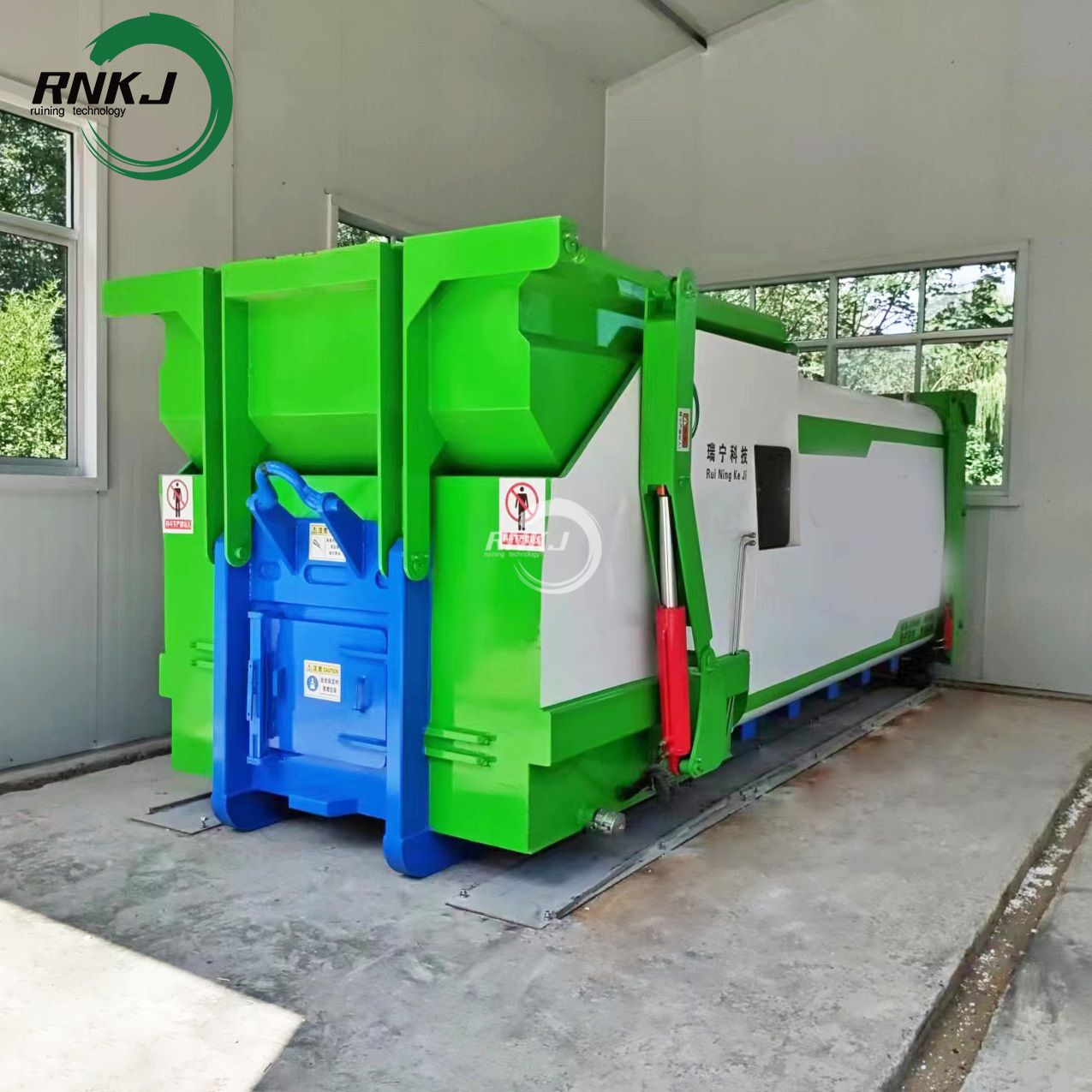

Hydraulic Hopper Waste Compactor is a sanitation equipment that integrates a hopper feeding system with a high-pressure compression mechanism. Its core function is to reduce and compress waste during the transfer process. Through mechanical pressure, it can reduce the volume of loose waste to 1/3 - 1/2 of its original size, significantly improving the transfer efficiency and reducing transportation costs. It is a key equipment in waste transfer stations and is widely used in urban and rural sanitation, commercial complexes, industrial parks, and other scenarios.
Product AdvantageGarbage volume is significantly reduced, and transportation costs are greatly decreased:
The compression ratio can reach 1/3 to 1/2. The same vehicle can carry more garbage, reducing the number of transportation trips, fuel consumption and labor costs. In the long run, it is very obvious that it saves money.
Fully enclosed operation, environmentally friendly and clean:
The entire process ensures no garbage is left behind, prevents seepage of liquid waste, avoids odors, and prevents spillage. It will not cause secondary pollution and complies with environmental sanitation and environmental protection requirements.
The hopper makes loading easy without the need for manual handling:
The garbage truck / collection vehicle can directly dump its contents into the hopper, which automatically lifts and discharges. It is effortless, highly efficient and doesn't dirty your hands.
High level of automation, simple operation:
One-click automatic compression, continuous operation, can be operated by a single person, equipped with safety protection, low failure rate and easy maintenance.
Compact in size and highly versatile:
Compact in size, it can be used in small venues such as community transfer stations, shopping malls, industrial parks, schools, etc., and is installable flexibly.
The equipment is durable and stable over the long term:
The main body is made of wear-resistant steel plates and equipped with a mature hydraulic system, suitable for high-intensity continuous operations, with a long service life.
Core Structure CompositionHopper: A garbage receiving container with a volume typically ranging from 3 to 5 cubic meters. It can be designed as a single-piece or separate unit and is equipped with an elevating mechanism.
Elevating / Reversing Mechanism: Hydraulically driven, it lifts / flips the garbage inside the hopper and pours it into the compression chamber, enabling garbage disposal without dropping it on the ground.
Compression System: Includes a compression head (often in a W-shaped design to prevent rebound), a high-pressure cylinder (pressure 18-25 MPa), and a compression chamber (made of wear-resistant steel plates).
Garbage Box: A storage container for compressed garbage, detachable from the compression main unit, facilitating transfer by a boom truck.
Hydraulic System: Provides power, with a working pressure of 18-25 megapascals, driving the elevating, compression, and material pushing actions.
Control System: PLC control, supporting automatic / manual operation, with functions such as fault alarm and compression cycle counting.
Sealing System: Prevents leakage of filtrate during compression and the escape of odors, meeting environmental protection requirements.
Working principleLoading stage: The garbage collection vehicle pours the garbage into the hopper. The hopper can move left and right to fit different vehicle models.
Loading stage: The lifting mechanism raises the hopper to the inlet of the compression chamber and then flips it to dump the garbage.
Compression stage: The compression head moves horizontally/vertically under hydraulic drive, applying continuous pressure to the garbage and achieving a high compression density.
Storage stage: After compression, the garbage is pushed into the box for storage. The cycle continues until the box is full.
Transit stage: Once the box is full, the final compression process is initiated, and then it is transported to the processing site by the grab truck.
Product Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW, 5.5KW, 7.5KW |
Machine weight (kg) | 4800kg,5500kg, 6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Support Customization
Intelligent SMART technology
Feature Of Hydraulic Hopper Waste Compactor
Efficient downsizing: Compression ratio reaches 3:1 - 2:1, significantly reducing transportation frequency and costs
Environmentally friendly sealing: Full-sealed operation, eliminating garbage spillage, leakage of filtrate, and odor emission, meeting environmental protection standards
Convenient operation: PLC automatic control, compression cycle time < 35 seconds, can be operated by one person, reducing labor costs
Durable and reliable: Compression chamber and push head are made of BHNM450 high-maintenance steel plates, W-shaped compression head prevents rebound and crushing of large garbage
Flexible adaptation: One machine can be equipped with multiple containers, compression and transportation can be carried out simultaneously, improving equipment utilization rate
Safe and intelligent: Equipped with overload protection, fault alarm, and limit protection functions, operation is safer
Our Factory
Shandong RNKJ Environmental Technology Co., Ltd. is a high-tech enterprise integrating the R&D, production, sales, services and environmental engineering construction of waste management equipment. Backed by 25 years of industry expertise in market development and practical innovation, we provide global customers with comprehensive solutions spanning waste collection, transportation and reduction treatment, as well as one-stop procurement services.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
