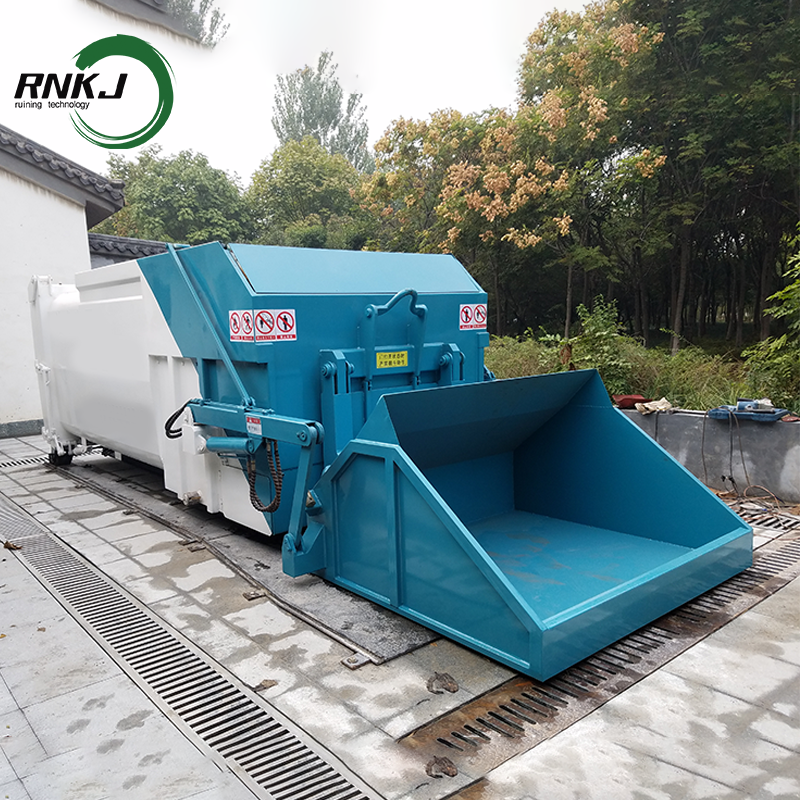

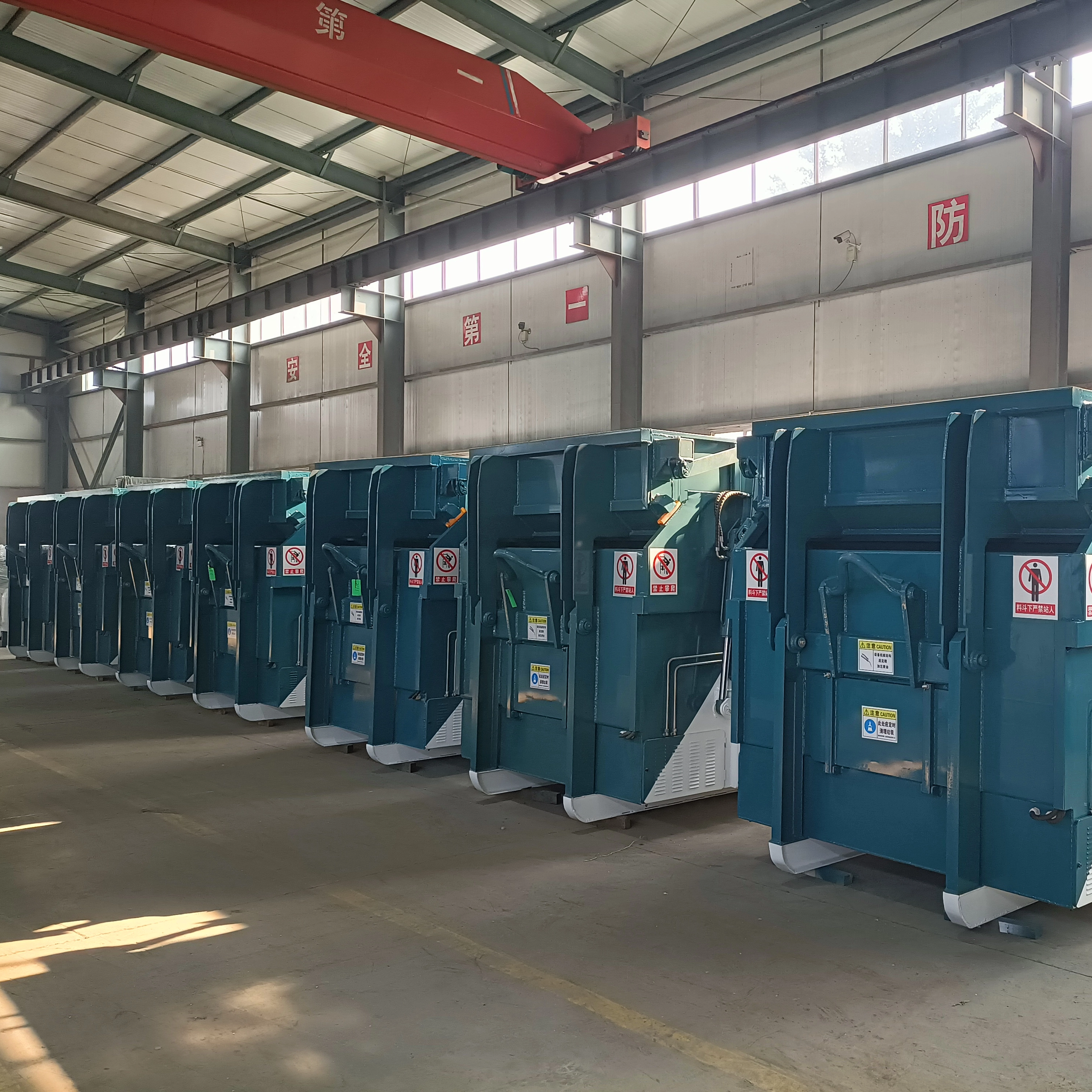

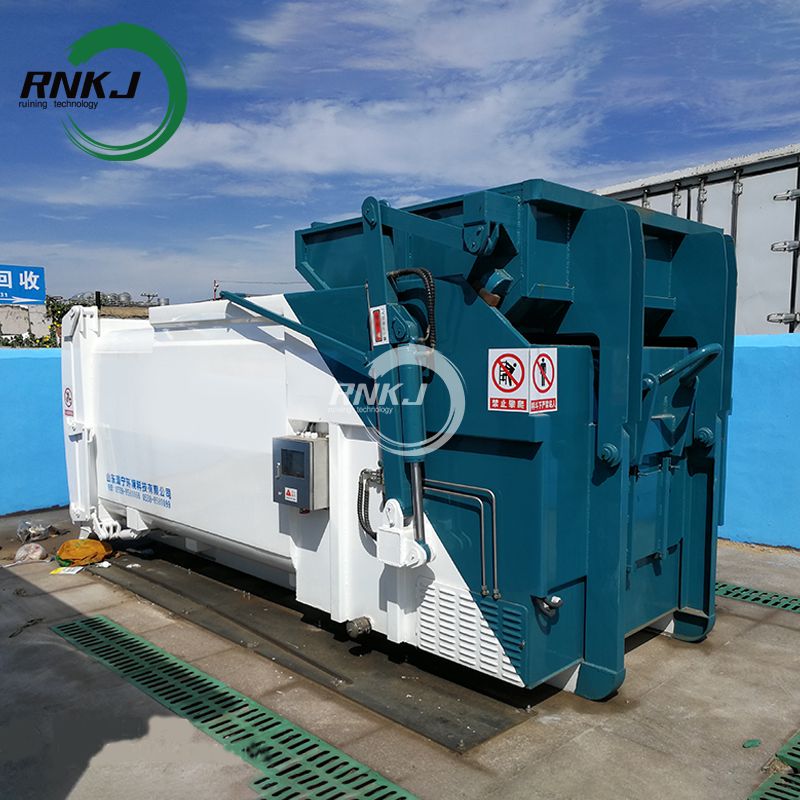

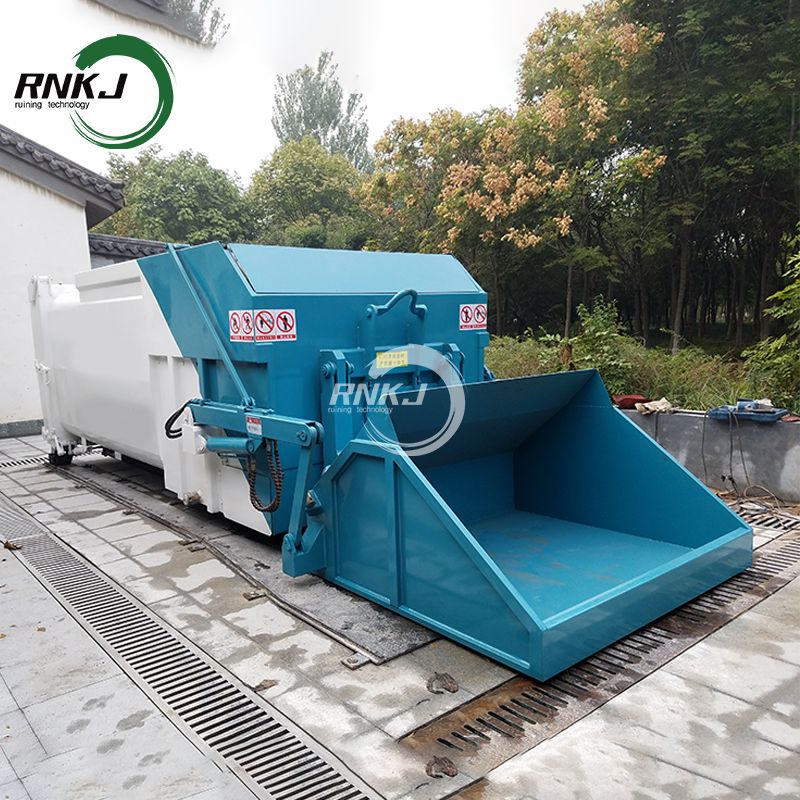

Hydraulic Hopper Trash Compressor is a professional environmental sanitation and industrial waste treatment equipment that integrates garbage collection, compression reduction, and storage functions. Its core feature is the installation of a large-capacity hopper and a hydraulic drive system, which enables efficient processing of loose and large-volume various types of garbage, significantly reducing transportation and storage costs. It is a key equipment in the modern garbage collection and transportation system and is widely used in municipal sanitation, industrial plants, commercial centers, port terminals, and other scenarios, capable of handling various materials such as household garbage, industrial waste, and commercial waste.
Product AdvantageEfficient volume reduction: By utilizing the powerful compression force provided by the hydraulic system, the volume of loose garbage is significantly reduced, thereby greatly lowering transportation costs and storage space requirements.
Sealed and environmentally friendly: The fully sealed design effectively prevents garbage from leaking and odors from spreading, reducing secondary pollution and meeting environmental protection requirements.
Operation is convenient: The automation level is high. It is equipped with a PLC control system and a touch screen operation interface, enabling both automatic and manual operation modes, thereby reducing the manual workload.
Durable and reliable: The core components are made of high-strength and wear-resistant materials, and the hydraulic system is equipped with multiple protective devices, ensuring a service life of up to 10-15 years.
Safety protection: Equipped with multiple safety devices such as overload protection, emergency stop button, limit switch, and sound and light alarm to ensure operational safety.
Multi-functional compatibility: It can handle various materials, including household waste, industrial waste, commercial waste, medical waste, etc., with strong adaptability.
Energy-saving design: Utilizing dual pump systems, variable pumps and other energy-saving technologies, some models are equipped with energy recovery devices to reduce energy consumption.
Core Structure CompositionHopper and feeding mechanism
Large-capacity hopper, lifting device, leak-proof skirt, safety guardrail, made of high-strength wear-resistant steel plate. The hopper is inclined in design, with smooth inner wall to prevent sticking, and equipped with sealing strips to prevent leakage.
Functions: Receives bulk garbage, lifts the trash can/hopper through the lifting mechanism, discharges the garbage, guides the garbage into the compression chamber, preventing spillage and leakage of garbage.
Compression main unit
Compression head (push plate), compression chamber, guide rail. The compression head adopts an arc-shaped design, made of high-strength alloy steel, and its surface has been treated for wear resistance; the inner wall of the compression chamber is lined with wear-resistant lining plates.
Function: Performs garbage compression action, crushes large pieces of garbage, increases compaction density, and ensures uniform compression.
Hydraulic power system
Hydraulic pump, hydraulic cylinder, hydraulic oil tank, cooler, filter, control valve group. High-pressure design, dual pump system for improved efficiency, equipped with forced air cooling system to prevent overheating
Functions: Provide powerful power for compression, control the forward/reverse movement of the compression head, lifting of the hopper, etc., achieve fast advance, compression, and holding pressure functions
Electrical control system
PLC controller, button operation panel, sensors, safety interlock device. Utilizing programmable logic control, it has both automatic and manual modes. Equipped with overload protection, emergency stop button, limit switch and other safety devices.
Functions: Control the operation process of equipment, monitor the system status, ensure operational safety, and achieve automatic operation.
Box body and sealing system
Garbage storage box, rear door assembly, locking mechanism, sealing strip. The box body is made of high-strength weather-resistant steel plate and is welded as a whole. The rear door is equipped with a double-sealing structure. The locking mechanism is driven by hydraulic power to ensure reliable sealing.
Function: Stores compressed garbage, prevents garbage leakage and odor diffusion, and ensures sealing during transportation.
Chassis and walking mechanism
Walking wheels / legs, traction device. Utilizing heavy-duty steel structure, the walking wheels are equipped with wear-resistant tires, and the legs can be adjusted in height to adapt to different terrains.
Function: Supports the overall weight of the machine, provides mobility, and ensures stable operation of the equipment.
Safety and Assistance System
Warning lights, alarm devices, dust-proof and odor-removing devices, liquid level indicators, thermometers. Equipped with an audible and visual alarm system that interlocks with the operation; optional spray dust-reduction and activated carbon odor-removing devices.
Function: Ensures the safety of operators, improves the working environment, and monitors the operating status of the equipment.
Definition and Working PrincipleLoading stage: The garbage is lifted into the hopper through manual operation, a small collection vehicle, or a trash bin lifting mechanism. The hopper lifting device then sends the garbage into the compression chamber inlet.
Pre-compression stage: The hydraulic system is activated, and the compression head moves rapidly, initially compressing the garbage and pushing it into the storage chamber, achieving preliminary volume reduction.
Main compression stage: After the compression head reaches the designated position, the system automatically switches to high-pressure mode, performing deep compression on the garbage. The compression ratio is high, and the loose garbage is compacted into a high-density block-like form.
Pressure retention and return stage: The compression head maintains the high-pressure state for a few seconds to ensure the stability of the garbage density. Then, the hydraulic system supplies oil in reverse, and the compression head quickly returns, preparing for the next round of compression.
Continuous operation: Repeat the above process until the storage box is full. The system automatically emits a full box signal.
Discharging stage: After unlocking the rear door through the hydraulic system, the compression head pushes the garbage out as a whole, or the entire box is transported to the transfer point through the traction device.
Product Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW, 5.5KW, 7.5KW |
Machine weight (kg) | 4800kg,5500kg, 6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Support Customization
Intelligent SMART technology
Application ScenariosMunicipal sanitation sector: City waste transfer stations, community garbage collection points, street cleaning stations, for handling domestic waste and street cleaning debris
Industrial sector: Manufacturing plants, chemical plants, power plants, mines, for handling industrial waste, packaging materials, production residues, etc.
Commercial sector: Large shopping malls, supermarkets, hotels, dining centers, for handling commercial waste and kitchen waste
Special locations: Port terminals, airports, railway stations, hospitals, schools, for handling waste generated in specific locations
Other scenarios: Construction sites, demolition sites, for handling construction waste and renovation debris; livestock farms, for handling organic waste such as livestock manure
Hydraulic Hopper Trash Compressor is a mature and reliable waste treatment equipment with excellent performance. Through the perfect combination of the hydraulic system and the hopper design, it achieves efficient reduction and sealed storage of waste. Its core advantages lie in high compression ratio, environmental protection and convenient operation, which can significantly reduce the overall cost of waste treatment and conform to modern environmental protection concepts. Different types of equipment are suitable for different scenarios. Users can choose the appropriate model according to their own needs. At the same time, through regular maintenance and care, the service life of the equipment can be extended, ensuring long-term stable operation.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
