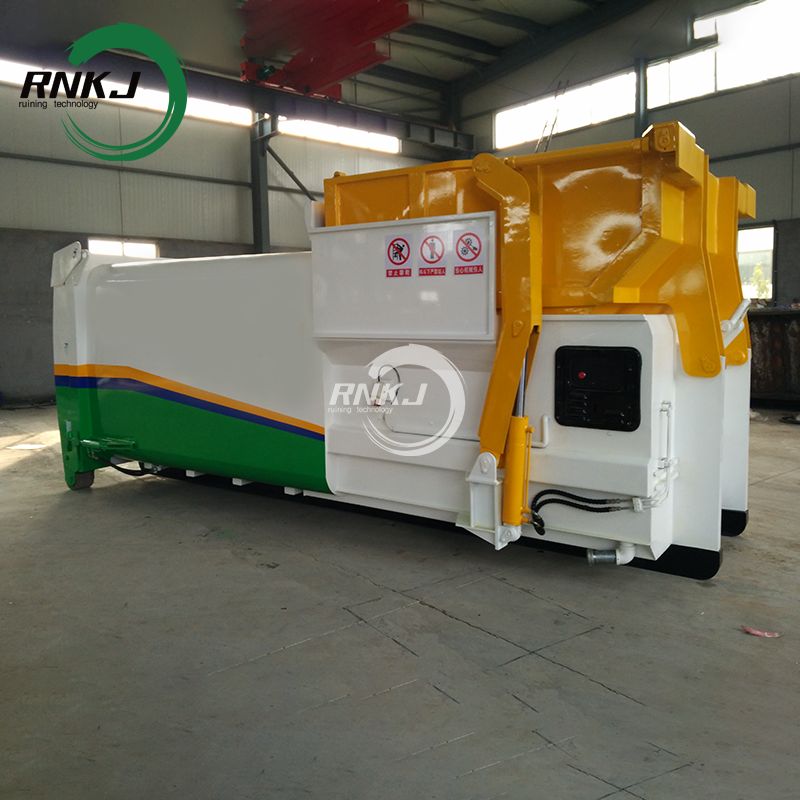

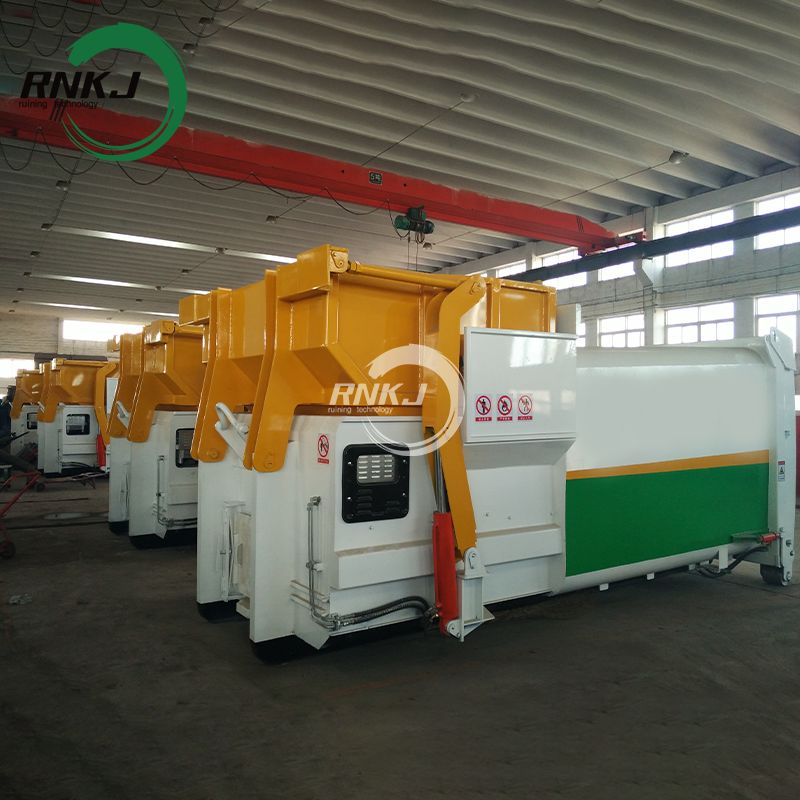

Hydraulic Hopper Garbage Compressor is a comprehensive environmental sanitation equipment that integrates garbage collection, compression reduction, storage and transportation. It utilizes a hydraulic system to provide powerful power, compressing loose garbage into high-density blocks, significantly reducing transportation costs and storage space requirements. It is widely used in urban garbage transfer stations, communities, industrial parks and other places.
Product AdvantageEfficient downsizing:
The volume is reduced by 60% - 80% after compression, and the transportation efficiency is increased by 3 - 5 times, significantly reducing transportation costs.
Environmental protection performance:
The fully sealed design prevents the spread of odors and secondary pollution.
Sewage is collected and treated centrally to prevent seepage into the soil and groundwater.
It reduces the frequency of garbage truck trips and lowers exhaust emissions.
Economic value:
Reduction in the number of transportation vehicles, saving on fuel and labor costs
Extension of the lifespan of landfill sites, reducing land occupation
High-density garbage is more suitable for incineration for power generation, improving energy utilization rate
Operational convenience:
One-click automatic operation, reducing the labor intensity of manual work
Can be connected with the intelligent garbage collection system to achieve remote monitoring and management
Automatic fault diagnosis, facilitating maintenance and repair
Safe and reliable:
Multiple safety protections prevent accidents
The hydraulic system is equipped with safety valves to prevent equipment damage due to excessive pressure
The box body is made of high-strength steel, providing impact resistance and deformation prevention
Core Structure CompositionHopper Assembly
Garbage intake port, which can be flipped or fixed: Made of high-strength wear-resistant steel plate, corrosion-resistant. Some models come with a sealed cover to prevent odor diffusion.
Compression System
Core compression unit, including compression head and compression cylinder: Double cylinder or four cylinder design, compression force can reach 10-100 tons. The compression head is mostly designed in a double-curved or arc shape to improve efficiency.
Hydraulic System
Power source, including pump, cylinder, control valve, and oil tank: The high-pressure piston pump provides power. The oil temperature is controlled within 30-60℃, and a filtration system is equipped to ensure cleanliness.
Electrical Control System
Operation and Safety Control Center: It can achieve automatic, semi-automatic and manual modes, and is equipped with overload protection, limit protection and emergency stop functions.
Container Body Assembly
Garbage storage and compression space: Volume 6 - 22 cubic meters, welded with high-strength steel plates, with anti-leakage design, and a sewage collection tank is installed at the bottom.
Sealing and Locking Mechanism
Prevent odor leakage and garbage dropping: The hydraulic locking rear door is equipped with rubber sealing strips, with high protection level, resistant to rain and odor.
Auxiliary system
Dust suppression, odor removal, wastewater discharge: Optional features include spray dust suppression, activated carbon odor removal, and wastewater collection and treatment equipment.
Definition and Working PrincipleDefinition: A hydraulic-driven waste processing equipment equipped with a flipable or fixed hopper, which can convert the loose waste fed into the hopper into high-density and small-volume compacted waste blocks through horizontal or vertical compression methods.
Working principle:
Loading stage: Garbage is fed into the hopper through manual operation, by dumping from a trash can, or by a robotic arm. Some equipment is equipped with a flipping mechanism that can automatically dump the contents of the trash can.
Pre-compression stage: The hopper is initially compacted to prevent garbage from overflowing. Some models have a crushing function to handle large pieces of garbage.
Main compression stage: The hydraulic system drives the compression head to move horizontally under high pressure, pushing the garbage into the compression chamber. The compression ratio can reach 3:1 to 5:1.
Storage and transportation: The compressed garbage is stored in sealed containers. When the container is full, it is transported to the landfill or incineration plant by a special vehicle.
Hydraulic system circulation: The hydraulic pump generates high-pressure oil, which is distributed to each cylinder through the control valve to complete actions such as the extension and retraction of the compression head and the flipping of the hopper. The hydraulic oil returns to the oil tank for cooling, filtration, and recycling.
Product Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW, 5.5KW, 7.5KW |
Machine weight (kg) | 4800kg,5500kg, 6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Support Customization
Intelligent SMART technology
Are you still troubled by the accumulation of garbage and the spread of unpleasant odors? Are you still bearing the high costs and losses from the secondary transportation? Our Hydraulic Hopper Garbage Compressor with a groundbreaking design has created a complete solution for the entire process from collection to transportation, becoming a new choice for municipal sanitation, industrial parks, and commercial complexes for cleaning!
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
