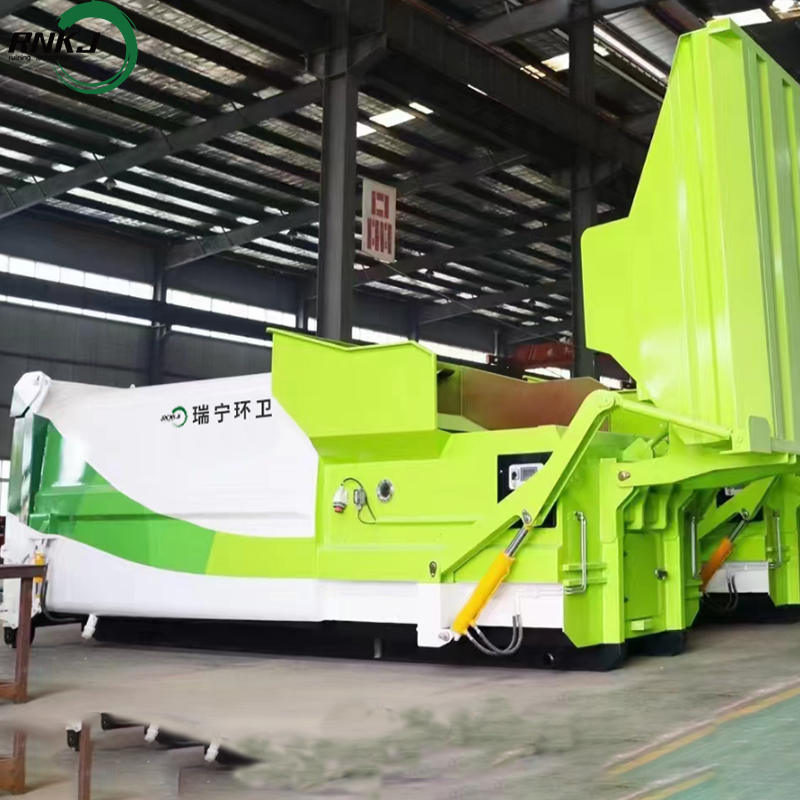

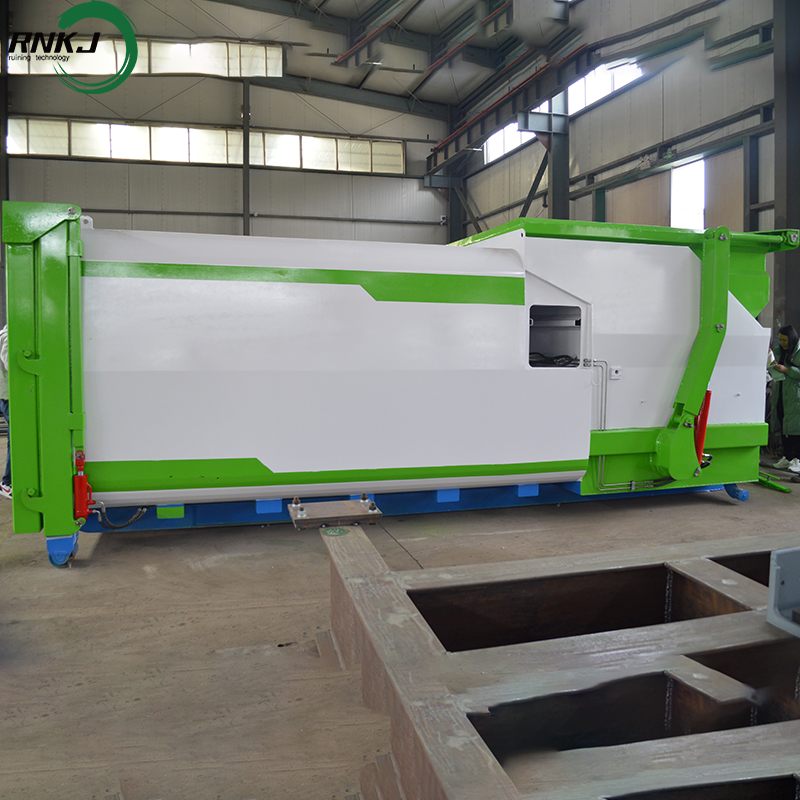

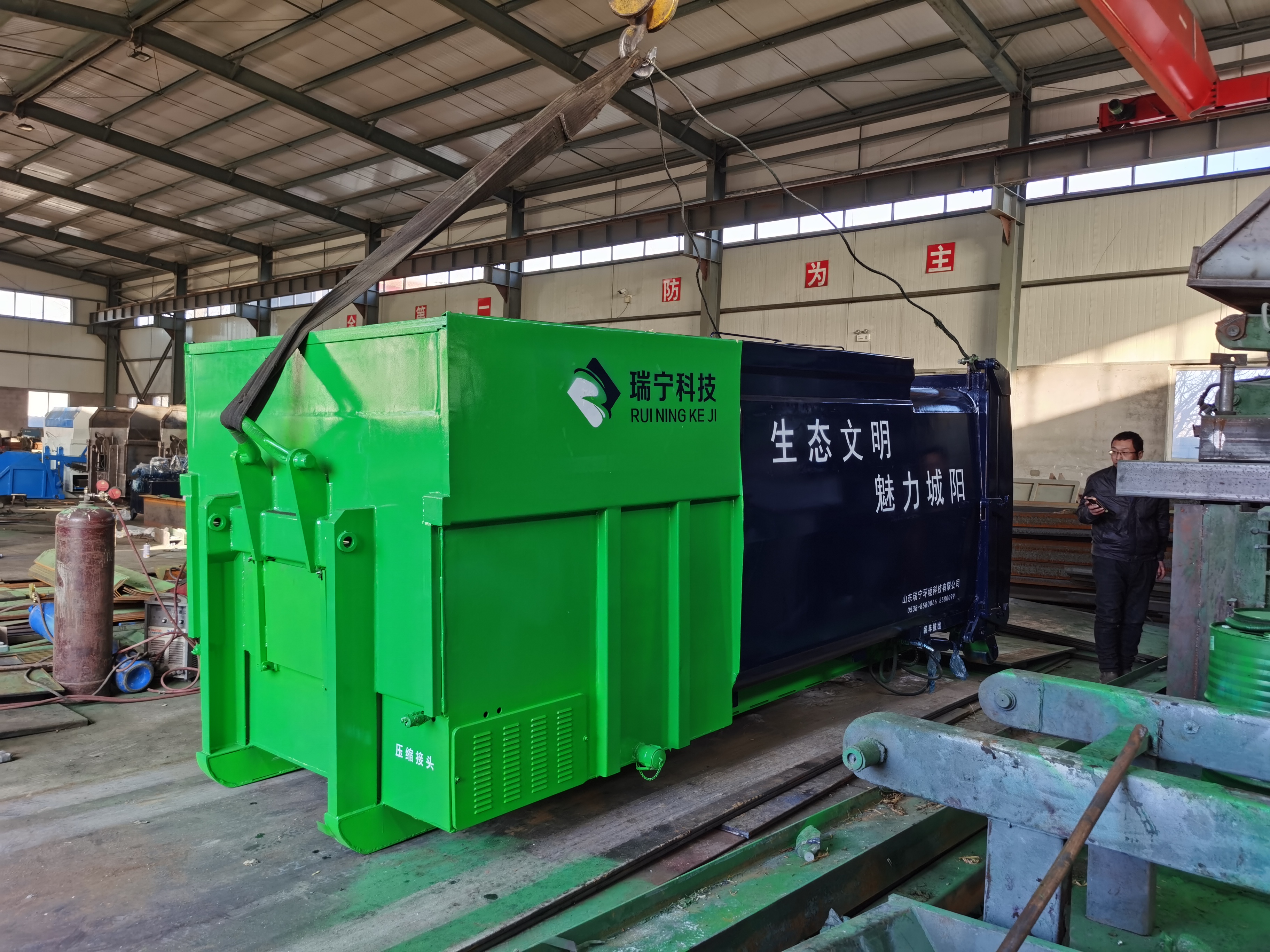

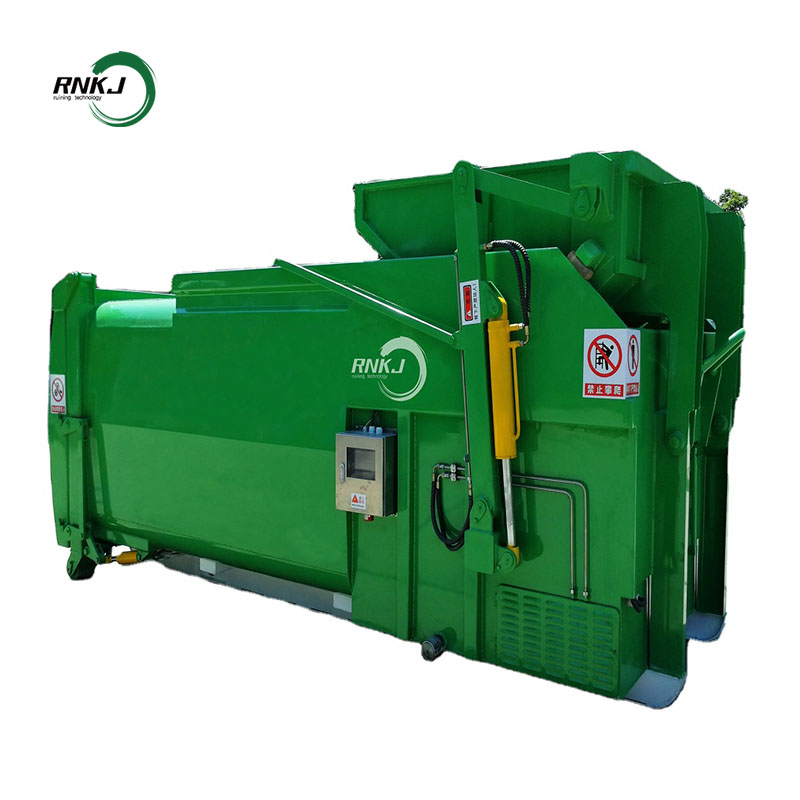

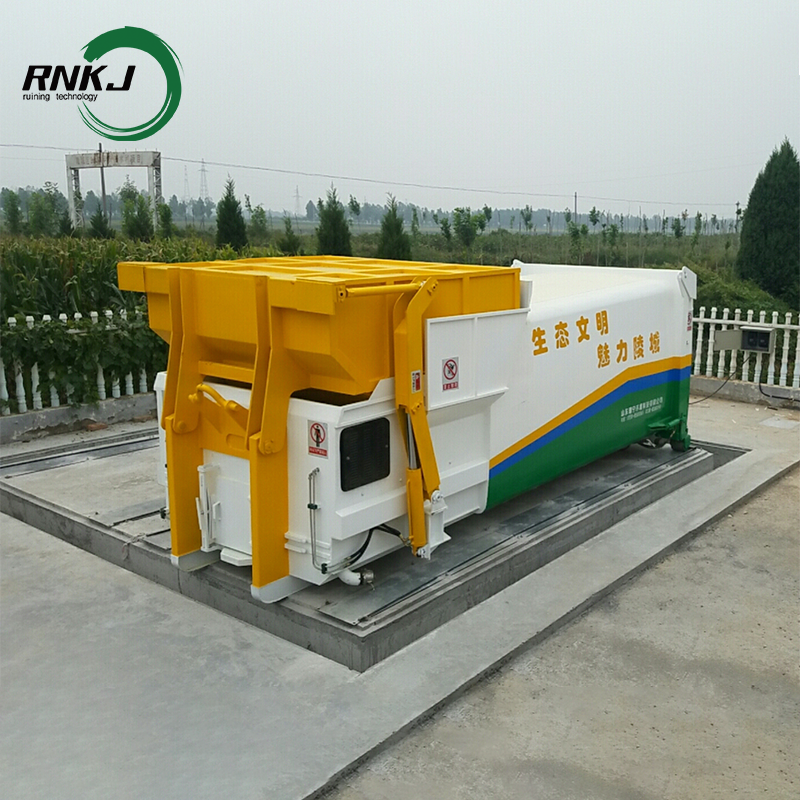

Hopper Waste Compression Station is a modern environmental protection equipment that integrates garbage collection, compression, and transportation. It mainly consists of garbage storage box, compression mechanism, tipping mechanism, electro-hydraulic control system and other parts.
From the appearance, Hopper Waste Compression Station structure is compact and occupies a small area. Compared with traditional fixed garbage stations, it does not require complex civil engineering supporting facilities, greatly saving construction costs and time. This feature makes it easy to adapt to various site conditions, whether it is bustling commercial areas, densely populated residential areas, or limited spaces such as factories, schools, hospitals, etc., it can find its place of use.
Product Advantage
The Hopper Waste Compression Station adopts a closed-operation design, where the hopper and compression chamber connect seamlessly. Equipped with either sealed doors or a spray deodorization system, it effectively curbs odor dispersion and leachate leakage, ensuring compliance with environmental protection standards. It accommodates multiple loading methods—including loaders, forklifts, and manual hand carts—and can be flexibly adjusted based on on-site conditions.
Product Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW, 5.5KW, 7.5KW |
Machine weight (kg) | 4800kg,5500kg, 6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Intelligent SMART technology
Product Uses
Garbage transfer station: As the core equipment, it centrally compresses the garbage collected at the front end to reduce the number of transfer vehicles.
Industrial field: Processing production waste (such as automobile dismantling waste, packaging waste) to reduce storage and transportation costs.
Construction site: Compressing construction waste (concrete blocks, waste wood) to reduce on-site stacking and transportation costs.
Garden/agricultural scene: Compressing biomass waste such as pruned branches and crop straw for subsequent composting or energy utilization.
Productive Capacity
We have a professional team and the strength of the factory to support customization. Including type, volume, height, color and other requirements, free custom logo.
RNKJ as a leader in the Environmental Protection Industry field, we are committed to providing global customers with solutions that exceed their expectations through innovative technology, excellent quality and comprehensive services. With more than 20 years of industry experience, we have a professional design and development team. Equipped with advanced production equipment and automated production lines to meet large-scale order needs. International Certifications: Passed ISO, CE, UL and other international quality and safety certifications. Quality Commitment: We promise that all products undergo a strict quality control process, from raw material procurement to finished product delivery, every step follows the highest quality standards. Customized Service: "We provide customized services to adjust product specifications, packaging design, etc. according to your specific needs. We look forward to working with you.
Packaging and shipping
The shipping methods include: Ro-Ro, bulk shipping, 20ft container, 40ft container, 40 HQ container, flat rack container, open top, platform container express, etc.
FAQ
1.Are you a manufacturer or trader?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2.How long is the validity of quotation?
Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market.
3.What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days. It depends on the order quantity.
4.How can we ensure quality?
The final inspection is always carried out before shipment.
5.How to install the equipment after purchasing?
We will provide a professional installation video to illustrate. A manual is available as well.
6.Do you offer a guarantee?
Yes, we guarantee our product for one year. After-sales service support and technical support are both provided.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
