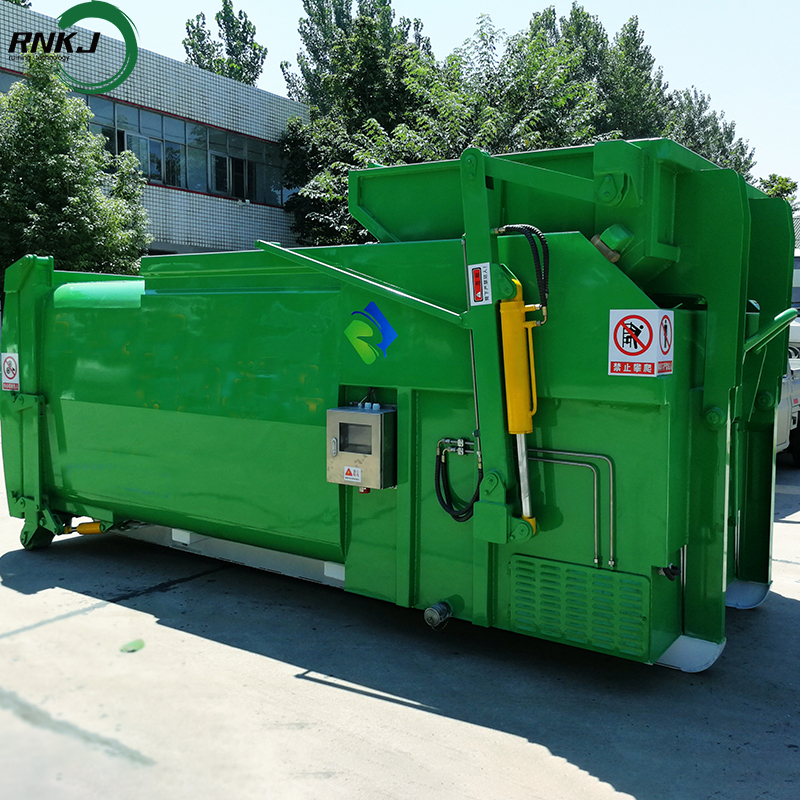

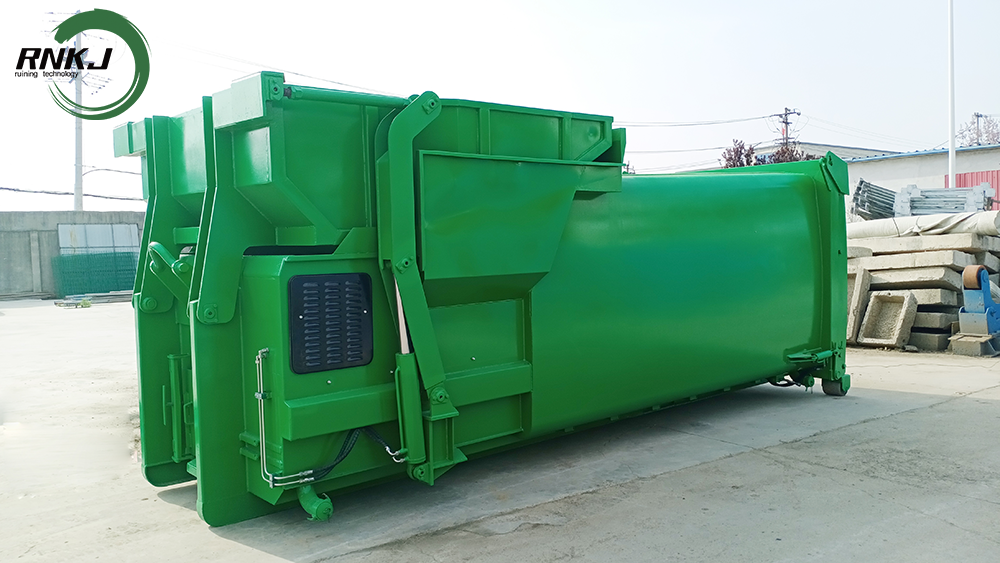

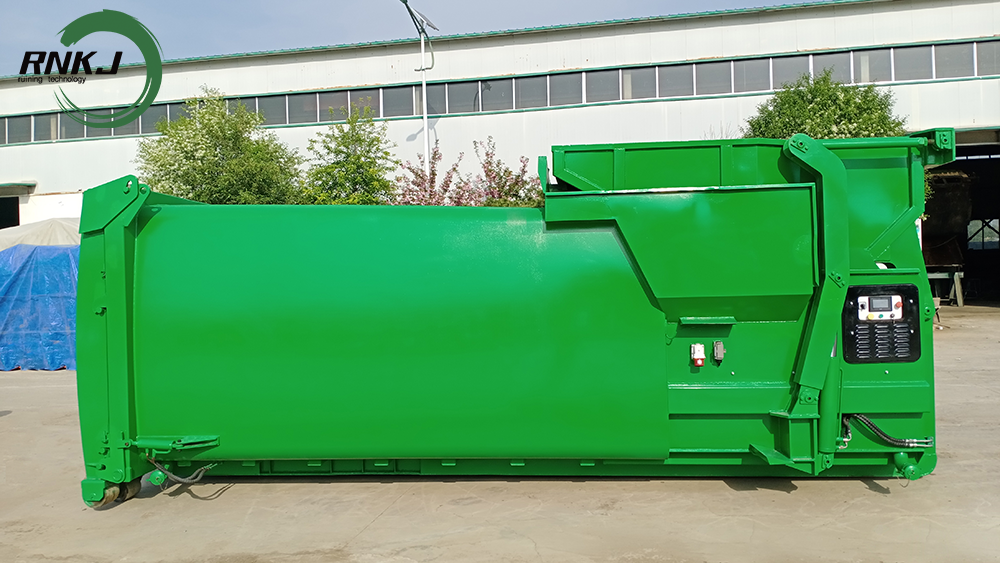

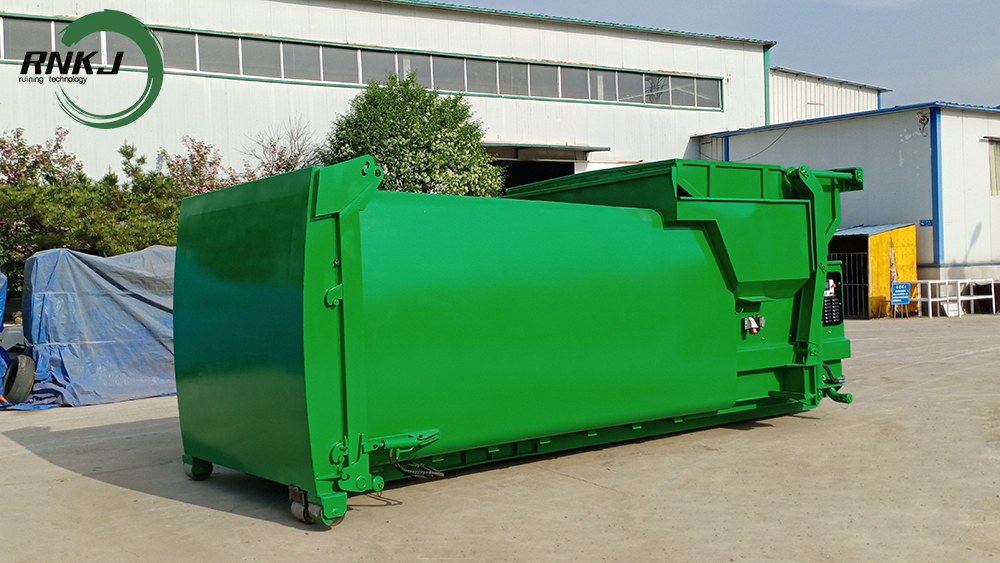

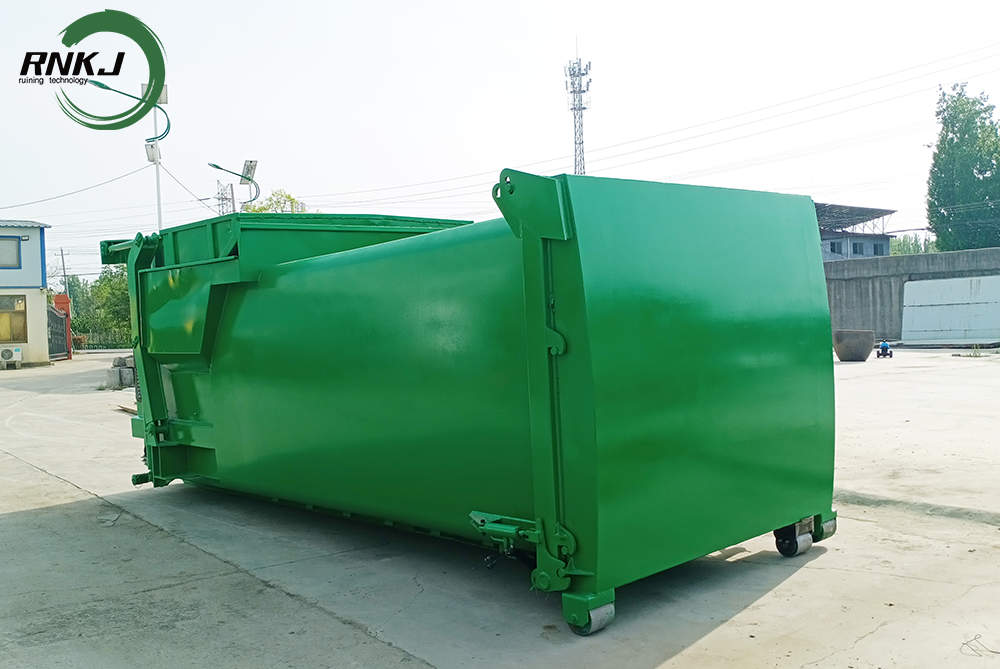

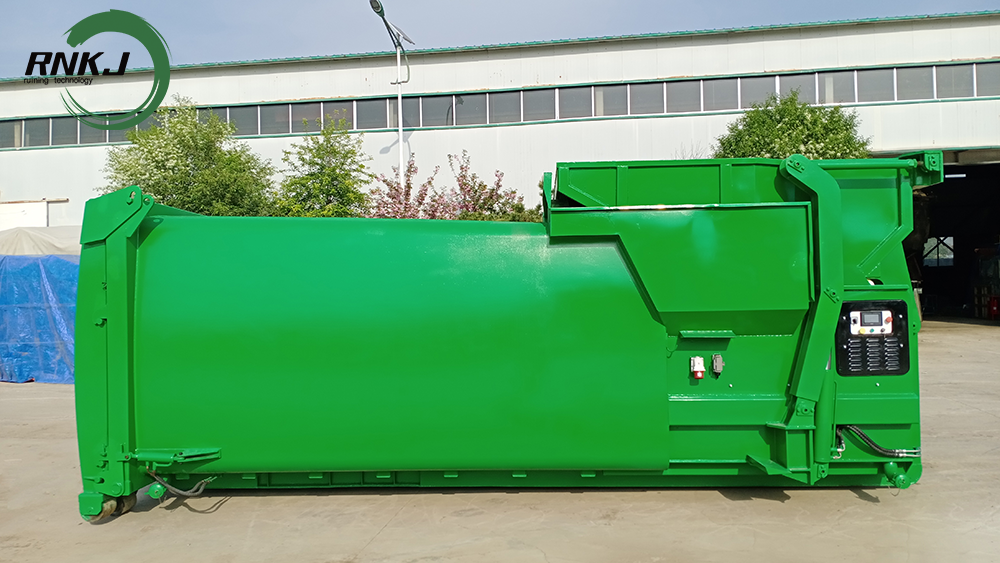

Hopper Trash Compactor is a modern environmental protection equipment that integrates garbage collection, compression, and transportation. It mainly consists of garbage storage box, compression mechanism, tipping mechanism, electro-hydraulic control system and other parts. From the appearance, its structure is compact and occupies a small area. Compared with traditional fixed garbage stations, it does not require complex civil engineering supporting facilities, greatly saving construction costs and time. This feature makes it easy to adapt to various site conditions, whether it is bustling commercial areas, densely populated residential areas, or limited spaces such as factories, schools, hospitals, etc., it can find its place of use.
RNKJ's Hopper Trash Compactor can help you maximize savings and increase hauling efficiency for dry, wet, bulky or mixed waste streams. Our inventory of new and reconditioned equipment, combined with industry expertise and excellent customer service, will help optimize waste disposal for your business.
Product Advantage
The entire process of compressing, storing, and discharging household waste is basically automated, and the cleaning personnel do not need to directly contact the garbage. The operation process is not dirty or tiring, which not only reduces labor intensity but also improves work safety and hygiene.
The electrical control system usually adopts a PLC control system, which has memory and fault self diagnosis functions, can adjust the processing program according to different working conditions, and can automatically display the operating status of the compressor in a graphical and intuitive way on the display screen, making it easy for operators to grasp the equipment operation status and maintenance, ensuring reliable operation of the equipment.
In addition, Hopper Trash Compactor also have strong flexibility and adaptability. It can flexibly adjust the setting location and quantity
according to the amount of garbage generated in different regions and actual needs.
The conventional Hopper Trash Compactor equipment comes in various specifications and models such as 12 m³, 15 m³, and 18 m³, and can also be matched with compression equipment according to the vehicle being used by the user on site.
Small garbage stations (6-8 m ³ ) are suitable for small-scale garbage disposal scenarios such as community communities, shops, underground garages, etc; Medium sized garbage stations (10-15 m³) are suitable for medium-sized garbage disposal needs such as commercial areas, schools, hospitals, etc; Large garbage stations (18-22 m³) are suitable for high-intensity waste generation scenarios such as construction sites, exhibitions, and large-scale urban events.
Product Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW, 5.5KW, 7.5KW |
Machine weight (kg) | 4800kg,5500kg, 6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | automatic + manual |

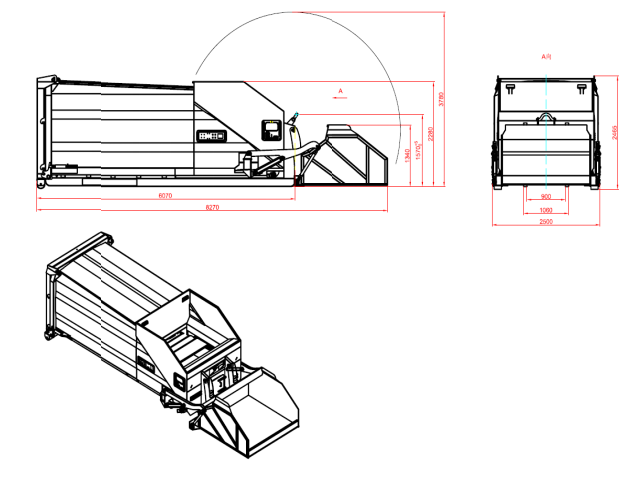

Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Support Customization
Intelligent SMART technology
Features

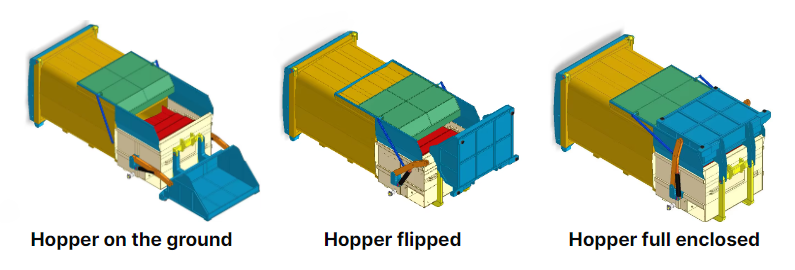

In terms of working principle, when garbage is collected at the Hopper Trash Compactor, the tipping mechanism will pour the garbage into the
compression box. At this point, the compression mechanism begins to work, compressing the garbage with strong pressure to significantly reduce its volume.
Generally speaking, the compression capacity of mixed processing of household waste is about 3:1, which means that the waste that originally occupied a large amount of space can become more compact after compression, making it easier for subsequent transportation and processing.

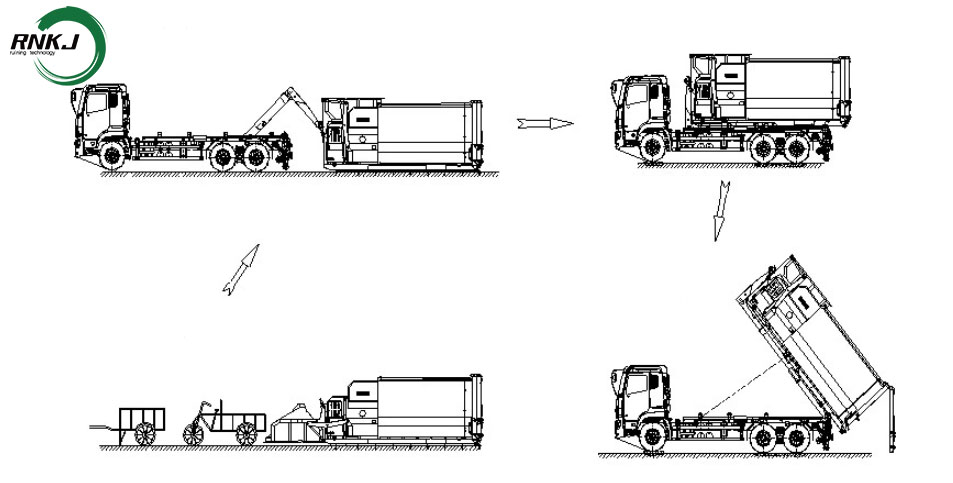

The compressed garbage is stored in a sealed container and waiting for transportation. In the process of garbage transportation, Hopper Trash Compactor are usually used in conjunction with hook arm garbage trucks. When the garbage station is filled with garbage, the hook arm truck will drive in and use a special device to hook the entire garbage station filled with garbage onto the truck, and then transport it to the garbage disposal site. After unloading the garbage, the hook arm truck pulls the empty garbage station back to the garbage transfer station and enters the next workflow.
This configuration mode of one vehicle with multiple boxes achieves circular transportation, greatly improving the efficiency of garbage transfer and reducing the operating costs of large garbage transfer vehicles.
The advantages of Hopper Trash Compactor are multifaceted. In terms of environmental performance, it adopts a fully enclosed design, effectively preventing the shedding of household waste, sewage overflow, and odor overflow during compression, storage, and transportation, and reducing secondary pollution around the garbage transfer station. Some equipment is also equipped with automatic sewage discharge function and disinfection, mosquito and fly control system, which can discharge the sewage generated during the garbage compression process into the sewage pipe network, and carry out disinfection, insecticide, dust removal and deodorization treatment on the garbage, further improving the environmental protection effect.
What is the purpose of Hopper Trash Compactor?
Waste compaction is the process of compacting waste, reducing it in size. Hopper Trash Compactor and waste collection vehicles compress waste so that more of it can be stored in the same space. Waste is compacted again, more thoroughly, at the landfill to conserve valuable airspace and to extend the landfill's life span.
Operation Procedure
The tipping bucket mobile garbage compression station consists of a compression chamber, a loading box, a rear door, a tipping bucket, a hydraulic system, and an electrical system. Suitable front-end collection tools for use in urban and rural areas with concentrated garbage transfer stations include small collection vehicles, handcarts, tricycles, etc.
Hopper Trash Compactor are playing an increasingly important role in modern garbage disposal due to their high efficiency, environmental friendliness, flexibility, and many other advantages. It not only provides convenient solutions for garbage disposal in cities and towns, but also makes positive contributions to improving our living environment and promoting sustainable development. With the continuous advancement and innovation of technology, we believe that Hopper Trash Compactor will demonstrate greater value in the future garbage disposal industry.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
