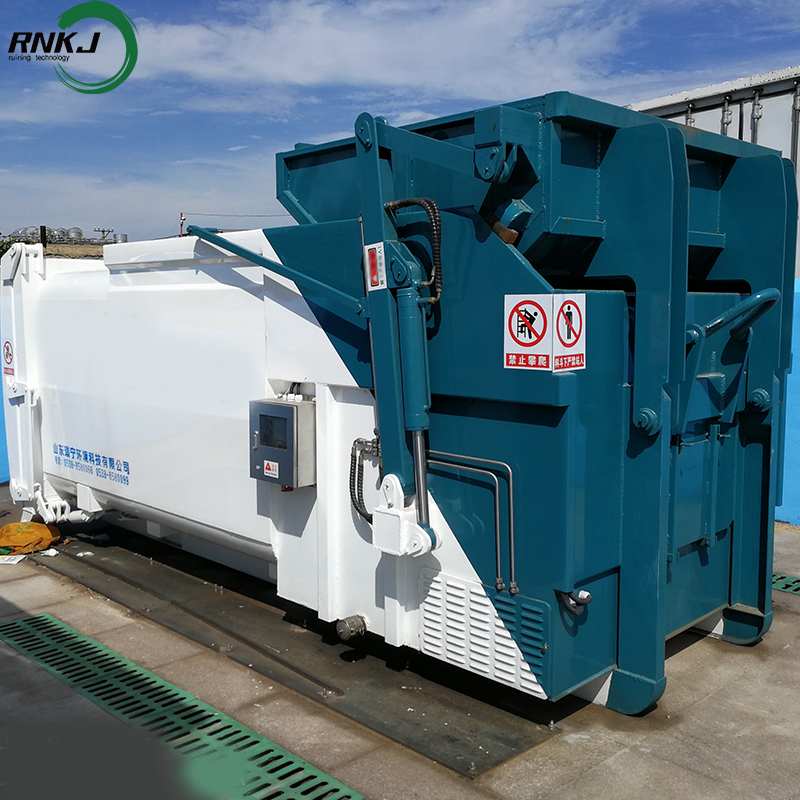

The Hopper Garbage Compression Station is a highly efficient garbage disposal equipment that compresses and reduces the volume of garbage through a hydraulic system or mechanical power. It is widely used in urban sanitation, communities, industries and other scenarios.
Product Advantage
Hopper Waste Compactor is a closed operating structure with a seamless connection between the hopper and the compression chamber. Some equipment is equipped with a sealed door or a spray deodorization system to suppress the spread of odor and the leakage of leachate, meeting environmental protection standards. It supports a variety of loading methods such as loaders, forklifts, and manual carts, and can be flexibly adjusted according to site conditions.
Product Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW, 5.5KW, 7.5KW |
Machine weight (kg) | 4800kg,5500kg, 6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Our advantage
1.Reasonable Design

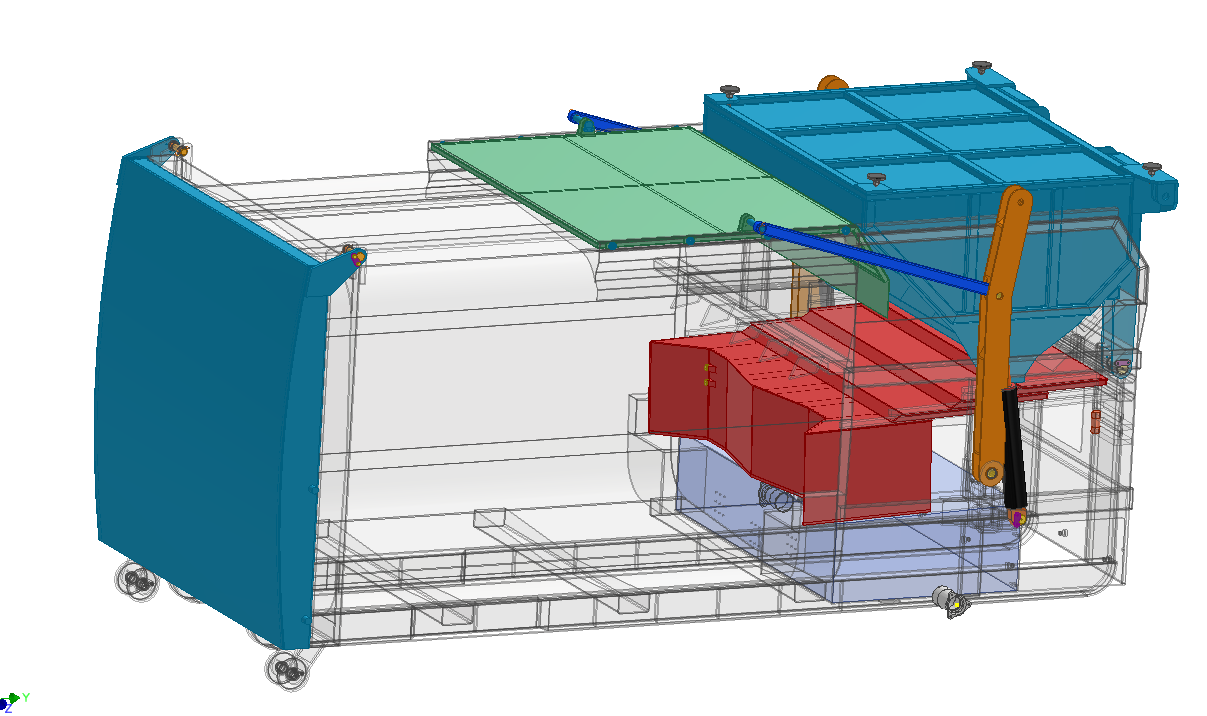

The compression head is located above the tank to prevent backflow and protect the cylinder and compression head from corrosion caused by wastewater, thus ensuring the tank remains clean. The wastewater collection tank is equipped with a leak-proof device to prevent wastewater leakage. Wastewater can be discharged directly via a wastewater pump or transported along with the tank for disposal.
2. Small Footprint
This compactor has a small footprint, is highly maneuverable, and can be adapted to various work locations.
3. Multiple Inlet Options
A variety of waste delivery options are available, including hoppers and tilting drums. Customers can choose the most suitable delivery method based on their needs.
4. Outstanding Performance
The system utilizes high-strength steel for its main frame, ensuring a long service life. It also features a high compression ratio and short cycle times, ensuring efficient operation.
5. Standardization
This waste compactor is compatible with most standard hook-type garbage trucks worldwide.
6. Customization
As a professional manufacturer, we can fully meet customer needs, including color, capacity, size, voltage, and more.
Product Uses
Garbage transfer station: As the core equipment, it centrally compresses the garbage collected at the front end to reduce the number of transfer vehicles.
Industrial field: Processing production waste (such as automobile dismantling waste, packaging waste) to reduce storage and transportation costs.
Construction site: Compressing construction waste (concrete blocks, waste wood) to reduce on-site stacking and transportation costs.
Garden/agricultural scene: Compressing biomass waste such as pruned branches and crop straw for subsequent composting or energy utilization.
Product Video
Product Feature
Hopper Waste Compactor have become the preferred equipment for handling "large, mixed, and difficult-to-compress" garbage due to their large capacity, strong compression, and high adaptability. Their core value lies in significantly reducing the cost of the entire garbage disposal chain through physical volume reduction and process optimization, while reducing the negative impact on the environment through environmentally friendly design. They are particularly suitable for large-scale garbage disposal scenarios that require high efficiency and professionalism.
Productive Capacity
We have a professional team and the strength of the factory to support customization. Including type, volume, height, color and other requirements, free custom logo.
Packaging and shipping
The shipping methods include: Ro-Ro, bulk shipping, 20ft container, 40ft container, 40 HQ container, flat rack container, open top, platform container express, etc.
FAQ
1.Do you offer a guarantee?
Yes, we guarantee our product for one year. After-sales service support and technical support are both available.
2.What is your MOQ?
1 set.
3.What services can we provide?
Customized are accepted. Someone will answer your questions at any time, 24 hours online. We will provide pre-sales and after-sales service
4.What shall we do if we do not have drawings?
Please send your sample to our factory, then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions (Thickness, Length, Height, Width), CAD or 3D file will be made for you if placed order.
