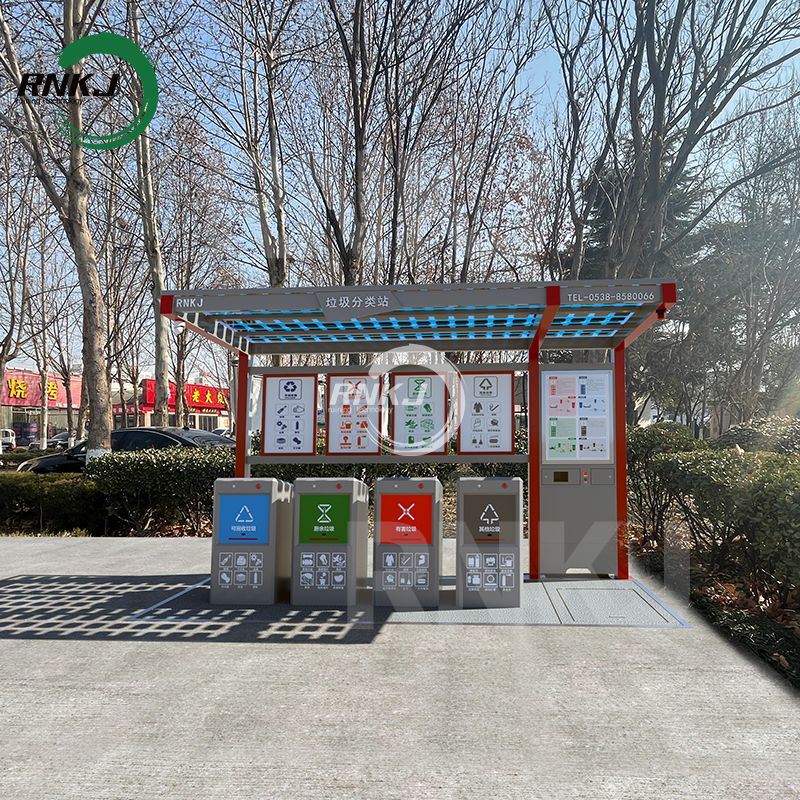

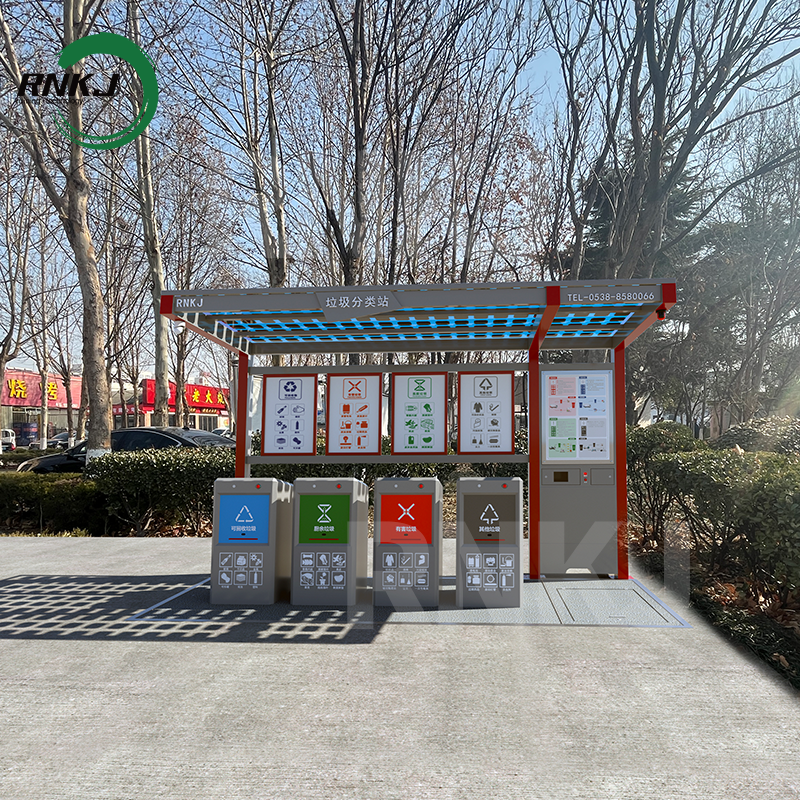

The Underground Waste Classification System is a novel environmental sanitation equipment that integrates landscape aesthetics, intelligent technology and efficient environmental protection. It has completely transformed the image of traditional trash cans that pollute the surrounding environment, providing a revolutionary solution for urban environmental management. This system adopts a fully underground design, hiding the four classification trash cans (which can be customized with capacities of 240L/660L/1100L) underground completely, while only the aesthetically pleasing intelligent disposal ports are retained on the ground, achieving "invisibility, sealing and intelligence" in garbage collection.
System Structure and Core Components1. Underground Storage Unit
Classification Bucket Material: Made of high-density material, with added UV-resistant stabilizer, resistant to acid and alkali corrosion, stable operation, and long service life
Sealing Design: The bucket lid and the bucket body adopt double sealing rings, combined with the underground low-temperature preservation environment, effectively inhibiting the emission of odors, preventing mosquito breeding and sewage leakage
Structural Reinforcement: The bottom and side plates adopt thickened and reinforced design, with strong impact resistance, and internal reinforcing ribs to prevent deformation
Drainage System: Each bucket bottom is equipped with an independent drainage valve, which can be regularly used to discharge the garbage leachate to keep the bucket dry
2. Ground Intelligent Discharge Port
Material: Customized material, waterproof, rust-proof, easy to clean, long service life
Discharge method: Supports various feeding methods such as contactless sensor opening, foot pedal, manual operation, etc. No manual operation required throughout the process, clean and hygienic
Classification identification: High-definition color classification icons, screen guidance, reduces classification difficulty, improves accuracy
Safety protection: The discharge port is equipped with a hand-protection device and a child safety lock
3. Hydraulic lifting system
Lifting capacity: The maximum lifting weight can reach up to 1 ton, enabling the easy lifting of four fully-loaded trash cans to the ground simultaneously
Lifting speed: Smooth operation with low noise
Safety protection: Equipped with overload protection, limit protection, and emergency descent function in case of power failure, providing multiple safeguards for operational safety
Control system: Utilizes PLC (Programmable Logic Controller), supporting both manual and automatic modes, with simple and convenient operation
4. Intelligent Monitoring and Management System
Overflow Monitoring: Equipped with ultrasonic sensors, it can monitor the garbage volume in real time. Before the container overflows, it automatically sends a clearance reminder to the background management platform.
Odor Control: An optional automatic spray deodorization system is available. It actively purifies the odor and inhibits the growth of bacteria.
Fire Warning: Built-in smoke sensors and temperature sensors detect abnormal temperatures and automatically activate the fire extinguishing device to prevent the garbage from spontaneously combusting.
Product AdvantageEnvironmental beautification: Landscape-style design, integrating with the surrounding environment
The ground only retains the aesthetically pleasing discharge ports, seamlessly blending with the surrounding landscape, completely eliminating the visual pollution of traditional garbage stations
The appearance of the discharge ports can be customized according to the environment, enhancing the quality of urban space
Odor Control: Achieve odor-free garbage collection
Fully enclosed underground storage, double-sealed bucket lids, optional deodorization system, solving the problem of garbage odor at the source
The underground environment maintains a stable temperature, effectively slowing down the decomposition of garbage and reducing odor generation
Health and Safety: Eliminate Secondary Pollution
Garbage is stored in sealed containers throughout the process to prevent the breeding of mosquitoes, the appearance of rats, and the overflow of sewage, thereby reducing pollution.
Contactless disposal design is adopted to avoid direct contact between residents and garbage, enhancing the level of health and safety.
Efficient operation: Reducing management costs
Large-capacity design reduces the frequency of collection, lowers the fuel consumption and labor costs of sanitation vehicles
Intelligent overflow alarm system prevents garbage from overflowing, optimizes collection routes, and enhances work efficiency
Durable and reliable: Long service life
The underground installation method avoids exposure to sunlight, rain and human damage, thereby extending the equipment's service life
The core components are made from internationally renowned brands, which have undergone strict quality inspections, resulting in a low failure rate and low maintenance costs
According to the customer's demand, it can choose various modes of feeding port, such as garbage classification feeding port, barrel turning device, large garbage opening device, etc., which is convenient for garbage collection vehicles and cleaning personnel to dump garbage.
CapacityThe system is equipped with four independent classification bins, perfectly compatible with the mainstream global waste sorting standards (recyclables, kitchen waste, hazardous waste, and other waste). There are three capacity options available, meeting the needs of different scenarios.
240L: Suitable for areas with limited space, with high cleaning frequency, applicable to small communities, park corners, and office buildings.
660L: It performs the best in the balance between capacity and space, and is the most widely used model. It is suitable for medium-sized communities, commercial areas, schools and hospitals.
1100L: Extra-large capacity， reduces cleaning frequency， lowers operating costs， applicable to large communities， city squares， and transportation hubs.
Working Principle
Standby mode: Completely buried and sealed storage. Four classification bins (240L/660L/1100L options available) are hidden underground, with only the discharge ports remaining on the ground. It prevents odors and leakage.
Smart discharge: When residents approach the sensor, the discharge port is activated. The classification guidance is precise and the discharge is done automatically, which then closes automatically. There is no contact throughout the process.
Real-time warning: Sensors monitor the amount of garbage. When it reaches the full level, a reminder for garbage removal is sent to the management end.
Hydraulic removal: The sanitation staff activate the lifting system, raising the bin to the ground for removal. After completion, it is cleaned and reset. The lifting process is safe and stable.
Automatic reset: The bin returns to underground, with double sealing. After self-check by the system, it returns to standby mode. The management end updates the removal data, forming a closed loop.
Applicable scenarios Residential communities: Enhance the quality of living environment, reduce surrounding environmental pollution, in line with modern community construction standards
Urban parks / scenic areas: Protect the landscape environment, improve the experience for visitors, in line with ecological tourism requirements
Commercial districts / shopping centers: Enhance the commercial image, create a comfortable shopping environment, reduce the impact of garbage collection on commercial activities
Schools / hospitals: Ensure hygiene and safety, cultivate the habit of sorting, in line with the management requirements of public institutions
Transport hubs / squares: Respond to the generation of large amounts of garbage, reduce the frequency of collection, enhance the image of the city environment
Product ParametersModel number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
FeatureWith all waste containers fully hidden underground, no trash bins are exposed on the ground, keeping the overall landscape intact. It is widely applicable to residential communities, scenic spots, commercial districts and other scenarios.
Fully enclosed and sealed storage design effectively controls odor emission, repels mosquitoes and pests, and prevents sewage leakage. It is an ideal choice for hospitals, schools and other areas with high hygiene standards.
It covers a tiny ground area and maximizes land utilization. The freed-up ground space can be used for greening, parking and other purposes, perfectly fitting old communities and high-density living areas.
Realize centralized waste collection and underground storage, reducing road occupation by sanitation vehicles and lowering daily disturbance to residents. Well-suited for transportation hubs and large-scale public venues.
Independent and fixed classified delivery ports greatly reduce mixed waste throwing, and steadily improve the overall effect of waste classification management.
Effectively prevent garbage scattering and waste spontaneous combustion risks, and fundamentally reduce urban secondary pollution.
Product Effects

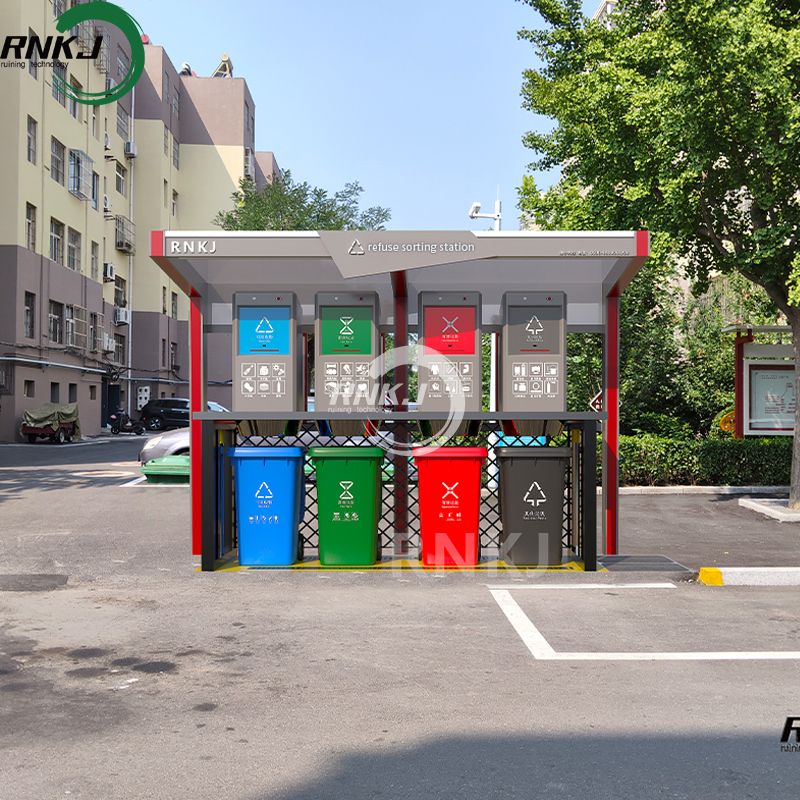

Lifting mode
Landing mode
The Underground Waste Classification System is not merely a garbage collection device; it is an innovative solution for urban environmental management. With the design concept of "invisibility, sealing, and intelligence", it completely resolves the environmental, hygiene, and management issues brought about by traditional garbage collection methods, providing solutions for building a beautiful city and improving the quality of living environment.
Choosing our underground intelligent waste classification collection system means choosing a cleaner environment and more efficient waste management. Contact us to obtain tailor-made waste disposal solutions.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
