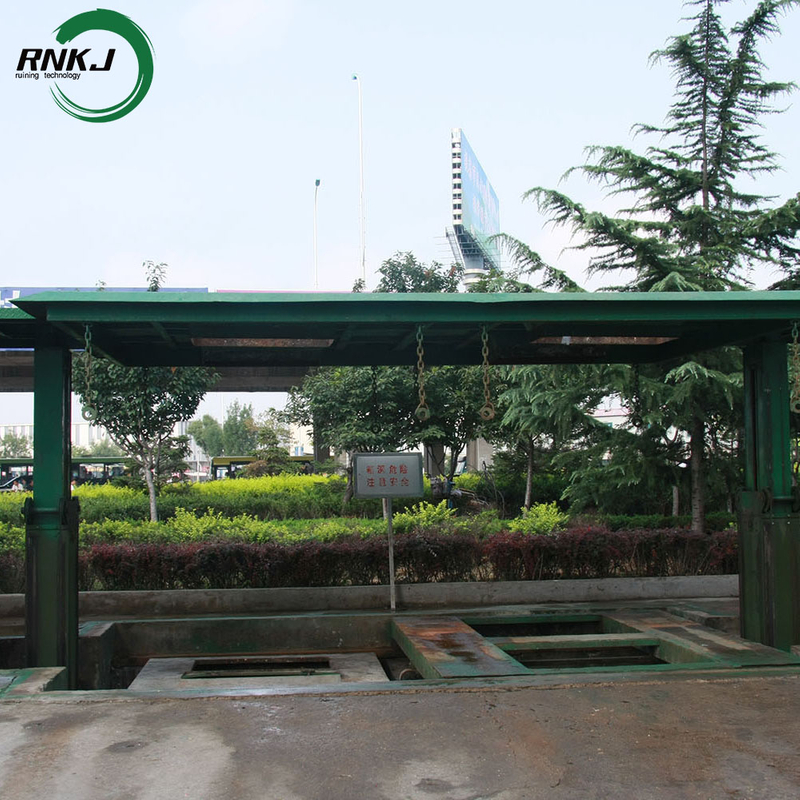

Double Box Underground Waste Station is a small, fixed-type waste transfer facility. Its core configuration consists of two independent, enclosed garbage storage boxes, which only have the functions of temporarily storing and transferring waste. It does not have a mechanical structure for compression and reduction, and is suitable for scenarios where the amount of waste generated is moderate and reduction is not required.
Product Advantages
Simple structure - No complex compression units, hydraulic systems or control systems, resulting in low failure rate and low maintenance costs.
Easy operation - No need for professional operation training. Ordinary sanitation workers can complete the placement and transfer connection.
Low construction cost - Simple civil engineering, no complex foundation treatment, suitable for areas with limited budgets.
Friendly classification - The dual-box design naturally adapts to garbage classification, capable of collecting two different types of garbage simultaneously.
High flexibility - The box can be flexibly replaced, suitable for different-tonnage boom trucks, suitable for various scenarios.
No pollution risk - The fully sealed design effectively prevents leakage of garbage leachate and the spread of odors, reducing secondary pollution.
Product Core structure
Core components:
Two independent boxes: Usually designed as sealed units, made of carbon steel or stainless steel, with capacity customized according to requirements, capable of separating and collecting, such as kitchen waste and other waste, recyclables and hazardous waste, etc.
Disposal opening: Set on the top or side of the box for convenient garbage disposal
Sealed box door: Ensures no leakage or odor spillage of garbage during storage and transfer
Mobile mechanism: Some models are equipped with wheels or hooks, suitable for transferring with garbage trucks
Foundation frame: Used to fix the box and ensure stability
Auxiliary facilities (optional):
Simple rain shelter or station building to protect the box from sun and rain
Odor removal device to improve the surrounding environment
Intelligent monitoring system to achieve functions such as overflow alarm and remote monitoring
Technical Parameters
Power | 5.5KW(Voltage 380V) |
Rotate speed | 1450r/min |
Theoretical displacement | 11.1ml/r |
Rated pressure | 20.6MPa |
Effective volume of the box | 8m³×2 |
Maximum lifting height | 3.3m |
Maximum lifting weight | 6000kg |
Dimensions of the pit (length × width × height) | 90-110s |
Overall machine weight | 6780×3700×2454（mm） |
Number of operators | 4500kg |
Working Principle
Garbage disposal: Residents or sanitation workers pour the garbage into the corresponding bins through the disposal opening.
Storage stage: The garbage naturally accumulates in the bins without undergoing compression treatment.
Transit process:
When the bin is close to full capacity, a telescopic garbage truck lifts the full bin out of the bin
At the same time, an empty bin is replaced to ensure the continuous garbage collection work
The full bin is transported to the garbage disposal site for unloading processing
Bin reset: The emptied bin is sent back to the garbage station and waits for the next round of use
Core Structure Composition
Double storage box: Usually made of steel structure and welded together, each box has a volume ranging from 5 to 15 cubic meters. It is equipped with a sealed top cover to prevent odor diffusion and rainwater infiltration;
Loading port device: Set on the top of the box, it is equipped with a door opening mechanism, facilitating the disposal of garbage by sanitation workers;
Transfer connection structure: At the tail of the box, there are hooks and locking devices that match the hook-arm vehicle, allowing the box to be directly lifted and transferred by the hook-arm vehicle;
Basic facilities: The ground is poured with concrete base for fixing the box. Some stations are equipped with simple rain shelters.
What are the characteristics of the Double Box Underground Waste Station?
Simple structure, low failure rate: Without components such as compressed machines, hydraulic systems, and complex control systems, the equipment has a simple structure, few daily failures, convenient later maintenance, and low maintenance costs.
Low operational threshold and easy to learn: No professional operation training is required. Ordinary sanitation workers can complete the entire process of garbage disposal, connecting with the telescopic truck for transportation, etc.
Low investment cost and convenient construction: The equipment procurement cost is low, and the supporting civil engineering is simple. No complex foundation treatment is needed. It is suitable for areas with limited budgets and basic infrastructure conditions.
Naturally compatible with garbage classification: The dual independent sealed box design can simultaneously collect two different types of garbage, directly meeting the needs of garbage classification collection.
Sealed and environmentally friendly, preventing secondary pollution: The full-sealed design of the box, combined with the dedicated sealed box door and disposal opening, can effectively prevent the leakage of garbage leachate and the escape of odors, reducing the impact on the surrounding environment.
Flexible transportation and continuous collection without interruption: Compatible with telescopic garbage trucks. The box can be lifted and replaced as a whole. When full, simply replace with an empty box to ensure the continuous operation of garbage collection without any waiting periods.
Wide adaptability of the site: Compact in size, with low requirements for installation space and foundation, suitable for old urban areas, small communities, rural areas, and urban-rural fringe areas where the amount of garbage generated is small or the site is limited.
Applicable Scenarios and Advantages
Applicable Scenarios: Small community squares, back alleys and side streets of old residential areas, small commercial zones, township health centers, etc. where the daily garbage generation is 10-30 tons;
Core Advantages:
The two bins are used alternately. When one bin is fully loaded, it can be directly transported, and the other bin can continue to be used without needing to suspend operations;
The structure is simple. There is no compression hydraulic system. The procurement cost is 40%-60% lower than that of compression-type garbage stations. Daily maintenance only requires cleaning the bins, and the maintenance cost is extremely low;
Installation is flexible. No complex foundation construction is required. Just level and harden the ground, and it can be put into use. It is suitable for areas with limited site conditions.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
