Customized Hydraulic Lifting Underground Waste Classification System

The Customized Hydraulic Lifting Underground Waste Classification System is an integrated waste collection solution designed for municipal solid waste sorting, underground storage, and centralized collection.

Unlike conventional above-ground garbage bins, this system places the classified waste containers below ground while keeping only the waste disposal units visible at the surface. Multiple disposal openings can be configured for different waste streams, allowing users to separate general waste, recyclables, food waste, hazardous waste, or other categories according to local waste management requirements.

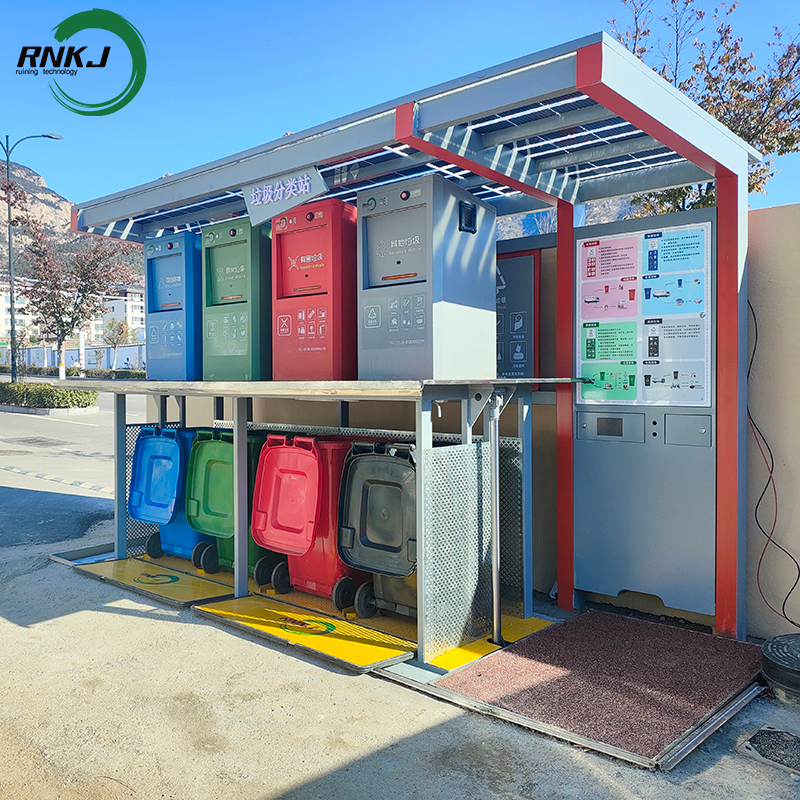

The system uses a hydraulic lifting platform to raise the underground waste containers to ground level when collection is required. After the containers are emptied, they are returned underground, keeping the waste storage area concealed and maintaining a clean appearance.

The equipment can be customized according to the required number of waste categories, bin capacity, installation space, lifting height, disposal opening design, control method, and other project requirements. Standard container capacities can include 240L, 660L, and 1100L, with multiple-bin configurations available.

 Customized Above-Ground Disposal Structure

Although the main storage containers are installed underground, the disposal section remains accessible at ground level.

The disposal structure provides the interface between the user and the underground containers.

Each opening can be designed for a particular waste category, with customized:

• Opening size

• Opening quantity

• Opening position

• Door design

• Waste category markings

• Graphic symbols

• Color identification

• Language

• Customer logo

• External finish

Different opening designs can also be selected depending on the type of material being deposited.

For example, a larger opening may be suitable for general household waste, while a specially shaped opening can help guide users when depositing bottles, cans, paper, or other recyclable materials.

This makes the classification structure an important part of the overall system rather than simply an enclosure for the underground bins.

 Underground Waste Classification Structure

The main feature of the system is its underground storage arrangement.

Different waste streams are assigned to separate containers. For example, a project can configure individual collection units for:

• General Waste

• Recyclable Waste

• Food Waste

• Hazardous Household Waste

• Paper

• Plastic

• Glass

The number of categories does not have to be fixed. The system can be designed with different numbers of containers and disposal openings according to the local waste classification policy and available installation space.

This makes the equipment suitable for projects that require multi-category waste collection rather than mixed waste storage.

 Hydraulic Lifting Platform

The hydraulic lifting mechanism is the key operating component of the system.

The waste containers remain below ground during normal operation. When the containers need to be emptied, the hydraulic power unit activates the lifting mechanism and raises the platform together with the underground bins to an accessible working position.

The lifting system can be designed with:

• Hydraulic cylinders

• Hydraulic power unit

• Lifting platform

• Guide structure

• Limit protection

• Overload protection

• Emergency stop

• Emergency lowering function

The hydraulic mechanism provides controlled lifting and lowering, allowing sanitation workers to access the containers without manually entering the underground chamber. Existing hydraulic underground collection systems use this same basic principle: the platform raises the containers to ground level for collection and then returns them underground.

 Flexible Bin Capacity

The system can be configured around different waste container sizes.

Common options include:

240L bins
Suitable for smaller waste collection points, office areas, residential communities, parks, and locations where collection is relatively frequent.

660L bins
A practical medium-capacity option for residential areas, commercial properties, schools, hospitals, and public facilities.

1100L bins
Designed for projects requiring greater storage capacity and longer intervals between waste collection.

The number of bins can also be customized. Depending on the project, the system can accommodate single-bin, two-bin, three-bin, four-bin, or larger multi-container arrangements.

 Sealed Underground Storage

After waste is deposited, it falls into the corresponding underground container.

Because most of the waste storage area is positioned below ground, the system keeps large waste containers away from direct exposure in public areas. The underground structure can also be equipped with sealing, drainage, deodorization, and other supporting functions.

The underground chamber can incorporate:

Waterproof structure

Anti-seepage treatment

Drainage pump

Sealing components

Steel structure

Corrosion-resistant treatment

Deodorization system

A drainage system is particularly useful because liquid generated from waste should be collected and discharged rather than allowed to accumulate inside the underground pit.

 Working Process

The operating process is straightforward.

Step 1 – Waste Classification

Users identify the appropriate waste category and place the waste through the corresponding disposal opening.

Step 2 – Underground Collection

The waste enters the designated container below ground. Different categories remain separated throughout the storage process.

Step 3 – Underground Storage

The containers remain underground until they reach the required collection level.

Step 4 – Hydraulic Lifting

When collection is required, the hydraulic system raises the platform and the corresponding waste containers to ground level.

Step 5 – Waste Removal

Sanitation workers access the raised containers and empty the waste into the appropriate collection vehicle or carry out the required container handling procedure.

Step 6 – Platform Reset

After collection, the containers are returned to their positions and the hydraulic platform lowers them back into the underground chamber.

Step 7 – Return to Operation

The disposal openings remain available for the next collection cycle.

 Customized Configuration

The word “Customized” is important for this product because underground installation conditions can vary considerably from one project to another.

The system can be customized in several aspects:

These configurations allow the equipment to be adapted to different site dimensions and waste classification requirements rather than forcing every project to use the same standard layout.

 Product Positioning

Compared with a conventional above-ground garbage classification station, this product combines several functions into one integrated system:

Waste Classification
Separate collection points allow different waste streams to be stored independently.

Underground Storage
The majority of the waste containers are located below ground.

Hydraulic Lifting
The hydraulic platform raises the containers for convenient collection.

Space Optimization
The above-ground section requires less visible space than multiple conventional garbage containers.

Environmental Management
The system can incorporate drainage, sealing, deodorization, and other optional functions.

Customized Installation
The number of categories, containers, capacities, lifting configuration, disposal ports, and control system can be adjusted according to the project.

 Why Choose Customized Hydraulic Lifting Underground Waste Classification System?

The Customized Hydraulic Lifting Underground Waste Classification System provides a flexible solution for projects requiring organized waste sorting and underground container storage.

• Customized Waste Classification: Supports different numbers of waste categories and independent containers.

• Flexible Bin Capacity: Available with 240L, 660L, 1100L, or customized containers.

• Hydraulic Lifting: Raises underground containers for convenient emptying, inspection, and maintenance.

• Space-Efficient Design: Places the main waste containers underground while keeping the surface area organized.

• Flexible Configuration: Container layout, lifting height, disposal openings, dimensions, and control system can be customized.

• Optional Intelligent Control: PLC control, position detection, fill-level monitoring, and other functions can be added according to project requirements.

• Wide Application: Suitable for residential communities, commercial areas, parks, public facilities, tourist sites, and municipal projects.

 FAQs

1. What is a hydraulic lifting underground waste classification system?

It is an underground waste sorting and storage solution that uses separate containers for different waste categories and a hydraulic platform to raise the containers for collection and handling.

2. Does this system compact the waste?

No. The standard system is designed primarily for waste classification, underground storage, and hydraulic lifting.

3. What bin capacities can be used with the system?

Common configurations can accommodate 240L, 660L, and 1100L waste bins, while customized container sizes can be considered according to the required lifting capacity and installation dimensions.

4. How many waste categories can the system handle?

The number of categories can be customized. The system may be configured with multiple independent containers and disposal openings according to the project's waste-sorting requirements.

5. How are the underground containers removed for emptying?

The hydraulic lifting platform raises the containers from the underground chamber to an accessible position. After the containers are emptied or serviced, the platform lowers them back into the underground structure.

6. Can the disposal openings be customized?

Yes. The number, dimensions, arrangement, labels, colors, and opening mechanisms can be customized to correspond with different waste categories and project requirements.

7. Can the system be customized for different installation sites?

Yes. The underground dimensions, number of containers, lifting capacity, waste categories, disposal layout, drainage arrangement, control system, and external appearance can be customized according to the site and project requirements.

The Customized Hydraulic Lifting Underground Waste Classification System integrates waste sorting, underground storage, and hydraulic container lifting into one configurable solution. With flexible container capacities, classification layouts, hydraulic configurations, and control options, it can be adapted to different site conditions and waste management requirements.
