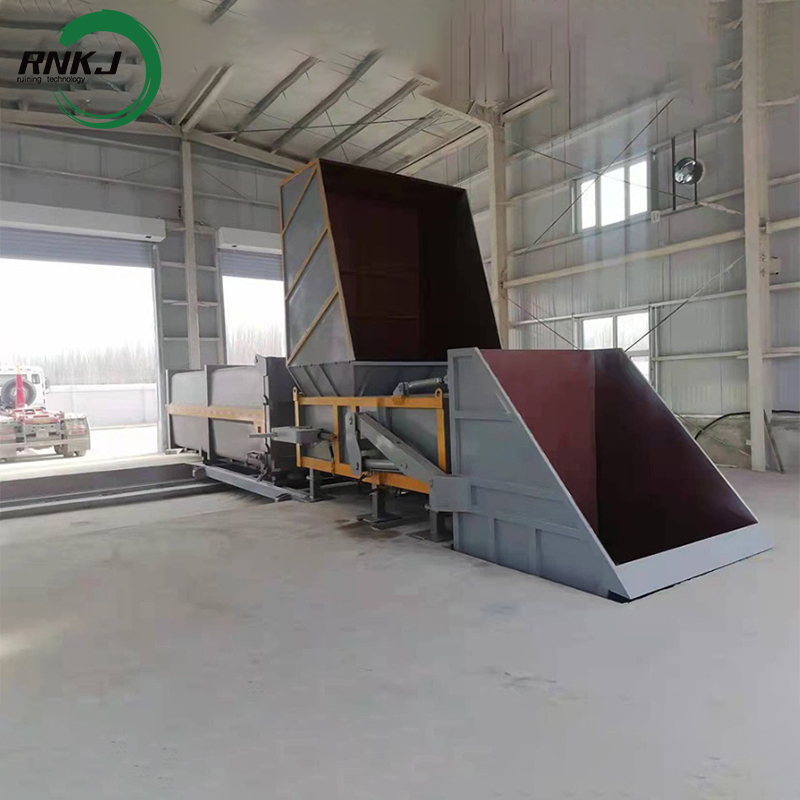

The Custom Split Type Waste Compactor Station for Municipal Solid Waste is a stationary hydraulic waste compression solution developed for projects that require organized waste collection, volume reduction, temporary storage, and convenient container transportation.
The most distinctive feature of this system is its split structure. Unlike an integrated waste compactor in which the compression mechanism and waste container form one complete unit, the split type design separates the stationary compression unit from the waste storage container.
The compression unit remains installed at the waste transfer or collection station and performs the daily waste compaction work. The container, on the other hand, is an independent storage and transportation unit. When the container becomes full, it can be disconnected from the compression unit and removed from the site. A compatible Hook Lift Truck can then transport the loaded container to the designated waste treatment or disposal facility.
After the full container is removed, an empty container can be positioned and connected to the compression unit, allowing the station to continue processing incoming municipal solid waste.
This configuration makes the equipment particularly suitable for municipal sanitation projects, waste transfer stations, residential communities, commercial districts, industrial parks, public facilities, and other locations where waste is generated continuously.
What Is a Split Type Waste Compactor Station?A split type waste compactor station is essentially a combination of two independently designed functional units:
Stationary Hydraulic Compaction Unit + Detachable Waste Container
The compression unit is the working center of the station. It receives incoming waste and uses a hydraulic compression mechanism to push the waste into the connected container.
The container is responsible for receiving the compressed waste, holding the waste during transportation, and moving the waste from the collection or transfer station to the next treatment location.
The two units are connected during normal operation but can be separated when the container is full.
This is the fundamental difference between a Split Type Waste Compactor Station and an integrated mobile waste compactor.
Instead of moving the entire machine every time the container needs to be transported, only the loaded container is removed.
This operating concept is also used in stationary compactor systems where a filled detachable container can be exchanged for an empty container so waste feeding can continue.
Product Type
Separate Compression Unit and Waste ContainerThe split configuration is the core design of this product.
The compression unit stays permanently or semi-permanently installed at the designated waste collection or transfer location. It contains the hydraulic power system, compression ram, compression chamber, electrical controls, feeding structure, and other mechanical components required for compaction.
The waste container is positioned in front of or adjacent to the compression unit and receives the compressed waste.
During operation, the two components function as one waste processing system.
When the container reaches its required filling level, the connection between the compression unit and container is released. The container can then be taken away independently.
The compression equipment itself does not need to be transported with the waste.
This separation makes the system particularly useful for projects where waste transportation and waste compression need to be handled as two different operations.
How Does the Custom Split Type Waste Compactor Work?The working process is straightforward and can be adapted to different municipal waste collection systems.
Municipal solid waste is collected from residential areas, commercial buildings, public facilities, streets, markets, industrial parks, or other waste-generating locations.
The collected waste is delivered to the waste compactor station using suitable collection vehicles, carts, bins, or other waste handling equipment.
The incoming waste is unloaded into the receiving hopper or feeding area of the compactor.
The feeding system can be customized according to the customer's collection equipment and site conditions.
For example, the station can be designed around different feeding heights, hopper dimensions, bin lifting arrangements, or vehicle unloading methods.
Once the waste enters the compression chamber, the hydraulic system activates the compression ram.
The hydraulic ram pushes the waste toward the connected container.
Repeated compression cycles gradually consolidate the loose waste and reduce its occupied volume.
The exact compression performance depends on the type and composition of the waste, moisture content, compression force, operating cycle, and equipment configuration.
The compacted waste is pushed directly into the detachable container.
The container is designed to withstand repeated loading and compression forces and can be manufactured according to the required capacity, dimensions, transportation method, and structural requirements.
As the compression cycles continue, the container gradually becomes filled with compacted municipal solid waste.
When the container reaches its specified filling condition, the compression process is stopped.
The connection and locking mechanism between the compression unit and the container is released.
The filled container is then separated from the stationary compactor.
This is the defining operating characteristic of the split type system.
The full container can be picked up by a compatible Hook Lift Truck or another suitable container transportation vehicle.
The Hook Lift Truck handles the container as a separate transportation unit while the hydraulic compaction system remains at the station.
Hook-lift systems are specifically designed to load and demount compatible containers and are commonly used for portable compactors and waste containers.
After the full container leaves the site, an empty container is positioned at the compression unit.
The container is aligned and securely connected to the compactor.
The station can then resume waste compression.
For higher-volume projects, multiple containers can be prepared so that one container can be transported while another is being filled.
How Does the Heavy Duty Separate-Type Waste Compactor Station Work?The operating process is designed to simplify municipal waste collection and transportation.
Household garbage, commercial waste, industrial non-hazardous waste, or other municipal solid waste is collected from different areas and transported to the waste compactor station.
Depending on the project, waste can be delivered by:
Small garbage collection trucks
Electric sanitation vehicles
Hand carts
Three-wheel collection vehicles
Municipal waste collection vehicles
Garbage bins with lifting equipment
Manual feeding systems
The receiving hopper provides a centralized point for waste unloading.
After the waste enters the hopper, the hydraulic system activates the compression mechanism.
The waste is pushed toward the container through a controlled compression cycle. The compaction chamber and hydraulic push head are designed to handle repeated heavy-duty operation.
The hydraulic compression mechanism applies strong pushing force to reduce the volume of waste.
Compared with transporting loose garbage directly from a collection point, compacted waste occupies considerably less space. This allows more waste to be loaded into each transport container and can reduce unnecessary transportation trips.
Transfer-station systems using detachable containers are specifically intended to compact municipal solid waste into larger transportable containers before long-distance transportation.
The compacted waste is continuously transferred into the waste container.
The container acts as the final collection and transportation unit for the compressed waste. Its structure can be designed according to the customer's transportation method, container capacity, loading requirements, and local vehicle standards.
When the container is full, the container is separated from the compression unit.
This is one of the most important characteristics of the Separate-type Waste Compactor Station.
Instead of transporting the entire compaction machine, only the filled container needs to be removed from the station.
After separation, the full container is picked up and transported directly by the corresponding transport truck.
Depending on the project configuration, the container can be designed for hook-lift, roll-on/roll-off, or other compatible container transportation systems.
This operating principle is widely used in fixed compactor transfer stations, where only the filled detachable container travels to the disposal facility while the compaction unit remains at the station.
An empty container can then be positioned and connected to the compactor.
The station can continue receiving and compacting waste without waiting for the previously filled container to return.
For high-volume municipal sanitation projects, multiple containers can be prepared so that one container is being transported while another is connected to the compactor.
Main Structure of the Waste Compactor StationThe exact configuration can be customized, but a typical system includes several major components.
The compression unit is the core component of the system.
It is responsible for receiving and compressing municipal solid waste before it enters the storage container.
The compression unit can include:
Heavy-duty compression chamber
Hydraulic cylinders
Compression ram
Hydraulic power unit
Hydraulic oil tank
Hydraulic valves
Hydraulic pipelines
Electrical control cabinet
PLC control system
Safety devices
Container docking structure
Because this unit remains at the station, the hydraulic system and electrical connections do not need to be repeatedly disconnected and transported with every full container.
The hopper provides the entry point for incoming municipal solid waste.
Its size and height can be customized according to the collection vehicles, waste bins, and available installation space.
The hopper may be configured for direct vehicle unloading, bin tipping, platform feeding, or other project-specific feeding arrangements.
The hydraulic compression mechanism provides the force required to compact the waste.
Hydraulic cylinders drive the compression ram forward and backward according to the programmed operating cycle.
The hydraulic system can be configured according to the desired compression force, motor power, operating frequency, and daily waste processing volume.
For municipal projects requiring frequent daily operation, the hydraulic system can be designed for repeated compression cycles.
The container is an independent component rather than a permanent part of the compression machine.
It receives the compressed municipal solid waste and becomes the transportation unit after filling.
The container can be customized in terms of:
Capacity
Length
Width
Height
Steel material
Plate thickness
Reinforcement
Hook-lift interface
Container opening
Rear door
Sealing structure
Drainage arrangement
Surface treatment
The container design should be matched to the customer's transportation vehicle.
A reliable connection between the compactor and container is essential during compression.
The docking structure keeps the container correctly positioned relative to the compression chamber and helps maintain a stable connection during operation.
Depending on the project design, guide rails, locking devices, mechanical stops, hydraulic locks, sealing interfaces, or other positioning components can be incorporated.
Custom Container CapacityOne of the most important customization options is container capacity.
Different municipal projects have very different waste-generation rates.
A small residential collection point may require a relatively compact container, while a large municipal transfer station may require a much larger container.
Container capacity can therefore be determined according to:
Daily waste generation
Waste density
Collection frequency
Transportation distance
Truck capacity
Available installation area
Required storage time
Waste treatment schedule
Instead of using a standard container for every project, the system can be developed around the actual requirements of the customer.
Custom Container DimensionsContainer dimensions are another important part of the customization process.
The length, width, and height of the container should be coordinated with:
The compactor dimensions
The available site space
The transportation vehicle
The Hook Lift Truck specifications
The required waste capacity
The loading and unloading process
This is especially important for projects where the existing transport fleet must be retained.
The container should be compatible with the customer's existing hook-lift equipment rather than being designed independently from the truck.
Hook Lift Compatible Container DesignFor projects using hook-lift transportation, the detachable container can be designed with a suitable hook-lift structure.
The hook position, frame design, container dimensions, lifting points, overall weight, and truck compatibility should be considered together.
Once the container is filled, the Hook Lift Truck can approach the station, connect to the container, lift or pull the container onto the truck, and transport it away.
This creates a practical transfer process:
Compression Station → Filled Container → Hook Lift Truck → Waste Treatment Facility
The truck does not need to transport the stationary compaction equipment.
This is one of the main reasons why split type waste compactor systems are attractive for fixed municipal transfer points.
Hydraulic System for Heavy-Duty Waste CompressionThe hydraulic system is responsible for converting motor power into the mechanical force required for waste compression.
A typical hydraulic configuration can include:
Hydraulic motor
Hydraulic pump
Hydraulic cylinders
Oil tank
Hydraulic valves
Pressure control components
Hydraulic hoses and pipelines
Pressure protection devices
The hydraulic compression force can be customized according to the waste characteristics and required operating conditions.
The system can also be configured with automatic and manual operating modes.
Automatic operation can control the compression cycle according to preset parameters, while manual controls can be provided for maintenance, testing, and specific operating requirements.
PLC Control SystemA PLC control system can be incorporated to manage the operating sequence of the waste compactor station.
The control system can monitor and control:
Hydraulic compression
Ram movement
Compression cycles
Motor operation
Container connection status
Safety interlocks
Emergency stop
Full-container signals
Equipment alarms
Operating status
The control logic can be adjusted according to the customer's preferred operating procedure.
For larger municipal projects, additional monitoring functions can also be considered depending on the project requirements.
Sealed Waste Transfer ConfigurationMunicipal solid waste may contain liquids, food residues, organic materials, and other substances that can create leakage or odor concerns.
For projects requiring better containment, the split type station can be configured with a sealed connection between the compression unit and container.
Possible options include:
Sealed container body
Sealing interfaces
Leachate collection
Drainage system
Closed rear door
Waste leakage prevention
Odor-control equipment
A sealed configuration is particularly useful where the waste contains a relatively high proportion of wet municipal waste.
The exact sealing and drainage design should be selected according to the local environmental requirements and waste characteristics.
Multiple Containers for One Compression UnitAnother important characteristic of the split design is the ability to use multiple containers with one compression unit.
For example:
One Compression Unit + Two Containers
When Container A becomes full, it can be removed for transportation.
Container B is then connected to the compression unit and used for continued waste collection.
For larger projects, more containers can be prepared according to daily waste generation and transportation schedules.
This creates a container rotation system in which:
One container is being filled
One container is being transported
Another container can remain on standby
This operating concept is commonly used to maintain waste feeding while
Advantages of Custom Split Type Waste Compactor StationThe hydraulic compaction unit remains installed at the waste transfer station instead of traveling with every full container.
The container can be separated from the compression unit after reaching the required filling level.
An empty container can replace the full container, allowing the station to resume operation.
The detachable container can be designed for compatibility with a Hook Lift Truck.
One compression unit can be configured to work with multiple containers.
Container volume can be selected according to the actual waste generation and transportation requirements.
The equipment can be designed around the customer's site conditions and vehicle specifications.
The hydraulic ram provides the force required to consolidate municipal solid waste before transportation.
The receiving hopper and feeding structure can be customized according to different waste collection methods.
Sealing and leachate-management configurations can be added for projects with higher environmental requirements.
Customization OptionsThe word Custom in Custom Split Type Waste Compactor Station for Municipal Solid Waste is important because municipal waste projects rarely have exactly the same operating conditions.
The equipment can be customized in several areas.
Container capacity
Container dimensions
Steel grade
Plate thickness
Reinforced structure
Hook-lift frame
Container door
Sealing structure
Drainage configuration
Compression force
Compression stroke
Hydraulic cylinder
Hydraulic pump
Motor power
Compression chamber
Hopper dimensions
Feeding height
Operating cycle
PLC control
Automatic operation
Manual operation
Emergency stop
Safety interlock
Alarm system
Full-container detection
Sealed container
Leachate collection
Drainage
Odor-control system
Closed transfer configuration
The complete station can also be designed according to:
Available installation space
Truck access
Waste collection route
Container exchange area
Power supply
Local operating conditions
Transportation equipment
Daily waste volume
This separation of compression, storage, and transportation functions makes the system particularly suitable for municipal waste transfer projects that require flexible container management.
With customized container capacity, dimensions, material thickness, hydraulic compression force, hopper configuration, control system, sealing structure, and Hook Lift Truck interface, the equipment can be adapted to different project requirements.
For municipal sanitation departments, waste management contractors, transfer station operators, residential communities, commercial facilities, and other high-volume waste collection sites, the Custom Split Type Waste Compactor Station provides a modular approach to waste compaction and container transportation.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
