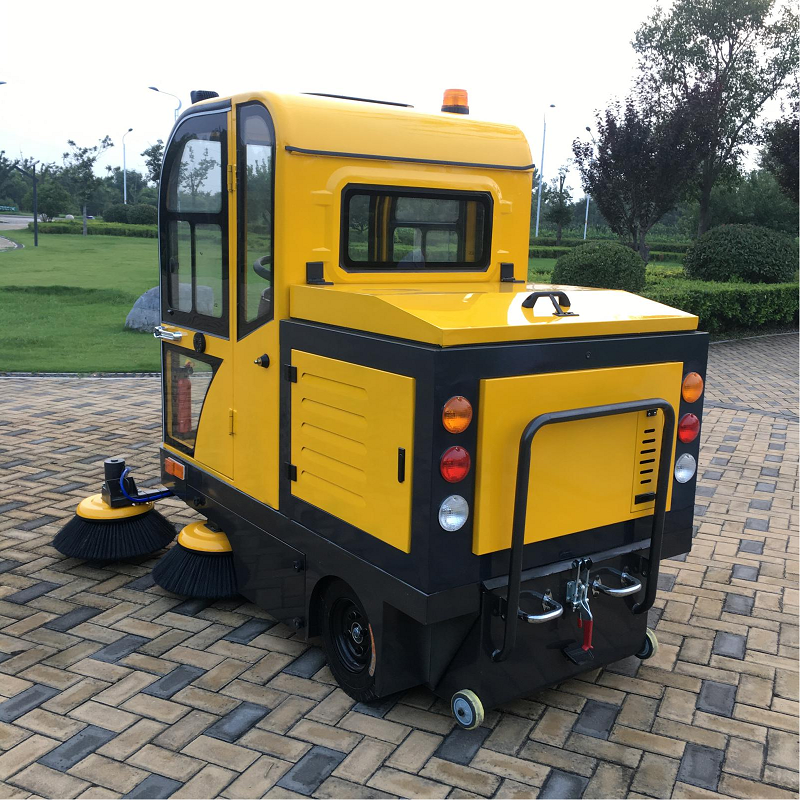

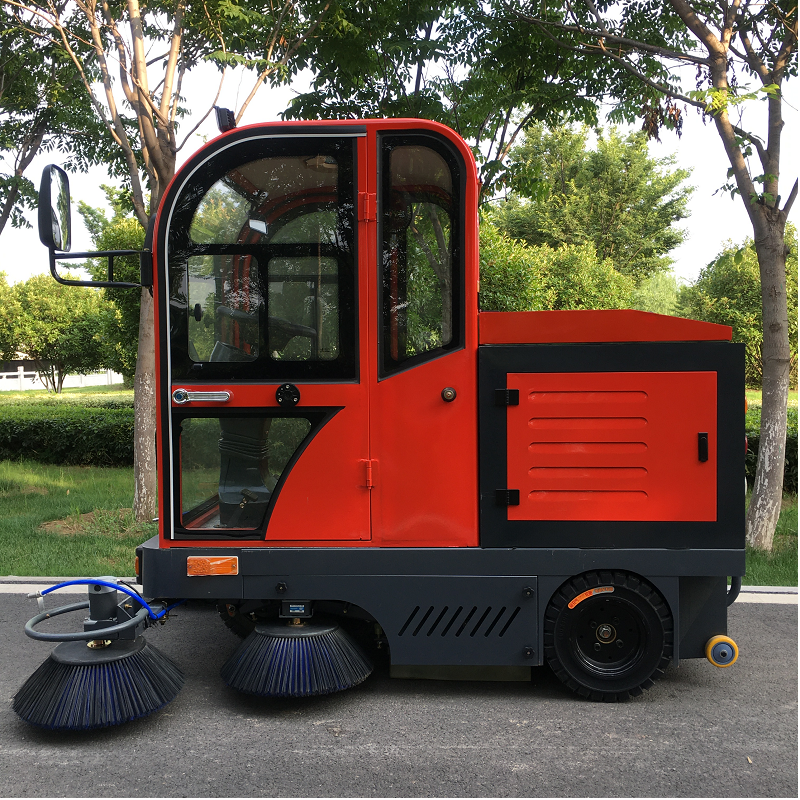

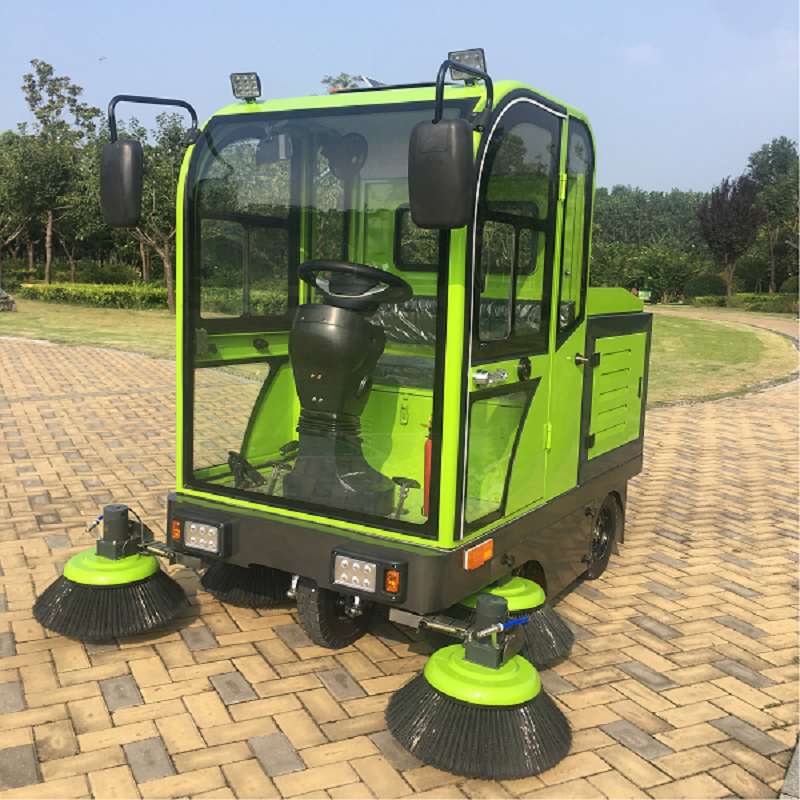

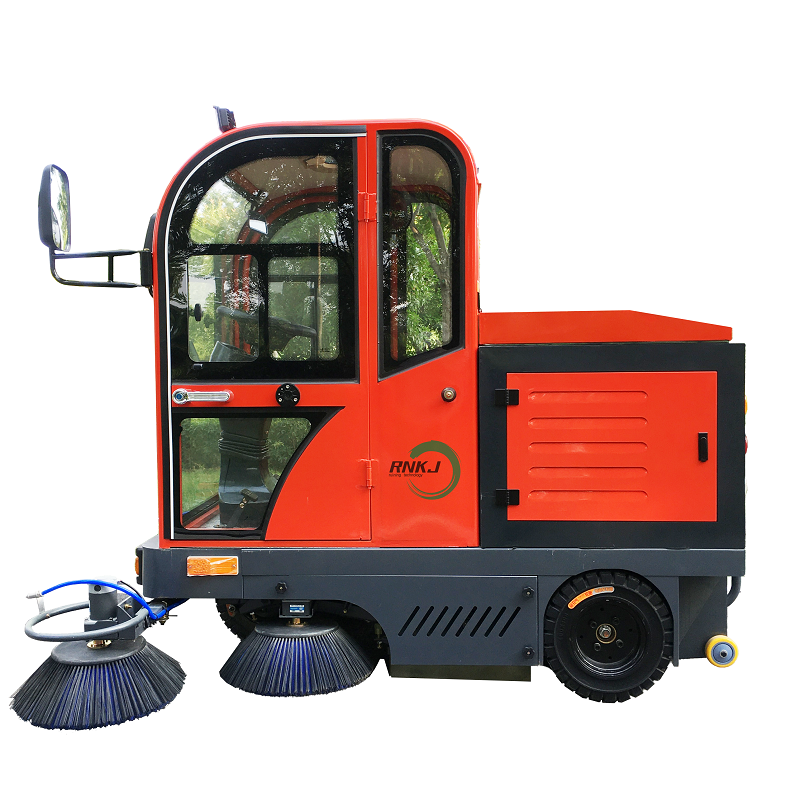

The Cleaning Equipment Sweeper is made of sheet metal steel, which is stamped in one piece, has good firmness, is resistant to collision, and is not easy to deform or damage. The front tempered glass is clear and durable.
The Cleaning Equipment Sweeper adopts automotive electrophoretic paint, which is impact-resistant, has good adhesion and corrosion resistance.
The Cleaning Equipment Sweeper adopts an integrated front windshield tempered glass, which has a good field of view and the cleaning environment is clear at a glance.
The appearance structure of the Cleaning Equipment Sweeper is reasonable and practical, and it can be used in winter and summer. In summer, the machine is equipped with a skylight, a fan, and the left and right doors can be freely disassembled, and the rear window is ventilated freely. It has the effects of ventilation, cooling, and sunshade. In winter, a closed cab is used, which has good sealing and warmth.
Product Advantages
Configuration
1. Equipped with LED headlights and taillights at the front and rear, making night cleaning brighter. Built-in reversing image makes cleaning safer. High-power vacuum motor, enlarged filter element, dust-free cleaning, front water spray device, hydraulic shock absorber, front and rear solid anti-puncture tires;
2. Select domestic well-known brand batteries such as Tianneng or Chaowei, with national warranty;
3. Equipped with hair dryer and tool kit, dust cleaning is more convenient.
Performance:
1. The rear axle of the car drives dual disc brakes with anti-lock, strong power, good climbing performance, three-speed transmission, free to use, more convenient work. Automatic dust vibration solves the trouble of frequent manual dust vibration during cleaning.
2. Constant temperature controller, durable, automatic overload protection system for safer cleaning.
3. Car airborne parking to prevent the vehicle from sliding down the slope.
4. High-strength wear-resistant side brush, bricks, sand, stones, dust, sweep clean.
Technical Parameters
Product Parameters | |||
Cleaning width | 1900mm | Traveling speed | 0-12km/h |
Main brush width | 700mm | Power source | 48V |
Working efficiency | 8000-15000m2/h | Travel speed | 0-12km/h |
Trash bin capacity | 180L | Vacuum filter square | 5m² |
Traveling motor | 800W | Weight | 680KG |
Roller brush motor | 1000W | Dimensions | 2200*1900*2100mm |
Side brush motor | 4*100W | Electric pump pressure | 150BAR |
Side brush diameter | Front 700*2,rear 600*2 | Continuous flushing time | 30min |
Water tank | 80L largecapacity water tank | Single tank water sweeping area | 30,000m² |
Battery capacity | 48V100-150AH{optional} | ||
Standard configuration: dual fans, dual filters, dual vibration dust cleaning; | |||
Optional: add electric high-pressure cleaning; add fog cannon; add fire-fighting equipment (4 pieces) | |||
Cleaning Objects
Can clean up more kinds of garbage or objects.
Optional Charger And Plug
For any other chargers and plugs, please contact us.
Scrubber Series Parameters
Tell me your needs and recommend a more suitable solution for you.
Application Cases
Applicable Scenarios
Our equipment is suitable for a variety of road conditions, Please contact us for more information.
FAQ
1.Question: Are you a factory or trading company?Answer: We are a factory with our own export authority, which have many employees with strong R&D ability
2.Question: Some customers have some new item or part but can find in the web-site,can you product it?
Answer: we need images or artworks, samples you provide. lf you have 3D artwork will help us to checkfaster, Evaluating and considering product in mass production is workable according our equipment, Wewill give you a detail quotation.
3.Question: How do u ensure your product quality?Answer: We have a system quality control procedure, from incoming material, part, semi-product andfinal product 100% check. Material, semi-product, product function
4. Question: How do u do with the after-sales service?Answer: For our design/production/package problems, Ruining will take full responsibility. For shipmentproblems, we have full reports to help claims with shipping company.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
