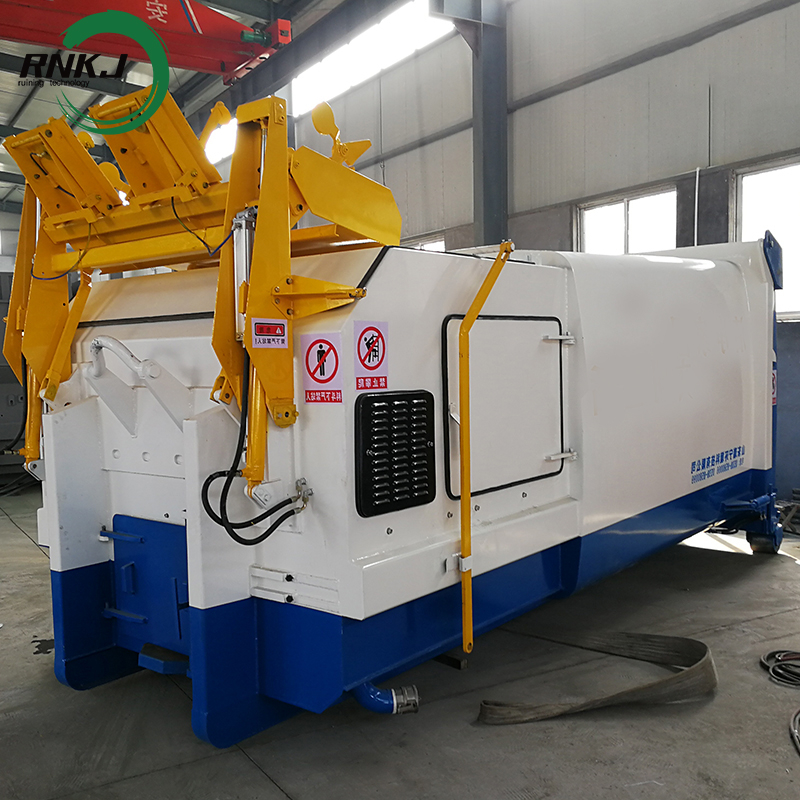

The Bucket-type Waste Compaction Station is a modern environmental sanitation equipment that integrates garbage collection, compression reduction, and sealed transportation. It is specifically designed for trash bins and is suitable for 660L and 1100L large-capacity trash bins. Through the flip bucket mechanism, it can achieve automatic loading, significantly improving the efficiency of garbage processing and reducing secondary pollution.
Basic Definition and Core ValueThe barrel-type waste compression station is a horizontal or vertical waste compression environmental sanitation equipment. Its core feature is the installation of an automatic barrel-lifting and loading system, which can directly connect with the standard garbage bins at the front end of collection without the need for manual dumping of garbage.
The core value lies in:
Volume reduction and efficiency improvement: The compression ratio can reach 3:1, significantly reducing the volume of waste and lowering the frequency of transportation
Cost reduction: Reducing the use of transportation vehicles, fuel consumption, and labor costs, and improving operational economy
Environmental sealing: The fully enclosed design prevents odor escape, sewage leakage, and mosquito breeding
Versatility: Specifically designed for 660L and 1100L standard garbage bins, compatible with various front-end collection tools
Product AdvantageEfficiency
Automatic bucket loading and unloading, completed by a single operator, reducing labor intensity by 80%
The density of compressed garbage increases by 3-5 times, increasing the single vehicle load capacity and reducing transportation costs
High daily processing capacity, meeting the needs of communities and industrial parks
Environmental friendliness
Fully sealed design: Three layers of sealing at the feeding port, compression chamber, and rear door, no odor escape, no sewage leakage
Equipped with a sewage collection system, which can be connected to municipal pipelines or sewage treatment equipment to prevent secondary pollution
Low noise design, suitable for residential areas and commercial areas
Safety
Anti-misoperation procedures: Do not compress the bucket during lifting, do not open the door during compression, multiple safety locks
Emergency stop button: Emergency stop switches are installed at all parts of the equipment to ensure rapid shutdown in case of emergencies
Safety guardrails: Safety guardrails are set up in the bucket-lifting area to prevent personnel from entering the dangerous area by mistake
Flexibility and Adaptability
Dual mobile/fixed: Can be selected as mobile or fixed according to site requirements
Compatible with 660 L/1100 L standard trash cans, suitable for mainstream collection tools in the market, no need to replace existing trash cans
Maintain convenience
Key components are made by well-known brands, with low failure rates and long service life
Standardized design for wear parts makes replacement easy and maintenance costs low
Technical ParametersPerformance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Design FeaturesDesign principles and workflow
The flip bucket mechanism adopts a hydraulic-driven linkage flipping structure, combined with limit sensors, to achieve the entire process of automatic grasping, lifting, flipping, emptying, and resetting of the trash can:
The sanitation worker pushes the filled 660L/1100L trash can to the designated position of the flip bucket mechanism
Press the flip bucket button, and the fixture automatically clamps the bucket ears of the trash can
The lifting cylinder smoothly lifts the trash can to a height of 1.5-1.8 meters, suitable for the feeding port
The flipping cylinder operates, and the trash can tilts 120-150°, allowing the garbage to be completely poured into the compression chamber
After the emptying is completed, the mechanism automatically resets, releases the fixture, and the empty trash can can be directly pushed away
The core advantages of the flip bucket mechanism
Bidirectional buffering technology: Provides buffering during both the lifting and flipping processes, avoiding impacts and reducing noise
Anti-detachment safety design: Dual locking fixtures, ensuring that the trash can does not detach during the flipping process, guaranteeing operational safety
Adaptive adjustment: Automatically recognizes the bucket type, eliminating the need for manual parameter adjustment, and is compatible with different-sized trash cans
Linked sealing: The flip bucket mechanism and the sealing cover of the feeding port are linked. When dumping, it automatically opens during the process and closes immediately after dumping, preventing the leakage of odors
Fast cycle: The single flip bucket cycle time is ≤ 20 seconds, improving operational efficiency
Core Structure CompositionCompressor main unit: Garbage compression core unit, using horizontal compression method, M-shaped pusher structure
Reversible bucket mechanism: Automatically lifts and dumps trash bins, compatible with 660L/1100L bucket types
Garbage container: Garbage storage and compression space, volume 6-18m³ selectable, made of high-strength steel
Hydraulic system: Power source, high stability
Electrical control system: Equipment operation and monitoring, PLC intelligent control, fault alarm, anti-misoperation program, dual design of remote control + panel
Sealing system: Environmental protection and leak prevention
Selection Suggestions Processing capacity calculation: Select the appropriate volume based on the amount of garbage generated
Site conditions:
Sufficient space: Choose a 15-18m³ large station for higher processing efficiency
Limited space: Choose an 8-10m³ small station
Requires mobility: Choose a mobile station for easy flexible position adjustment
Front-end collection tools: Confirm whether to mainly use 660L or 1100L garbage bins, and select the model with better adaptability
Environmental protection requirements: For areas sensitive to odors, choose a model with better sealing performance and install an odor removal device
Power conditions: If there is a stable power supply, choose the electric type; if there is no power supply, choose the diesel-powered type
Applicable ScenariosLarge residential communities: Large processing capacity, compatible with 660 L/1100 L classified trash bins, environmentally friendly and odor-free
Industrial parks / economic development zones: High compression ratio, reduces the frequency of industrial waste transportation, lowers enterprise costs
Commercial complexes / office buildings: Small占地面积， low noise， suitable for commercial area use
Municipal roads / parks： Can be flexibly moved， suitable for different area garbage collection， no need for fixed sites
Townships / rural garbage transfer： Compatible with rural 660 L collection bins， improves transfer efficiency， improves rural environment
The RNKJ Bucket-type Waste Compaction Station is equipped with an exclusive fully automatic feeding structure that can be easily adapted to the mainstream 660L and 1100L standard sanitation trash cans available on the market. There is no need for manual transportation and dumping. It can automatically complete the processes of grasping the bucket, lifting, flipping for loading, and stable reset. It has strong adaptability and wide applicability. It is widely used in various scenarios such as residential communities, commercial squares, industrial parks, schools and hospitals, towns and streets, etc. It is the preferred choice for high-quality sanitation equipment for achieving sealed collection of garbage, compression and reduction, and efficient transportation.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
