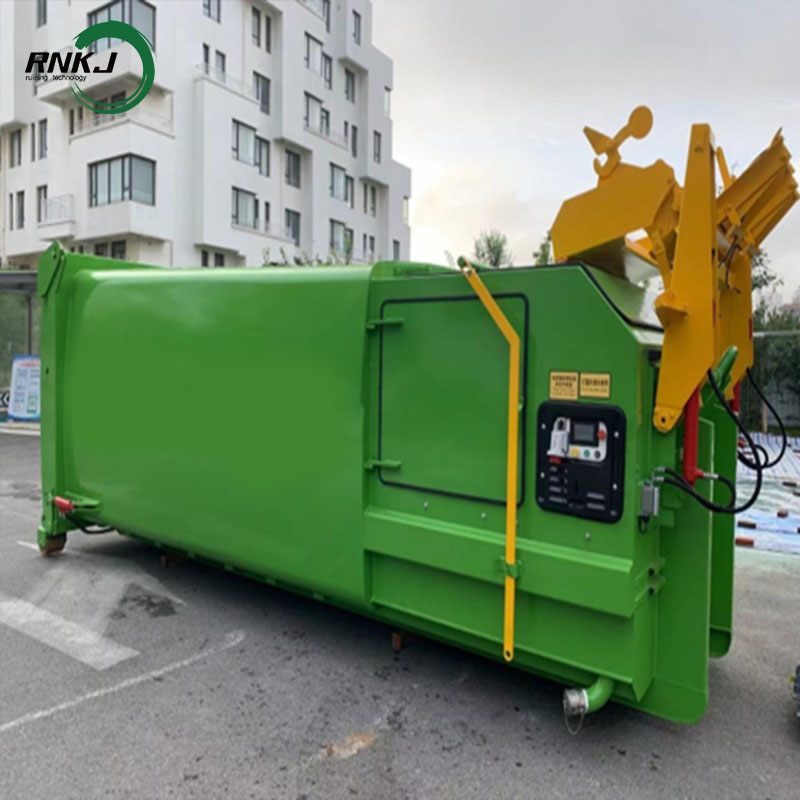

Introducing our Bucket-type Trash Compression Station, a convenient and efficient solution for waste management. This innovative product is designed to streamline the disposal process, allowing for increased capacity and reduced frequency of emptying. With its sturdy construction and user-friendly design, our Trash Compression Station is ideal for commercial and industrial settings. Upgrade your waste management system today with this reliable and practical solution.
DefinitionThe Bucket-type Trash Compression Station is a device that uses a hydraulic-driven bucket-lifting mechanism to automatically transfer the garbage in the trash cans into the compression chamber. Then, through horizontal compression technology, the loose garbage is compressed into high-density garbage blocks. Finally, it is securely stored within the box and waits to be transported to the waste treatment plant. It integrates the functions of collection, compression, storage, and transportation, and does not require complex civil engineering works. It can be flexibly deployed.
Technical ParametersPerformance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Structural CompositionBucket Reversal Mechanism: Automatically grabs and flips the trash can, then pours the garbage into the compression chamber. It is compatible with various standard trash cans, driven by hydraulic power, with a flipping angle of ≥ 90°.
Compression System: Includes the compression head, compression cylinder, and compression chamber. The compression force can reach 20-340 kN, with a compression ratio of 3:1, and has a crushing function.
Box System: Stores the compressed garbage blocks. It has a fully sealed design, preventing leakage and odors. The volume ranges from 10 to 22 cubic meters.
Hydraulic System: Provides power. The design features dual pumps, with stable pressure and a cycle time of ≤ 40 seconds.
Electrical Control System: Controls the operation of the equipment. It is controlled by PLC programs, with both automatic and manual modes, and includes safety protection.
Waste Discharge System: Collects and treats the leachate from the garbage. It includes a discharge pipe, sewage well, and sedimentation well. It is equipped with an automatic liquid-controlled sewage pump.
Safety System: Ensures operational safety. It includes emergency stop buttons, limit switches, and safety guardrails to prevent hand entrapment.
Working principleThe workflow of the Bucket-type Trash Compression Station is clear and efficient, typically including the following steps:
Loading preparation: Sanitation workers place standard garbage bins filled with garbage on the bucket flipping mechanism, or directly dump the garbage from tricycles or hand carts onto the bucket flipping mechanism.
Bucket flipping and dumping: Operate the control panel, the bucket flipping mechanism starts, and the garbage is flipped over by more than 90°, and automatically slides into the compression chamber.
Horizontal compression: The compression cylinder drives the press head to move horizontally, forcefully compressing the loose garbage, increasing the compression density by about 3 times.
Cyclic compression: The press head returns to its original position, continues to receive the next batch of garbage, and repeats the compression process until the box is full.
Wastewater treatment: The filtrate generated during the compression process flows through the inclined slope at the bottom of the bin into the sewage collection box, and then is discharged into the wastewater treatment system through the sewage pump.
Full box indication: When the box is full of garbage, the equipment automatically emits a full box signal, stopping the compression operation.
Transport and unloading: Using the hook arm vehicle, the entire compression box is lifted and transported to the garbage treatment plant, or connected with the garbage transport vehicle, the unloading door is opened, and the compressed garbage blocks are pushed out.
Core AdvantageEfficient and convenient: The bucket feeding mechanism automatically feeds the garbage, eliminating the need for manual handling, thereby reducing labor intensity and increasing work efficiency by over 30%.
Compression and reduction: The compression ratio reaches 3:1, significantly reducing the volume of garbage and lowering transportation costs by over 50%.
Environmental protection and sealing: The fully enclosed design prevents garbage from scattering, prevents sewage leakage and odor diffusion, and protects the surrounding environment.
Flexible deployment: The mobile design allows for dynamic adjustment of the position based on the amount of garbage generated, making it suitable for decentralized collection scenarios in communities and towns.
Cost savings: No complex civil engineering is required, installation is convenient, construction costs are low, and it is particularly suitable for the renovation of old residential areas.
Intelligent control: PLC program control enables automatic compression, full-box alarm, and self-checking for faults, with simple operation.
Applicable ScenariosBucket-type Trash Compression Station, with its flexibility and efficiency, is applicable to the following scenarios:
Urban communities and residential areas: Especially for old residential areas and newly-built buildings with limited space, no large-scale construction is required and it can be flexibly placed in corners.
Townships and rural areas: Through the "village collection - town transportation" model, it can cover multiple natural villages, reducing the transportation costs of scattered garbage.
Schools, hospitals, and government agencies: With stable garbage production, it is suitable for use in conjunction with standard trash cans, maintaining environmental cleanliness.
Commercial centers and industrial parks: With concentrated and large amounts of garbage, after compression, the frequency and cost of transportation can be significantly reduced.
Scenic spots and public places: Highly mobile, it can be dynamically adjusted and deployed according to the peak tourist season to protect the environment of the scenic spots.
Temporary event venues: Such as exhibitions, concerts, etc., it can be deployed temporarily and quickly handle a large amount of garbage.
The RNKJ Bucket-type Trash Compression Station, as an efficient, environmentally friendly and flexible waste treatment equipment, is gradually becoming an important component of the garbage collection and transportation systems in cities and towns. It realizes automatic loading of garbage bins through the bucket flipping mechanism, combines horizontal compression technology to significantly reduce the volume of garbage, provides sealed storage to prevent secondary pollution, and does not require complex civil engineering works to reduce construction costs, providing an effective solution for garbage classification and reduction processing.
When choosing a bucket-type garbage compaction station, factors such as garbage generation volume, collection container type, site conditions and transportation requirements should be comprehensively considered. Select the appropriate model and configuration to achieve the best treatment effect and economic benefits.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
