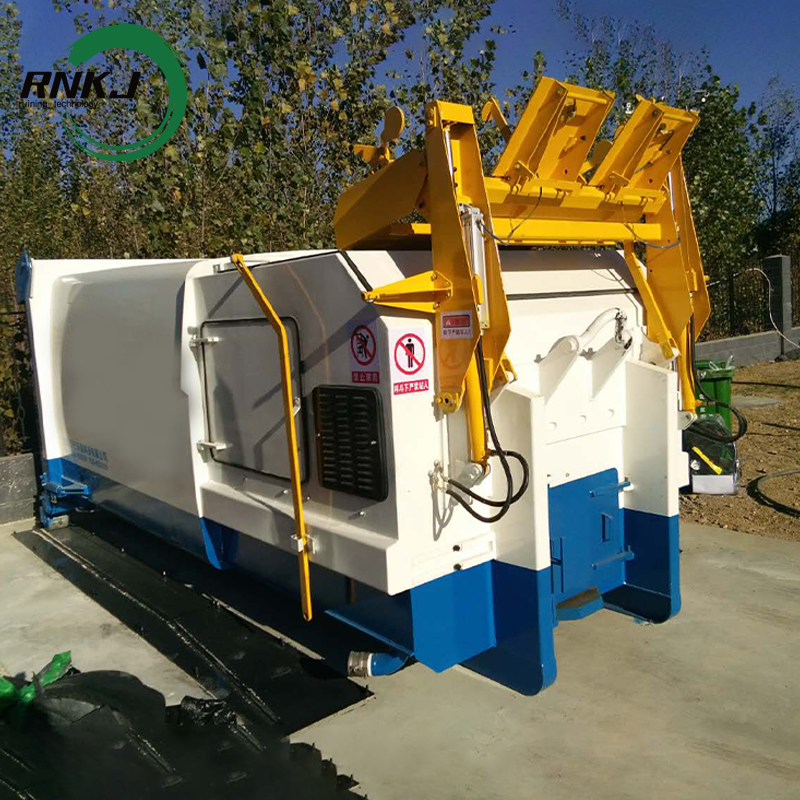

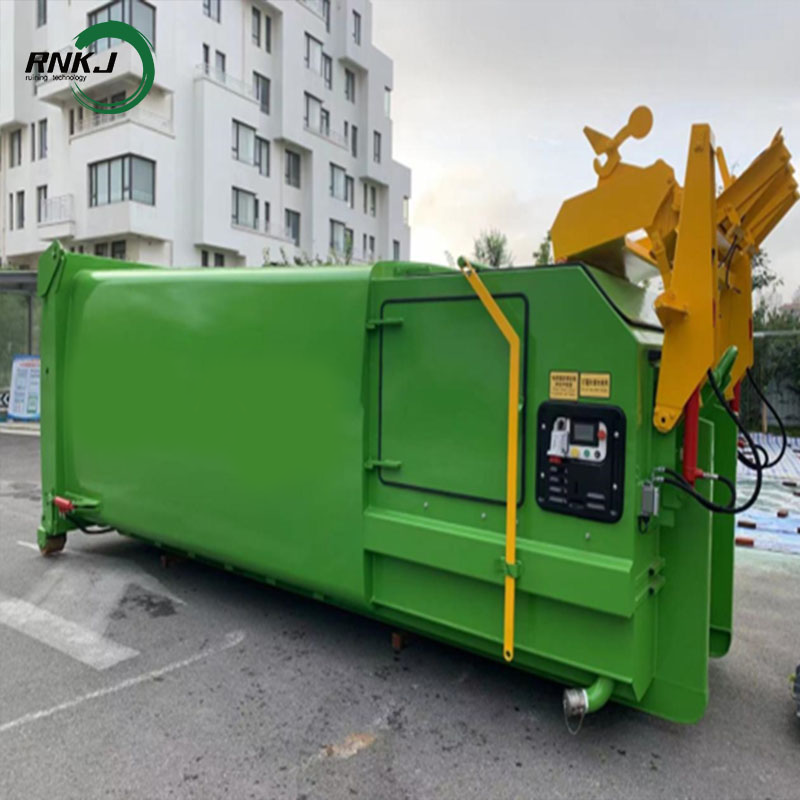

Bucket-type Rubbish Compactor is a sanitation equipment specifically designed for the collection and compression transportation of household waste. Its core feature is that it can directly connect with standard trash cans, enabling automatic lifting and dumping, compression reduction, sealed storage, and integrated transportation operations. It is widely used in urban and rural communities, streets, towns, parks, and other scenarios, and is one of the mainstream equipment solutions for addressing the problems of difficult waste collection, low transportation efficiency, and heavy secondary pollution.
DefinitionThe Bucket-type Rubbish Compactor is a device that integrates the bucket lifting mechanism with the garbage compression system. It is usually of a mobile design and can be towed as a whole by a boom truck, without the need for a dedicated station or complex supporting facilities. It can automatically grasp standard trash cans (240L/660L/1100L, etc.), lift and dump the garbage, and then perform powerful compression, reducing the volume of the garbage to 1/3 - 1/5 of its original size. This significantly improves the transfer efficiency and reduces transportation costs.
Technical ParametersPerformance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Structural CompositionBucket lifting mechanism
Automatically grasp, lift and flip trash cans: Hydraulically driven, bidirectional buffer design, compatible with various standard cans, adjustable hook height
Garbage compression system
Garbage compression and reduction: Horizontal push plate design, with high compression force, compression ratio ranging from 1:3 to 1:5
Sealed box body
Garbage storage and leak prevention: Fully sealed structure, with a sewage collection tank at the bottom, the entire box is tightly sealed, without any odor spreading or leakage of filtrate.
Hydraulic power system
Provides power source: high-pressure oil pump, multi-way directional valve, high-quality hydraulic cylinder, stable pressure, low leakage rate
Electrical control system
Operation and safety control: Remote control + dual local operation interface, anti-misoperation program, voice prompts and music warnings
Auxiliary device
Maintenance and repair: Safety detection door, power unit, quick maintenance; Some are equipped with negative pressure ventilation system
Working principleBucket connection: Hang the standard trash can on the lifting mechanism hook. The system will automatically check if the bucket position is correct.
Automatic lifting: Press the lifting button, and the hydraulic cylinder will smoothly lift the trash can to the dumping height.
Garbage dumping: The trash can automatically rotates 180°, and the garbage is poured into the compression chamber. After dumping, it will automatically reset.
Strong compression: The push plate automatically starts, and it performs horizontal compression on the garbage. After maintaining the pressure, it resets; this operation is repeated until the box is full.
Transport processing: After the box is full, the grab arm vehicle will tow the compressed box as a whole to the garbage disposal plant. The tailgate opening and closing mechanism will automatically unload the garbage.
Core AdvantageEfficient and convenient
High degree of automation: Automatically completes the entire process of loading, lifting, pouring, and compressing.
Multi-bucket compatibility: Can be matched with various trash cans of sizes such as 240L/660L/1100L, with strong versatility.
Environmental Sealing
Fully sealed design: The box body and the tailgate are double-sealed, effectively preventing garbage spillage, odor diffusion, and leakage of leachate, and eliminating secondary pollution.
Centralized sewage treatment: The bottom sewage collection tank collects the leachate generated during the compression process and is uniformly discharged for treatment.
Partially equipped with negative pressure ventilation system: Further reduces odor emissions and complies with environmental protection standards.
Flexible Adaptation
Compact design: Compact structure, mobile type does not require a dedicated station room, saving land resources.
Simple installation: No need for complex supporting facilities, can be used with power supply, suitable for rapid deployment.
High portability: Small-sized equipment has a small turning radius, can enter narrow communities and township roads.
Economical and Practical
Multi-box Circulation: The mobile type can achieve "one machine with multiple boxes" circulation operation, improving equipment utilization and reducing costs.
Easy Maintenance: The drawer-type power unit and safety detection door design make maintenance convenient and the maintenance cost low.
Low Energy Consumption: The hydraulic system is optimally designed.
Applicable ScenariosUrban and rural communities: Garbage collection in residential areas, streets, towns, etc., especially suitable for areas without fixed garbage storage facilities
Public areas: Parks, scenic spots, stations, schools, etc., densely populated places
Commercial areas: Shopping malls, hotels, office buildings, etc., areas with concentrated garbage generation
Industrial areas: Factories, parks, etc., for the collection and transfer of non-hazardous waste
Temporary sites: Construction sites, large-scale event sites, etc., temporary garbage collection points
RNKJ Bucket-type Rubbish Compactor has a small footprint, requiring only 15-25 square meters of installation space, equivalent to 2-3 standard parking spaces. It is suitable for narrow areas such as corners of residential areas and vacant spaces on streets. It adopts a longitudinal compression method, resulting in high density of the compressed garbage, reducing the storage space by 75% compared to loose garbage. It has strong mobility and is designed in a modular way, allowing for overall hoisting and transfer, making it suitable for temporary garbage collection points and large-scale event sites, etc.
