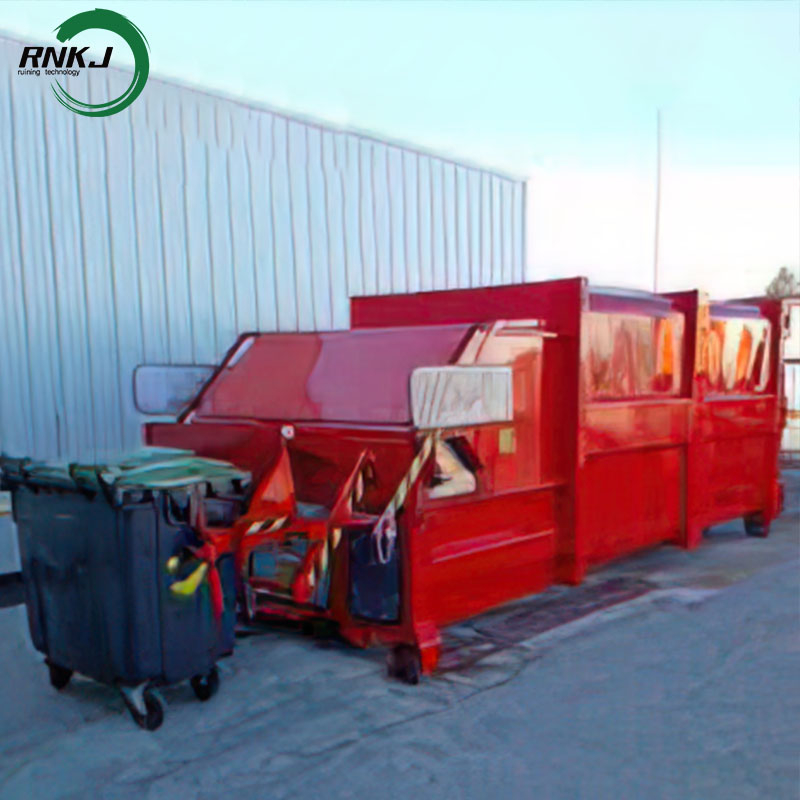

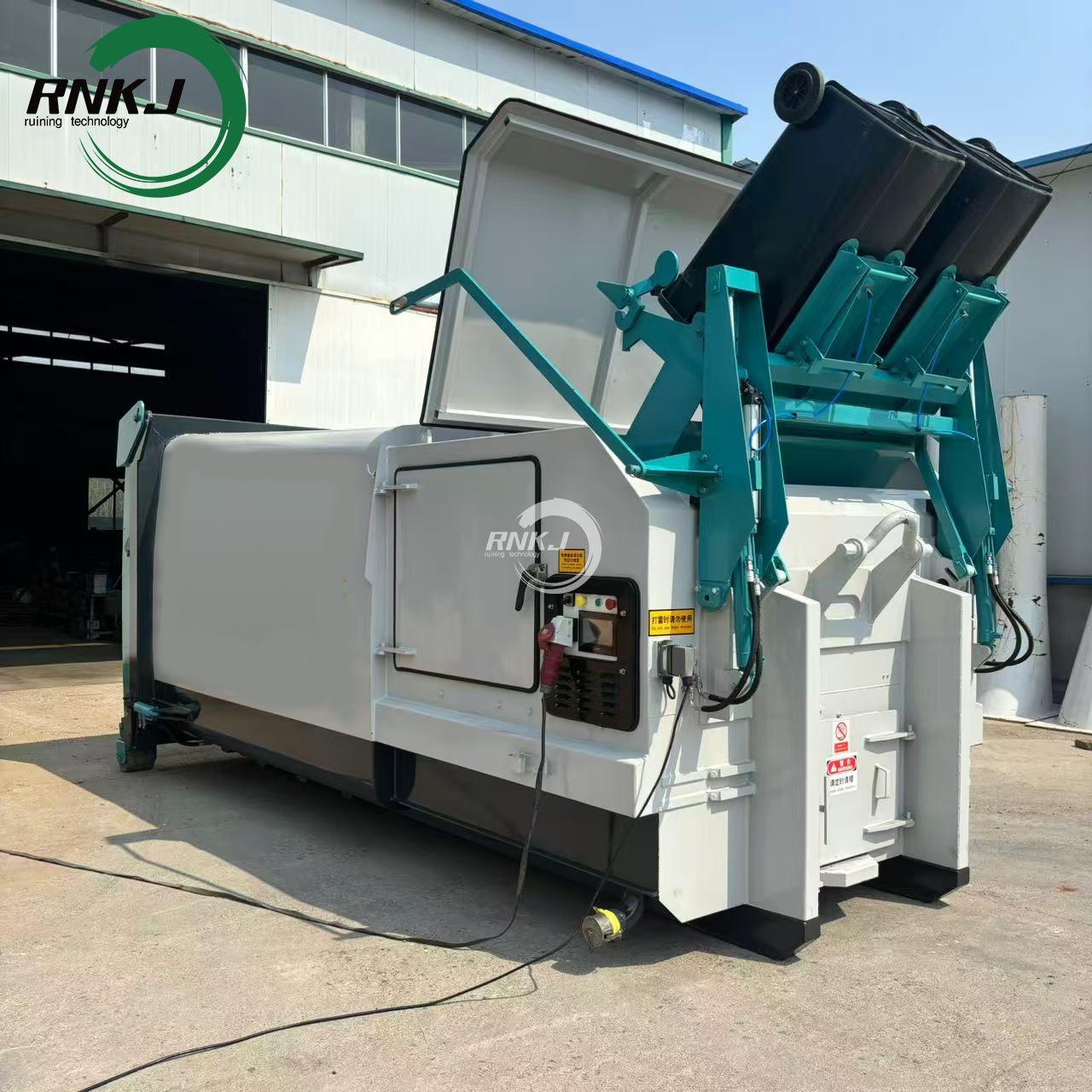

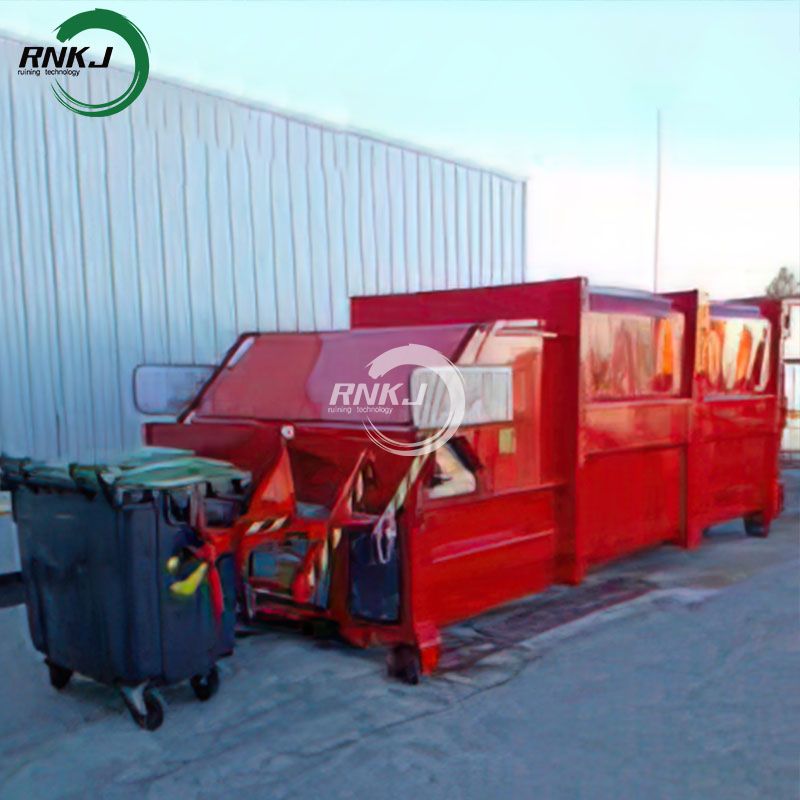

Bucket-type Garbage Compression Station is a sanitation equipment specially designed for the collection and transportation of urban domestic waste. Its core function is to automatically lift and dump the waste in standardized garbage bins, and then perform efficient compression and volume reduction processing, ultimately forming high-density garbage blocks for easier transportation.
Bucket-type Garbage Compression Station: This equipment is characterized by directly connecting with standardized trash bins. It completely replaces the traditional manual dumping method and is widely used in scenarios such as residential areas, streets, towns, industrial parks, etc., for the decentralized collection of garbage. It is a key hub equipment that connects the front-end garbage collection and the back-end centralized transportation.
DefinitionBucket-type Garbage Compression Station is an integrated sanitation device that combines an automatic bucket lifting mechanism with a high-efficiency garbage compression system. Designed as a mobile unit, it can be towed in its entirety by a hook-lift truck, with no requirement for a dedicated garbage station or complicated supporting facilities. It can automatically grip standard waste bins (240L, 660L, 1100L, etc.), lift and dump the waste, and then conduct high-intensity compression to reduce waste volume to 1/3 to 1/5 of its original size. This notably improves waste transfer efficiency and significantly lowers transportation costs.
Technical ParametersPerformance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Core Structure CompositionAutomatic bucket lifting mechanism: Grabs, lifts, and discharges standard garbage (240L/660L/1100L).
Compression chamber: The garbage compression processing area is made of high-strength wear-resistant steel plates welded together. The design is convenient for discharging, the interior is smooth and anti-sticking, and it is equipped with a leachate drainage channel.
Horizontal compression pusher: Provides horizontal compression force, gradually compacts the garbage and pushes it towards the rear of the box. It is made of wear-resistant materials, with the surface hardened, and the compression area is designed according to the box specifications.
Hydraulic power system: Provides power for lifting, compression, locking, etc. It includes an oil pump, oil cylinder, oil tank, hydraulic valve group, and a drawer-type power compartment design, which is convenient for maintenance and repair.
Electrical control system: Overall operation control and safety protection of the equipment. Dual operation interfaces with remote control buttons and intelligent control panels, featuring anti-misoperation programs, emergency stop buttons, overload protection, and limit protection, etc., for safety functions.
Sealed box body and tailgate: Garbage storage and transportation sealed container. The full-sealed welding structure, with the rear door designed in a rounded shape, is equipped with multiple sealing rubber strips to prevent leachate leakage and odor diffusion.
Auxiliary systems: Enhances the performance and environmental protection effect of the lifting equipment. Includes leachate collection system, disinfection spraying system, deodorization device, etc.
Working PrincipleTrash can docking and lifting
Hang the matching trash cans on the lifting mechanism hooks
Start the lifting process by operating the control panel or remote control. The hydraulic lifting mechanism will lift the trash cans to the top of the compression chamber
The lifting mechanism rotates to dump the garbage. Through the anti-splash diversion structure, the garbage is vertically introduced into the compression chamber, avoiding spillage problems
After the dumping is completed, the lifting mechanism automatically resets, and the empty trash can can be easily removed
Garbage compression cycle
After the garbage enters the compression chamber, the compression pusher starts to perform horizontal reciprocating motion.
After the initial push is completed quickly and accurately, it transitions to a high-pressure compression state, gradually compacting the garbage.
The filtrate generated during the compression process is collected through the diversion channel into the sewage tank and is discharged for treatment on a regular basis.
Garbage storage and full-bin detection
The compressed garbage is pushed to the rear of the bin for storage. As the amount of garbage increases, the compression density gradually rises.
The equipment is equipped with a full-bin sensing device. When the garbage reaches the set capacity, an automatic alarm signal is triggered, indicating to stop the feeding.
Connecting transfer and unloading
Connect with the sealed garbage transfer vehicle, and fix the box body to the transfer vehicle through the locking mechanism
The hydraulic system drives the tail door to open, and the compression pusher pushes the high-density garbage blocks as a whole horizontally into the transfer vehicle's compartment
After unloading is completed, the tail door automatically closes and re-seals, and the equipment returns to the standby state
Product AdvantageEfficient capacity reduction, reducing transportation costs
High compression ratio, significantly reducing the volume of garbage, reducing the number of transportation trips and fuel consumption, saving transportation costs by 50%-70%, and being able to load more garbage in the same vehicle volume.
Automated operation, saving manpower
Automatically complete the entire process of garbage bin lifting, dumping and compression without the need for manual assistance. One person can operate multiple devices.
Avoid manual contact with garbage, improve the working environment of sanitation workers, and reduce labor intensity.
Fully sealed design, environmentally friendly and without leakage
The compression chamber and the box body are fully sealed and welded. Multiple sealing rubber strips prevent leakage of filtrate and the spread of odors.
The filtrate is centrally collected and treated to avoid secondary pollution of the soil and water bodies.
Optional disinfection spraying and deodorization devices can be selected to further enhance the environmental protection effect.
The structure is sturdy and highly durable.
The key components are made of high-strength and wear-resistant materials, and the service life can reach 8-10 years.
The hydraulic system is equipped with multiple protection devices, and the electrical system has functions of preventing misoperation and overload protection.
The drawer-type power compartment design is convenient for daily maintenance and troubleshooting.
Flexible and adaptable, with wide application range
It can be connected with various standard trash cans of different specifications, suitable for different collection scenarios
The mobile model does not require a fixed foundation and can be quickly deployed and relocated
It can be used in conjunction with various rear-end equipment such as boom trucks and sealed garbage transfer vehicles
Applicable ScenariosResidential community: Replacing traditional garbage rooms, it solves the problems of messy garbage stacking and unpleasant odors disturbing residents.
Urban streets: Set up at garbage collection points and used in conjunction with small collection vehicles to improve the efficiency of street garbage collection.
Township areas: As a small-scale garbage transfer station, it covers multiple villages and reduces the distance for garbage transportation.
Industrial parks: Handling general industrial waste generated during industrial production, improving the environmental management level of the park.
Commercial centers: Collecting commercial waste generated by shopping malls, supermarkets, and restaurants, solving the problem of large garbage volume during peak hours.
Scenic areas / parks: Adopting underground design to maintain the beauty of the landscape, while efficiently handling the garbage generated by tourists.
RNKJ Bucket-type Garbage Compression Station, as an essential component of modern sanitation systems, achieves efficient, automated, and environmentally friendly garbage collection and transportation through core technologies such as bucket hoisting, horizontal compression, and fully sealed transportation. The product's sturdy and durable structure, simple operation, low maintenance costs, and wide application in various garbage collection scenarios make it an ideal choice for improving urban environmental hygiene levels and reducing garbage disposal costs. With the advancement of garbage classification policies and the development of intelligent sanitation, the Bucket-type Garbage Compression Station will be further upgraded to provide higher-quality sanitation solutions for urban construction.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
