The Bucket-type Cleaning Sweeper is a fully enclosed electric road sweeping machine designed for efficient collection of leaves, dust, sand, paper, plastic waste, and other light debris. Combining vacuum suction, side brushing, sweeping, dust suppression, and waste collection into one compact machine, it delivers outstanding cleaning performance while reducing labor costs and improving operational efficiency.
Designed with a 240L standard waste bin, this electric cleaning sweeper is suitable for urban streets, sidewalks, industrial parks, residential communities, campuses, hospitals, airports, factories, and commercial facilities. Its compact body and intelligent control system allow operators to work comfortably in narrow roads and crowded public areas.
With high sweeping efficiency, low operating noise, zero tailpipe emissions, and easy maintenance, the Bucket-type Cleaning Sweeper is an ideal solution for modern environmental sanitation and property management.
Product Features
The Bucket-type Cleaning Sweeper adopts a four-side brush + central vacuum suction cleaning system that effectively gathers debris from both sides toward the suction inlet. Fine dust and larger waste are collected simultaneously, ensuring excellent cleaning results on various road surfaces.
Sweeping width: 2,450 mm
Vacuum suction width: 800 mm
Cleaning efficiency: 20,000–35,000 m²/h
This large working width significantly improves cleaning productivity while reducing operating time.
Powered by a 60V electric system, the sweeper offers quiet operation and environmentally friendly performance without fuel consumption or exhaust emissions.
The intelligent electric drive system provides:
Stable acceleration
Low energy consumption
Smooth driving experience
Reduced maintenance costs
The machine is available with different battery capacities:
200Ah
240Ah
300Ah
Operators can select the appropriate battery according to working hours and cleaning requirements.
The machine integrates a 4000W high-power vacuum motor with a large filtration system to efficiently collect airborne dust during sweeping.
Key advantages include:
Strong suction performance
Effective dust control
Cleaner working environment
Reduced secondary dust pollution
A 20㎡ vacuum filtration area ensures stable airflow and long operating intervals between filter maintenance.
The Bucket-type Cleaning Sweeper is equipped with:
Four side brushes (4 × 100W motors)
Automatic debris gathering
Uniform cleaning along road edges
Efficient corner sweeping
The side brushes efficiently remove leaves, sand, gravel, cigarette butts, packaging waste, and daily litter from sidewalks and curbs.
To minimize dust during sweeping, the machine features an integrated water spraying system.
Configuration includes:
300L water tank
High-pressure water pump
Front spray system
Rear atomizing spray nozzles
The rear dust suppression system uses 8–10 atomizing nozzles to effectively reduce airborne dust during operation.
Besides sweeping, the Bucket-type Cleaning Sweeper also supports high-pressure washing for stubborn dirt removal.
The system includes:
1500W high-pressure pump
Maximum pressure up to 130 kg
High-pressure spray gun
Multiple spray angles (0°, 15°, 25°)
This function is suitable for cleaning:
Oil stains
Mud
Pavement residues
Public squares
Bus stations
Outdoor facilities
Sweeping and washing functions can greatly improve overall cleaning quality.
Technical Specifications| Item | Specification |
|---|---|
| Product Type | Bucket-type Cleaning Sweeper |
| Vehicle Type | Four-wheel electric sweeper |
| Sweeping Width | 2,450 mm |
| Vacuum Width | 800 mm |
| Cleaning Efficiency | 20,000–35,000 m²/h |
| Working Time | 3–6 Hours |
| Waste Bin Capacity | 240 L |
| Water Tank Capacity | 300 L |
| Vehicle Speed | 0–30 km/h |
| Dimensions | 3600 × 2450 × 2200 mm |
| Filtration Area | 20 m² |
| Tire Size | 135/70R12 |
| Drive Motor | 3000W Intelligent Variable Speed Motor |
| Vacuum Motor | 4000W |
| Side Brush Motors | 4 × 100W |
| Battery Voltage | 60V |
| Battery Capacity | 200Ah / 240Ah / 300Ah |
| High-Pressure Pump | 1500W |
| Maximum Water Pressure | 130 kg |
| Spray Gun | 0°, 15°, 25° Nozzles |
Intelligent Control SystemThe machine adopts an intelligent electronic control system for convenient operation.
Functions include:
One-button operation
Intelligent driving control
Timed vibration filter cleaning
Real-time system monitoring
Simple maintenance reminders
Even new operators can quickly learn the machine with minimal training.
Comfortable Driving ExperienceThe enclosed cab provides a safe and comfortable working environment.
Features include:
Excellent visibility
Ergonomic controls
Low operating noise
Comfortable seating
Weather protection
Suitable for year-round operation
Safety ConfigurationThe Bucket-type Cleaning Sweeper is equipped with a comprehensive lighting and warning system for improved operational safety.
Standard equipment includes:
LED front headlights
Rear combination lights
Turn signals
Brake lights
Roof warning beacon
Reverse camera
These features improve visibility and safety when operating in busy urban environments.
Working PrincipleThe Bucket-type Cleaning Sweeper integrates sweeping, vacuum collection, filtration, and dust suppression into a continuous cleaning process.
Step 1: Four rotating side brushes gather debris toward the center.
Step 2: The powerful vacuum system sucks debris into the 240L waste container.
Step 3: Dust passes through the high-efficiency filtration system while clean air is discharged.
Step 4: The integrated spraying system suppresses dust throughout the cleaning process.

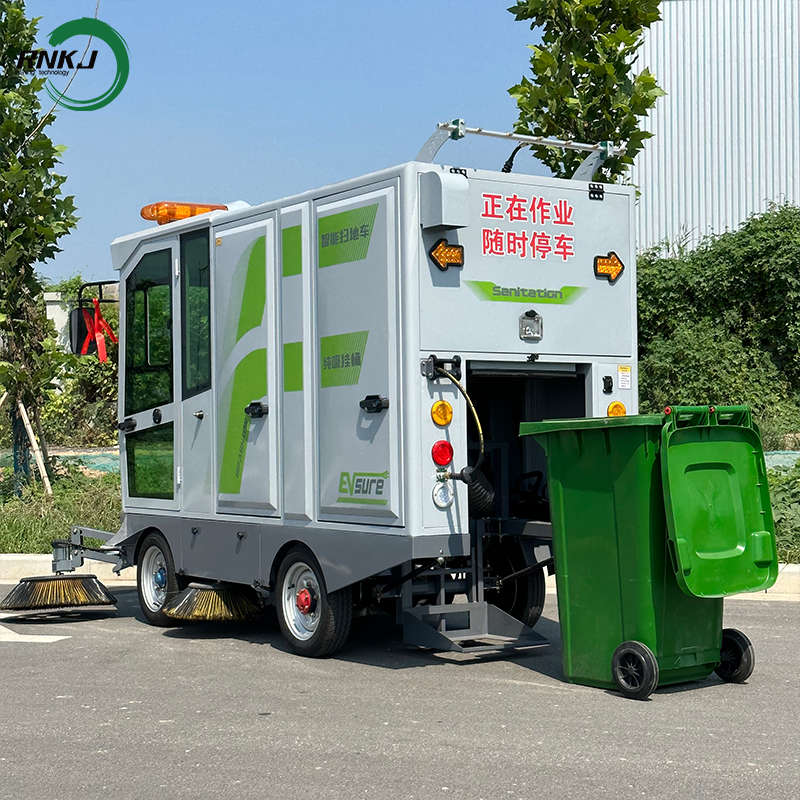

Step 5: Once the waste container is full, operators simply remove and empty the standard 240L garbage bin before continuing operation.
Typical ApplicationsMunicipal roads
Residential communities
Industrial parks
Manufacturing plants
Logistics centers
Commercial plazas
Universities
Schools
Hospitals
Airports
Railway stations
Tourist attractions
Parks and gardens
Property management projects
Sidewalks and pedestrian streets
Cleaning ObjectsCan clean up more kinds of garbage or objects.
Optional Charger And PlugFor any other chargers and plugs, please contact us.
Scrubber Series ParametersTell me your needs and recommend a more suitable solution for you.
Product AdvantagesLarge 2.45 m sweeping width for high productivity
Cleaning efficiency up to 35,000 m²/h
Zero-emission electric operation
Integrated sweeping, vacuuming, washing, and dust suppression
High-power 4000W vacuum motor
Intelligent control system with automatic filter vibration
High-pressure washing function
Large 300L water tank
Standard 240L removable waste bin
Low maintenance costs
Quiet operation suitable for urban environments
Excellent maneuverability in narrow spaces
Suitable for continuous daily cleaning operations
FAQIt can efficiently collect leaves, dust, sand, paper scraps, plastic bottles, cigarette butts, small stones, packaging materials, and other common municipal or commercial waste.
Depending on the selected battery capacity and operating conditions, the sweeper can typically work continuously for 3 to 6 hours.
Yes. The machine uses a standard 240L waste bin, allowing operators to quickly remove, empty, and reinstall the container for continuous cleaning.
Yes. The fully electric powertrain produces low noise and zero exhaust emissions, making it ideal for residential communities, schools, hospitals, and other noise-sensitive environments.
Yes. It features a 300L water tank, front spraying system, rear atomizing nozzles, and a high-efficiency filtration system to effectively control dust during sweeping operations.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
