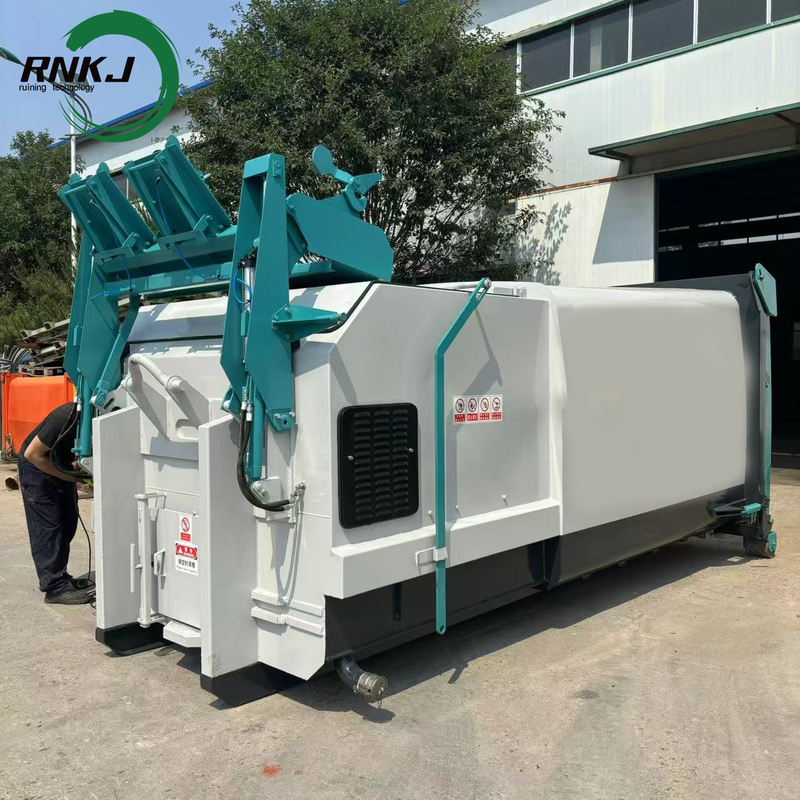

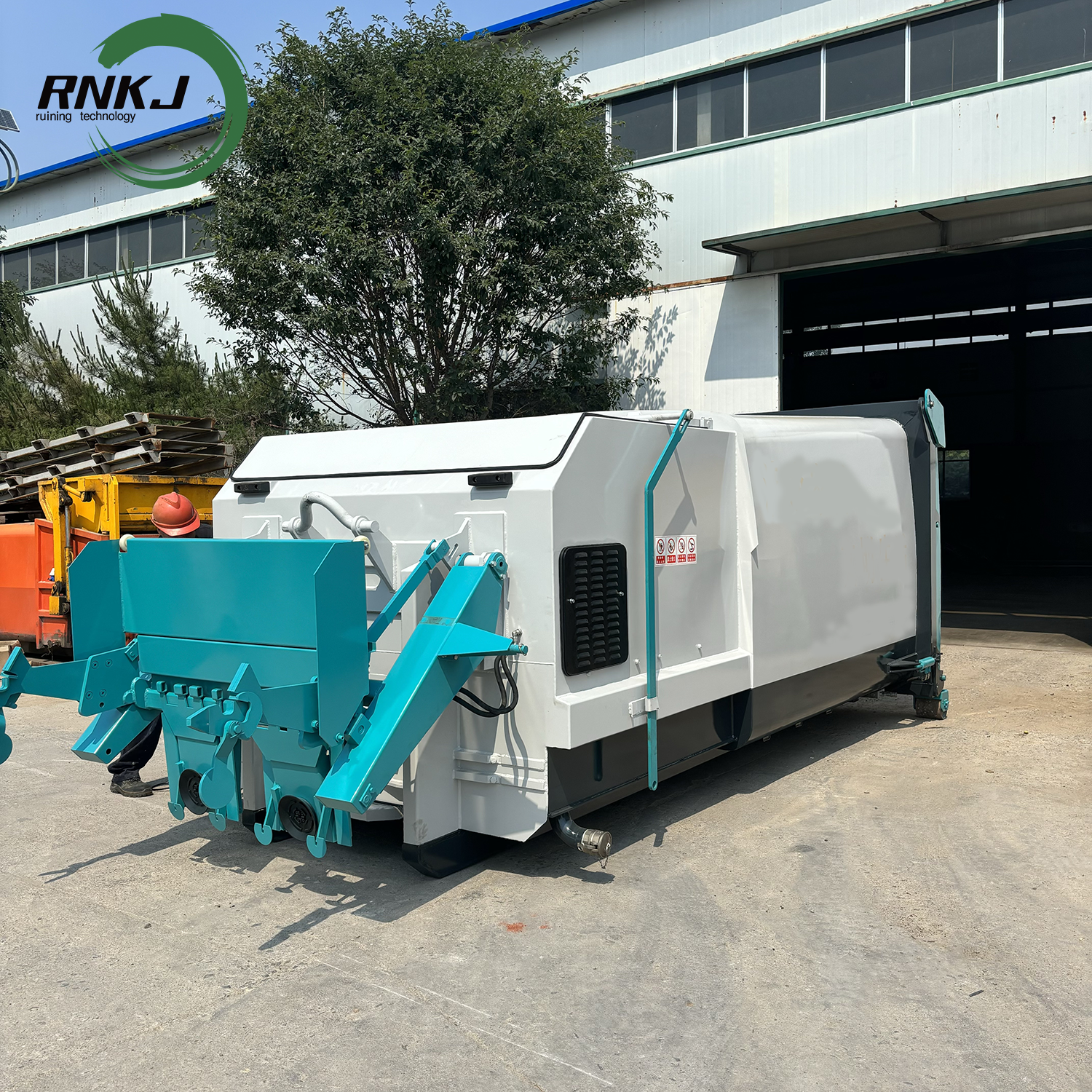

Bucket Garbage Compaction Station is a piece of equipment used to compress garbage and improve the efficiency of garbage collection and processing. It is mainly used in commercial, industrial and municipal garbage disposal scenarios.
Product Advantage

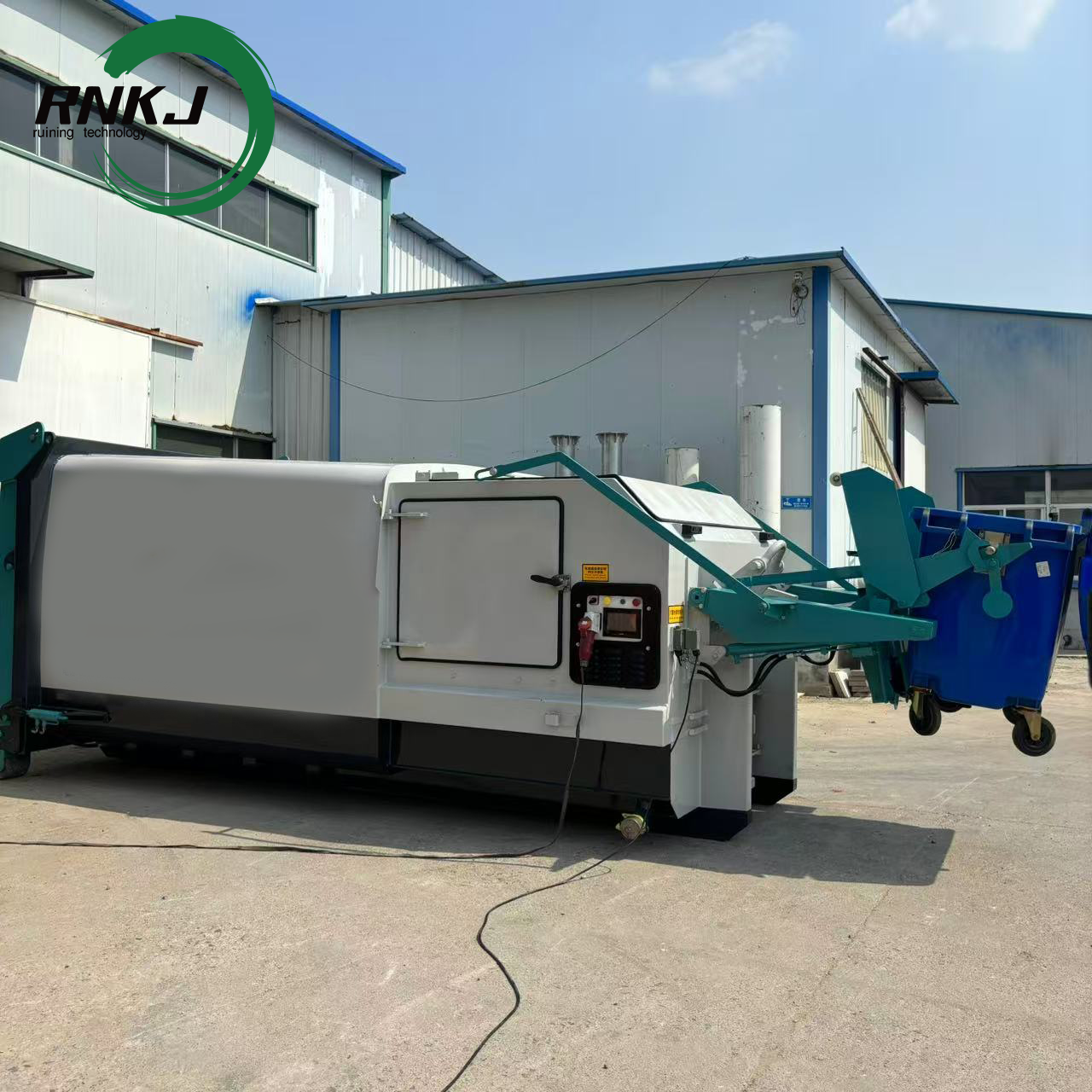

The bucket tipping device of the Bucket Garbage Compaction Station can automatically hook, lift, and tip the garbage can, pour the garbage into the garbage compactor, and then put the garbage can back to its original place, without the need for manual dumping of garbage, saving a lot of manpower. For example, the bucket tipping device of the compression garbage truck can automatically dump the garbage, improving work efficiency. Through the compaction function, the air in the garbage can be discharged, greatly reducing the volume of the garbage. When the Bucket Garbage Compaction Station is working, the compression plate of the compressor applies pressure to the garbage. After mechanical compression, the volume of the garbage is significantly reduced, which is convenient for subsequent transportation and processing.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Practical Application Case
Suitable for various application scenarios
Our Bucket Garbage compactor adopts the most advanced PLC microcomputer control system,with remote control operation,automatic compression function, high compression ratio.
Product Details
Rational Design
The compression head is on the upper side of the tank to avoid liquid back flow and ensure that the cylinder and compression head are not corroded by sewage immersion,and thus ensure that the tank is clean.
Reasonable sewage treatment
Sewage collection box is equipped to prevent sewage leakage. Sewage can be dis-charged directly through sewage pump or transported with the tank for disposal.
Standardization
The garbage compactor is applicable for most standard hook arm garbage trucks in the world.
Customization
As a professional factory and manufacturer,we are able to caters to our customers needs in every way, such as color,capacity,dimensions,voltage etc.
Good Performance
The system adopts high strength steel as main frame to ensure its long service life.And it has high compression rate and short cycle time to ensure high efficiency.
Multiple Choices
Multiple choices of garbage drop-off point are available,including hoppers,flipping buckets, etc.Customers can choose the most suitable pattern.
Productive Capacity
We have a professional team and the strength of the factory to support customization. Including type, volume, height, color and other requirements, free custom logo.
Equipment details
Laser cutting
Which is highly accurate and fast compared to traditional cut ting processes,and can precisely cut all types of metals.
Laser rust removal
Which is an efficient,energy saving and environmental protection way. It can remove the oil, oxide,rust, etc. On the surface of the object, and will not cause damage to the substrate.
Laser welding
Which is fast, deep,small deformation,better toughness of the weld, and we will detect the equipment.
Paint thickness
We spray one epoxy primer with a thickness of 20-25μm, two coats with a thickness of not less than 75μm,and varnish, if you have other requirements,you can customize the program.
Packaging and shipping
The shipping methods include: Ro-Ro, bulk shipping, 20ft container, 40ft container, 40 HQ container, flat rack container, open top, platform container express, etc.
FAQ
Are you a manufacturer or Trader?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
What is your payment term?
We accept T/T, L/C at sight, Western Union, Paypal etc.
How long is the validity of quotation?
Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market.
What is your delivery time?
Usually, we make merchandise inventory. If we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days. It depends on the order quantity.
Do you provide OEM/ODM Service?
Yes, with necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
How can we ensure quality?
The final inspection is always carried out before shipment.
How to install the equipment after purchasing?
We will provide a professional installation video to illustrate, as well as a manual.
Do you offer a guarantee?
Yes, we guarantee our product for one year. After-sales service support and technical support are both available.
What is your MOQ?
1 set.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
