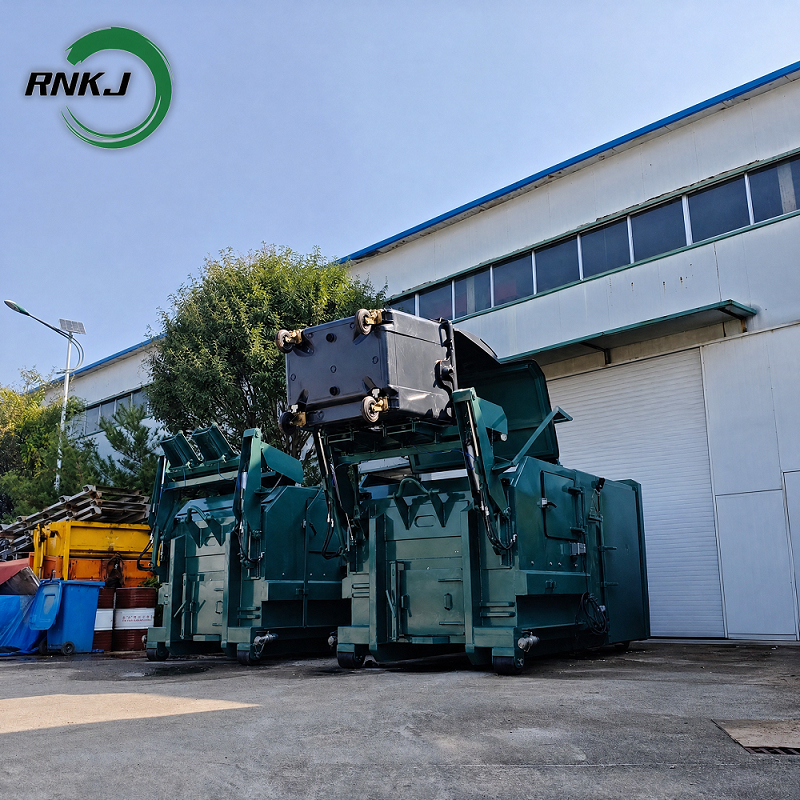

Product OverviewThe Automatic Bin Tipping Hydraulic Bucket Type Waste Compactor for Municipal Sanitation Projects is a hydraulic waste collection and compaction machine designed to simplify the handling of municipal solid waste, household garbage, and general commercial waste. It integrates an automatic bin-tipping mechanism, a hydraulic compression system, a waste loading hopper, and a storage container into one coordinated piece of equipment.
Unlike conventional waste collection arrangements that rely on workers to manually empty garbage bins and handle loose waste, this bucket type waste compactor uses a hydraulic lifting and tipping mechanism to transfer waste from compatible bins into the compression chamber. After the waste enters the machine, the hydraulic compression mechanism pushes it into the storage compartment, where the material is compacted for subsequent collection and transportation.
The automatic bin-tipping system is one of the defining features of this equipment. It provides a mechanical loading method for standard wheeled garbage bins, helping sanitation operators establish a more consistent waste collection process. The bin-lifting structure, hopper dimensions, compression configuration, and storage capacity can be selected according to the project's operating requirements.
Designed for municipal sanitation departments, residential communities, commercial complexes, public facilities, and centralized waste collection points, this hydraulic bucket type waste compactor can be configured for different waste volumes, container standards, and site conditions.
The equipment is particularly suitable for projects that need to integrate garbage bin emptying, hydraulic waste compaction, temporary storage, and organized waste transfer into a single operating system.
Main Components and Product StructureThe automatic bin tipping hydraulic bucket type waste compactor consists of several functional components that work together to complete waste loading, compression, and collection. Each component can be evaluated according to the customer's waste collection requirements and site conditions.
The automatic bin-tipping mechanism is the main feeding component of the machine. It is designed to lift compatible garbage bins and tip their contents into the loading hopper.
The lifting assembly typically includes a supporting frame, lifting arms or a tipping bucket, hydraulic cylinders, and the associated control components. The specific structure depends on the selected bin type and lifting configuration.
When the bin is positioned correctly, the hydraulic system drives the lifting mechanism upward and rotates the bin toward the hopper. After the waste has been discharged, the mechanism returns the bin to its original position.
The bin-tipping system can be configured for common wheeled garbage bin capacities, including 240L, 660L, and 1100L. Custom bin dimensions and lifting requirements can also be evaluated.
Key design considerations include:
Bin dimensions and lifting points.
Maximum loaded bin weight.
Lifting height and tipping angle.
Hydraulic cylinder capacity.
Feeding hopper dimensions.
Operating frequency and safety requirements.
A properly matched hydraulic bin lifter helps create a consistent loading process and reduces the need for workers to manually empty heavy garbage bins.
The hydraulic compression system provides the force required to compact incoming waste. It generally consists of a hydraulic power unit, hydraulic cylinders, a compression plate or ram, hydraulic valves, and connecting pipelines.
After the waste enters the compression chamber, the hydraulic cylinder drives the compression mechanism to push the material into the storage section. The compression cycle can be repeated as additional waste is collected.
Unlike ordinary waste containers that only provide temporary storage, a hydraulic bucket type waste compactor actively reduces the volume of loose garbage through mechanical pressure.
The compression system can be selected according to the waste characteristics and required operating conditions. Paper, cardboard, plastic packaging, household waste, and mixed municipal solid waste may respond differently to compression, so the actual configuration should be determined according to the intended application.
The hydraulic system can also be evaluated for operating pressure, cylinder dimensions, motor power, cooling requirements, and maintenance accessibility.
The loading hopper connects the bin-tipping mechanism with the compression chamber. It receives waste discharged from the elevated garbage bin and guides the material toward the compaction area.
The hopper's dimensions and opening geometry affect how waste enters the machine. Its configuration should match the lifting mechanism, the dimensions of the garbage bins, and the type of material being handled.
For municipal sanitation projects, the hopper needs to accommodate the expected waste volume per loading cycle while allowing the tipping mechanism to operate within the available space.
The feeding opening, protective covers, access points, and surrounding structure can be considered during equipment design to support practical operation and routine cleaning.
The storage container holds the compacted waste until unloading or transportation is required. Its dimensions and usable capacity should correspond to the expected waste generation volume, collection frequency, and downstream transportation arrangements.
The container is generally constructed with a heavy-duty steel structure designed to withstand the loads generated during waste storage and compression.
Depending on the project, the container configuration may include reinforced structural sections, a rear discharge door, locking components, and suitable sealing arrangements.
For projects that use a hook lift truck, the equipment can be designed around the truck's container interface and loading requirements. This option must be confirmed according to the selected machine configuration rather than assumed for every bucket type compactor.
The hydraulic power unit supplies the hydraulic flow and pressure needed to operate the lifting and compression mechanisms. It may include a motor, hydraulic pump, oil tank, valves, filters, and associated components.
The electrical control system coordinates the machine's operating functions. Depending on the selected configuration, it may support automatic operating sequences, manual controls, limit switches, and emergency stop functions.
For municipal waste collection, the control system should be selected according to the operator's working procedures, local electrical standards, and required safety provisions.
The layout of hydraulic and electrical components should also allow convenient inspection and maintenance.
How Does an Automatic Bin-Tipping Waste Compactor Work?The automatic bin-tipping hydraulic bucket type waste compactor combines mechanical bin handling with hydraulic waste compression. Its typical operating sequence consists of the following stages.
Step 1: Position the garbage bin
The operator moves a compatible garbage bin into the designated loading position. The bin dimensions and engagement points must match the lifting mechanism.
Step 2: Engage the bin-lifting mechanism
The bin is secured in the lifting assembly according to the equipment design. This helps maintain a controlled position during lifting and tipping.
Step 3: Lift and tip the bin
The hydraulic cylinders drive the lifting mechanism upward, rotating the bin over the feeding hopper. The waste falls into the hopper under gravity.
Step 4: Return the empty bin
After the contents have been discharged, the lifting mechanism lowers the bin back to its normal position, ready for reuse.
Step 5: Compress the incoming waste
The hydraulic compression mechanism pushes the waste into the storage section. The compression cycle can be repeated according to the machine's operating sequence.
Step 6: Continue waste collection
Additional garbage bins are emptied into the machine until the required collection quantity or working capacity is reached.
Step 7: Discharge or transport the waste
When the container needs to be emptied, the operator follows the equipment's designated unloading procedure. Where the unit is configured for hook lift transportation, a compatible hook lift truck can transport the complete unit to the designated waste transfer or treatment facility.
This workflow combines bin emptying and waste volume reduction, making the equipment suitable for centralized municipal and commercial waste collection. The exact operating sequence depends on the selected control system and machine configuration.
Key Features of the Bucket Type Waste CompactorAutomatic Bin Tipping
The hydraulic lifting mechanism empties compatible garbage bins into the hopper without requiring workers to manually overturn each loaded bin. This is particularly useful for repeated waste collection operations.
Hydraulic Waste Compaction
The hydraulic compression mechanism reduces the loose volume of suitable solid waste and improves the utilization of available storage space.
Flexible Bin Compatibility
The lifting structure can be designed for 240L, 660L, and 1100L garbage bins, subject to confirmation of dimensions, loaded weight, and lifting interface.
Heavy-Duty Structural Design
The frame, hopper, compression chamber, and storage container can be engineered for the loads and operating frequency expected in municipal sanitation environments.
Configurable Control System
The hydraulic and electrical systems can be selected according to the required operating sequence, local power supply, maintenance preferences, and safety requirements.
Applications in Municipal Sanitation ProjectsThe automatic bin tipping hydraulic bucket type waste compactor can be used at locations where garbage is collected in wheeled bins and needs to be consolidated before transportation.
Municipal sanitation departments can use the equipment at designated collection points to empty garbage bins and compact incoming household waste. The machine provides a centralized point for receiving waste from multiple collection bins.
Residential developments generate waste from households, public areas, and shared facilities. A bucket type waste compactor can be installed at an appropriate collection area to receive waste from compatible bins and reduce the volume of accumulated garbage.
Shopping malls, supermarkets, office buildings, and commercial districts often generate cardboard, packaging, and general solid waste. The bin-tipping mechanism provides a structured way to transfer suitable waste into the compression chamber.
Schools, hospitals' non-hazardous general waste areas, public buildings, and other institutions may require centralized waste collection. Equipment selection should account for waste classification requirements and any special handling restrictions.
Factories and industrial parks may use bucket type waste compactors for suitable non-hazardous solid waste generated during daily operations. The machine should be configured according to the material characteristics, bin sizes, and expected loading frequency.
At a waste transfer station, the equipment can serve as part of a larger collection and transportation process. Its storage capacity, unloading method, and transportation interface should be matched to the site's overall waste handling system.
The equipment is intended primarily for compatible solid waste. Hazardous materials, pressurized containers, and waste streams requiring specialized treatment should not be processed without a specific engineering and safety assessment.
Customization Options for Different ProjectsDifferent municipal sanitation projects have different requirements. A suitable configuration should consider the complete collection process rather than focusing only on the compactor's nominal capacity.
Customization item | Details to confirm |
|---|---|
Garbage bin compatibility | 240L, 660L, 1100L, or customized dimensions |
Lifting mechanism | Lifting capacity, bin engagement, lifting height, tipping angle |
Storage capacity | Required container volume based on waste generation and collection frequency |
Compression system | Hydraulic configuration based on waste characteristics and operating requirements |
Hopper structure | Feeding opening, hopper dimensions, and bin-tipping clearance |
Container structure | Steel construction, reinforcement, access, and unloading configuration |
Control system | Manual or automatic operating functions and safety controls |
Power supply | Local voltage, frequency, and electrical requirements |
Transportation | Fixed installation or compatible hook lift truck configuration |
Installation conditions | Available space, access routes, foundation, and maintenance clearance |
The lifting mechanism and compression system should be designed as a coordinated assembly. For example, a project using 1100L bins with heavy mixed waste may require a different lifting configuration from a small commercial site using 240L bins.
Similarly, storage capacity should be selected according to the amount of waste collected between unloading cycles. A larger container may provide more storage volume, but it also needs to be compatible with the available installation area and transportation arrangements.
Providing the manufacturer with actual site dimensions, bin specifications, and estimated daily waste volume helps establish a more appropriate equipment configuration.
What Should Buyers Consider Before Purchasing?Before purchasing an automatic bin-tipping hydraulic bucket type waste compactor, buyers should evaluate the following factors.
Garbage bin standards: Confirm the bin dimensions, wheel arrangement, lifting points, and maximum loaded weight. Nominal bin capacity alone does not guarantee compatibility.
Waste characteristics: Identify whether the equipment will handle household garbage, cardboard, plastic packaging, mixed commercial waste, or other materials. Moisture content and material composition influence compression performance.
Daily waste volume: Estimate how many bins need to be emptied per day and how frequently the storage container must be unloaded.
Available installation space: Check the equipment footprint, bin approach area, lifting clearance, maintenance access, and vehicle access routes.
Power and operating conditions: Confirm the local electrical supply, expected operating frequency, environmental conditions, and control requirements.
Maintenance and after-sales support: Ask about hydraulic component maintenance, replacement parts, troubleshooting support, operating instructions, and warranty terms.
These details help the manufacturer determine whether a standard configuration is suitable or whether a customized design is needed.
FAQIt is a waste collection and compression machine that uses a hydraulic mechanism to lift and tip compatible garbage bins into a hopper, then compresses the incoming waste into a storage chamber.
The lifting mechanism can be configured for common 240L, 660L, and 1100L bins. Other sizes may be possible after checking bin dimensions, loaded weight, and lifting requirements.
The hydraulic cylinders drive the lifting mechanism to raise and rotate the garbage bin over the hopper. After the waste is discharged, the mechanism returns the bin to its original position.
The equipment can be configured for suitable municipal solid waste, household garbage, commercial waste, cardboard, plastic packaging, and certain types of general industrial waste. Actual suitability depends on the waste composition and machine design.
Yes. The storage container capacity and overall equipment dimensions can be evaluated according to the expected daily waste volume, collection schedule, installation space, and transportation method.
A hook lift compatible configuration can be considered when required. The hook interface, container dimensions, lifting capacity, and truck specifications must be confirmed before manufacturing.
Request a Customized Bucket Type Waste Compactor QuoteIf you are looking for an Automatic Bin Tipping Hydraulic Bucket Type Waste Compactor for Municipal Sanitation Projects, choosing the right configuration is essential for matching your garbage collection system, waste volume, and operating environment.
As a waste compactor manufacturer, we can evaluate customized solutions based on your garbage bin specifications, required storage capacity, hydraulic lifting requirements, compression configuration, installation space, and transportation arrangements.
To help us prepare a suitable proposal, please share the following information:
Required garbage bin size: 240L, 660L, 1100L, or customized.
Estimated daily waste volume.
Main waste type and moisture characteristics.
Required storage capacity.
Available installation space.
Local power supply and transportation requirements.
Contact us for a customized equipment proposal and factory quotation. Our team can help you assess the appropriate bin-tipping mechanism, hydraulic compression system, container configuration, and optional features for your municipal sanitation project.
Request a quote today to discuss your project requirements and find a bucket type waste compactor configuration that fits your waste collection process.
