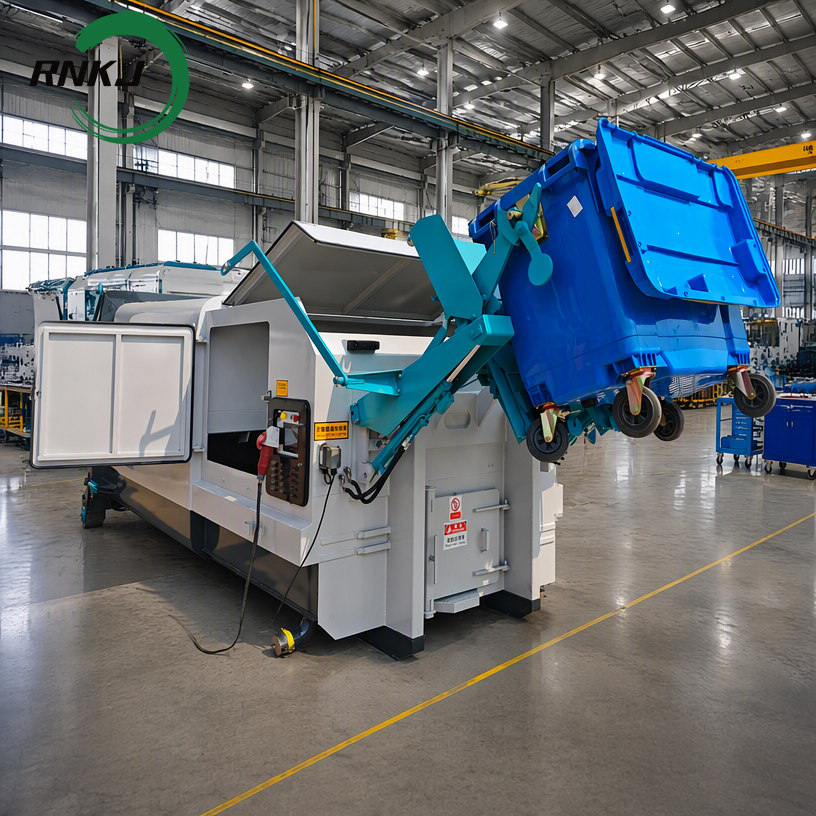

9 m³ Hydraulic Bucket Type Garbage Compactor

High-Efficiency Waste Compression Solution for 660L & 1100L Wheelie Bins

The 9 m³ Hydraulic Bucket Type Garbage Compactor is a heavy-duty stationary waste compaction system designed for efficient collection, compression, and transportation of municipal solid waste. Equipped with a hydraulic bucket lifting mechanism, the compactor is compatible with both 660L and 1100L standard wheelie bins, making it an ideal solution for residential communities, commercial complexes, industrial parks, hospitals, schools, airports, and municipal sanitation projects.

With a 9 cubic meter compaction chamber, the machine significantly reduces waste volume, minimizes transportation frequency, and lowers operating costs. Once the container is full, the entire compactor is transported directly by a Hook Lift Truck, providing a fast, safe, and efficient waste transfer solution.

Whether you are upgrading an existing waste collection system or planning a new solid waste management project, the 9 m³ Hydraulic Bucket Type Garbage Compactor delivers excellent compression performance, reliable operation, and long service life.

 Features of 9 m³ Hydraulic Bucket Type Garbage Compactor

9 m³ Large Capacity

The large 9 m³ waste storage chamber provides sufficient capacity for daily waste collection, making it suitable for medium and large-scale waste generation sites. Compared with traditional waste bins, the compactor greatly increases storage capacity while reducing collection frequency.

Compatible with 660L & 1100L Garbage Bins

The hydraulic bucket lifting system is specially designed to lift and empty:

• 660L Wheelie Bin

• 1100L Wheelie Bin

The lifting mechanism automatically grips, lifts, tips, and empties the waste into the compaction chamber without manual handling, improving operational efficiency while reducing labor intensity.

Hydraulic Bucket Lifting System

The automatic hydraulic lifting device features:

• Stable lifting movement

• High loading efficiency

• Smooth dumping operation

• Low maintenance requirements

• Safe hydraulic control

The lifting frame is manufactured from high-strength structural steel to withstand continuous heavy-duty operation.

High Compression Ratio

The hydraulic compaction system compresses municipal solid waste into dense blocks, effectively reducing waste volume.

Benefits include:

• Increased container utilization

• Reduced transportation frequency

• Lower fuel consumption

• Reduced labor costs

• Improved collection efficiency

The compression force can handle:

• Household waste

• Packaging waste

• Plastic

• Paper

• Cardboard

• Mixed municipal solid waste

• Commercial waste

Hook Lift Truck Transportation

Unlike conventional stationary compactors requiring rear-loading garbage trucks, this 9 m³ Hydraulic Bucket Type Garbage Compactor is designed for transportation by a Hook Lift Truck.

After reaching full capacity:

1. The Hook Lift Truck connects to the compactor.

2. The complete unit is loaded onto the truck.

3. The compactor is transported to the transfer station or disposal site.

4. Waste is discharged.

5. The compactor returns for continued operation.

This transportation method provides:

• Fast loading

• High flexibility

• Lower investment cost

• Easy deployment

• Convenient relocation

Fully Enclosed Waste Collection

The enclosed design effectively controls:

• Odor emission

• Rainwater intrusion

• Wind-blown litter

• Secondary pollution

• Pest breeding

This makes the compactor especially suitable for urban environments where cleanliness and environmental protection are priorities.

 Product Structure

The 9 m³ Hydraulic Bucket Type Garbage Compactor consists of several major components:

• Heavy-duty compaction chamber

• Hydraulic bucket lifting device

• Hydraulic compression ram

• High-strength steel container

• Electric control cabinet

• Hydraulic power unit

• Automatic control system

• Rear discharge door

• Safety locking mechanism

• Maintenance access door

Every component is engineered for continuous operation under demanding municipal sanitation conditions.

 Product Specifications

• Effective Volume: 9 m³

• Applicable Waste Bins: 660L wheeled waste bin, 1100L wheeled waste bin

• Loading Structure: Double hydraulic bucket lifting mechanism (can load single bin or dual bins optionally)

• Transport Mode: Hook lift truck (hook loader truck) integral transportation, no disassembly required

• Working Principle: Hydraulic compression system squeezes garbage to reduce waste volume; compression ratio reaches 3:1 ~ 5:1

• Structure Type: All-in-one mobile integrated compactor, integrated compaction chamber, bin tipper, hydraulic power unit and sealing cover

 Working Principle

The operation process is simple, efficient, and highly automated.

Step 1 – Waste Collection

Municipal waste is collected in standard 660L or 1100L wheelie bins.

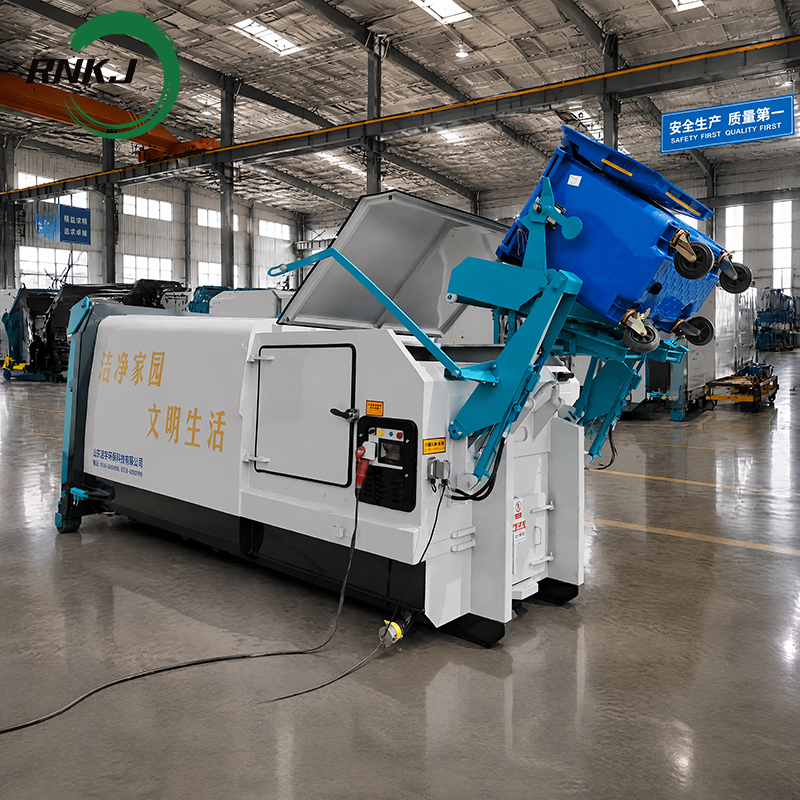

Step 2 – Hydraulic Bin Lifting

The operator positions the wheelie bin on the lifting platform.

The hydraulic bucket lifter automatically:

• Locks the bin

• Raises it

• Rotates it

• Empties the waste into the hopper

• Returns the bin safely to the ground

Step 3 – Waste Compression

After waste enters the chamber, the hydraulic ram compresses the waste into the storage compartment, maximizing the use of available space.

Step 4 – Continuous Collection

The cycle repeats until the container reaches full capacity.

Step 5 – Hook Lift Transportation

Once full, the entire 9 m³ Hydraulic Bucket Type Garbage Compactor is transported by a Hook Lift Truck to the waste transfer station or disposal site.

Step 6 – Waste Discharge

The rear door is opened and the compressed waste is discharged before the compactor returns to service.

 Technical Parameters

 Product Advantages

Improve Collection Efficiency

Automatic hydraulic lifting greatly shortens loading time compared with manual waste handling.

Reduce Transportation Costs

Compressed waste occupies less volume, allowing more waste to be transported per trip and reducing transportation frequency.

Lower Labor Requirements

One operator can easily complete the waste loading process without heavy manual lifting.

Safe Operation

Multiple safety devices protect both operators and equipment during lifting and compression.

Durable Construction

Manufactured from high-strength steel with corrosion-resistant surface treatment for long service life under outdoor operating conditions.

Easy Maintenance

Large inspection doors and modular hydraulic components simplify routine maintenance and servicing.

Environmentally Friendly

The enclosed system effectively minimizes odor, leakage, and secondary pollution while maintaining a cleaner waste collection environment.

 Typical Applications

The 9 m³ Hydraulic Bucket Type Garbage Compactor is widely used in:

• Residential communities

• Apartment complexes

• Shopping centers

• Supermarkets

• Industrial parks

• Manufacturing plants

• Universities

• Schools

• Hospitals

• Hotels

• Tourist attractions

• Airports

• Railway stations

• Logistics centers

• Municipal sanitation departments

• Public institutions

 Optional Configurations

The compactor can be customized according to project requirements, including:

• Compatible with 660L bins

• Compatible with 1100L bins

• PLC automatic control

• Remote control operation

• Stainless steel hopper

• Galvanized components

• Outdoor weather protection

• Multi-language operating interface

• Different voltage standards

• Custom paint colors

• Company logo customization

• CE-compliant electrical components

 Why Choose the 9 m³ Hydraulic Bucket Type Garbage Compactor?

Compared with conventional waste collection methods, the 9 m³ Hydraulic Bucket Type Garbage Compactor offers significant operational and economic advantages:

• Higher waste storage capacity

• Reduced transportation frequency

• Lower fuel and labor costs

• Automatic bin lifting

• High compression efficiency

• Fully enclosed waste handling

• Improved sanitation standards

• Compatible with standard 660L and 1100L wheelie bins

• Transported as a complete unit using a Hook Lift Truck

• Reliable hydraulic system for continuous operation

It is an ideal solution for municipalities, waste management companies, property management firms, and industrial facilities seeking a modern, efficient, and environmentally responsible waste collection system.

 FAQ

What bin sizes are compatible with the 9 m³ Hydraulic Bucket Type Garbage Compactor?

The machine is designed to work with 660L and 1100L standard wheelie bins using its hydraulic bucket lifting system.

How is the waste transported after the compactor is full?

The entire 9 m³ Hydraulic Bucket Type Garbage Compactor is loaded and transported by a Hook Lift Truck to the transfer station or disposal site, where the compressed waste is discharged.

What types of waste can the compactor handle?

It is suitable for most municipal solid waste, including household waste, commercial waste, paper, cardboard, plastic packaging, and mixed non-hazardous refuse.

Is manual waste loading required?

No. Waste is automatically loaded through the hydraulic bucket lifting system, reducing manual handling and improving operational safety.

Is the compactor suitable for outdoor installation?

Yes. The equipment is built with a robust steel structure and corrosion-resistant coating, making it suitable for long-term outdoor operation.

Can the machine be customized?

Yes. Custom options include voltage, color, control system, hopper configuration, logo branding, and additional safety features to meet different project requirements.

As cities continue to generate increasing amounts of municipal waste, traditional waste collection methods often require frequent transportation, higher labor costs, and larger vehicle fleets. The 9 m³ Hydraulic Bucket Type Garbage Compactor addresses these challenges by compressing waste directly at the collection point, allowing more refuse to be stored in the same volume before transportation.

We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
