The 660L underground waste storage system with electric hydraulic lifting is redefining how cities, residential communities, parks, and commercial districts manage waste. By moving the waste container below ground level and raising it automatically with a powerful electric hydraulic lifting mechanism, this system eliminates overflowing bins, unpleasant odors, and visual clutter — all while making waste sorting easier and collection faster. If your project needs a space-saving, low-maintenance, and smart municipal waste management solution, this 660L underground waste bin with hydraulic lift is engineered to deliver.
Why Traditional Waste Bins Are Failing Modern Cities？Conventional above-ground garbage bins have been the standard for decades, but they come with well-documented problems:
Overflowing bins and litter: When collection schedules fall behind, waste piles up around the bin, attracting pests and creating an unsightly mess.
Odor problems: Sun-exposed bins heat up quickly, accelerating decomposition and spreading foul smells across sidewalks and public squares.
Pest and hygiene risks: Open or loosely covered bins attract rats, flies, and stray animals, creating public health concerns.
Visual pollution: Rows of plastic or metal bins clutter streetscapes, damaging the aesthetic value of tourist areas, plazas, and upscale residential zones.
Limited waste sorting compliance: Traditional single bins make source separation difficult, undermining recycling and municipal sustainability targets.
Inefficient collection: Manual handling of heavy, full bins slows down garbage truck operations and increases labor costs.
The underground waste storage system solves all of these problems at once — by simply putting the bin where it belongs: underground.
Product Overview Core Advantages of Electric Hydraulic Lifting MechanismRemote‑controlled lifting & lowering: Operate lifting cycles remotely. Maintenance crews do not need manual heavy lifting. Internal 660L wheeled waste bins can be safely lifted up to ground level for quick roll‑out replacement. It drastically cuts manual labor intensity during garbage truck collection.
Stable heavy‑load performance: The hydraulic power unit delivers steady lifting force, fully loaded 660L waste bins can be lifted smoothly without shaking or jamming. It works reliably for frequent repeated lifting cycles in outdoor all‑weather conditions.
Easy maintenance access: When lifted, the underground pit and containers are fully exposed. Operators can conduct inspection, decontamination, fault checking and component replacement conveniently. No complex underground confined‑space operations are required.
Key Features of the 660L Underground Waste Storage System with Electric Hydraulic LiftingThe heart of this system is its electric hydraulic lifting unit. With the press of a button, the underground container rises smoothly to ground level for collection, then descends back into the pit. No manual lifting, no heavy labor, no special equipment required — one operator can handle the entire collection cycle.
The system supports wireless remote control lifting and lowering, allowing collection crews to operate the unit from a safe distance. This improves operator safety and speeds up the entire collection process.

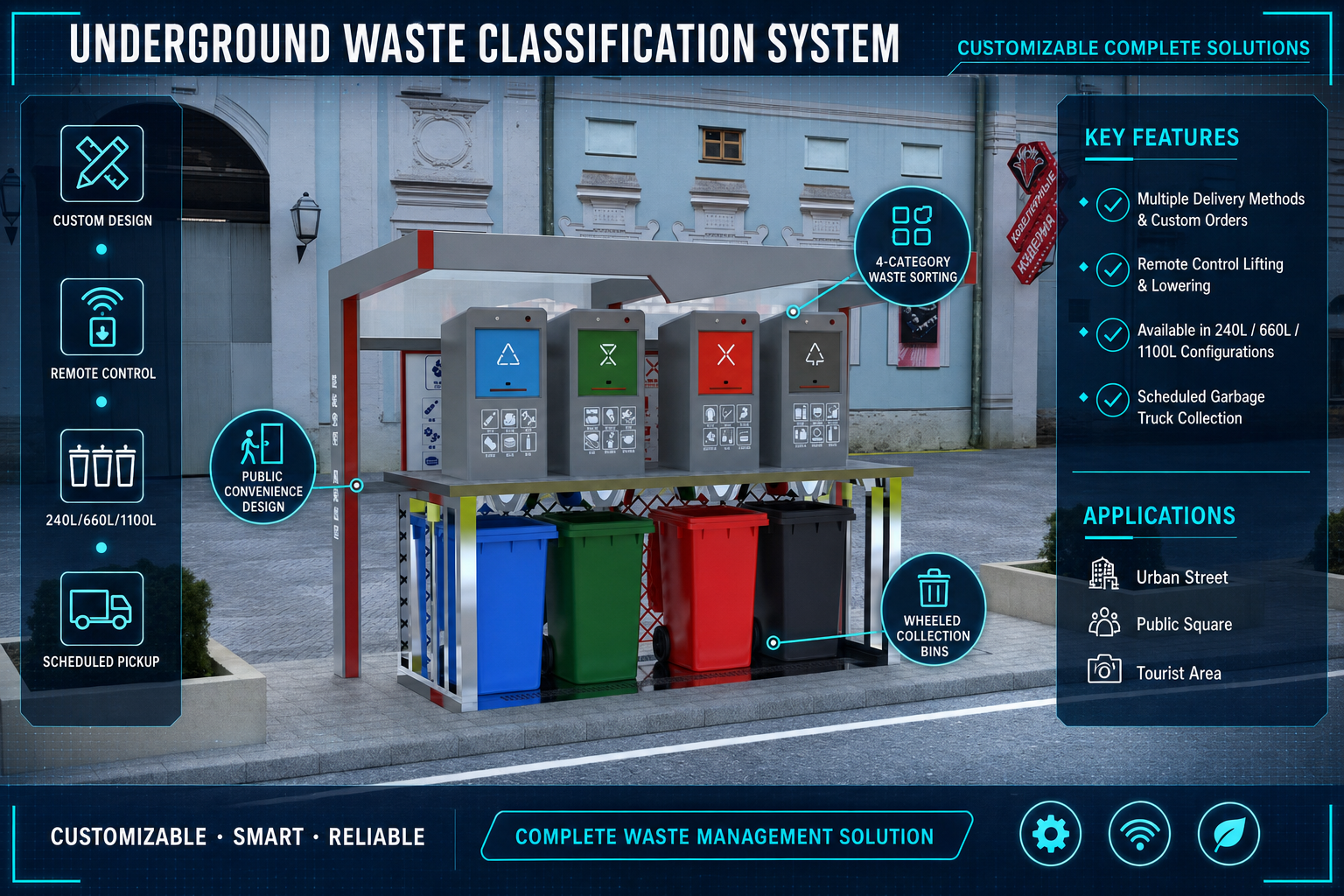

The system supports multi-category sorting through dedicated intake ports and color-coded bins (e.g., blue for recyclables, grey for general waste). This makes source separation effortless for residents and businesses while keeping each waste stream uncontaminated.
The 660L configuration provides substantial storage volume while remaining compatible with standard street-level footprints. Other capacities — including 240L and 1100L — are available to match the waste volume and collection frequency of your site.
Because the waste is stored below ground and out of direct sunlight, temperatures stay lower, decomposition slows, and odors are contained. The enclosed underground design also keeps pests away from the waste.
With only a sleek intake pillar visible above ground, the system preserves the visual quality of streets, plazas, and residential areas. It occupies the footprint of a standard bin while providing several times the storage capacity.
An access hatch provides easy maintenance access to the hydraulic unit and pit, simplifying routine servicing and reducing downtime.
The system is designed for scheduled garbage truck pickup — the lifted container can be emptied directly by standard collection vehicles, keeping logistics simple and efficient.
The manufacturer supports custom design and multiple delivery methods, including tailored intake ports, colors, logos, and configurations for both domestic and export projects.
How the Electric Hydraulic Lifting System Works？The operating cycle is simple and fully controlled:
Disposal: Residents or users deposit waste through the above-ground intake pillar. Waste falls directly into the underground collection bin.
Monitoring: The bin fills below ground level; the concealed design means no overflowing bins at street level, even during peak hours.
Lifting: When collection is scheduled, the operator activates the electric hydraulic lifting system — via the control panel or wireless remote control.
Collection: The bin rises smoothly to ground level, where the garbage truck empties it into the compactor or hopper.
Return: The empty bin is lowered back into the pit, and the system is ready for the next cycle.
The entire process takes minutes and eliminates manual handling of heavy waste containers.
Technical Specifications (Reference — Customizable)| Parameter | Specification |
|---|---|
| Model | 660L underground waste storage system |
| Nominal capacity | 660 L per bin (also available: 240L / 1100L) |
| Lifting system | Electric hydraulic lifting unit |
| Operation | Wireless remote control / control panel |
| Intake mode | Above-ground intake pillar(s), multi-category sorting |
| Bin material | High-strength, corrosion-resistant construction |
| Frame / pit material | Galvanized / powder-coated steel support frame |
| Maintenance | Access hatch for hydraulic unit and pit servicing |
| Collection | Compatible with scheduled garbage truck pickup |
| Power supply | Low-voltage electric power (configurable) |
| Application | Urban streets, public squares, residential areas, commercial zones |
| Customization | Custom design, colors, intake ports, logos, delivery methods |
Applications: Where the Underground Waste Storage System FitsHigh-traffic sidewalks need bins that never overflow and never clutter the streetscape. The underground system keeps waste hidden, odors contained, and the street clean — ideal for city centers and tourist districts.
In public squares, parks, and recreational areas, aesthetics matter. The discreet intake pillar blends into the environment while providing large hidden storage capacity, reducing collection frequency and labor costs.
For apartment complexes, gated communities, and residential estates, the system makes waste sorting effortless for residents while eliminating the eyesore of traditional bin storage areas.
Hospitality and food-service venues generate constant waste. Multi-category underground sorting keeps back-of-house and street-level waste hygienic, odor-free, and compliant with local waste regulations.
Any facility that manages large waste volumes with limited space benefits from the compact footprint and automated lifting of the underground system.
Underground vs. Traditional Waste Bins: Comparison| Criterion | Traditional Above-Ground Bin | 660L Underground Storage System |
|---|---|---|
| Storage capacity per footprint | Small (60–240L typical) | Large (660L and above) |
| Odor control | Poor — sun-heated, open exposure | Excellent — cool, enclosed below ground |
| Pest control | Weak — easy access for pests | Strong — enclosed underground storage |
| Visual impact | Visible clutter | Discreet, street-level intake only |
| Space efficiency | Wastes sidewalk/plaza space | Maximizes usable public space |
| Collection efficiency | Frequent, labor-intensive rounds | Scheduled, automated hydraulic lifting |
| Waste sorting support | Limited (single-stream) | Multi-category intake and color-coded bins |
| Maintenance | Frequent cleaning required | Low-maintenance, easy access hatch |
Product ParametersModel number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Customization OptionsThis underground waste storage system is fully customizable to match your project requirements:
Capacity: 240L, 660L, 1100L and other configurations
Sorting setup: number of intake pillars, waste categories, color coding
Intake design: pillar height, opening size, lid type
Finish and branding: colors, powder coating, custom logos
Control options: remote control, control panel, or integrated smart monitoring
Product Effects

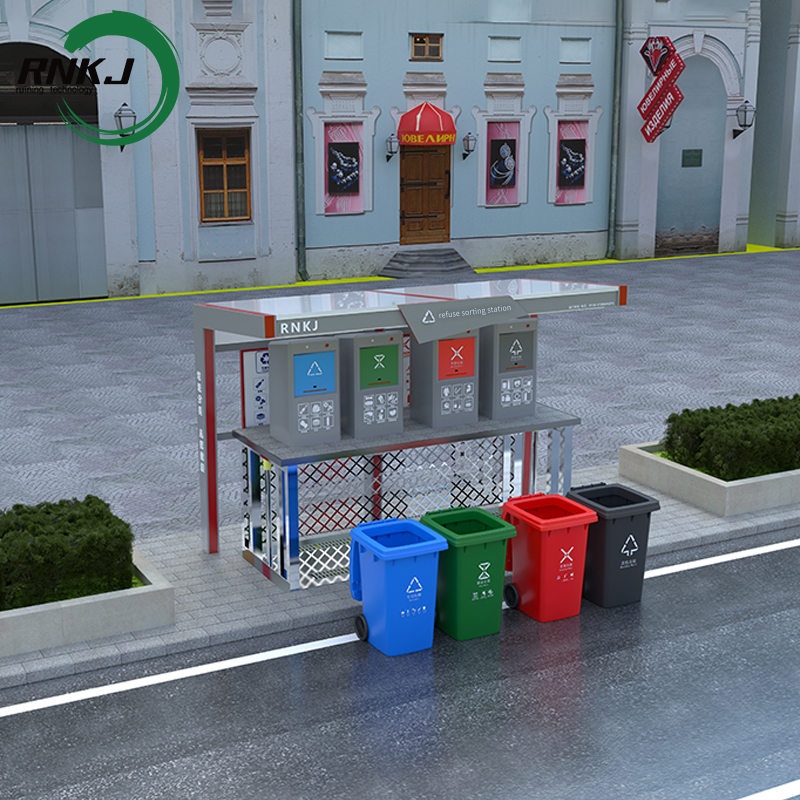

Lifting mode

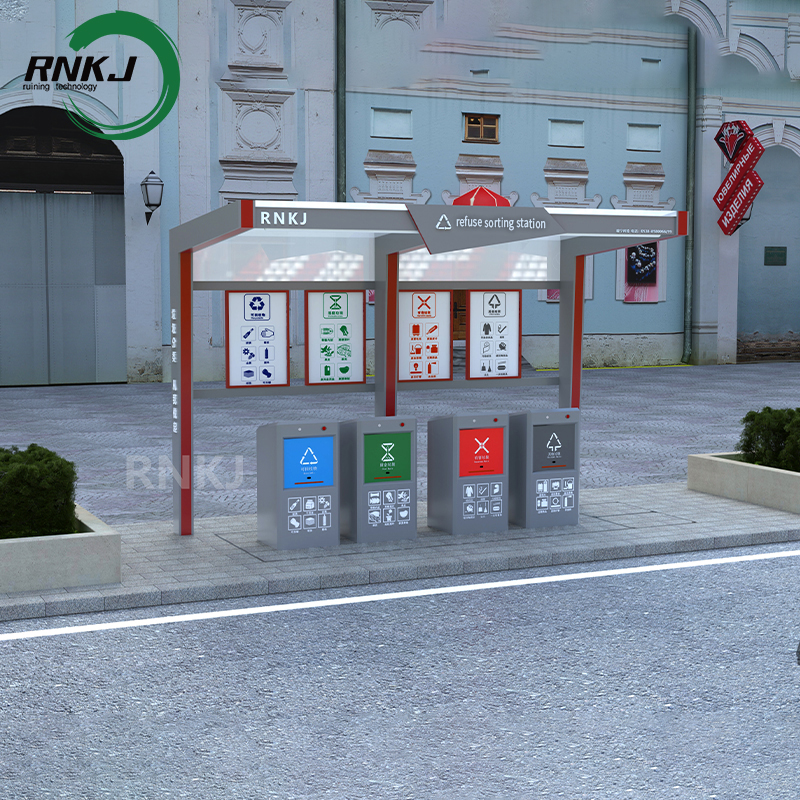

Landing mode
FAQA: Pit depth depends on the container height and local site conditions; detailed foundation and pit drawings are provided with the product documentation for your specific configuration.
A: An electric hydraulic lifting mechanism raises the container to ground level automatically, activated via control panel or wireless remote control — no manual lifting required.
A: The system is designed with a safe manual override so the bin can still be recovered and emptied if power is unavailable.
A: Yes. The system supports multi-category sorting with dedicated intake pillars and color-coded underground bins, making source separation simple and effective.
A: Standard configurations include 240L, 660L, and 1100L, with custom capacities available on request.
A: Municipalities, real estate developers, property management companies, parks and tourism authorities, and commercial operators looking for a clean, efficient, and space-saving waste management solution.
