The 12 Cubic Meter Hydraulic Bucket Garbage Compaction Station is an advanced waste management solution designed for efficient garbage collection, compression, storage, and transportation in urban and commercial environments. It integrates a hydraulic compression system, large-capacity garbage bucket, and automatic lifting and feeding mechanism to significantly improve waste disposal efficiency while reducing transportation frequency and operating costs.
Compared with traditional garbage collection methods, this hydraulic bucket garbage compaction station uses powerful hydraulic pressure to compress loose waste into high-density blocks, increasing garbage loading capacity and optimizing logistics efficiency. It is widely used in residential communities, municipal sanitation projects, industrial parks, commercial areas, schools, hospitals, and public facilities.

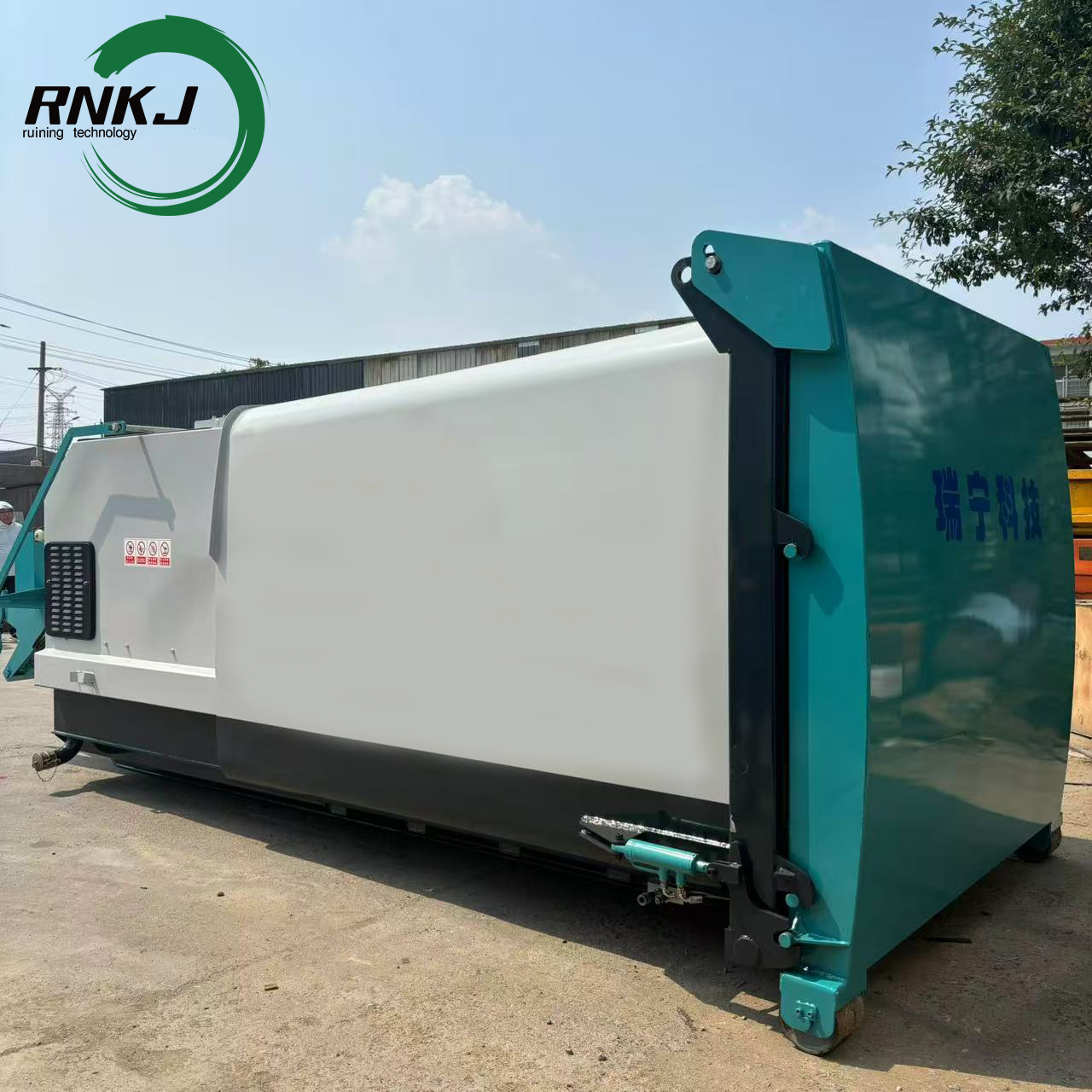

The equipment shown in the image adopts a 12 cubic meter garbage storage capacity design, equipped with a hydraulic lifting bucket system that can automatically lift and dump standard garbage bins into the compaction chamber, providing a cleaner, safer, and more efficient waste collection solution.
What Is a 12 Cubic Meter Hydraulic Bucket Garbage Compaction Station?12 Cubic Meter Hydraulic Bucket Garbage Compaction Station is a stationary waste compression system that combines garbage collection and compaction functions in one machine. It is mainly composed of:
Hydraulic compression chamber
Garbage storage container
Hydraulic power unit
Garbage feeding hopper
Automatic lifting bucket mechanism
Electrical control system
Safety protection devices
The equipment receives household waste, commercial waste, and municipal solid waste through the feeding opening. The hydraulic cylinder drives the compression plate to push and compress the garbage, reducing waste volume and increasing the effective storage capacity.
The 12m³ hydraulic garbage compactor station is especially suitable for areas with high waste generation because it can store significantly more waste than conventional garbage bins while reducing odor, leakage, and scattered waste problems.
Main Features of 12 Cubic Meter Hydraulic Bucket Garbage Compaction StationThe biggest advantage of this 12 Cubic Meter Hydraulic Bucket Garbage Compaction Station is its large waste storage capacity.
Compared with ordinary 240L or 660L garbage bins, this system can collect and compress much more waste in a compact footprint.
Key benefits:
Large-volume waste storage
Reduced garbage collection frequency
Lower transportation costs
Improved waste management efficiency
Suitable for high-density waste areas
The 12m³ capacity design makes it an ideal choice for municipalities and commercial waste collection applications.
The hydraulic compaction system is the core technology of this garbage compactor station.
The hydraulic cylinder provides strong compression force to squeeze loose garbage into compacted waste blocks.
Advantages of hydraulic compression:
High compression efficiency
Stable operation
Low energy consumption
Reduced garbage volume
Increased transportation efficiency
By compressing waste before transportation, the equipment allows more garbage to be loaded into each transport cycle, helping users save labor and fuel costs.

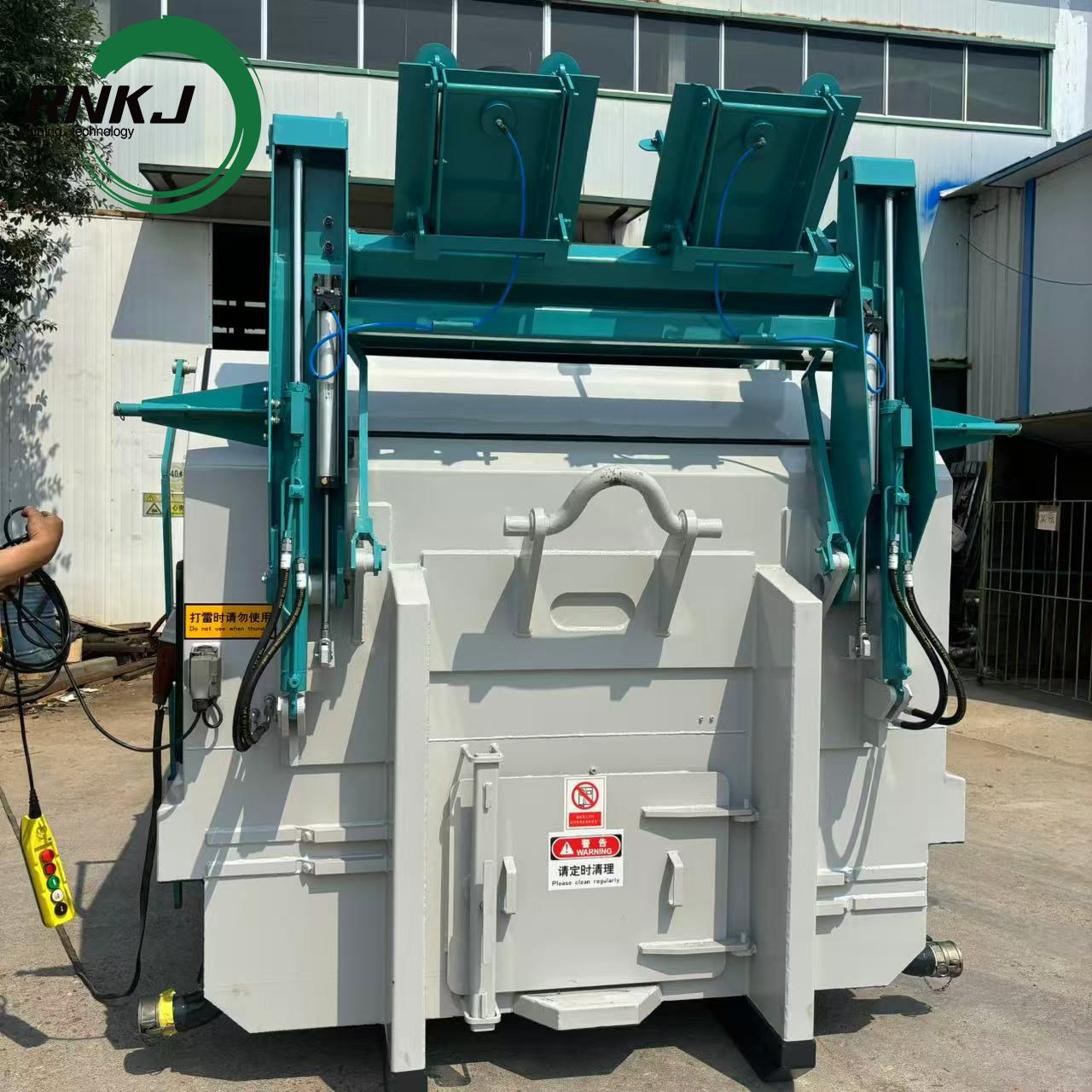

The machine is equipped with a hydraulic bucket lifting mechanism that can automatically lift and empty garbage bins.
The lifting system provides:
Easy garbage feeding
Reduced manual handling
Improved operator safety
Faster waste disposal process
Standard garbage containers can be easily positioned and lifted into the feeding area, greatly improving daily waste collection efficiency.
This feature makes the product a highly efficient automatic hydraulic garbage compaction station.
Unlike open garbage storage areas, this hydraulic compaction station adopts a closed design.
The enclosed structure helps:
Prevent garbage scattering
Reduce unpleasant odors
Avoid rainwater entering garbage
Improve environmental cleanliness
Reduce pest problems
It is suitable for modern urban sanitation requirements and smart city waste management projects.
The garbage compaction station is manufactured using high-strength steel materials with anti-corrosion treatment.
The robust structure provides:
Strong impact resistance
Weather resistance
Long-term outdoor operation capability
Low maintenance requirements
The equipment can operate reliably in different environments, including residential areas, industrial zones, and public spaces.
Working Principle of Hydraulic Bucket Garbage Compaction StationThe working process of the 12 Cubic Meter Hydraulic Bucket Garbage Compaction Station includes several steps:

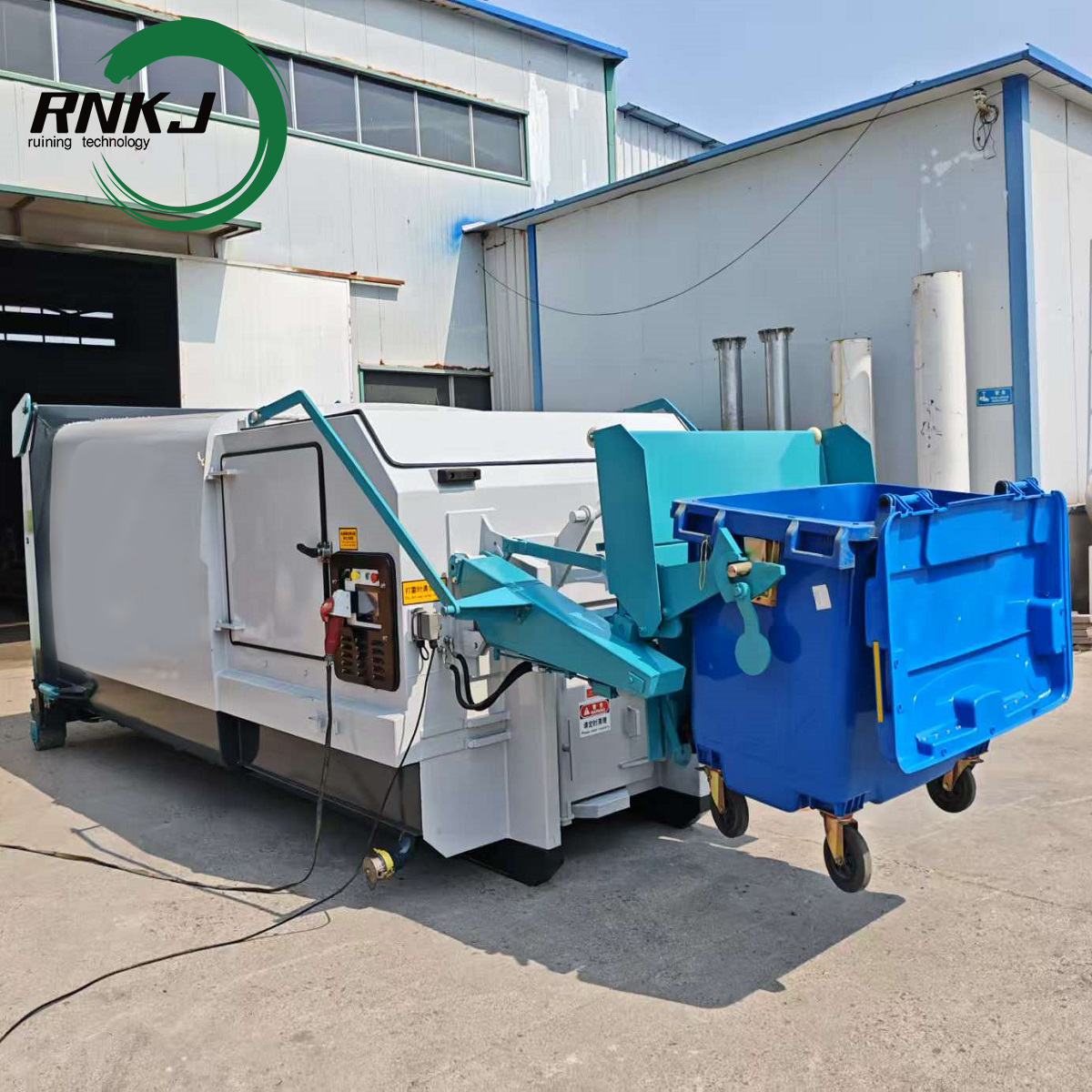

240L, 660L, or 1100L garbage bins are placed onto the hydraulic lifting platform.

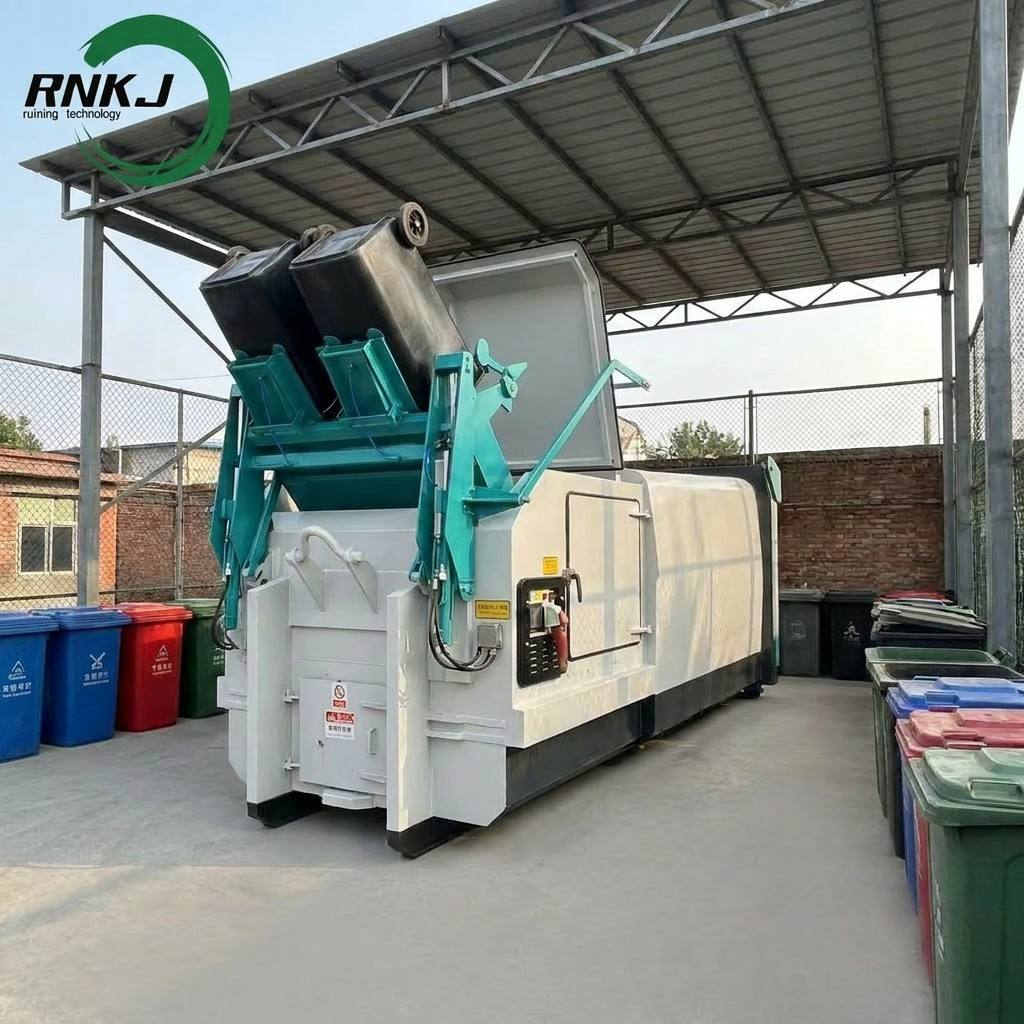

The hydraulic lifting system raises and overturns the garbage bin, allowing waste to enter the compression chamber.
The hydraulic cylinder drives the compression plate to compact the garbage.
Compressed garbage is stored inside the 12m³ container.
When the container is full, the Hook Lift Truck transports the entire compaction station to a waste treatment facility.
Advantages of 12 Cubic Meter Hydraulic Bucket Garbage Compaction StationThe hydraulic compression system significantly decreases loose garbage volume.
Benefits include:
More garbage storage capacity
Fewer garbage collection trips
Lower transportation expenses
Better utilization of waste vehicles
Traditional garbage collection points often create problems such as:
Garbage overflow
Bad smell
Waste leakage
Dirty surroundings
The hydraulic garbage compaction station solves these problems through enclosed storage and automatic operation.
The automatic lifting and compression functions reduce manual garbage handling.
Operators only need simple control operations, improving workplace safety and productivity.
This 12m³ garbage compactor is widely used in:
Residential communities
Apartment complexes
Shopping malls
Hotels
Restaurants
Industrial parks
Factories
Schools
Hospitals
Municipal sanitation stations
Technical ParametersPerformance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Applications of 12 Cubic Meter Hydraulic Garbage Compaction StationFor modern residential communities, this equipment provides a centralized garbage collection solution.
It helps maintain cleaner community environments and reduces the number of garbage collection vehicles entering residential areas.
Shopping centers, supermarkets, hotels, and restaurants generate large amounts of daily waste.
The 12 Cubic Meter Hydraulic Bucket Garbage Compaction Station provides sufficient capacity and efficient compression performance.
Factories and industrial parks can use this equipment to manage production waste, packaging materials, and general solid waste.
Municipal governments can install hydraulic garbage compaction stations as part of smart city waste management systems.
Why Choose a Hydraulic Bucket Garbage Compaction Station?Compared with traditional garbage bins and simple waste containers, the 12 Cubic Meter Hydraulic Bucket Garbage Compaction Station offers better performance in terms of capacity, cleanliness, automation, and operating cost.
Limited capacity
Frequent emptying required
Easy garbage overflow
More manual labor
Large 12m³ capacity
Automatic garbage lifting
Hydraulic waste compression
Cleaner operation
Lower transportation cost
It is an ideal upgrade for modern waste management systems.
FAQThe system can be designed for 240L, 660L, and 1100L standard garbage bins, allowing flexible waste collection solutions for different application scenarios.
The entire 12m³ garbage compaction station can be transported using a Hook Lift Truck, allowing quick loading, unloading, and relocation.
Hydraulic compression reduces garbage volume, increases storage capacity, lowers transportation frequency, and improves waste management efficiency.
It is widely used in:
Residential communities
Municipal sanitation projects
Commercial areas
Industrial parks
Schools
Hospitals
Waste transfer stations
Because it provides larger capacity, automatic operation, cleaner storage, lower transportation costs, and better environmental performance.
