The 1100 Liters Hydraulic Lift Underground Garbage Collection System is an advanced underground waste collection solution designed for residential communities, commercial districts, public parks, schools, hospitals, municipal streets, and urban public spaces. By storing waste containers below ground level, this system significantly improves the appearance of collection points while reducing odors, preventing pests, and maximizing available surface space.
Unlike conventional above-ground waste collection stations, the Hydraulic Lift Underground Garbage Collection System hides the waste containers underground and uses a hydraulic lifting mechanism to raise the bins for easy emptying and maintenance. The enclosed design helps create cleaner, safer, and more environmentally friendly urban environments.
To meet different project requirements, the system supports customized waste bin capacities of 240L, 660L, and 1100L, making it suitable for both small communities and high-volume municipal waste collection applications.
Why Choose the 1100 Liters Hydraulic Lift Underground Garbage Collection System?Urban sanitation departments are increasingly replacing traditional exposed waste collection points with underground waste systems because they provide numerous operational and environmental benefits.
The 1100 Liters Hydraulic Lift Underground Garbage Collection System offers:
Underground concealed waste storage
Hydraulic lifting platform
Stainless steel support structure
Corrosion-resistant surface treatment
Modular multi-bin configurations
Odor reduction system
Safe anti-fall mechanism
Drainage and leachate collection
Fire protection system
Easy maintenance access
Low operating costs
Long service life
The system combines modern appearance with practical waste management efficiency, making it an excellent solution for smart city infrastructure projects.
Available Bin Capacity OptionsTo accommodate different waste generation requirements, the underground collection system can be customized with multiple bin sizes.
| Bin Capacity | Recommended Application |
|---|---|
| 240 Liters | Residential communities, schools, parks |
| 660 Liters | Commercial streets, office buildings, shopping areas |
| 1100 Liters | Municipal waste collection, large residential districts, transportation hubs, industrial parks |
Customers can also choose different numbers of collection units according to site requirements, including:
2-Bay Underground Garbage Collection System
4-Bay Underground Garbage Collection System
6-Bay Underground Garbage Collection System
Each compartment can be configured for different waste categories, including:
Recyclables
Kitchen Waste
Hazardous Waste
Residual Waste
This flexible configuration supports local waste sorting regulations.
Hydraulic Lifting SystemThe core of the 1100 Liters Hydraulic Lift Underground Garbage Collection System is its powerful hydraulic lifting platform.
The hydraulic cylinders smoothly raise the underground waste containers to ground level whenever maintenance or waste collection is required.
Advantages include:
Stable lifting motion
Low vibration
High lifting capacity
Automatic operation
Safe locking during maintenance
Reliable hydraulic power system
The lifting platform is engineered for long-term continuous operation in demanding municipal environments.
Underground Waste Storage DesignThe underground chamber provides multiple operational advantages.
Compared with traditional exposed bins, underground storage offers:
Waste remains below ground level, reducing visual pollution while minimizing unpleasant odors.
The underground environment naturally stays cooler than above-ground temperatures, slowing organic waste decomposition and reducing odor generation.
Only the decorative waste disposal inlets remain visible above ground, blending well with modern landscape designs.
The underground structure helps absorb noise during waste disposal.
Intelligent Safety FeaturesSafety is a major consideration in the design of the Hydraulic Lift Underground Garbage Collection System.
The equipment includes multiple protection systems:
A mechanical safety lock automatically secures the lifting platform during maintenance, preventing accidental movement.
The balancing system ensures smooth vertical lifting and keeps the platform level throughout operation.
The hydraulic control system includes overload protection and pressure control for safe lifting.
Emergency control functions allow operators to immediately stop the lifting process when necessary.
Odor Control SystemOne of the biggest advantages of underground waste collection is odor reduction.
The system can be equipped with an automatic spray deodorization system that periodically sprays deodorizing solution inside the underground chamber.
Benefits include:
Reduced unpleasant odors
Improved surrounding air quality
Better user experience
Cleaner waste collection environment
The enclosed structure also prevents odors from spreading throughout nearby public areas.
Product ParametersModel number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Leachate Collection SystemOrganic waste naturally produces liquid during storage.
The 1100 Liters Hydraulic Lift Underground Garbage Collection System includes an integrated leachate collection sump at the bottom of the underground chamber.
Advantages include:
Prevents groundwater contamination
Keeps the underground chamber clean
Easy drainage maintenance
Improved environmental hygiene

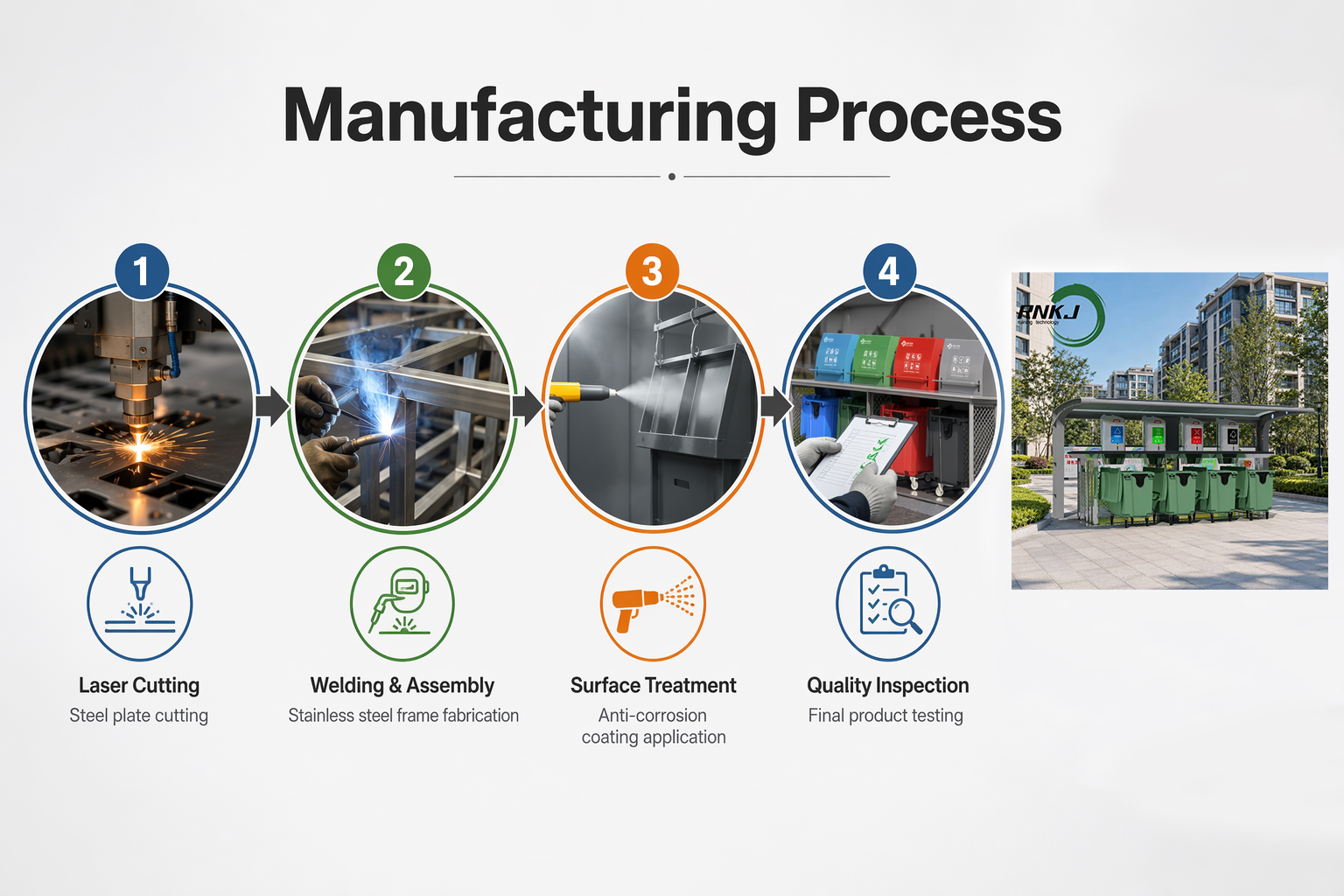

Durable ConstructionThe system is manufactured using high-quality materials to ensure long-term reliability.
Production includes:
Precision laser cutting
Professional welding and assembly
Anti-corrosion surface treatment
Strict quality inspection
Functional testing before delivery
The steel structure is designed to withstand outdoor environments and frequent daily operation.
Product Effects

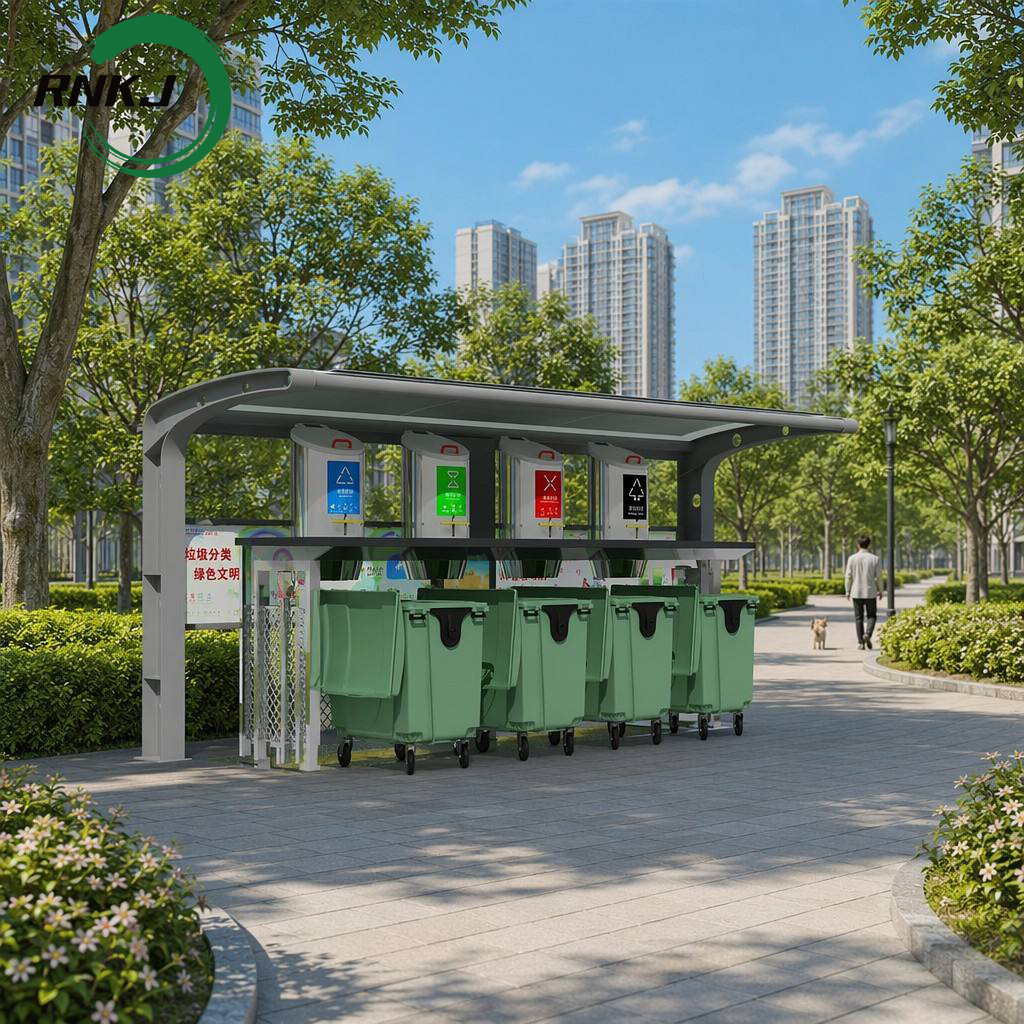

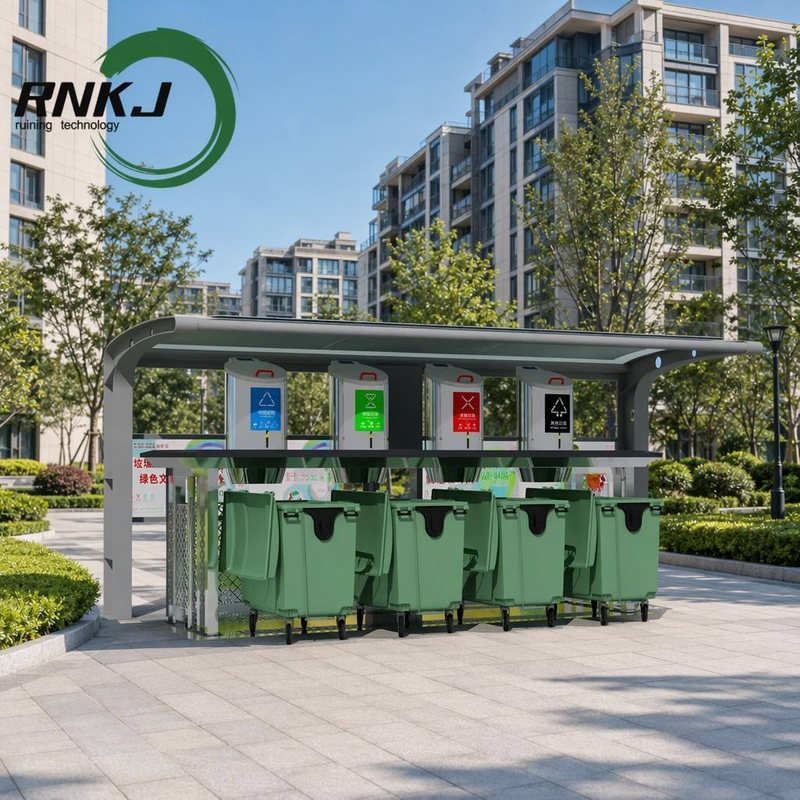

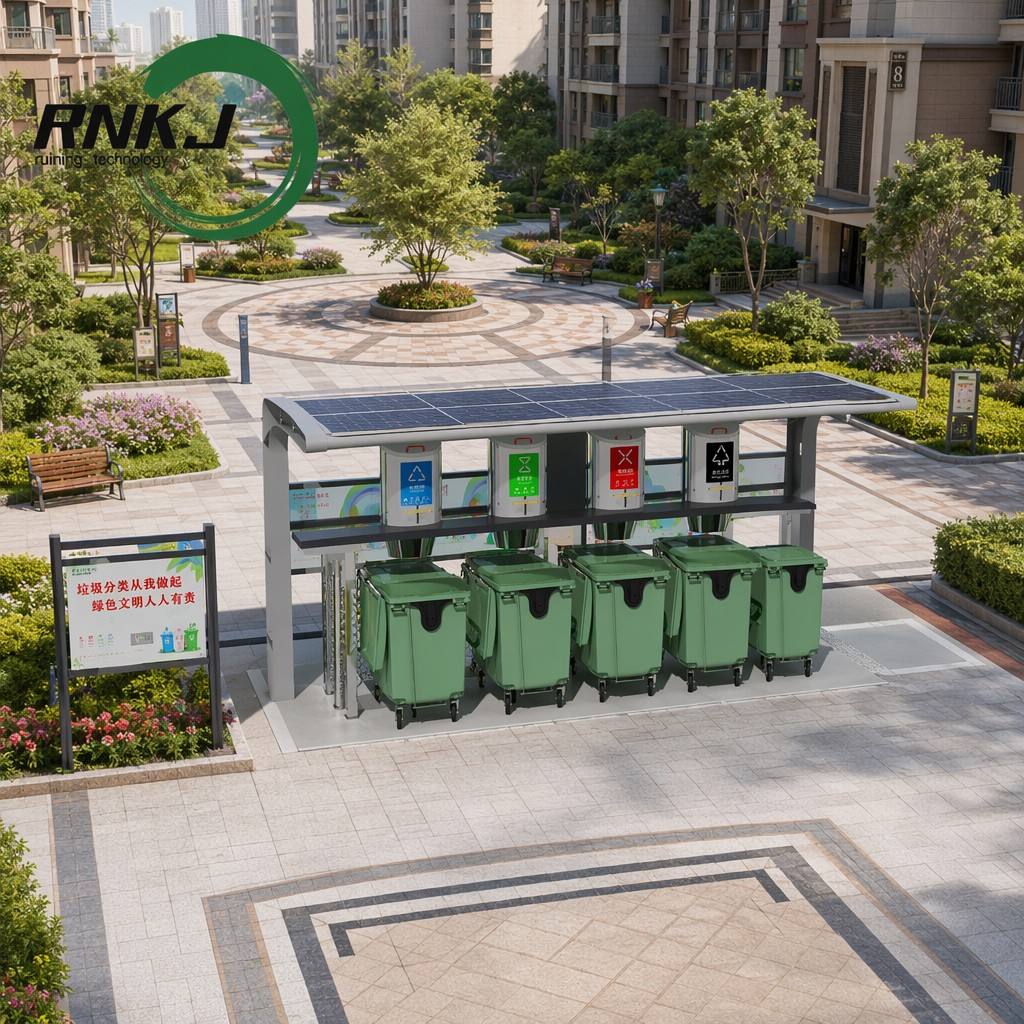

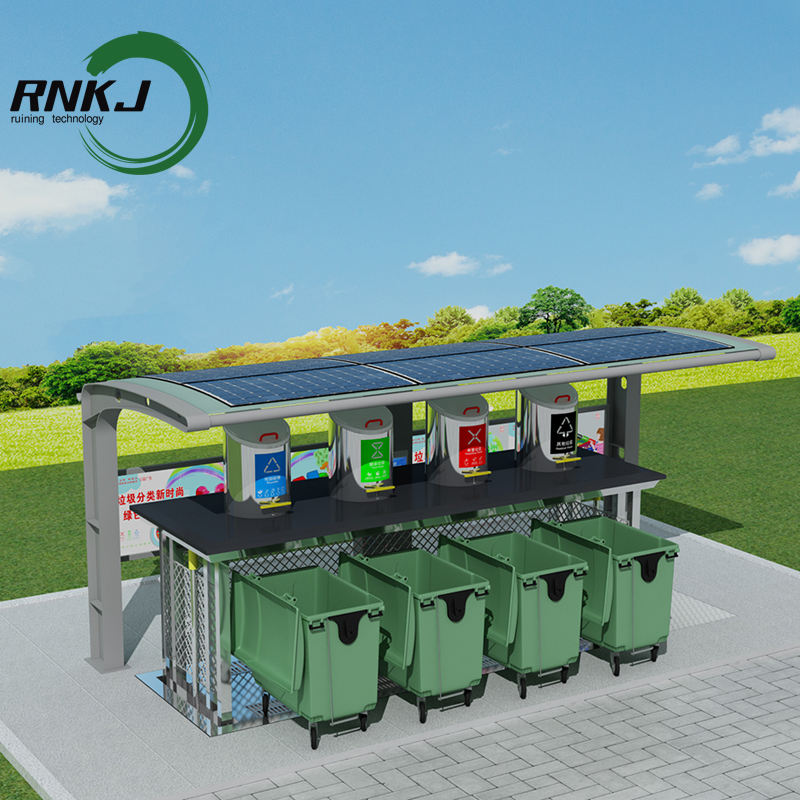

Lifting mode

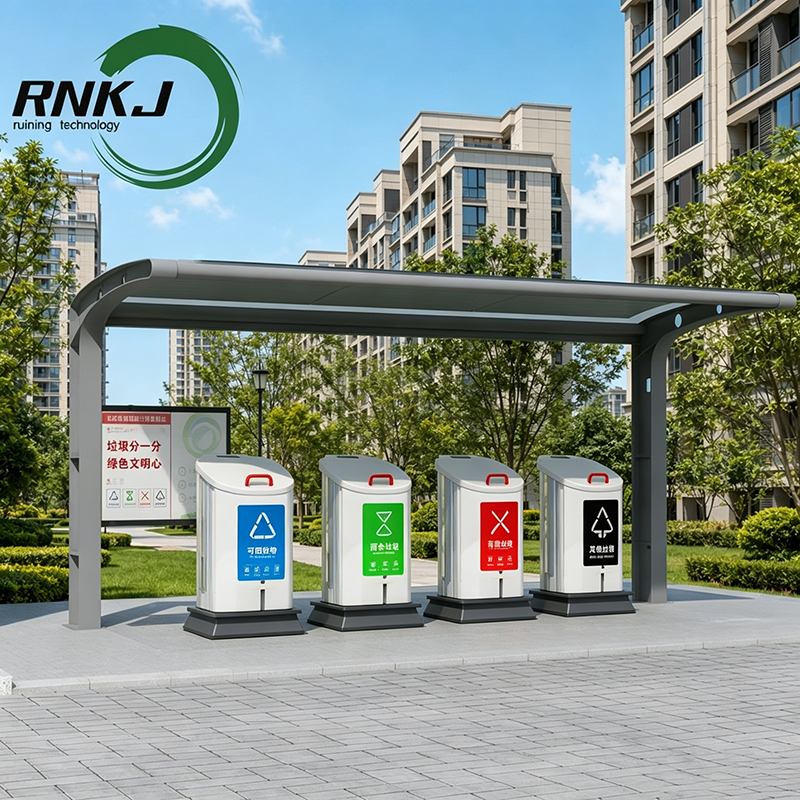

Landing mode
OEM & Customization ServicesEvery municipality has different waste management requirements.
We provide complete OEM and ODM customization services, including:
240L Underground Garbage Collection System
660L Underground Garbage Collection System
1100L Underground Garbage Collection System
Equipment colors can match city standards or customer branding.
Municipal logos, company branding, or project identification can be added.
Customers can choose:
2-bin configuration
4-bin configuration
6-bin configuration
Additional custom layouts are also available.
Typical ApplicationsThe 1100 Liters Hydraulic Lift Underground Garbage Collection System is widely used in:
Residential communities
Smart city projects
Municipal sanitation facilities
Public parks
Tourist attractions
Commercial complexes
Shopping malls
Schools
Universities
Hospitals
Office buildings
Transportation hubs
Hotels
Airports
Industrial parks
Advantages Over Traditional Above-Ground Waste Collection| Underground Hydraulic Lift System | Traditional Waste Bins |
|---|---|
| Underground concealed storage | Fully exposed bins |
| Cleaner appearance | Occupies public space |
| Reduced odors | Strong odor during hot weather |
| Better environmental hygiene | Easier pest infestation |
| Improved landscape integration | Visual pollution |
| Safer enclosed structure | Open waste exposure |
| Higher public acceptance | Less attractive appearance |
Key FeaturesHydraulic lifting operation
Underground concealed waste storage
Supports 240L / 660L / 1100L waste bins
Multiple waste sorting compartments
Automatic deodorization system
Leachate collection system
Fire protection system
Anti-fall safety device
Stable balancing mechanism
Corrosion-resistant construction
OEM & ODM customization
Easy maintenance
Long service life
Suitable for smart city waste management
FAQIt is an underground waste collection solution that stores 1100L garbage bins below ground and uses a hydraulic lifting platform to raise the bins for waste collection, maintenance, and cleaning.
Yes. The system supports customized waste container capacities of 240L, 660L, and 1100L, allowing customers to select the most suitable configuration for their waste collection needs.
Yes. It can be configured with multiple independent compartments for recyclable waste, kitchen waste, hazardous waste, and residual waste, helping cities implement waste separation programs.
Hydraulic cylinders lift the underground platform smoothly to ground level when the bins need to be emptied or serviced. After maintenance, the platform lowers the bins back into the underground chamber.
Yes. We provide OEM customization services, including equipment colors, logo printing, bin capacity selection, compartment quantity, and overall configuration to meet different municipal and commercial project requirements.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
