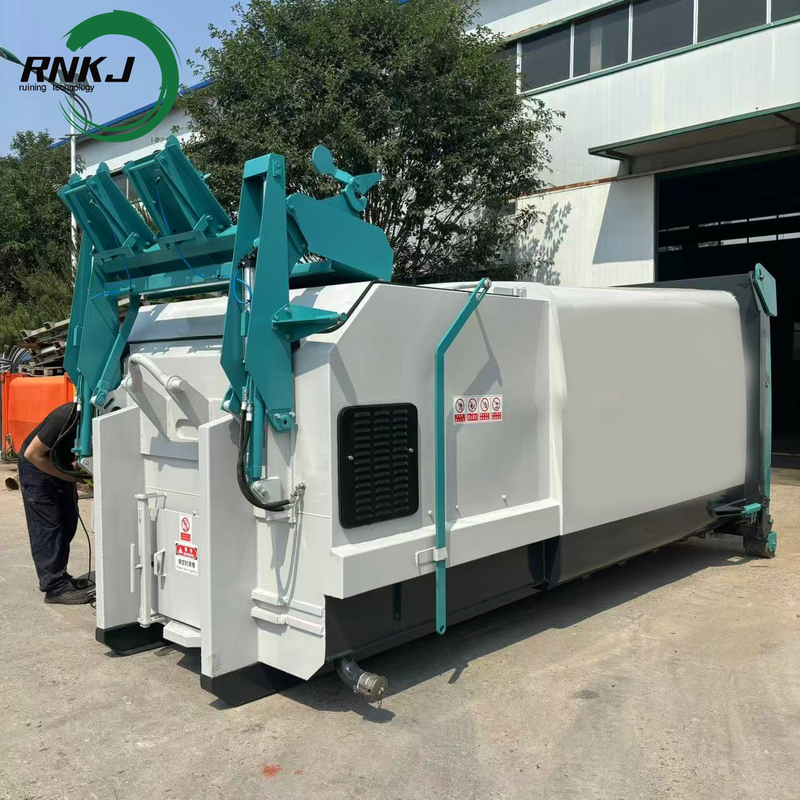

The 10 CBM Hydraulic Automatic Bin-Tipping Hook Lift Waste Compactor is a mobile waste collection and compaction machine developed for projects that need to handle large quantities of municipal, commercial, residential, and general solid waste in a more organized way.
The equipment combines a 10 CBM waste storage body, hydraulic compaction system, automatic bin-tipping mechanism, and hook lift transportation structure into one mobile unit. Compatible garbage bins can be lifted and tipped into the feeding hopper, while the hydraulic compression system moves the incoming waste into the storage body.
Unlike a fixed waste compaction station, this equipment is designed around a mobile hook lift operating system. Once the compactor is full or reaches the required loading level, the complete unit can be picked up and transported by a suitable hook lift truck. This makes it possible to position the compactor close to waste generation points and move the filled unit to a transfer station, treatment facility, landfill, or other designated destination.
Product OverviewThe 10 CBM Hydraulic Automatic Bin-Tipping Hook Lift Waste Compactor is designed around four main functions:
Bin Tipping → Waste Compaction → Waste Storage → Hook Lift Transportation
The front tipping mechanism provides a mechanical method for emptying compatible garbage bins. After the waste enters the hopper, the hydraulic compression system pushes it into the storage section.
The equipment can be configured according to the customer's waste collection system, including the required garbage bin dimensions, lifting capacity, hydraulic power, hook lift specifications, electrical requirements, and working environment.
The 10 CBM capacity provides a practical solution for collection locations that generate more waste than conventional wheeled bins can accommodate but still require a transportable waste handling unit.
Automatic Bin-Tipping SystemThe automatic bin-tipping mechanism is one of the main functional components of this waste compactor.
Instead of manually lifting and emptying filled garbage bins, the operator places the compatible bin into the designated lifting position. The hydraulic mechanism then raises the bin and turns it over above the loading hopper.
After the waste has been discharged, the lifting mechanism returns the empty bin to its normal position.
This creates a consistent loading sequence:
Position the Bin → Engage the Lifter → Hydraulic Lifting → Automatic Tipping → Waste Discharge → Bin Return
The tipping system can be engineered according to the customer's actual garbage bin specifications.
Depending on the project, the equipment can be configured for common container capacities such as:
240L
660L
1100L
Other customized bin sizes
The exact lifting mechanism should be matched with the bin dimensions, connection method, weight distribution, and required lifting capacity.
Hydraulic Waste CompactionAfter the garbage enters the hopper, it is transferred into the compaction area.
The hydraulic system drives the compression mechanism through hydraulic cylinders. The compression plate pushes the waste forward and gradually fills the storage section.
Repeated compression cycles allow incoming waste to be arranged and compacted inside the container instead of simply accumulating as loose material.
The hydraulic system can be configured with:
Hydraulic power unit
Hydraulic cylinders
Hydraulic pump
Hydraulic oil tank
Hydraulic valves
Hydraulic pipelines
Compression plate
Electrical control system
The actual hydraulic configuration can be adjusted according to the waste characteristics and required operating conditions.
Different waste streams behave differently during compression. Household waste, packaging waste, commercial waste, food-related waste, and industrial general waste can have different moisture content, density, particle size, and compression behavior. Therefore, the compression system should be selected according to the actual material being handled.
10 CBM Waste Storage BodyThe hook lift structure allows the complete waste compactor to be handled as a mobile container.
This means the waste does not have to be transferred from the compactor into another container before transportation.
When the 10 CBM unit reaches its required filling level, a compatible hook lift truck can connect with the lifting structure and load the entire compactor.
The operating sequence is generally:
Filled Compactor → Hook Lift Truck Connection → Complete Unit Loading → Transportation → Waste Discharge → Return
This configuration is useful for waste collection networks where one hook lift truck may serve multiple collection points.
For example, several 10 CBM compactors can be positioned at different waste generation locations. When one unit becomes full, the hook lift truck can collect it and transport it to the designated waste treatment location.
The empty or unloaded unit can then be returned to the collection point.
Hook Lift Compatibility and CustomizationThe hook lift interface is not a universal dimension and should be designed around the customer's actual truck.
Before production, the following information can be confirmed:
Hook height
Hook center dimension
Container length
Container width
Rail spacing
Truck lifting capacity
Maximum gross weight
Hydraulic system requirements
Truck chassis specifications
Loading and unloading method
This allows the compactor body and lifting structure to work correctly with the customer's existing hook lift truck.
For customers purchasing both the compactor and hook lift truck as a complete solution, the two systems can be designed as a matched set.
How Does the 10 CBM Bin-Tipping Waste Compactor Work?A filled garbage bin is moved to the front loading position.
The operator places the container into the designated area of the hydraulic tipping mechanism.
The tipping structure engages the garbage bin and prepares it for lifting.
The lifting system is designed according to the selected bin dimensions and load requirements.
The hydraulic cylinders raise the bin and rotate it toward the loading hopper.
The waste falls into the receiving area under the tipping mechanism.
After the garbage has been emptied, the mechanism lowers the empty bin back to the ground.
The next garbage bin can then be positioned for another cycle.
The hydraulic compression system starts the compaction cycle.
The compression plate pushes the waste into the 10 CBM storage section.
The bin-tipping and compaction process can be repeated as additional waste arrives.
This allows the machine to function as a centralized collection point for multiple garbage bins.
When the storage body reaches the required loading condition, the hook lift truck loads the complete compactor.
The unit is then transported to the designated destination.
At the disposal or transfer location, the waste can be discharged through the designated unloading structure.
After unloading, the compactor can be returned to the collection location.
Main Structural ComponentsThe 10 CBM Hydraulic Automatic Bin-Tipping Hook Lift Waste Compactor consists of several interconnected systems.
The main container provides approximately 10 CBM of storage space and is designed to withstand repeated loading, compaction, transportation, and unloading operations.
The compression unit provides the mechanical force needed to push waste into the storage area.
The front tipping mechanism handles compatible wheeled garbage bins and transfers their contents into the hopper.
The hopper receives waste from the tipped garbage bins and directs it toward the compression area.
The hydraulic power unit supplies pressure and hydraulic flow for the tipping and compaction operations.
The electrical control system manages the operating sequence and can incorporate automatic controls, manual controls, sensors, limit switches, and emergency stop functions.
The hook lift structure is integrated into the main frame and is customized according to the customer's hook lift truck.
The rear section can be equipped with a suitable discharge door or unloading configuration according to the customer's operating requirements.
Key Product FeaturesThe 10 CBM storage configuration provides additional waste holding capacity for locations with relatively high daily waste generation.
The hydraulic tipping system reduces the need for manual emptying of heavy garbage bins.
The hydraulic compression mechanism continuously transfers and compacts incoming waste inside the storage body.
The complete compactor can be transported using a compatible hook lift truck.
Bin tipping, waste feeding, compaction, storage, and transportation are combined into one equipment platform.
The equipment can be customized according to bin size, waste characteristics, site requirements, electrical conditions, and hook lift truck specifications.
Mechanical bin tipping allows operators to avoid manually lifting and overturning loaded garbage bins.
The mobile configuration allows the compactor to be deployed at different waste collection points according to the project's operating requirements.
Waste TypesThe machine can be configured for suitable general solid waste applications, including:
Municipal solid waste
Household garbage
Commercial waste
Packaging waste
General industrial waste
Paper and cardboard
Plastic waste
Food-related general waste
Mixed non-hazardous solid waste
Waste containing hazardous chemicals, explosive materials, radioactive substances, or other specially regulated materials requires a separate equipment assessment and should not be assumed to be suitable for a standard configuration.
Customization OptionsOne of the advantages of manufacturing the equipment to order is that the configuration can be adapted to the customer's existing waste collection and transportation system.
Possible customization areas include:
10 CBM standard configuration
Other storage capacities according to project requirements
240L bin configuration
660L bin configuration
1100L bin configuration
Customized bin dimensions
Customized lifting capacity
Motor power
Hydraulic pump
Cylinder specifications
Compression force
Tipping force
Working pressure
Hook height
Hook center
Rail spacing
Container dimensions
Truck compatibility
Local voltage
Frequency
PLC control
Automatic operation
Manual operation
Emergency stop system
Steel grade
Plate thickness
Reinforcement structure
Surface treatment
Corrosion protection
Wear-resistant components
Reference Technical Specifications| Item | Reference Configuration |
|---|---|
| Product Name | 10 CBM Hydraulic Automatic Bin-Tipping Hook Lift Waste Compactor |
| Storage Capacity | 10 CBM |
| Loading Method | Hydraulic Automatic Bin Tipping |
| Compression Type | Hydraulic Compression |
| Transportation | Hook Lift Truck |
| Operation | Automatic / Manual |
| Bin Compatibility | 240L / 660L / 1100L or Customized |
| Application | Municipal / Commercial / Industrial General Waste |
| Control System | Electrical / PLC Control |
| Power Supply | Customized to Local Requirement |
| Hydraulic System | Customized |
| Storage Body | Heavy-Duty Steel |
| Hook Lift Interface | Customized to Truck |
| Discharge Method | Customized |
| Capacity | Customizable |
| Bin Tipping System | Customizable |
Technical parameters are provided as a reference. Final specifications should be confirmed according to the waste type, garbage bin dimensions, required lifting capacity, hook lift truck model, local electrical standards, and project conditions.
FAQThe 10 CBM Hydraulic Automatic Bin-Tipping Hook Lift Waste Compactor is a mobile waste collection and compaction machine that combines automatic garbage bin tipping, hydraulic waste compression, 10 CBM storage, and hook lift transportation in one unit.
The bin-tipping system can be configured for common garbage bin capacities such as 240L, 660L, and 1100L. Other bin sizes can also be accommodated through customized lifting mechanisms based on the customer's requirements.
The complete waste compactor is designed to be transported by a compatible hook lift truck. The hook lift structure can be customized according to the truck's hook height, container dimensions, lifting capacity, and other specifications.
Yes. The hydraulic bin-tipping system can lift and tip compatible garbage bins into the loading hopper, reducing the need for operators to manually empty filled containers.
The standard configuration provides approximately 10 CBM of waste storage capacity. Other capacities can be considered according to the waste generation volume and transportation requirements of the project.
The 10 CBM Hydraulic Automatic Bin-Tipping Hook Lift Waste Compactor is a customized mobile waste handling solution combining automatic bin emptying, hydraulic compression, large-capacity storage, and hook lift transportation.
Its front hydraulic tipping system allows compatible garbage bins to be emptied mechanically, while the hydraulic compaction mechanism transfers incoming waste into the 10 CBM storage body. When transportation is required, the complete compactor can be handled by a compatible hook lift truck.
The equipment can be customized around the customer's garbage bin specifications, waste type, hydraulic requirements, electrical system, storage configuration, and hook lift truck, making it suitable for different municipal, commercial, residential, and general industrial waste collection projects.
For a project requiring a 10 CBM automatic bin-tipping waste compactor with hook lift transportation, the final machine can be configured according to the actual collection process and transportation equipment rather than relying on a fixed standard design.
