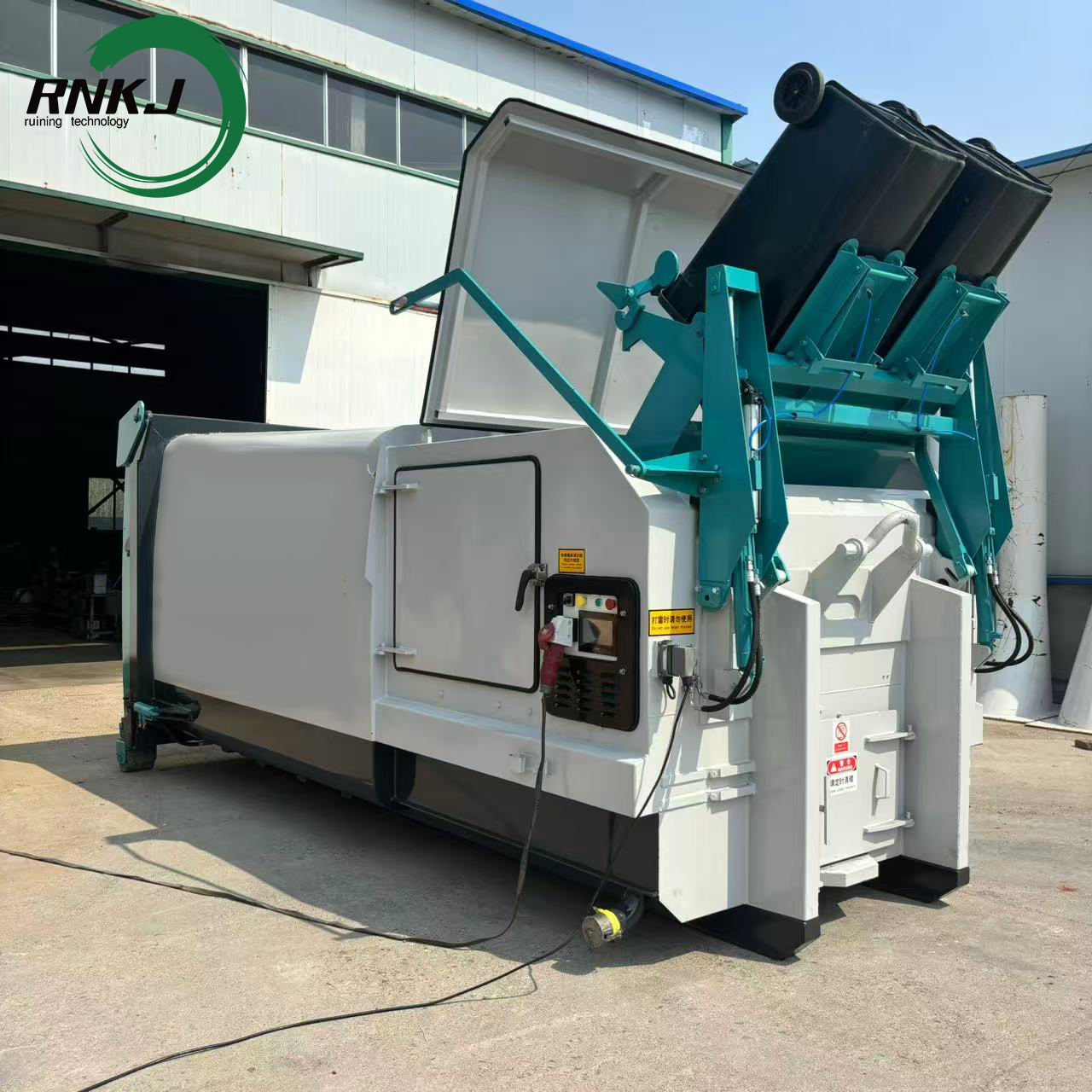

The 10 CBM High Density Compression Bucket Waste Compactor is a compact and efficient solution for centralized waste collection, volume reduction, and transportation. Designed for municipal waste management, commercial facilities, residential communities, industrial parks, and other high-volume waste collection sites, this bucket-type waste compactor combines automatic bin lifting, waste feeding, hydraulic compression, and large-capacity storage in one integrated unit.
With a 10 CBM waste storage capacity, the system is designed to handle garbage collected from standard 240L, 660L, and 1100L waste bins. The lifting mechanism at the front allows operators to load waste directly from compatible bins into the compaction chamber, reducing manual handling and improving collection efficiency.
After the container is filled, the entire compactor can be transported using a hook lift truck. This configuration makes the equipment particularly suitable for waste collection systems that require flexible transportation between collection points, transfer stations, and final waste treatment facilities.
What Is a 10 CBM Bucket Waste Compactor?A bucket waste compactor is a hydraulic waste collection and compression machine equipped with a front loading bucket or bin lifting system. Instead of requiring workers to manually empty garbage bins, the hydraulic lifting mechanism automatically raises the bin and tips the waste into the compaction chamber.
The waste is then compressed by the hydraulic compaction mechanism and stored inside the approximately 10 cubic meter container.
The basic working process is:
240L / 660L / 1100L Waste Bin → Hydraulic Lifting → Waste Feeding → Hydraulic Compression → High-Density Storage → Hook Lift Truck Transportation
This integrated design helps reduce loose waste volume while creating a more organized and efficient waste collection process.
Main Features of the 10 CBM High Density Compression Bucket Waste CompactorThe compactor provides approximately 10 CBM of internal storage capacity, offering substantial space for compressed municipal and commercial waste.
Compared with conventional open waste containers, the compaction system makes better use of the available container volume by reducing the amount of empty space contained in loose waste.
The 10 CBM configuration is suitable for locations that generate a considerable amount of waste but do not necessarily require a very large stationary waste transfer system.
Typical applications include:
Residential communities
Apartment complexes
Shopping centers
Hotels
Commercial buildings
Industrial parks
Markets
Schools and public facilities
Municipal waste collection points
Small and medium-sized waste transfer stations
One of the major advantages of this Bucket Waste Compactor is its compatibility with multiple common garbage bin capacities.
It can be configured for:
240L waste bins
660L waste bins
1100L waste bins
This allows different waste collection points to use the same centralized compaction equipment.
The hydraulic lifting mechanism raises the selected garbage bin, moves it to the feeding position, and tips the waste into the hopper. After unloading, the bin can be lowered back to the ground.
This reduces the amount of manual work required during waste collection and helps create a more standardized waste handling process.
Hydraulic Bucket Loading SystemThe front hydraulic lifting system is an important component of the machine.
When a garbage bin is positioned in front of the compactor, the lifting arms securely engage with the compatible bin. The hydraulic cylinders then provide the force required to raise and tilt the bin.
The waste falls into the feeding hopper under controlled movement.
The lifting system can help operators:
Reduce manual lifting
Improve loading efficiency
Handle heavy waste bins more easily
Reduce direct worker contact with waste
Improve the consistency of the feeding process
Support centralized waste collection
The lifting structure can be adjusted according to the customer's required bin specifications and project configuration.
High-Density Hydraulic Waste CompressionAfter the waste enters the hopper, the hydraulic compression system pushes the material into the storage container.
The compression process reduces the volume of loose garbage and increases the density of the stored material.
This is particularly useful for waste streams containing large amounts of lightweight packaging, household waste, paper, plastic, and other materials that naturally contain considerable air space.
The actual compaction ratio depends on waste composition, moisture content, material characteristics, compression pressure, and operating conditions. Therefore, the final configuration should be selected according to the customer's actual waste characteristics.
Loose garbage can occupy a large amount of space because of air gaps between individual waste materials.
For example, household garbage may contain:
Plastic bags
Cardboard boxes
Paper
Food packaging
Disposable products
Bottles
Lightweight containers
General household waste
Hydraulic compression forces these materials closer together, allowing more waste to be stored inside the same container.
This can potentially reduce the frequency of waste transportation and improve the utilization of each transportation cycle.
Technical ParametersPerformance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Hook Lift Truck TransportationThe entire 10 CBM Bucket Waste Compactor is designed to work with a hook lift truck transportation system.
This means the compactor itself serves as the transportable waste collection unit rather than requiring the waste to be manually transferred into a separate truck.
When the container reaches the required filling level, a hook lift truck can connect with the designated lifting structure and transport the complete unit.
A typical transportation process is:
Compactor Filled → Hook Lift Truck Connects → Entire Unit Lifted → Transportation → Waste Disposal / Treatment → Unit Returned or Repositioned
This configuration provides flexibility for municipal and commercial waste logistics.
Instead of building a permanent waste transfer station at every collection point, a transportable compactor can be positioned closer to where waste is generated and then moved when required.

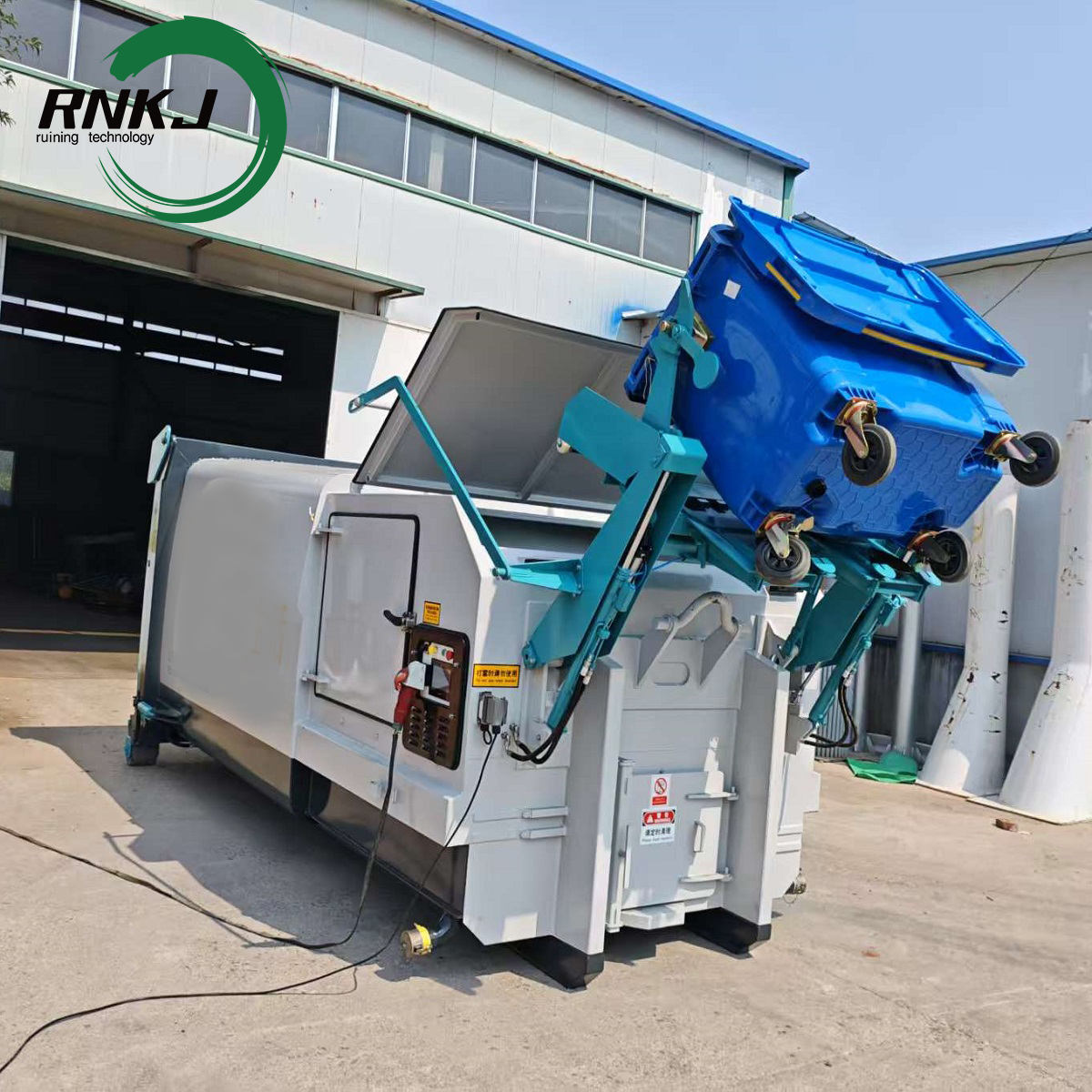

How the 10 CBM Bucket Waste Compactor WorksThe 240L, 660L, or 1100L garbage bin is moved into the designated loading position at the front of the compactor.
The hydraulic lifting arms secure the compatible waste bin.
The hydraulic cylinders raise and tilt the bin. The waste falls into the upper feeding hopper.
After unloading, the hydraulic system lowers the empty bin back to the ground.
The hydraulic compaction mechanism pushes the waste into the storage chamber.
The same process can be repeated with additional 240L, 660L, or 1100L bins until the 10 CBM container approaches its working capacity.
When transportation is required, the complete waste compactor is loaded onto a hook lift truck and transported to the designated disposal, transfer, recycling, or treatment facility.

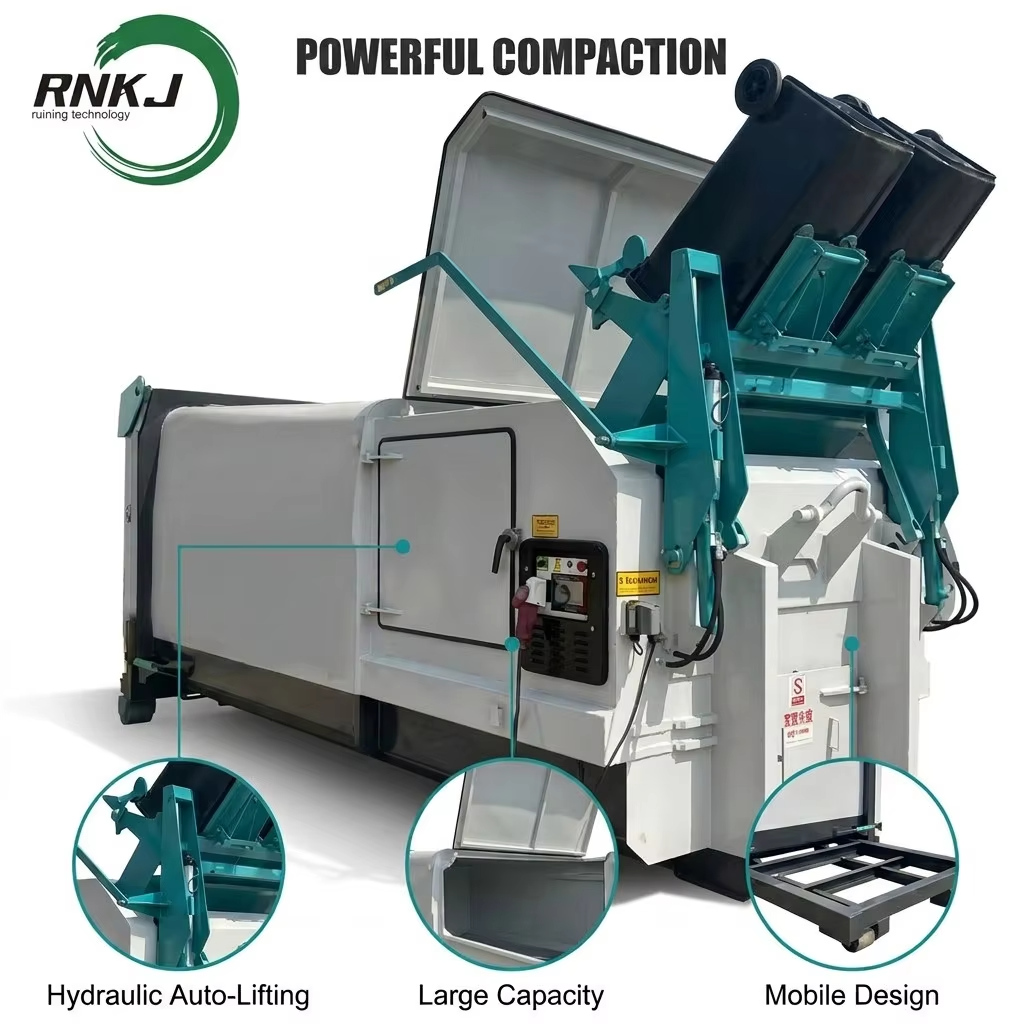

Advantages of the Bucket-Type Waste CompactorThe integrated hydraulic bin lifter eliminates much of the manual effort associated with emptying large waste bins.
Compatibility with 240L, 660L, and 1100L bins makes the equipment suitable for different waste collection systems.
Hydraulic compression allows more waste to be stored within the 10 CBM container compared with an equivalent container filled only with loose waste.
Waste feeding and compaction are combined into one system, reducing the need for separate loading and compaction equipment.
The hook lift truck configuration allows the complete unit to be transported according to the waste collection schedule.
By reducing waste volume before transportation, the system can help make better use of available storage and transportation capacity.
The hydraulic lifting and compression systems reduce the amount of direct manual contact with garbage.
The machine can be customized according to waste type, bin dimensions, container capacity, site layout, power supply, and transportation requirements.
Designed for Efficient Waste TransportationTransportation can represent a significant part of the overall cost of waste management.
When loose garbage is transported without sufficient compaction, the available container or truck volume may not be fully utilized because of the large amount of air space within the waste.
The bucket compactor addresses this issue by compressing waste before transportation.
With the 10 CBM High Density Compression Bucket Waste Compactor, waste is collected from multiple standard bins, compressed inside the container, and then transported as a complete unit using a hook lift truck.
This can help create a more streamlined logistics chain:
Multiple Waste Bins → One Compaction Unit → High-Density Storage → Hook Lift Transportation → Waste Treatment Facility
FAQIt is a hydraulic waste collection and compaction machine with approximately 10 CBM of storage capacity. It integrates waste bin lifting, feeding, hydraulic compression, storage, and hook lift truck transportation.
The machine can be configured to work with 240L, 660L, and 1100L garbage bins.
The compatible waste bin is positioned at the front of the machine. The hydraulic lifting system raises and tips the bin into the hopper. The waste then enters the compression chamber, where a hydraulic mechanism compresses it into the storage container.
Yes. The complete compactor is designed for transportation using a compatible hook lift truck.
A hook lift truck provides a flexible way to move the entire filled compactor between the collection point and the waste treatment or disposal facility.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
