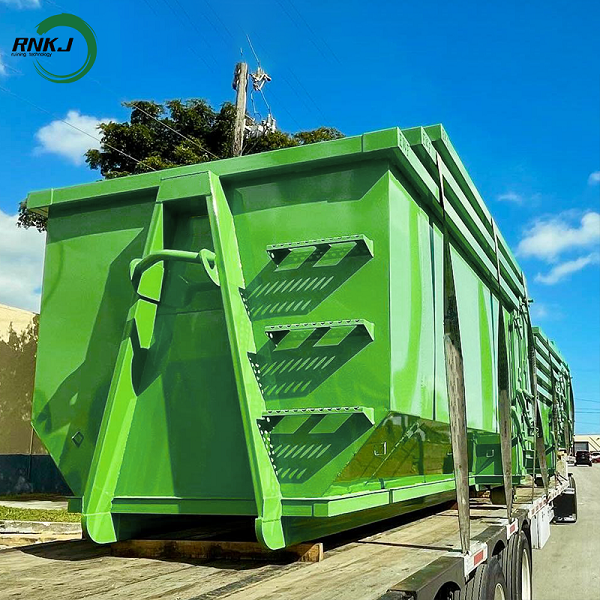

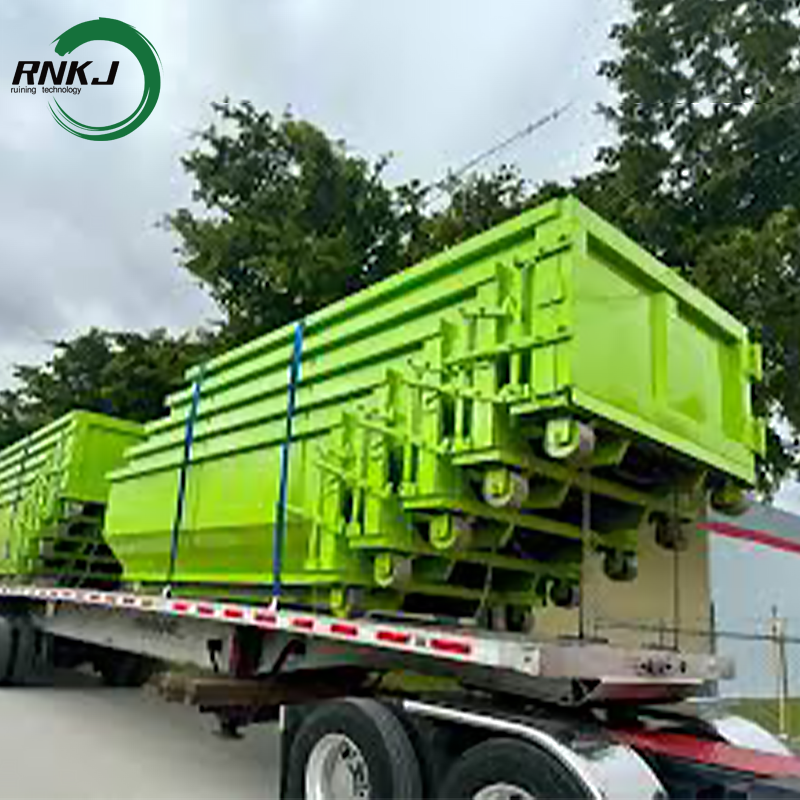

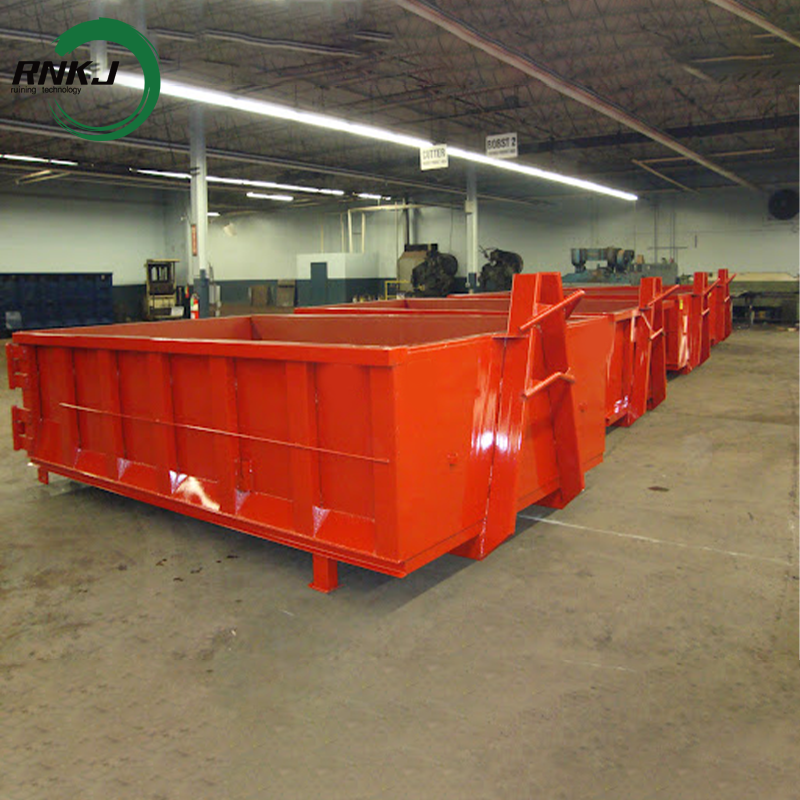

Stackable Hook Lift Bin can be used for a variety of occasions where you need to clean up garbage, whether it is collecting industrial waste or household waste, it can be used according to your needs. Ro-ro cargo is loaded on ro-ro trucks. When the ro-ro truck lifts the hydraulically operated bed, the ro-ro container rolls off the bed. Use the cable to lower the container slowly. After the waste containers are loaded, the ro-ro truck uses a cable and winch system to pull the filled containers onto the ro-ro truck. It features a rectangular footprint that utilizes wheels to easily roll the bin into place. The container is designed to be Taking into account environmental protection factors, all our trash is made of carbon steel material, carbon steel material is more balanced than other materials, has good strength and hardness, so it can withstand greater force pressure, wear and durable.
Looking for a Stackable Hook Lift Bin that checks all your boxes?
We’ve got standard options covering 10–50 cubic yards, plus clear standard specifications for you to pick from. Can’t find what you’re after? No problem—we’ll customize a Stackable Hook Lift Bin just for your unique needs. Whatever you’re looking for, we have the right solution.
Product Advantage
Good sealing performance: The box body mostly adopts a fully enclosed structure, which can effectively prevent the leakage of recyclables, the spread of odors or the infiltration of rainwater, thus avoiding secondary pollution.
High customization degree: The box body size, material and additional functions can be customized according to the type of recyclables (such as large items, liquids, corrosive materials).
Low operational threshold: The operation process of the hook-arm vehicle is standardized, and drivers can complete the loading and unloading of the box body with simple training, without the need for professional technicians.
Provide transportation solutions
We provide customized solutionsengineers will make 3D modelingdrawings according to customerrequirements, CAD drawings to solvepractical problems for more customers.
Our products support 100% customization, including size, color, plate thickness, hook height, etc.We believe that our factory can meet your special needs.
Working principle
1. Preparation Phase: Docking the Vehicle with the Bin
The driver parks the hook lift truck directly behind the hook bin to be removed, ensuring the centerline of the vehicle is aligned with the bin.Check the bin's locking mechanism for proper function and clear any obstacles around the bin to ensure a safe working space.Operate the vehicle's hydraulic system to slowly extend the hook arm and align it with the hook connection point at the rear end of the bin.
2. Lifting Phase: Securing the Bin to the Vehicle
After the hook arm locks with the bin's hook, activate the hydraulic system and slowly raise the hook arm upward, lifting the rear end of the bin.As the hook arm continues to retract, the bin gradually tilts around its front end and is pulled toward the vehicle's chassis.When the bin is fully aligned with the vehicle's chassis, the safety catch triggers, securing the bin to the vehicle to prevent shifting during transport.
3. Transportation Phase: Waste Transfer
After confirming the bin is secure, the driver drives the vehicle to the designated waste treatment plant. Maintain a steady speed during transport and avoid sudden braking or sharp turns to prevent the container from swaying or spilling the waste.
4. Unloading Phase: Container Separation and Waste Dumping
Upon arrival at the processing plant, park at the designated unloading area and recheck the surroundings for safety.Operate the hydraulic system to first unlock the safety catch, then slowly extend the hook arm and push the container to the ground unloading point.Continue to extend and raise the hook arm, tilting the container to the set angle. The waste will automatically dump under the action of gravity.Once the waste is dumped, retract the hook arm, lower the empty container back to the ground, unlock the hook, and drive away, completing one cycle.
Applications
Municipal Environmental Recycling: Collects recyclables (such as paper, plastic, and metal) from communities and streets, and regularly transports them to processing centers via hook-lift trucks.
Industrial Waste Processing: Accepts industrial scraps and packaging waste generated by factories and workshops, and can customize specialized bins (such as corrosion-resistant and leak-proof) based on the type of waste.
Commercial Waste Collection: Serves shopping malls, office buildings, hotels, and other locations, serving as storage containers for large collection points to avoid frequent small-volume transfers.
Construction Sites: Collects recyclable components of construction waste (such as rebar and waste wood), or serves as a temporary waste storage bin to maintain site cleanliness.
Technical Parameters
Product name | Hook bin & Hook lift Bin & Roll on / roll off container & Stackable Hook Lift Bin |
Material | Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade |
Size Range | from 10 to 80 yd And OEM is also available. |
Thickness of plates used | 10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to your requirements. |
Other specifications | 1). RHS are used for top rails, and top edge of plate continuous welded to RHS 2). Fully and partly welded inside and outside |
Options | 1) Two openning door 2) Up openning door |
Painting | We will paint each bin you order in your company colour, enhancing your company image with great looking bins.Two times of primer |

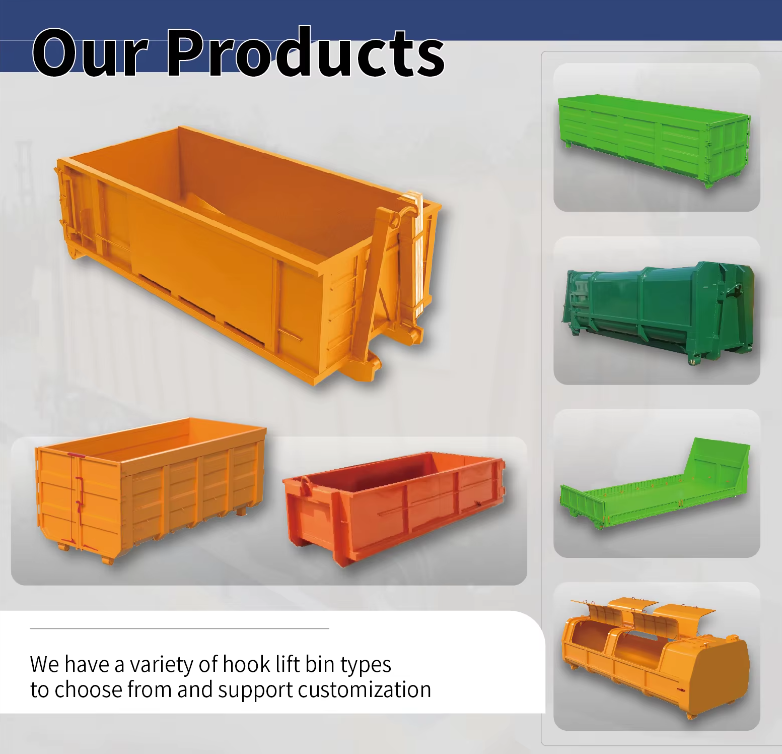

Product Customization
RNKJ offers a wide range of Stackable Hook Lift Bin is what we specialize in. Stackable Hook Lift Bin come in different sizes, so they can be suitable for any size project for proper waste disposal. Fill the bin with non-recyclable waste (such as concrete, bricks and tiles), and then the truck lifts the bin through a hook, which is the docking point on the back of the bin. The docking point is a sturdy curved metal strip that holds the bin in place when it is hung on the truck. Then, the truck is ready to take the trash can to where it needs to go.
Tailgate Shape
Detailed Images
Hook
Hook can be customized, strong, and durable. We use the highest weight-to-lift ratio in the industry.The high-strength steel to reduce the weight of the box, which means higher payloads and longer truck life.
Door Bolt Fixation
The door bolt fixation is easy to operate and has high-strength security.
Door hings
The door hinges are greasable,and capable of holding a big weight as well as mounting and adjustment are very easy.
Wheels
The wheels can be customized according to customer requirements, using enlarged and thickened rollers,which are very strong and
durable.
Our Advantages
Reasonable Design
Structural and mechanical design tailor-made for wet waste.
Fully automatic
Automatic operation with options of bin lifter or tipper to enhance refuse collection efficiency. and reduce labour costs.
High efficiency
High compaction ratio with volume reduction to 75%. Fast compaction cycle, ideal for frequent and regular refuse collection.
Hydraulic system
Hydraulic compaction system with reduced machine wear and high thermal resistance, suitable for tropical climate.
Anti-drip design
Stainless steel double-layered structure and multi-lock of tailgate door ensure 100% leakproof.
Safe & Smart
Visual operating control panel with wireless remote functions to enhance safety and reliability.
In-box design
Tapered sides and rounded guides present in containers to allow complete unloading during infeed.
Integrated chassis design
Integrated body design with hydraulic and mechatronic systems complying with international standards.
FAQ
1. What is the maximum size of the product that can be customized?
We can customize any size according to your needs.
2. Are you a factory or a trader?
We are an integrated industry and trade enterprise with more than twenty years of experience, with our own production workshop, and belong to the source manufacturer
3. What is your level in this industry?
We belong to the top level of the industry, we have the most advanced production equipment and technology, professional and experienced service team. We are the representative of our local leading enterprises, and we are among the best in production technology and corporate culture level.
4. What are your advantages?
* We are a large factory that has been in business for many years and has created our own brand. We pay the most attention to reputation, customer satisfaction and integrity, so we are willing to use materials and fine workmanship. We have absolute advantages in plate thickness, welding process, production time, etc.
* Our products have a long warranty period, professional after-sales service team, from the moment you trade with us, we firmly believe that the transaction is completed and ultimately serve you.
* We are a source manufacturer, we can ensure that the products in our hands are very cost-effective for customers, you can get the best quality products at the factory price in this price range, we will be your best quality source manufacturer
* We provide services for a wide variety of domestic and foreign freight groups: individuals, traders, buyers, leasing units, various small, medium and large enterprises and government projects, so our service experience is rich enough, we have many repeat customers, and it is enough to witness the recognition of our products and services.
5. Is there a situation where the order cannot be completed within the delivery period?
We can assure you that within the delivery period determined by both parties, we will complete it on time, deliver it on time, everything will follow the normal process, there will be no delays and pressure on the goods, relying on reliable and timely transportation companies to ensure that customers can receive our goods safely as soon as possible.
6. What customized goods can you provide?
For the size, style, color and logo of the product can be customized according to your needs, providing you with customized services, within the reasonable scope prescribed by law, no matter what you think of, we can do it.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
