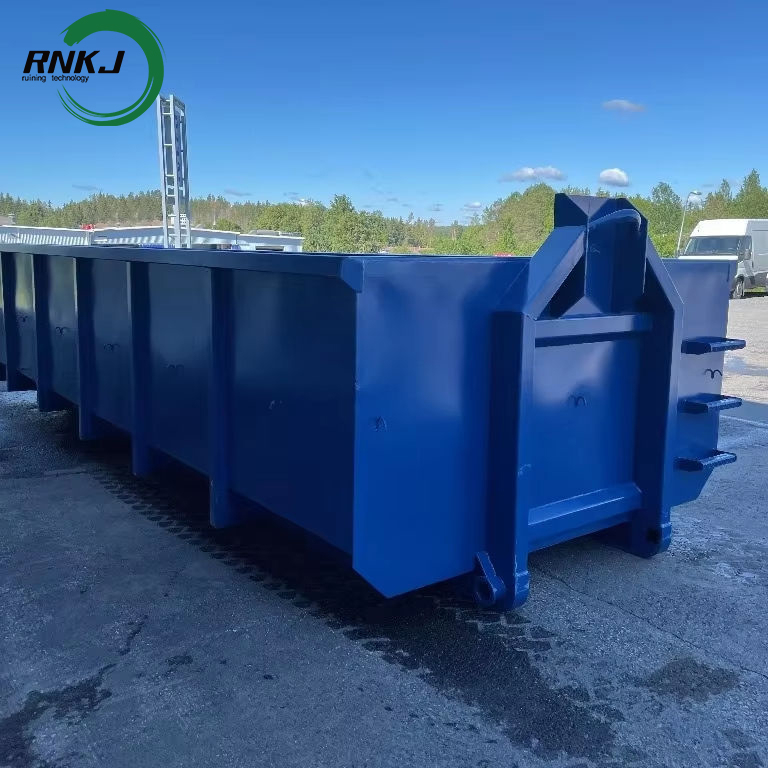

Roll-off Container is usually translated as hook lift container or haulable large garbage bin. It is a mobile loading device used for collecting and transporting large quantities of waste, and is widely applied in waste treatment scenarios such as construction, industry, and municipal services.
Product Advantage
The main body is mostly made of steel frame structure, which is sturdy and durable and can bear the loading of heavy materials such as construction waste and industrial waste.
The size specifications are diverse, with common volumes ranging from 6 cubic yards to 40 cubic yards. Some models can be customized.
The design is divided into open type and covered type: The open type is convenient for loading and unloading large materials, while the covered type can prevent dust, water infiltration and material spillage, thereby reducing secondary pollution.
Working Principle And Process
The Roll-off Container needs to be operated in full process together with the Roll-off Truck. The steps are as follows:
Discharging empty containers: The hook-arm vehicle transports the empty containers to the designated location (such as construction sites, industrial waste areas), and lowers the containers smoothly through the hydraulic system.
Loading materials: Users load the waste (construction waste, industrial solid waste, large-scale household waste, etc.) into the containers on-site.
Transferring and discharging: After the containers are filled, the hook-arm vehicle returns and uses the hydraulic hook arm to lift and fix the containers on the truck bed, then transports them to the waste disposal site (landfill, recycling plant, incineration plant, etc.).
Reusing: After the discharging is completed, the empty containers can be pulled back for reuse, achieving a recycling operation.
Applications of Roll Off Bin
Construction waste removal: Centralized transportation of waste materials such as concrete blocks, bricks, and scrap steel generated during demolition, renovation, and infrastructure projects.
Industrial solid waste treatment: Collection of leftover materials, packaging waste, and used equipment components produced during factory operations.
Municipal and public services: Urban greening waste clearance, post-disaster debris removal, and centralized handling of garbage for large-scale events (such as exhibitions, competitions). Large commercial venues: Large-scale waste from shopping malls and logistics parks is regularly transported for disposal.
Core Structure and Design Features
The overall shape is mostly a rectangular open container with a customizable top cover. The side walls are reinforced to ensure load-bearing capacity and durability. Rollers are installed at the bottom, which, in conjunction with the truck's hydraulic hook-arm system, allows for quick loading, unloading, and movement.
Efficiency: The large-capacity design can reduce the number of transportation trips, lower labor and fuel costs, and is particularly suitable for scenarios with large amounts of waste generation.
Flexibility: The container quantity and specifications can be flexibly adjusted according to needs, and they can be placed and collected as required, adapting to the operational needs of different sites.
Compliance: The sealed model can meet environmental protection requirements, prevent waste leakage, and comply with the waste transportation regulations in most regions. Recyclability: Supports classified collection, can be specifically used for collecting recyclable materials such as metals and wood, helping to facilitate resource recycling.
Provide transportation solutions
We provide customized solutionsengineers will make 3D modelingdrawings according to customerrequirements, CAD drawings to solvepractical problems for more customers.
Our products support 100% customization, including size, color, plate thickness, hook height, etc.We believe that our factory can meet your special needs.
Technical Parameters
Product name | Hook bin & Hook lift Bin & Roll on / roll off container & Dumpster Bin |
Material | Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade |
Size Range | from 10 to 80 yd And OEM is also available. |
Thickness of plates used | 10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to your requirements. |
Other specifications | 1). RHS are used for top rails, and top edge of plate continuous welded to RHS 2). Fully and partly welded inside and outside |
Options | 1) Two openning door 2) Up openning door |
Painting | We will paint each bin you order in your company colour, enhancing your company image with great looking bins.Two times of primer |
Accepted and Prohibited Materials
Accepted materials for roll-off container services include: Municipal solid waste, construction and demolition materials, etc. Container cannot be filled to capacity with demolition material, concrete, rock, and other heavy materials due to weight limitations.
Prohibited materials include: Tires, paint, chemicals, hazardous waste, refrigerators, air conditioners, or other items containing freon.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
