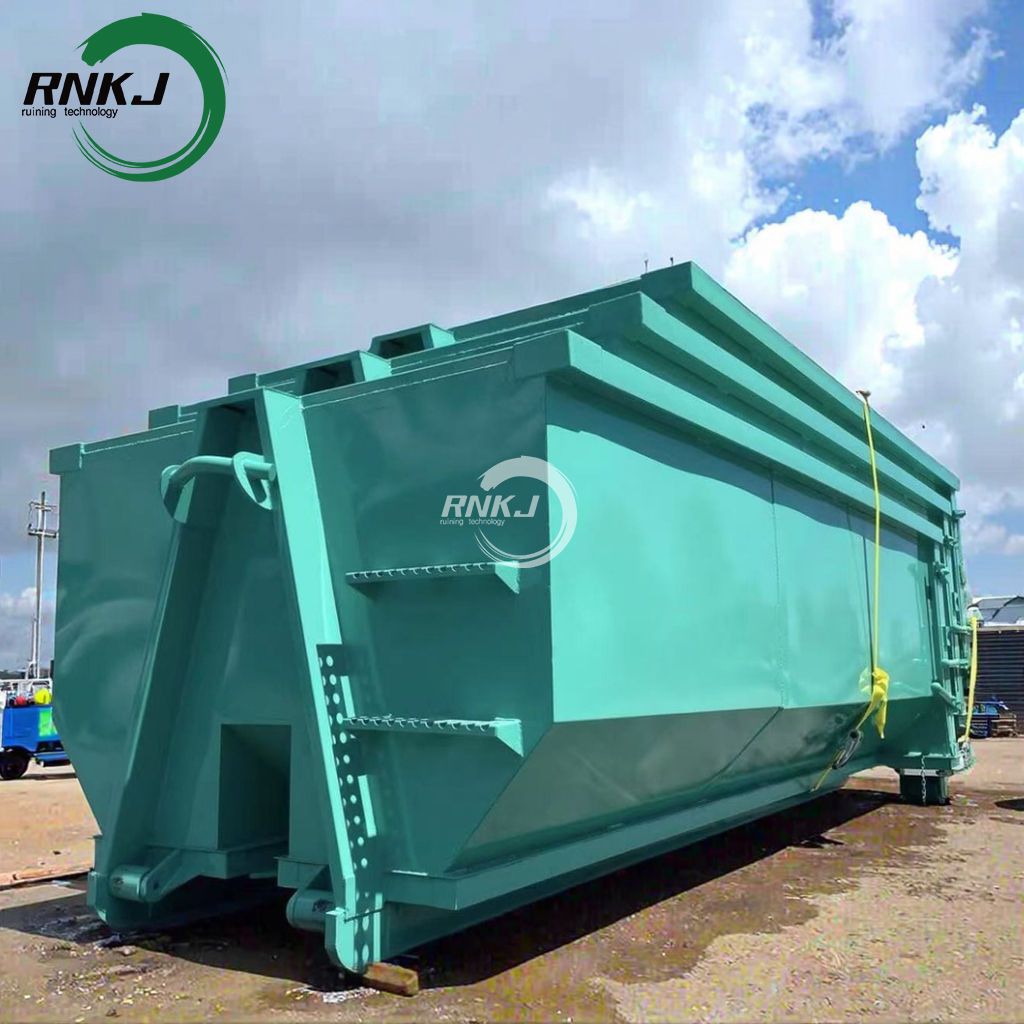

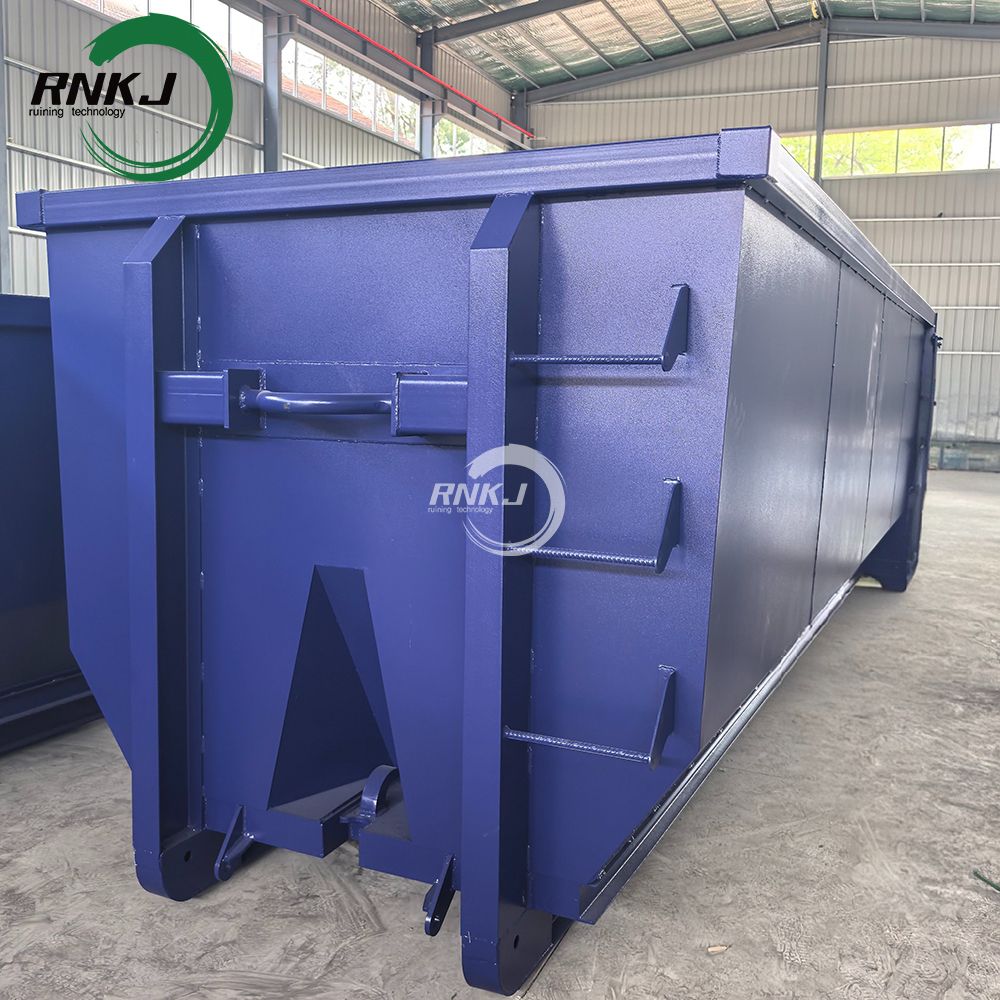

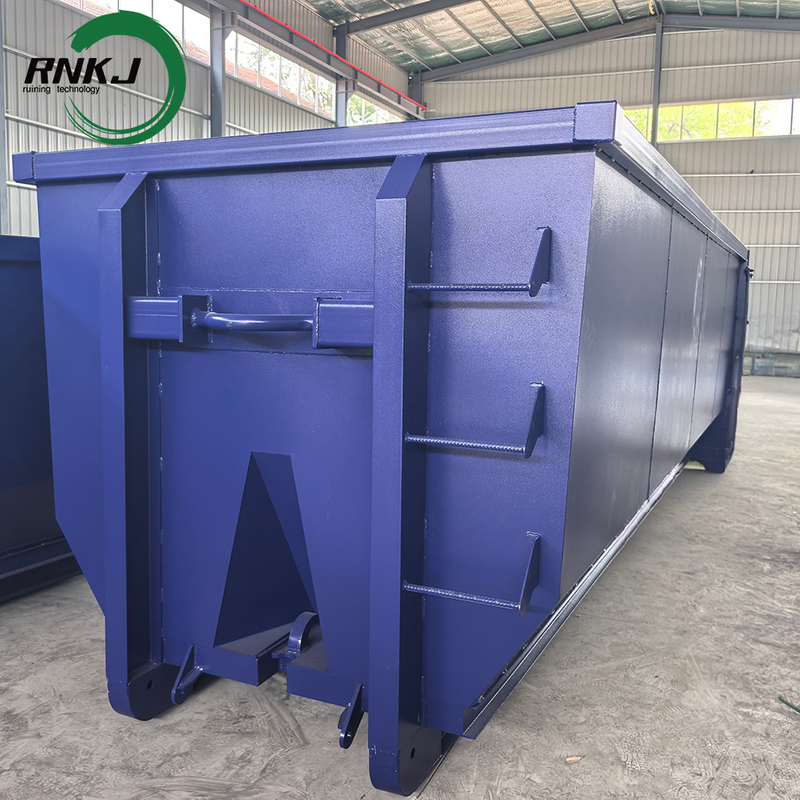

Roll-off Bin is a mobile large-scale garbage collection container. It mainly achieves rapid docking, lifting and transportation with the hydraulic system of the articulated truck. It is widely used in various scenarios of centralized garbage collection and transfer. Its core feature is strong flexibility, enabling it to be quickly deployed to designated locations according to different needs. When full, it is transported to the garbage disposal site by a dedicated vehicle.
Product Advantage
Large capacity: Handles a large amount of heavy waste that ordinary trash bins cannot accommodate.
High flexibility: Can be temporarily placed in residences, construction sites, and commercial areas, and can be rented as needed.
High efficiency: One-stop loading, transportation, and processing reduces multiple cleaning costs.
Compliance and convenience: The service provider is responsible for subsequent garbage disposal, which complies with local environmental protection and transportation regulations.
Main ApplicationsResidential scenarios: Whole house renovation / refurbishment, roof removal, garden cleaning, moving waste, estate clearance.
Commercial scenarios: Store renovation, warehouse cleaning, office area renovation, commercial demolition project.
Engineering scenarios: Construction waste from buildings, road maintenance, site leveling, demolition project).
Main Structural Components
Main body of the box: Mostly made by welding high-strength steel plates, commonly in square or rectangular shapes. Some have a sloping top design to prevent garbage from spilling out; the bottom is equipped with matching rollers for easy short-distance movement.
Hook arm connection device: At the rear of the box, a special hook is provided, which precisely connects with the hydraulic lifting arm of the hook arm vehicle. The lifting, lowering and dumping of the box are completed through hydraulic power.
Sealing design: High-end products will add sealing strips and anti-leak bottom plates to the box to prevent sewage or garbage debris from falling during transportation, meeting environmental protection transportation standards.
Provide transportation solutionsWe provide customized solutionsengineers will make 3D modelingdrawings according to customerrequirements, CAD drawings to solvepractical problems for more customers.
Our products support 100% customization, including size, color, plate thickness, hook height, etc.We believe that our factory can meet your special needs.
Technical Parameters
Product name | Hook bin & Hook lift Bin & Roll on / roll off container & Dumpster Bin |
Material | Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade |
Size Range | from 10 to 80 yd And OEM is also available. |
Thickness of plates used | 10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to your requirements. |
Other specifications | 1). RHS are used for top rails, and top edge of plate continuous welded to RHS 2). Fully and partly welded inside and outside |
Options | 1) Two openning door 2) Up openning door |
Painting | We will paint each bin you order in your company colour, enhancing your company image with great looking bins.Two times of primer |
Common sizes and capacities10 cubic yards: Small-scale cleaning
Small-scale renovations, yard trimming, a small amount of moving debris
15 cubic yards: Medium-sized cleaning
Whole house renovation, medium-scale demolition, garage cleaning
20 cubic yards: Standard project
Large-scale renovation, roof removal, commercial space clearance
30 cubic yards: Large-scale project
Construction work, large-scale demolition, multi-family clearance
40 cubic yards: Super-large-scale projects
Large-scale infrastructure construction, industrial clean-up, extensive demolition
Important NoticeProhibition of Discharging Items
Dangerous Goods: Paint, solvents, batteries, chemicals, flammable and explosive substances.
Hazardous Waste: Asbestos, lead-containing materials, medical waste.
Others: Liquid waste, large vehicle components, untreated large household appliances.
Weight and Loading Restrictions
Do not overload. Avoid transportation risks and additional costs.
Waste materials should be evenly distributed to prevent shifting during transportation.
Compliance and Costs
Comply with local environmental protection and urban appearance regulations. In some areas, it is required to place warning signs.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
