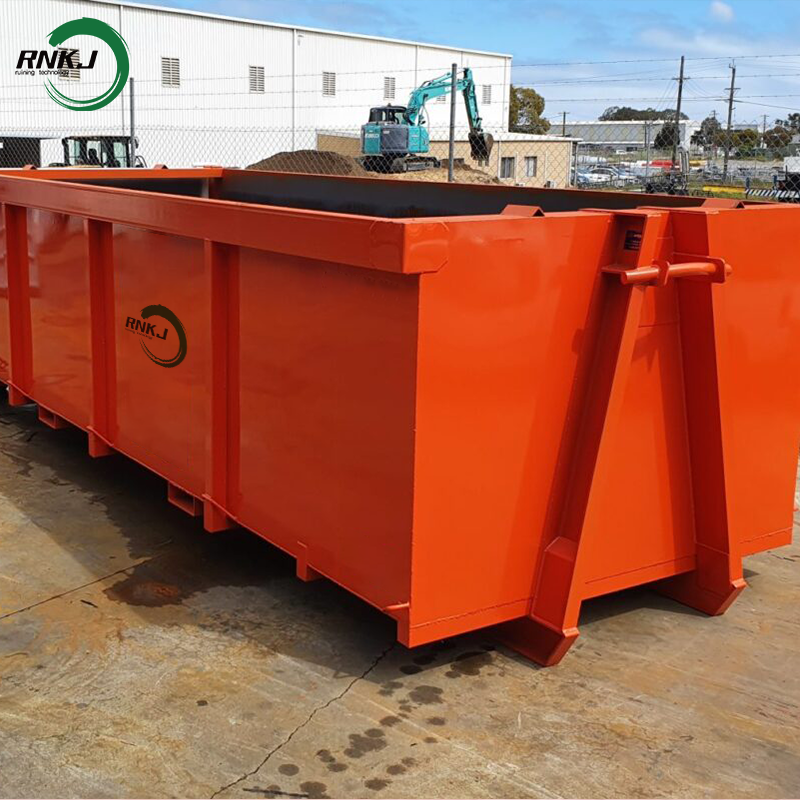

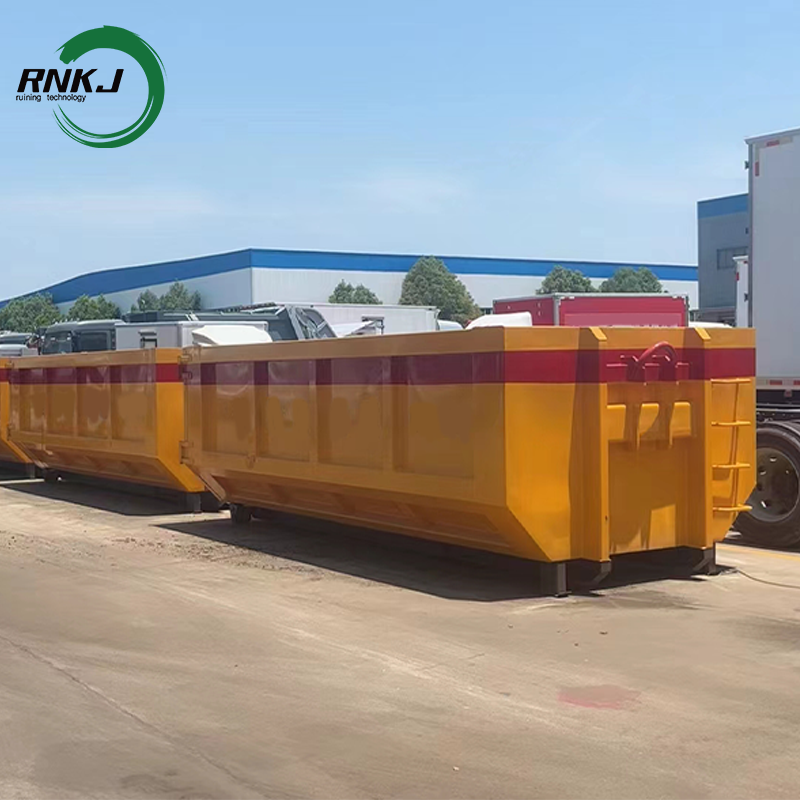

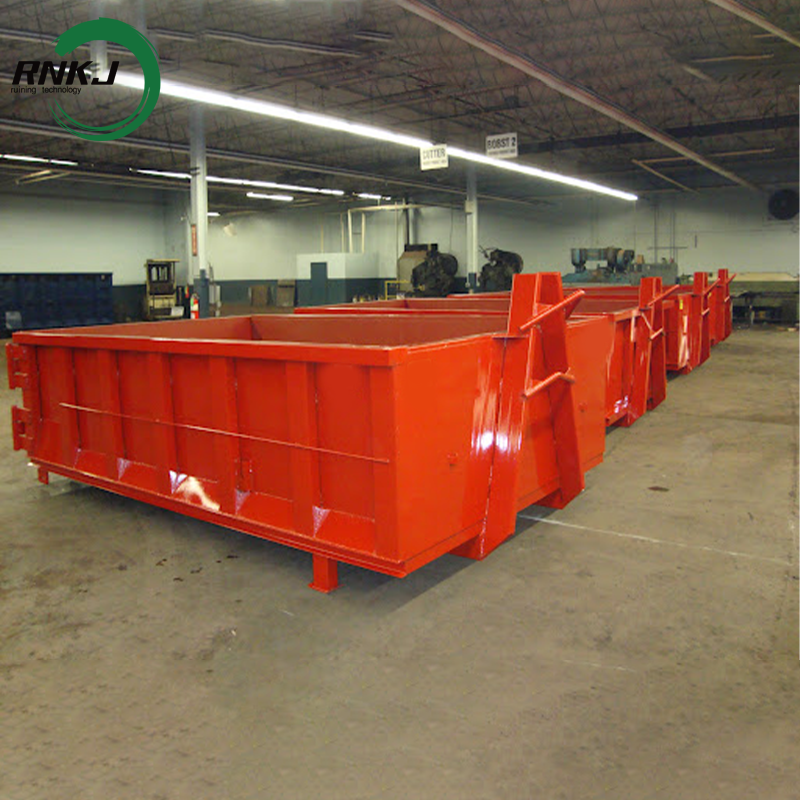

The Recycling Hook Lift Bin is a modular recycling container that utilizes a hook-arm vehicle system for rapid loading, unloading and transportation. Its core function is to efficiently and centrally handle various recyclables or waste materials.
In terms of structure, the box body is equipped with a hooking device, which can be directly connected to the hydraulic system of the hook arm vehicle without the need for manual assistance.
In terms of function, it can be used independently as a recycling storage container. When the box is full, it can be lifted and transported by the hook arm vehicle at once. Empty boxes can be replaced immediately, achieving the separation of the box and the vehicle and enabling cyclic operations.
Looking for a Recycling Hook Lift Bin that checks all your boxes?
We’ve got standard options covering 10–50 cubic yards, plus clear standard specifications for you to pick from. Can’t find what you’re after? No problem—we’ll customize a Recycling Hook Lift Bin just for your unique needs. Whatever you’re looking for, we have the right solution.
Product Advantage
High Operational Efficiency: The entire process of docking the hook-arm truck with the bin, loading and unloading, takes only 3-5 minutes, significantly faster than traditional manual loading and unloading or fixed garbage trucks, significantly reducing waiting time.
High Equipment Flexibility: A single hook-arm truck can accommodate multiple recycling bins of different sizes, eliminating the need for dedicated vehicles for different scenarios and reducing equipment investment costs.
Low Labor Cost: A single driver is required to operate the hook-arm truck throughout the entire loading and unloading process, eliminating the need for additional manual handling and reducing labor reliance.
Provide transportation solutions
We provide customized solutionsengineers will make 3D modelingdrawings according to customerrequirements, CAD drawings to solvepractical problems for more customers
Working principle
Box docking and fixation
The rear of the roll-on roll-off garbage truck is equipped with retractable metal slides. After the vehicle is parked, the slides will extend to the ground. Through hydraulic hooks and the traction device at the bottom of the garbage box, they are connected to ensure that the box is firmly fixed on the slides, preventing any sliding or shifting.
Hydraulic-driven loading and unloading
Start the hydraulic cylinder, and through the contraction of the piston rod, pull the slides to "pull" the garbage box along the slides onto the vehicle chassis and lock it; during unloading, the operation is reversed, extending the slides and using hydraulic thrust to smoothly slide the box to the designated position on the ground.
Gravity-assisted dumping
Some large Roll Off Dumpsters are equipped with a flip structure. When the vehicle arrives at the processing site, the hydraulic system lifts the end of the slides, causing the box to be in an inclined state. The garbage inside the box automatically slides out under the force of gravity, completing the unloading.
Applications
Municipal Environmental Recycling: Collects recyclables (such as paper, plastic, and metal) from communities and streets, and regularly transports them to processing centers via hook-lift trucks.
Industrial Waste Processing: Accepts industrial scraps and packaging waste generated by factories and workshops, and can customize specialized bins (such as corrosion-resistant and leak-proof) based on the type of waste.
Commercial Waste Collection: Serves shopping malls, office buildings, hotels, and other locations, serving as storage containers for large collection points to avoid frequent small-volume transfers.
Construction Sites: Collects recyclable components of construction waste (such as rebar and waste wood), or serves as a temporary waste storage bin to maintain site cleanliness.
Technical Parameters
Product name | Hook bin & Hook lift Bin & Roll on / roll off container & Recycling Hook Lift Bin |
Material | Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade |
Size Range | from 10 to 80 yd And OEM is also available. |
Thickness of plates used | 10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to your requirements. |
Other specifications | 1). RHS are used for top rails, and top edge of plate continuous welded to RHS 2). Fully and partly welded inside and outside |
Options | 1) Two openning door 2) Up openning door |
Painting | We will paint each bin you order in your company colour, enhancing your company image with great looking bins.Two times of primer |
Product Customization
RNKJ offers a wide range of Recycling Hook Lift Bin is what we specialize in. Recycling Hook Lift Bin come in different sizes, so they can be suitable for any size project for proper waste disposal. Fill the bin with non-recyclable waste (such as concrete, bricks and tiles), and then the truck lifts the bin through a hook, which is the docking point on the back of the bin. The docking point is a sturdy curved metal strip that holds the bin in place when it is hung on the truck. Then, the truck is ready to take the trash can to where it needs to go.
Tailgate Shape
Detailed Images
Our Advantages
Reasonable Design
Structural and mechanical design tailor-made for wet waste.
Fully automatic
Automatic operation with options of bin lifter or tipper to enhance refuse collection efficiency. and reduce labour costs.
High efficiency
High compaction ratio with volume reduction to 75%. Fast compaction cycle, ideal for frequent and regular refuse collection.
Hydraulic system
Hydraulic compaction system with reduced machine wear and high thermal resistance, suitable for tropical climate.
Anti-drip design
Stainless steel double-layered structure and multi-lock of tailgate door ensure 100% leakproof.
Safe & Smart
Visual operating control panel with wireless remote functions to enhance safety and reliability.
In-box design
Tapered sides and rounded guides present in containers to allow complete unloading during infeed.
Integrated chassis design
Integrated body design with hydraulic and mechatronic systems complying with international standards.
Our products
Special container: We have Modular Housing containers, Dangernous goods container, Generator container, Mini container, and kinds of Custormer customized containers as custormer's idea.
FAQ
1. What is the maximum size of the product that can be customized?
We can customize any size according to your needs.
2. Are you a factory or a trader?
We are an integrated industry and trade enterprise with more than twenty years of experience, with our own production workshop, and belong to the source manufacturer
3. What is your level in this industry?
We belong to the top level of the industry, we have the most advanced production equipment and technology, professional and experienced service team. We are the representative of our local leading enterprises, and we are among the best in production technology and corporate culture level.
4. What are your advantages?
* We are a large factory that has been in business for many years and has created our own brand. We pay the most attention to reputation, customer satisfaction and integrity, so we are willing to use materials and fine workmanship. We have absolute advantages in plate thickness, welding process, production time, etc.
* Our products have a long warranty period, professional after-sales service team, from the moment you trade with us, we firmly believe that the transaction is completed and ultimately serve you.
* We are a source manufacturer, we can ensure that the products in our hands are very cost-effective for customers, you can get the best quality products at the factory price in this price range, we will be your best quality source manufacturer
* We provide services for a wide variety of domestic and foreign freight groups: individuals, traders, buyers, leasing units, various small, medium and large enterprises and government projects, so our service experience is rich enough, we have many repeat customers, and it is enough to witness the recognition of our products and services.
5. Is there a situation where the order cannot be completed within the delivery period?
We can assure you that within the delivery period determined by both parties, we will complete it on time, deliver it on time, everything will follow the normal process, there will be no delays and pressure on the goods, relying on reliable and timely transportation companies to ensure that customers can receive our goods safely as soon as possible.
6. What customized goods can you provide?
For the size, style, color and logo of the product can be customized according to your needs, providing you with customized services, within the reasonable scope prescribed by law, no matter what you think of, we can do it.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
