Industrial Waste Management Roll-off Dumpster is a large, mobile, open-type waste container specially designed for industrial, construction, demolition and other scenarios. It is transported and unloaded by a dedicated Roll-off Truck. It differs from the fixed commercial pre-mounted garbage bins and has features such as temporary use, large capacity, high load-bearing capacity, and flexible deployment. It is an indispensable core equipment in the modern industrial waste management system.
Looking for a Roll Off Dumpster that will meet your specific needs?
Roll Off Dumpster typically range in size from 10 – 50 yd, but we can build them to fit your specific requirements. You will find the different standard specifications. And if you don’t find what you’re looking for, we can always customize a Hook Lift Bins to fit your specific requirements. So whatever your needs may be, we have a Roll Off Dumpster that will meet them!
Product AdvantageReduce transportation frequency: The large-capacity design reduces the number of waste transportation, minimizing carbon emissions and road pollution.
Improve recycling efficiency: The classification collection function promotes the recycling and reuse of industrial waste, reducing the amount of landfill.
Compliance handling: Professional models ensure the safe transportation of hazardous waste and prevent environmental pollution accidents.
Resource recycling: The box is made of steel and can be recycled after its lifespan ends, conforming to the concept of circular economy.
Lower labor costs: Reduce the labor input for manual handling and multiple transports.
Improve operational efficiency: Quick loading and unloading and large capacity reduce the processing time of waste, enhancing factory production efficiency.
Flexible leasing model: Choose short-term or long-term leasing based on production cycles to avoid idle equipment costs.
Customized services: Design solutions based on waste types and production volumes to optimize the cost structure.
Product Structure And Material PropertiesOverall structural design
Box body main structure: Can have a rectangular open structure to maximize loading space
Bottom wheels: Enable rolling loading and unloading with the truck
Rear hinge door: Facilitates the entry and exit of large / heavy items
Top edge: Reinforces the structure for easier hoisting
Side wall reinforcement ribs: Enhances the load-bearing capacity
Bottom reinforcement beam: Improves the structural stability
Material and Craftsmanship
The Industrial Waste Management Roll Off Dumpster is mainly made of heavy-duty steel to ensure durability under harsh conditions:
Container panel: Made of thick-gauge carbon steel. Some high-end models use wear-resistant steel plates, which are resistant to impact and corrosion.
Surface treatment:
Hot-dip galvanizing: Provides long-term corrosion protection, suitable for outdoor long-term usage scenarios
Epoxy primer + polyurethane topcoat: Enhances weather resistance, customizable colors for easy classification and management
Sandblasting for rust removal: Improves coating adhesion, prolongs service life
Welding process: Utilize automatic submerged arc welding to ensure the strength and sealing of the weld, preventing the leakage of liquid waste.
Special customization: For the disposal of hazardous waste, we can offer specialized configurations such as anti-leak coating, sealed door design, and liquid collection tanks.
Specification Dimensions And Capacity ParametersThe external dimensions of the 10 cubic yard model are 14 feet × 7.5 feet × 3.5 feet (converted to metric units, it is 4.3m × 2.3m × 1.1m). The equivalent volume is approximately 7.65 cubic meters. The typical load capacity is 2-3 tons. It is suitable for scenarios such as small-scale industrial cleaning, equipment maintenance waste disposal, etc.
The external dimensions of the 15 cubic yard model are 16 feet × 7.5 feet × 4.5 feet (4.9m × 2.3m × 1.4m), with an equivalent volume of approximately 11.47 cubic meters. The typical load capacity is 3-4 tons, suitable for medium-sized factory waste disposal, production line replacement and other requirements.
The external dimensions of the 20 cubic yard model are 22 feet × 7.5 feet × 4.5 feet (6.7m × 2.3m × 1.4m), with an equivalent volume of approximately 15.29 cubic meters. The typical load-bearing capacity is 4-6 tons, making it suitable for scenarios such as large workshop cleaning and industrial equipment dismantling.
The external dimensions of the 30 cubic yard model are 22 feet × 7.5 feet × 6.0 feet (6.7m × 2.3m × 1.8m), with an equivalent volume of approximately 22.94 cubic meters. The typical load-bearing capacity is 6-8 tons. It is commonly used in projects such as factory relocation and large-scale production line renovations.
The external dimensions of the 40 cubic yard model are 22 feet × 7.5 feet × 8.0 feet (6.7m × 2.3m × 2.4m), with an equivalent volume of approximately 30.58 cubic meters. The typical load capacity is 8-10 tons, and it is suitable for scenarios such as heavy industrial waste disposal and large-scale demolition projects.
Core Functions And Operational FeaturesUnique Loading and Unloading System
The core advantage of Industrial Waste Management Roll Off Dumpster lies in its seamless integration with dedicated trucks, enabling efficient loading and unloading:
Two main loading and unloading methods:
Cable lifting system: Using hydraulic-driven cables and pulleys, the garbage container is lifted or lowered onto the truck chassis
Hydraulic arm system: A more advanced hydraulic arm directly hooks onto the front end of the container, lifts it and tilts it for unloading, with higher efficiency
Operation process:
The truck transports the empty containers to the designated location. Using the hydraulic system, the container is smoothly placed on the ground.
Industrial waste is loaded into the container by forklifts, cranes, conveyor belts or manually.
After being filled, the truck returns and uses the hydraulic system to pull the container back to the truck chassis.
It is then transported to the processing facility for unloading.
Industrial Scene Adaptation FunctionOpen top design: Facilitates the rapid loading of large equipment, long materials waste, and bulk materials, compatible with industrial equipment such as forklifts and cranes.
Rear door opening: Capable of loading extremely long or wide items, such as pipes, steel, large mechanical parts, without the need for high-altitude hoisting.
High-strength structure: Can withstand the high weight and sharp edges of industrial waste, such as metal waste, crushed concrete, industrial residues.
Ground placement stability: The bottom design ensures stability during full loading, preventing tipping and ensuring safety in factory operations.
Mobility: Can be moved within the factory for short distances, adapting to the waste collection needs of different production areas.
Multi-purpose compatibility: Can be equipped with inner liner bags, leak-proof pallets, etc., for handling special materials such as liquid waste and hazardous waste.
Technical ParametersProduct name | Hook bin & Hook lift Bin & Roll on / roll off container |
Material | Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade |
Size Range | from 10 to 80 yd And OEM is also available. |
Thickness of plates used | 10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to your requirements. |
Other specifications | 1). RHS are used for top rails, and top edge of plate continuous welded to RHS 2). Fully and partly welded inside and outside |
Options | 1) Two openning door 2) Up openning door |
Painting | We will paint each bin you order in your company colour, enhancing your company image with great looking bins.Two times of primer |
Main MaterialQ235 steel
Moderate strength, reasonable cost, good welding performance General waste collection, light to moderate construction waste Side plate 2-3mm, bottom plate 3-4mm
Q345 high-strength steel
Higher yield strength, strong resistance to deformation Heavy construction waste, industrial waste residue, heavy-load materials
Tailgate Shape

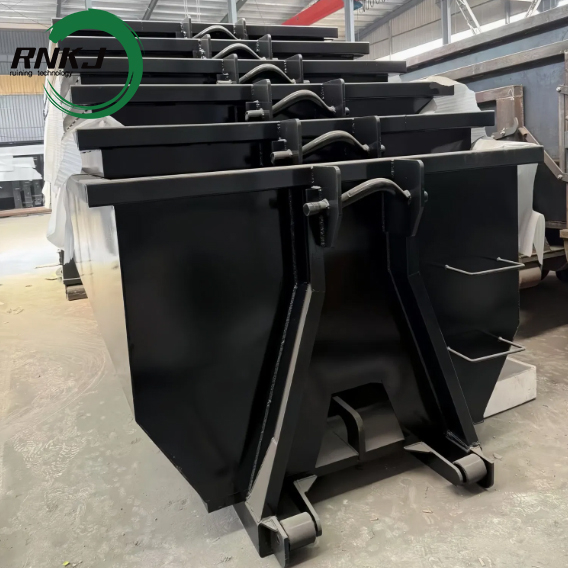

Detailed Images
Industrial Application ScenariosManufacturing and factories
Production line waste: Collect daily production waste such as metal chips, plastic scraps, packaging waste, etc.
Equipment maintenance and replacement: Handle scrapped equipment, parts, and oily waste, supporting the upgrading of production lines
Factory relocation: Handle a large amount of old equipment, waste, and construction debris at one time to improve relocation efficiency
Waste management: Customized leak-proof models for collecting chemical waste, oil, paint residues, etc.
Construction and Demolition Projects
Construction Waste: Concrete blocks, bricks, wood, metal components, etc. - waste from demolition
New Construction Projects: Collection of formwork, scaffolding, packaging materials, etc. during the construction process
Road Construction: Asphalt waste, crushed stones, soil, etc. - construction waste from road projects
Large-scale Infrastructure: Heavy waste treatment during the construction of bridges, tunnels, and factories
Industrial Waste Management Roll Off Dumpster is an indispensable environmental protection equipment in modern industrial production. Its large capacity, high load-bearing capacity, and flexible deployment features make it an ideal choice for handling various industrial waste materials. Contact us immediately to obtain exclusive discount offers, or get a waste disposal solution that is more suitable for you.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
