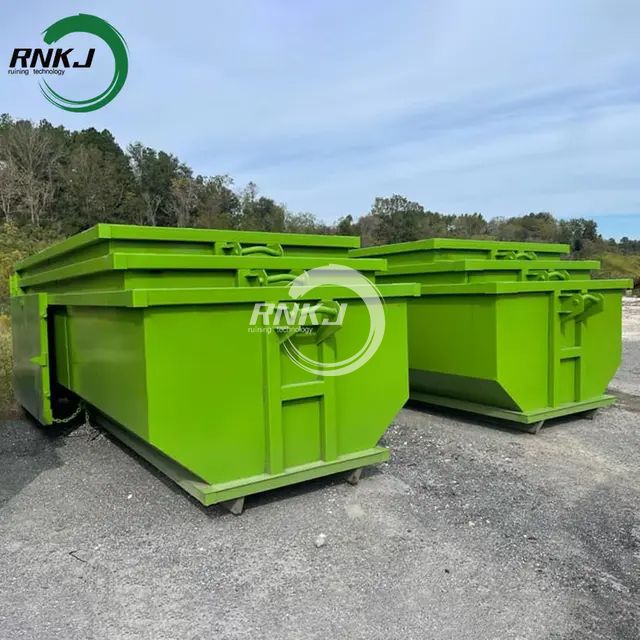

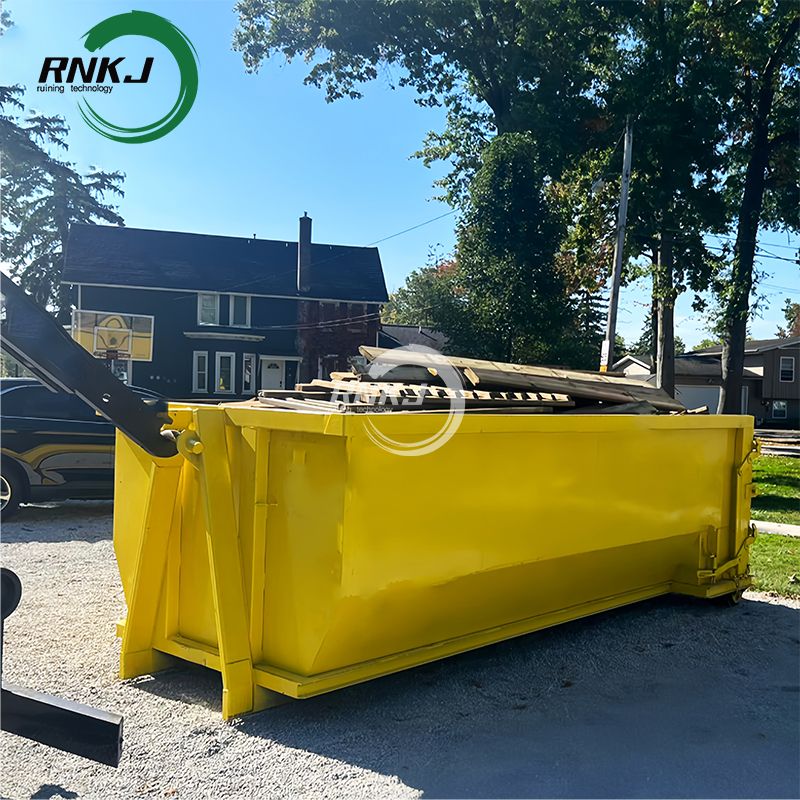

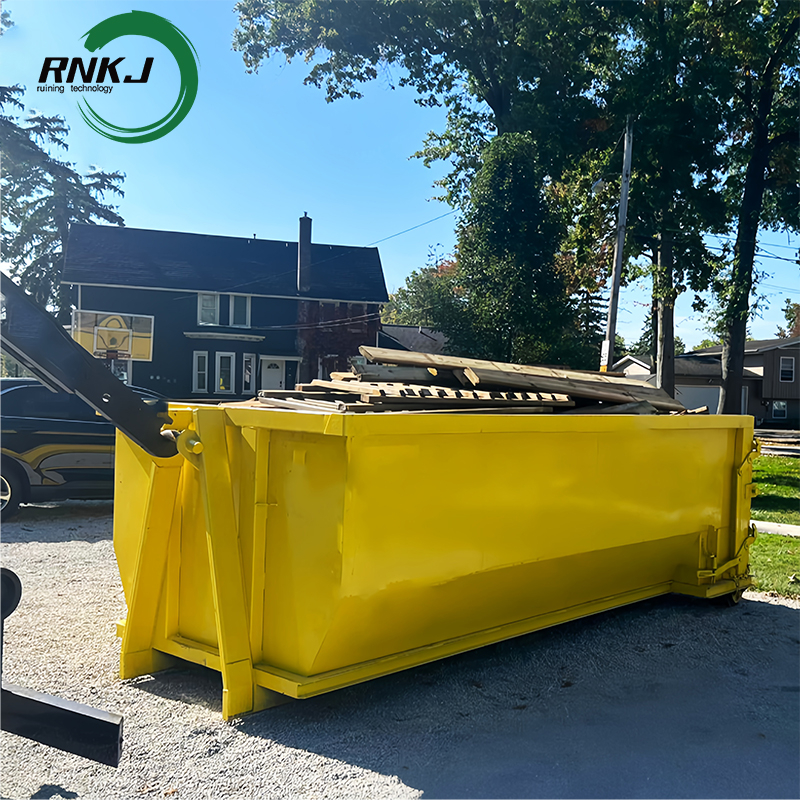

Industrial Roll Off Dumpster is a heavy-duty, mobile, open-type waste container specifically designed for industrial, construction, demolition and large-scale clean-up projects. It is loaded and transported "rollingly" through a dedicated hook-lift truck. Its key features include a high-strength structure, large capacity design and a convenient transportation system, which enables it to efficiently handle heavy and large-volume waste that traditional trash cans cannot accommodate.
Product Advantage
Efficient Handling: A single container can hold the waste of 12-15 garbage collection vehicles, significantly reducing the number of transportation trips.
Cost-effectiveness: Reduces the costs of manual cleaning and transportation, improves the overall efficiency of the project.
Environmentally Friendly: Promotes waste classification and recycling, reduces landfill volume.
Flexibility: Multiple sizes and types are available for selection, suitable for different project scales and waste types.
Safety: Centralized storage of waste reduces site clutter and safety hazards.
Core componentsMain frame: Supports the overall structure and bears heavy weight.
Box: Holds waste materials, with two designs: rectangular and arc-shaped bottom. Made of Q235/Q345 carbon steel.
Hook arm system: Connects to the truck to facilitate loading and unloading. High-strength steel hook rods with high tensile strength.
Rollers / slide rails: Enable the container to roll on the truck chassis.
Rear door: Facilitates loading of large items and internal cleaning.
Support feet / sliders: Keep the structure level when placed and prevent damage to the ground.
Work ProcessThe dedicated boom truck transports the empty garbage bins to the designated location.
The hydraulic system of the truck "rolls" the garbage bins off the rear of the vehicle and places them on a flat surface.
Fill the waste, either through the open top or the rear door.
The truck returns and uses the boom system to "roll" the filled garbage bins back onto the truck.
Transport to the waste recycling center or processing facility, and empty by tilting through the hydraulic system.
Main Structural Components
Provide transportation solutionsWe provide customized solutionsengineers will make 3D modelingdrawings according to customerrequirements, CAD drawings to solvepractical problems for more customers.
Our products support 100% customization, including size, color, plate thickness, hook height, etc.We believe that our factory can meet your special needs.
Technical Parameters
Product name | Hook bin & Hook lift Bin & Roll on / roll off container & Dumpster Bin |
Material | Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade |
Size Range | from 10 to 80 yd And OEM is also available. |
Thickness of plates used | 10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to your requirements. |
Other specifications | 1). RHS are used for top rails, and top edge of plate continuous welded to RHS 2). Fully and partly welded inside and outside |
Options | 1) Two openning door 2) Up openning door |
Painting | We will paint each bin you order in your company colour, enhancing your company image with great looking bins.Two times of primer |
Application ScenarioIndustrial Roll Off Dumpster is widely used in the following fields:
Construction and Demolition: Handling heavy construction waste such as concrete, bricks, wood, metal, and gypsum board
Industrial Manufacturing: Collecting scraps, waste, and obsolete equipment from the production process
Municipal Engineering: Large amounts of waste generated from road construction, pipeline laying, and public facility renovations
Large-scale Cleanup: Commercial space renovations, warehouse inventory cleanups, and site clearance before real estate development
Special Industries:
Manufacturing: Industrial waste treatment in industries such as metal processing, plastic molding, and papermaking
Energy Industry: Maintenance and decommissioning projects in oil refineries and power plants
Disaster Recovery: Clearance of debris after natural disasters such as hurricanes and floods
Environmental Projects: Soil remediation, waste classification, and recycling processing
Common sizes and capacities10 cubic yards: Small-scale cleaning
Small-scale renovations, yard trimming, a small amount of moving debris
15 cubic yards: Medium-sized cleaning
Whole house renovation, medium-scale demolition, garage cleaning
20 cubic yards: Standard project
Large-scale renovation, roof removal, commercial space clearance
30 cubic yards: Large-scale project
Construction work, large-scale demolition, multi-family clearance
40 cubic yards: Super-large-scale projects
Large-scale infrastructure construction, industrial clean-up, extensive demolition
Selection PointsWaste Type: For heavy materials, choose smaller sizes (10-15 yards) to avoid overloading; for lightweight and bulky materials, choose larger sizes (30-40 yards)
Site conditions: Ensure there is sufficient space for placement. Usually, a minimum area of 10 feet wide by 20 feet long is required, along with space for truck operation.
Weight Limitation: Be aware of local regulations and the weight restrictions set by the transportation company to avoid additional charges.
Industrial Roll Off Dumpster is an indispensable waste disposal equipment in modern industrial and construction sectors. Its design has been continuously innovated, featuring lightweight and high-strength materials, as well as environmentally friendly surface treatment technologies, which further enhance efficiency, safety and sustainability.Please feel free to contact us to get your personalized discounted quote.
