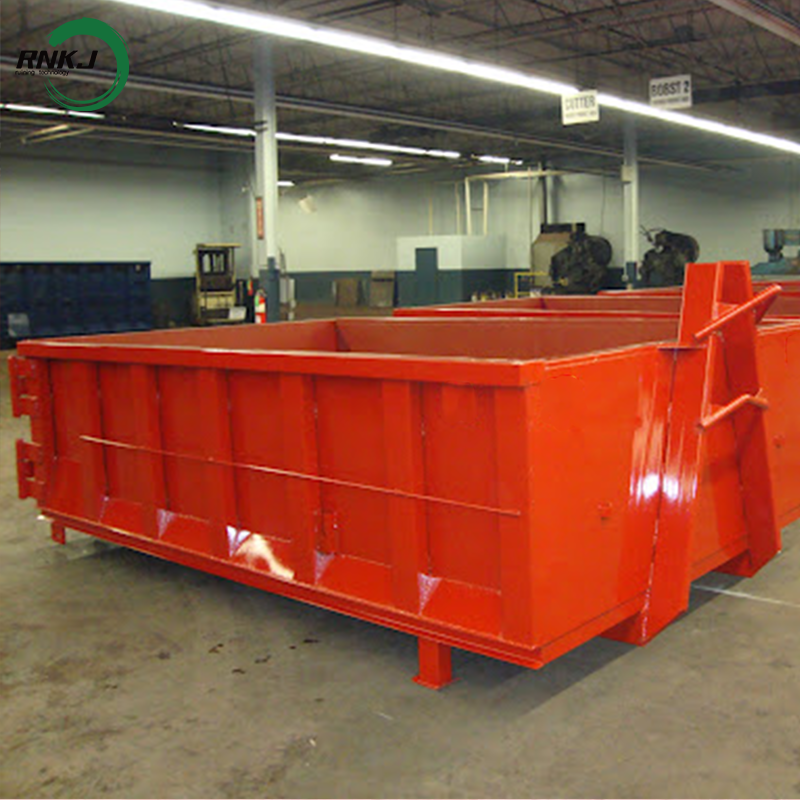

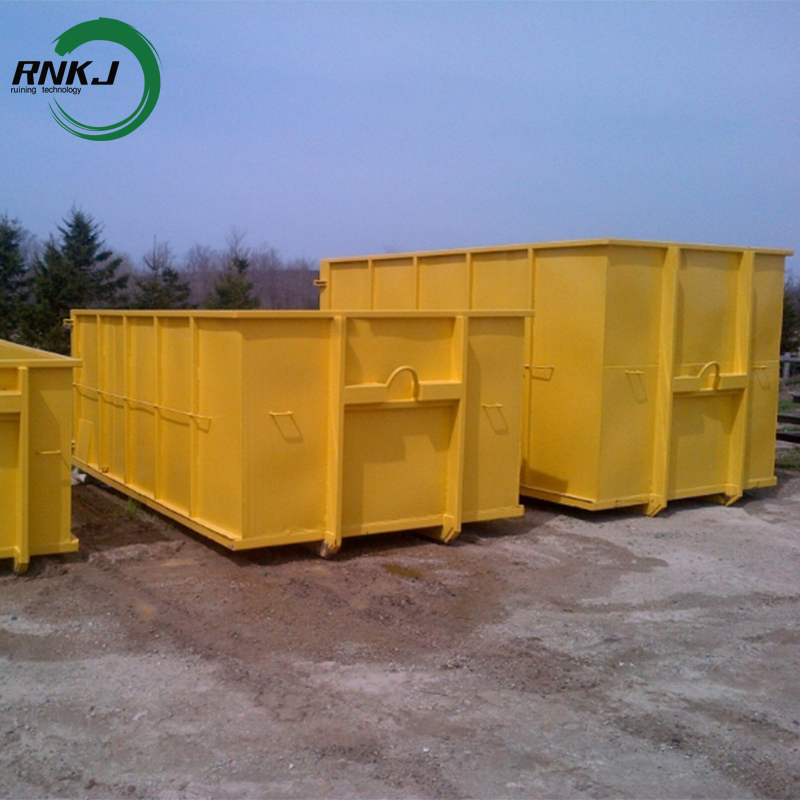

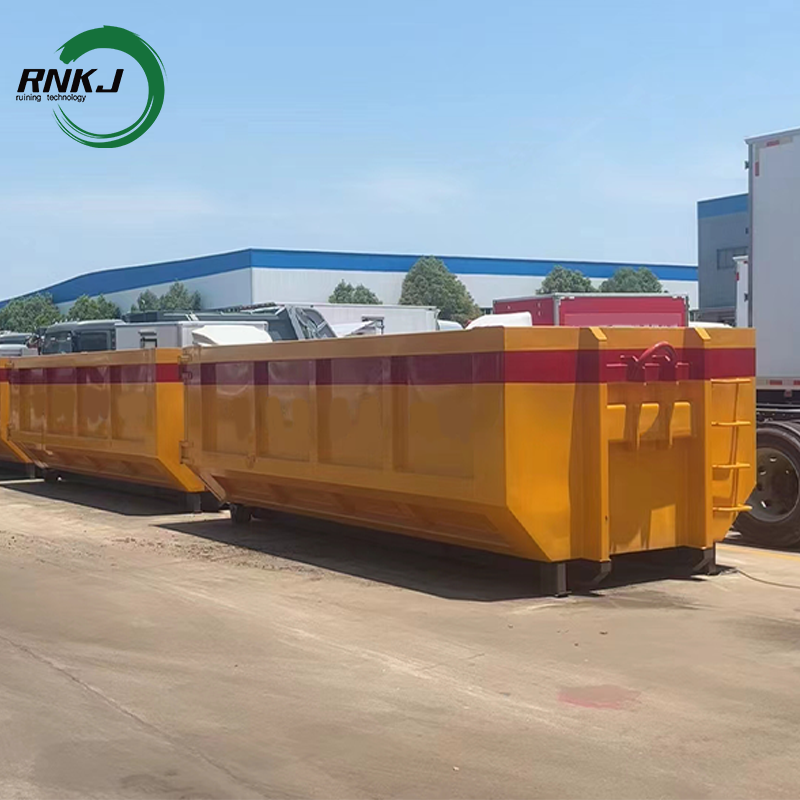

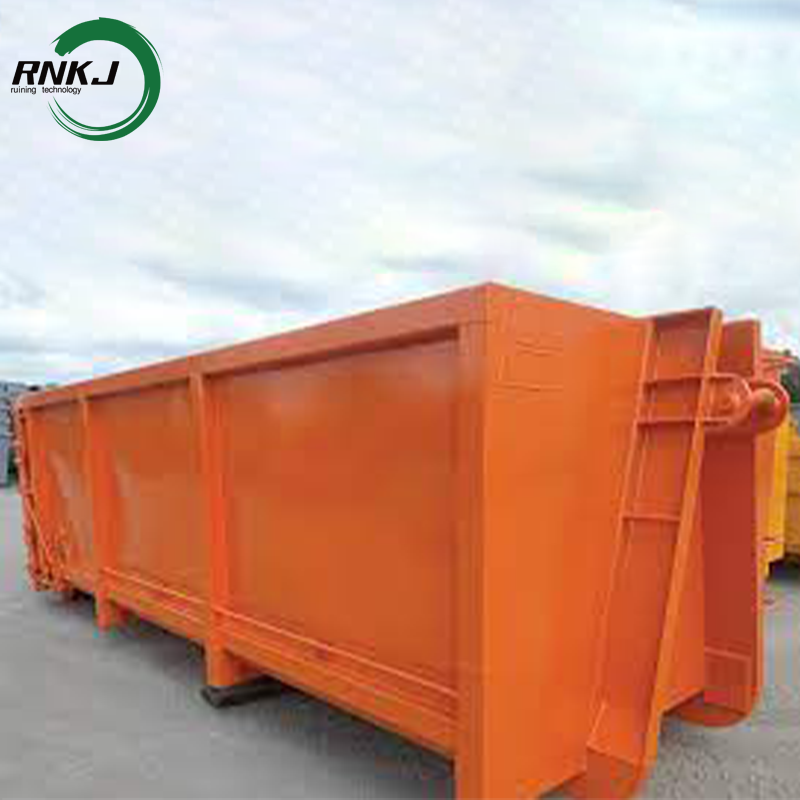

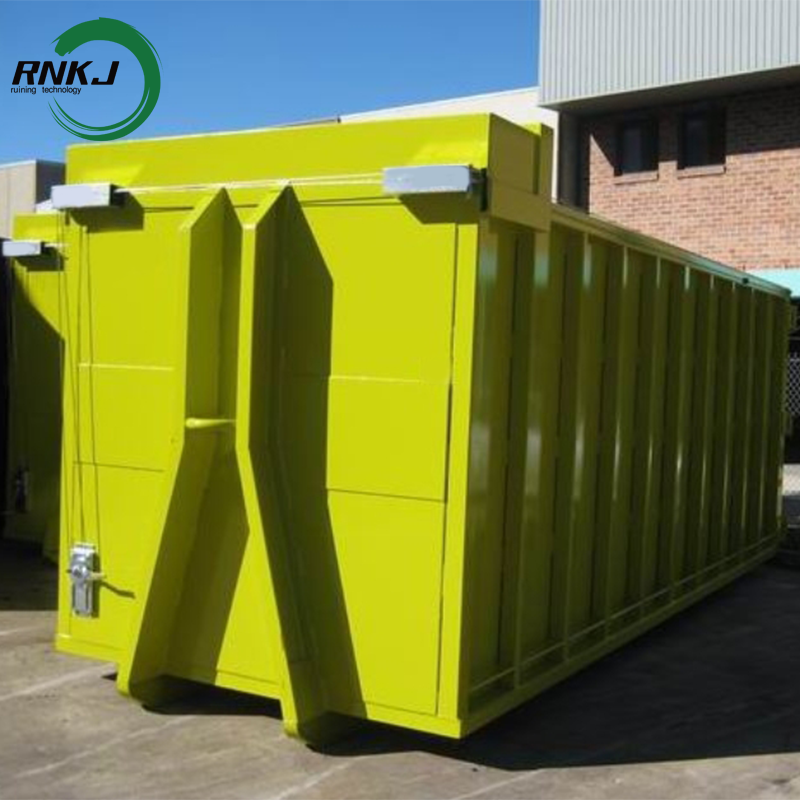

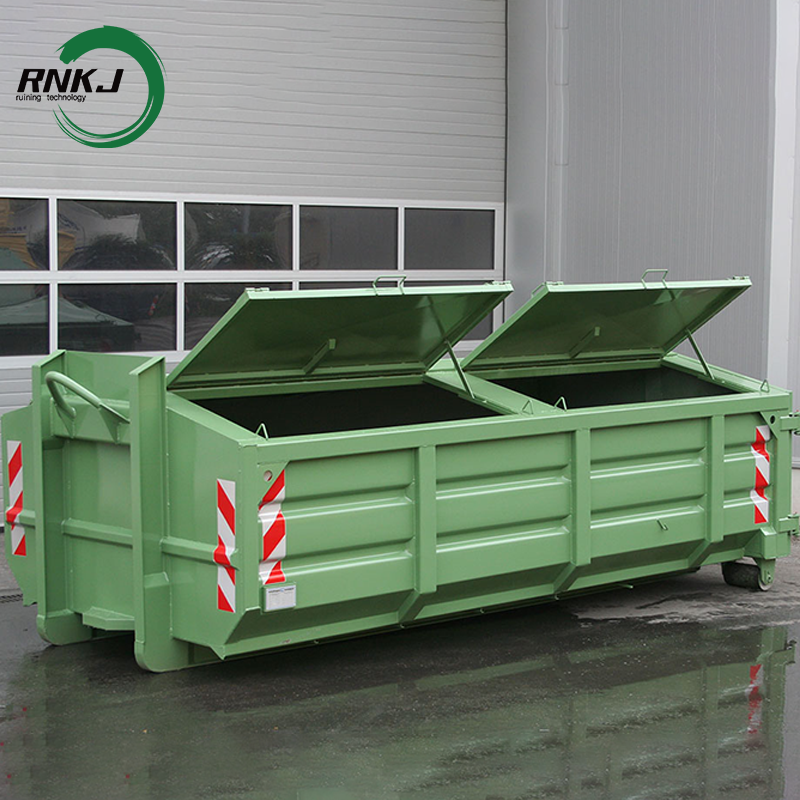

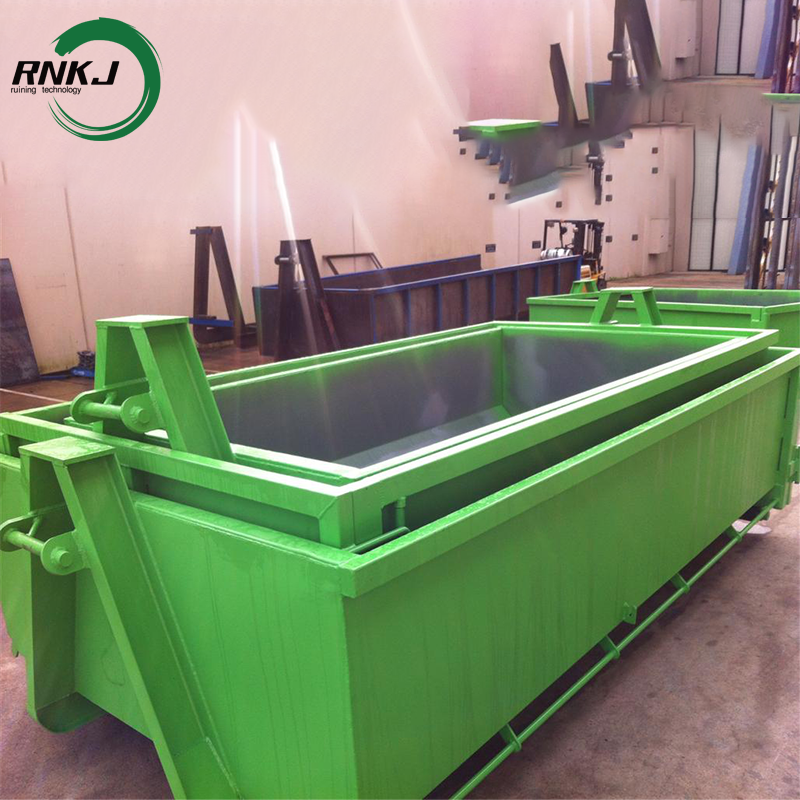

Industrial hook-lift containers, also known as detachable garbage containers or hook-lift containers, are large, mobile containers used in conjunction with hook-lift trucks. They are lifted, unloaded, and self-unloaded using a hydraulic system and are widely used for the collection and transfer of industrial waste, construction waste, municipal waste, and other materials.
Looking for a Industrial Hook-lift Containers that checks all your boxes?
Our Industrial Hook-lift Containers come in hundreds of styles. We can design and manufacture customized Industrial Hook-lift Containers to meet your specific needs, and our technical department will provide preliminary design drawings for your confirmation. We fully support OEM services.
Our Industrial Hook-lift Containers are available in a wide variety of sizes, with a maximum capacity of 40 cubic meters. The design of our Industrial Hook-lift Containers takes your shipping method into account, and the hook height and spacing can be customized to your requirements. A variety of types are available, including hook arm type, tow hook type, roll-on type, or combinations of the above—all to meet your unique requirements. Simply tell our sales team your company's needs, and we will design, manufacture, and deliver a Industrial Hook-lift Containers perfectly suited to your application scenario.
Product Advantage
Efficiency Advantages: One hooklift truck can be equipped with 20-50 hooklift containers, enabling "one truck, multiple containers, and cyclical operation," significantly improving material handling efficiency and reducing labor costs.
Environmental Performance: The fully sealed design avoids secondary pollution, making it suitable for the environmentally friendly transport of various materials such as municipal solid waste and industrial hazardous waste.
Cost Optimization: The container is reusable, and its service life is extended through anti-corrosion processes, reducing the frequency of equipment replacement.
Structural Design
Main Body: Constructed from Q235 or Q345 carbon steel, with side plates 3-5mm thick and bottom plates 4-6mm thick to ensure structural strength.
Hooking Device: The front of the container is equipped with lifting lugs and locking slots, precisely engaging with the hydraulic boom and locking mechanism of the hooklift truck to ensure stability during loading and unloading.
Sealing System: The rear door is fitted with oil-resistant and corrosion-resistant sealing strips, and the feeding port uses a fully sealed hinged spring door to prevent material leakage, odor emission, and rainwater intrusion.
Accessories: The bottom of the container is equipped with casters and directional wheels to reduce contact between the container and the ground and prevent rust; some models have side feeding ports for easy material loading from multiple directions.
Provide transportation solutions
We provide customized solutionsengineers will make 3D modelingdrawings according to customerrequirements, CAD drawings to solvepractical problems for more customers.
Our products support 100% customization, including size, color, plate thickness, hook height, etc.We believe that our factory can meet your special needs.
Application Scenarios:
Industrial Sector: Factory waste, warehousing and logistics turnover, temporary storage and transfer of hazardous waste.
Municipal Sanitation: Urban household waste collection, street cleaning, and waste removal from parks and scenic areas.
Construction Engineering: Centralized transfer of construction waste and renovation waste.
Agricultural Scenarios: Large-scale processing of agricultural waste such as farm straw and livestock manure.
Work Flow
Loading and Unloading Operations:
Park the hooklift truck next to the container, extend the outriggers and stabilize them;
Lower the hook of the hydraulic boom, align it with the lifting lugs on the container, and slowly lift it. Once the locking mechanism is fully engaged with the container's locking slot, the loading is complete;
When unloading, transport the container to the designated area, slowly lower it to the ground, and retract the boom after confirming that the hook has disengaged.
Technical Parameters
Product name | Hook bin & Hook lift Bin & Roll on / roll off container & Dumpster Bin |
Material | Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade |
Size Range | from 10 to 80 yd And OEM is also available. |
Thickness of plates used | 10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to your requirements. |
Other specifications | 1). RHS are used for top rails, and top edge of plate continuous welded to RHS 2). Fully and partly welded inside and outside |
Options | 1) Two openning door 2) Up openning door |
Painting | We will paint each bin you order in your company colour, enhancing your company image with great looking bins.Two times of primer |
Detailed Images
Hook
Our hook can be customized,strong and durable.We take the highest weight-to -lift ratio in the industry. we use high tensile steel for reducing bins weight , which means more payload,longevity of truck life time.
Doors Hinges
Our doors hinges are greasable and capable of holding a big weight as well as mounting and adjustment are very easy.
Wheels
Our wheels are heavy duty ,have great flexibility in using ,can be a good optional to our customers.
Door lock
Door locking mechanism with high tensile safety chain and catch,this operates a heavy-duty secure locking mechanism .We also can customize the door locking mechanism to suit various transportation methods and requirements.
Customization Options
Volume Customization: Designed according to needs within the range of 2.5-20 cubic meters;
Material Customization: Carbon steel, stainless steel, fiberglass, etc.;
Function Customization: Addition of hydraulic self-unloading doors, side feeding ports, anti-theft locks, etc.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
