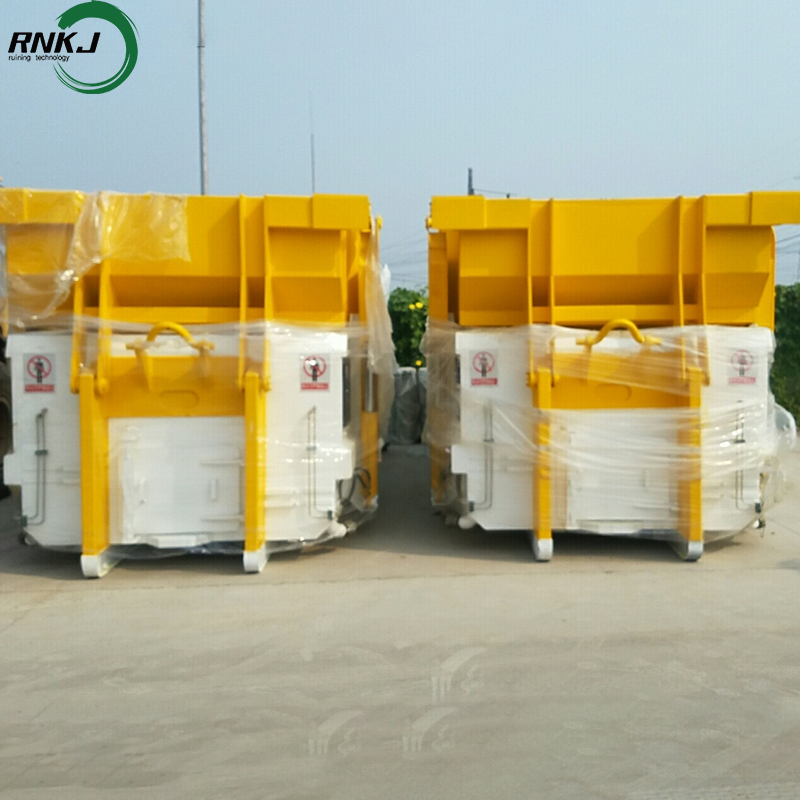

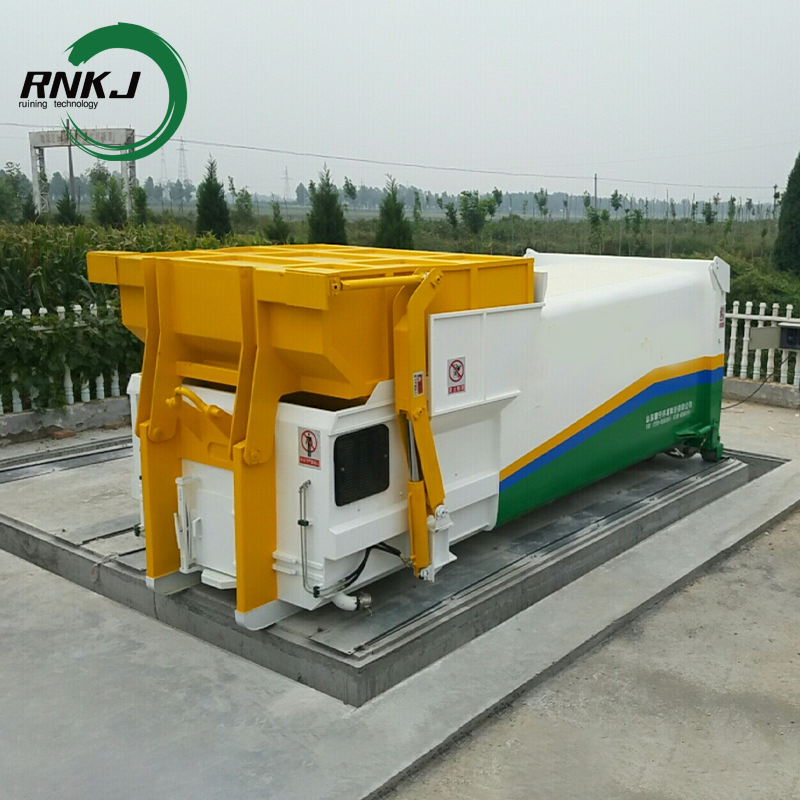

Hopper Waste Compressor is a mechanical device used for centralized compression and processing of municipal solid waste, commercial waste, and general industrial waste. Through a hydraulically driven compaction mechanism, it powerfully compresses and reduces the volume of waste poured into the hopper, ultimately storing it in a sealed container for easy subsequent transportation and final disposal. It is a key piece of equipment for improving waste treatment efficiency and environmental protection.
Product Advantage
High volume reduction efficiency: It can compress waste volume by more than 50%, significantly reducing the cost and resource consumption of waste transportation and landfill.
Environmentally friendly: The sealed storage design reduces odor diffusion, sewage leakage, and mosquito breeding, effectively improving the surrounding environment.
Highly efficient operation: The automated hydraulic control system reduces manual labor intensity; a single unit can meet the waste processing needs of areas with thousands of people.
Controllable costs: The reduced waste volume after compression indirectly reduces the cost of the entire waste treatment process (collection, transportation, landfill/incineration).
Product Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW, 5.5KW, 7.5KW |
Machine weight (kg) | 4800kg,5500kg, 6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Support Customization
Intelligent SMART technology
Work Flow
Feeding: Waste is poured into the compression chamber through a hopper (it can be dumped by a garbage truck or manually).
Compaction: A hydraulic system drives the compaction pusher forward to squeeze the waste, significantly reducing its volume.
Storage: The compacted waste is pushed into a sealed storage container. Once the container is full, it is transported away by a transfer vehicle.
Circular Operation: The compaction pusher retracts to its original position, preparing for the next round of waste feeding and compaction, continuously cycling through the process.
What are the characteristics of a Hopper Waste Compressor?
Practical Structure: The large hopper inlet is compatible with various waste collection tools (garbage trucks, handcarts, etc.); the powerful compaction mechanism ensures thorough waste compression.
Durable and Reliable: Key components are made of high-strength steel and wear-resistant materials, capable of withstanding high-frequency compaction operations and boasting a long service life.

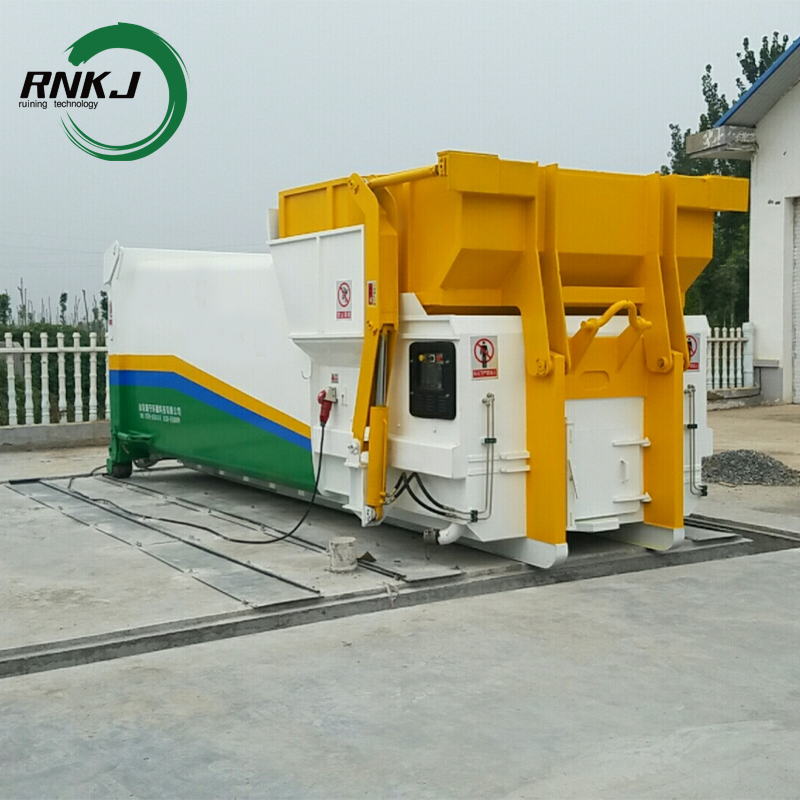

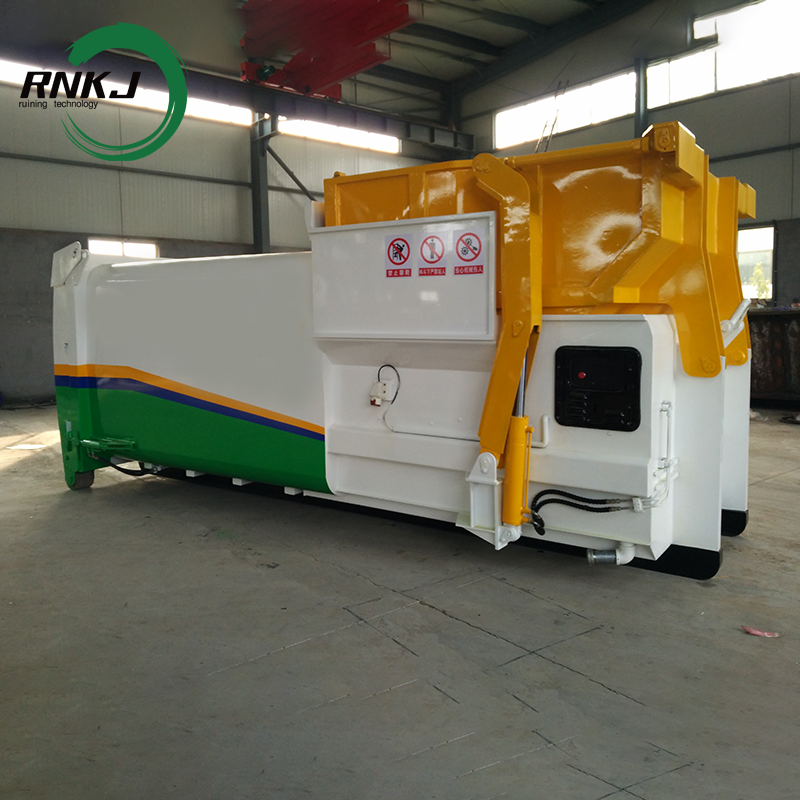

Safety Protection: Equipped with an emergency stop device and warning signs (such as "No Climbing" and "No Smoking" as shown in the image), ensuring safety from operation to the equipment itself.
Flexible Adaptability: Some models are mobile, allowing for adjustable placement based on waste generation volume to suit the waste processing schedules of different areas.
In which scenarios are Hopper Waste Compressor suitable?
Urban residential communities: Centralized processing of daily household waste, resolving issues of garbage accumulation and odor in residential areas.
Commercial districts/business areas: Processing commercial waste generated by shops and restaurants, maintaining a clean and tidy streetscape.
Industrial parks: Standardized processing of general industrial waste, achieving centralized compression and compliant transportation of industrial waste.
Urban and rural waste transfer stations: As core equipment of transfer stations, enhancing waste transfer and processing capacity and reducing the number of transfer vehicles.

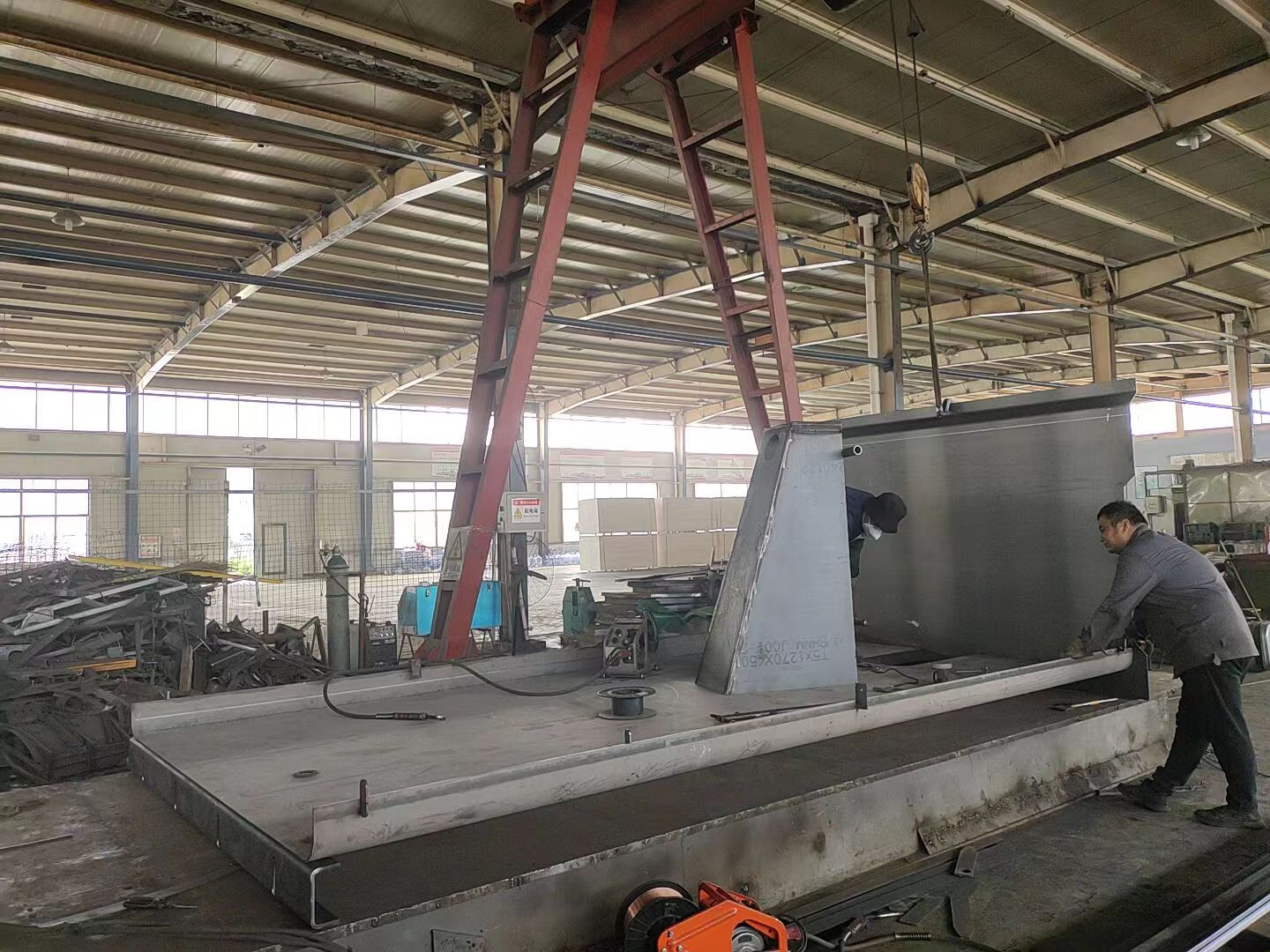

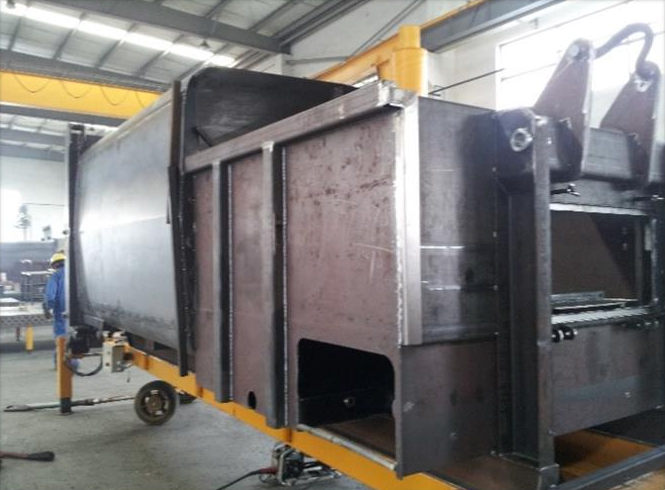

Productive Capacity
International Certifications: We have obtained key international quality and safety certifications, including ISO, CE, and UL.
Quality Commitment: All our products undergo strict quality control—from raw material procurement to finished product delivery, every step adheres to the highest quality standards.
Customized Services: We offer tailored solutions to adjust product specifications, packaging designs, and more, based on your specific needs.
We look forward to partnering with you.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
