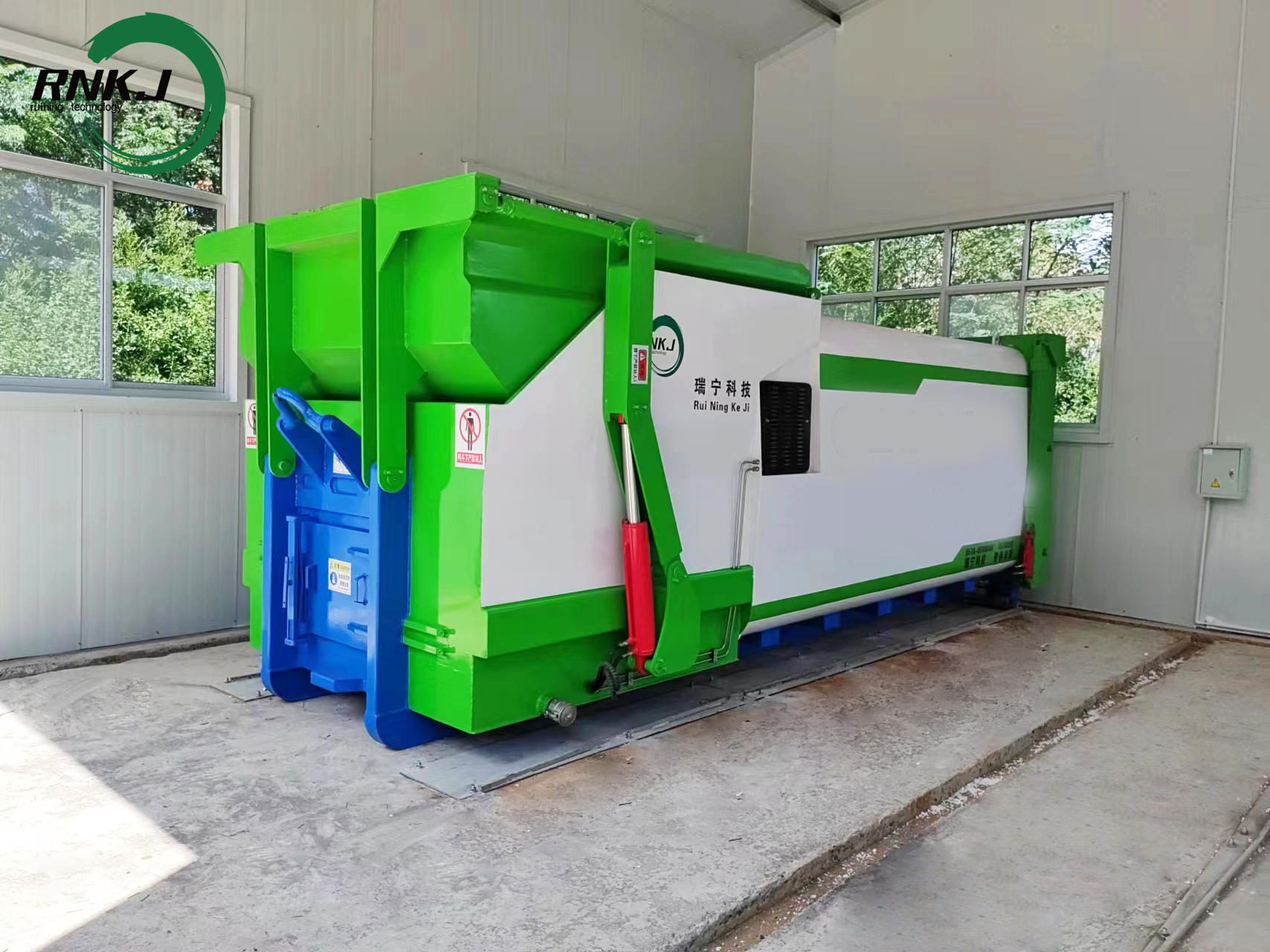

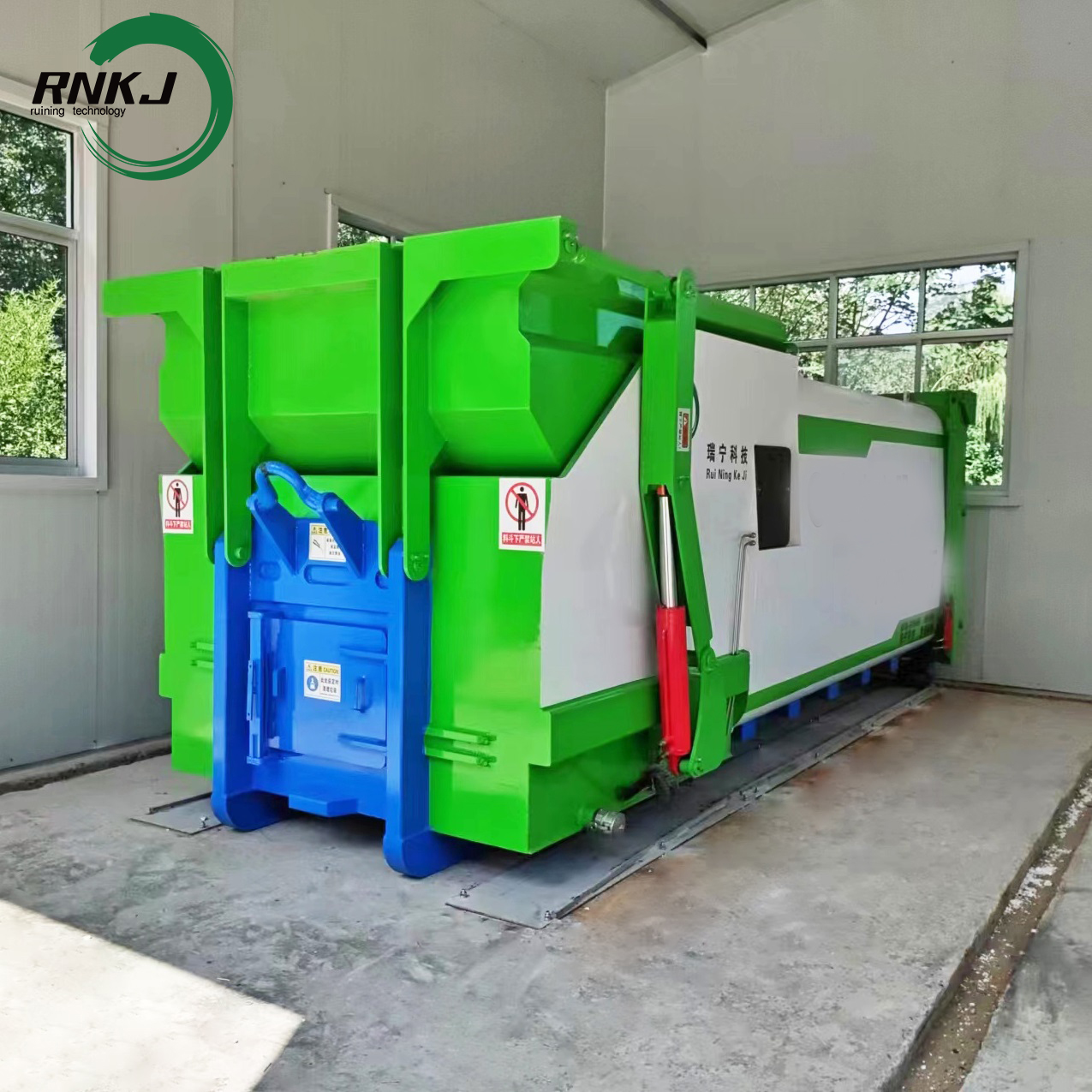

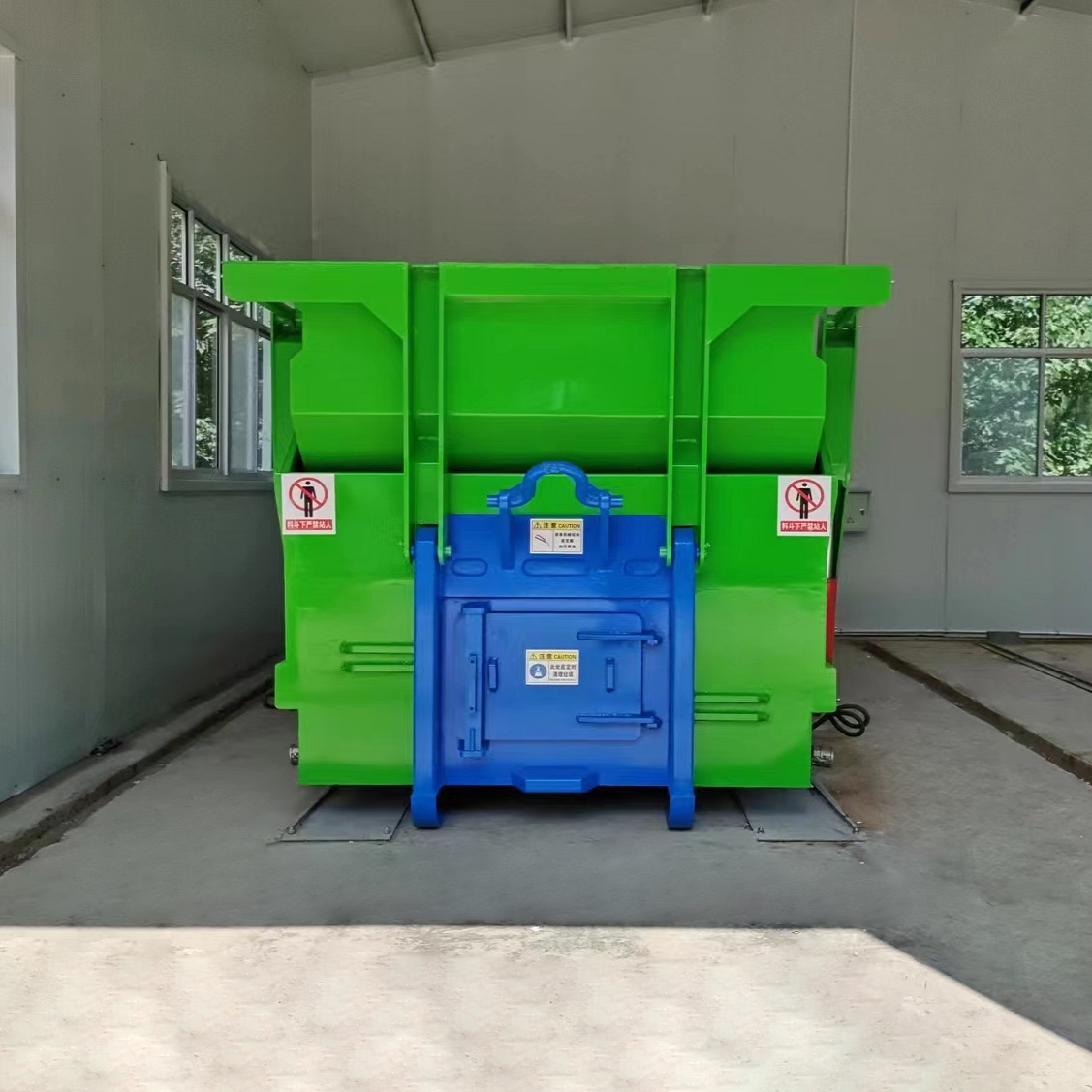

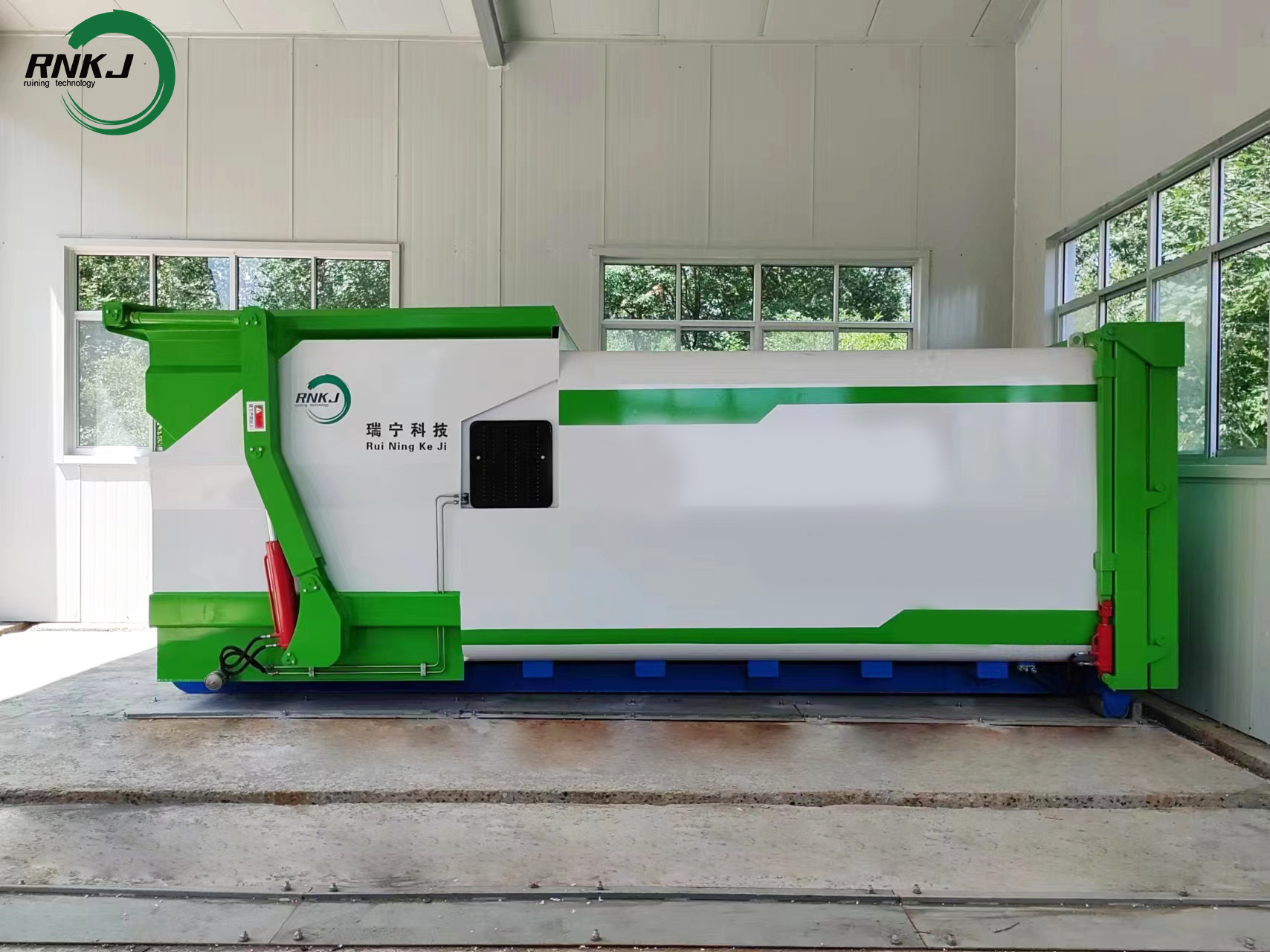

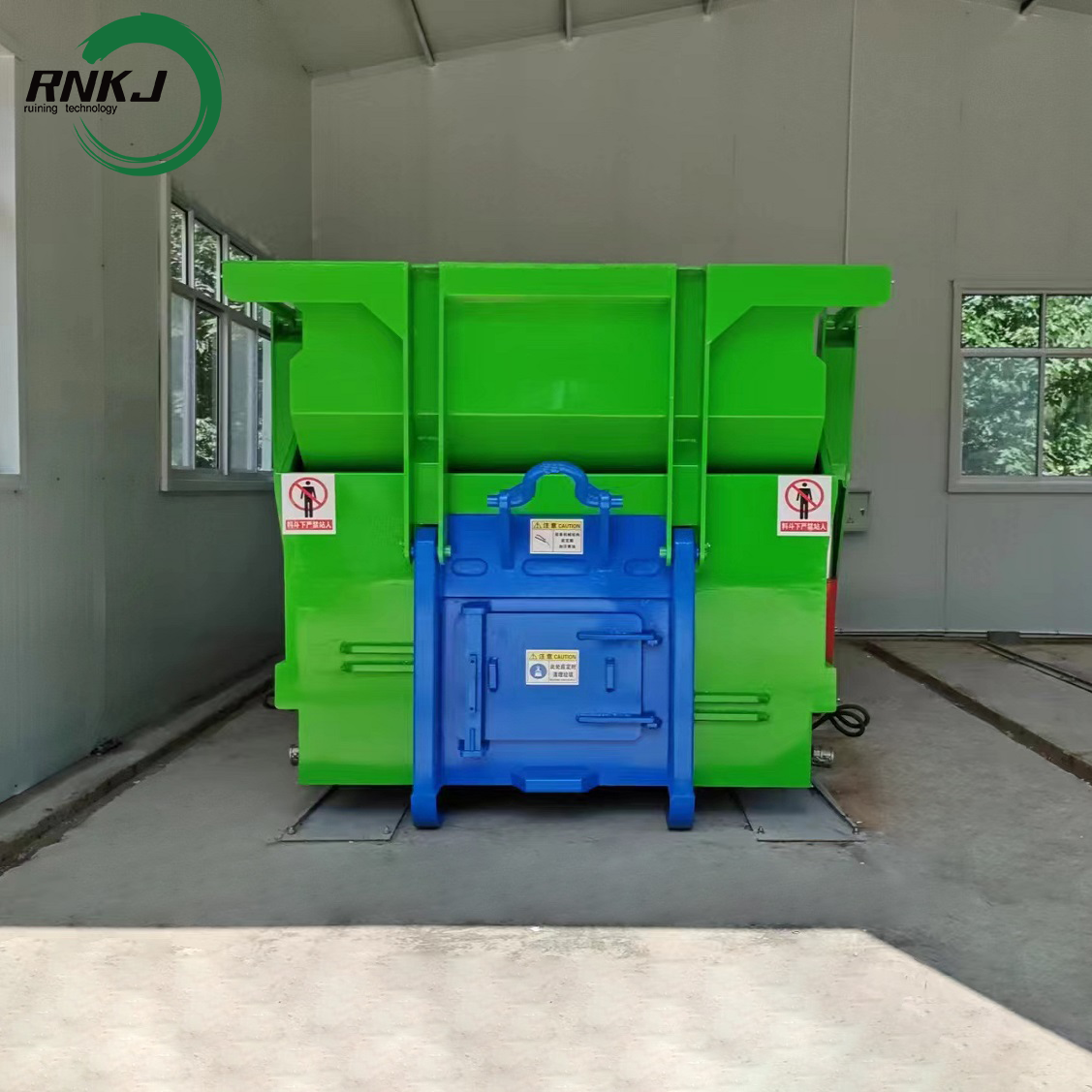

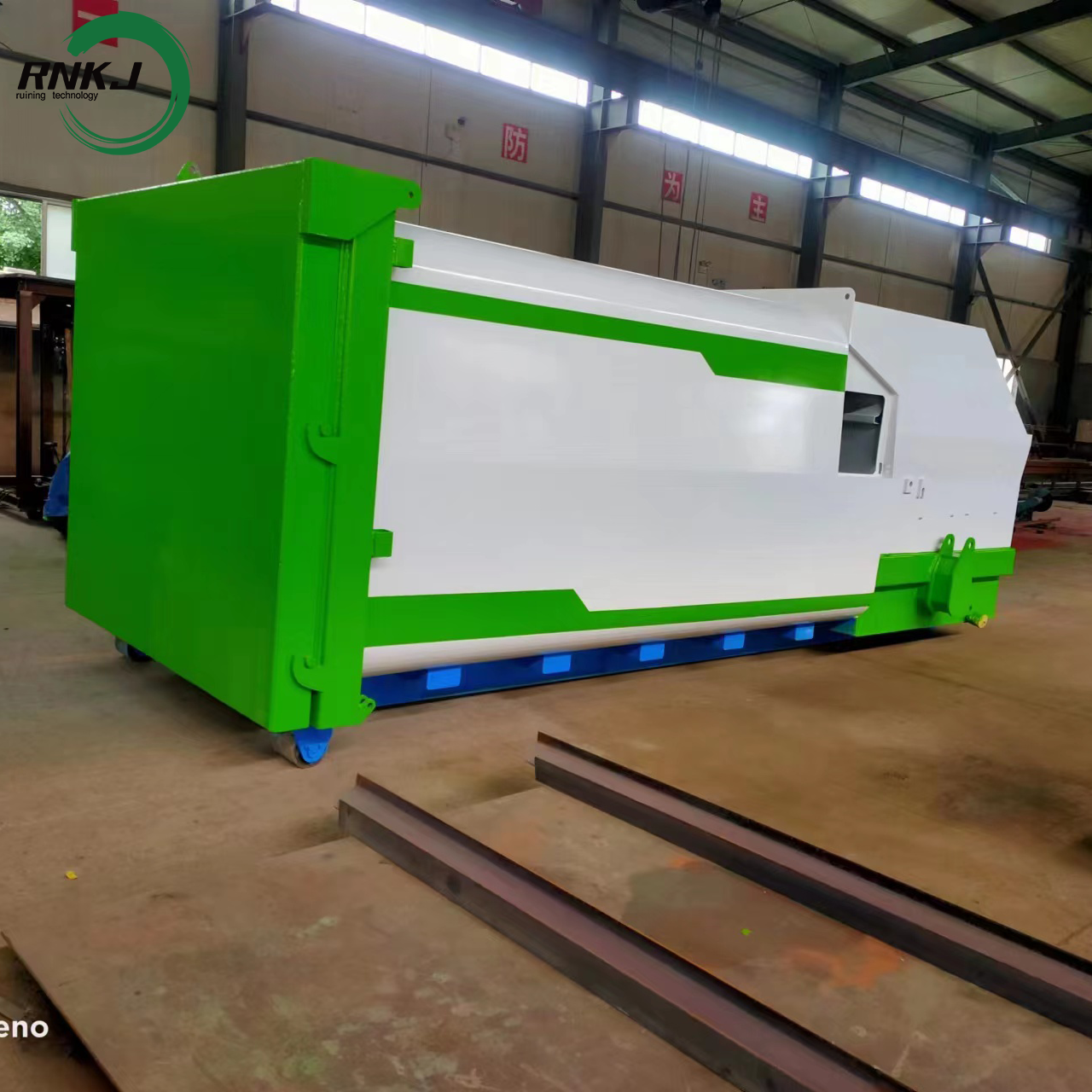

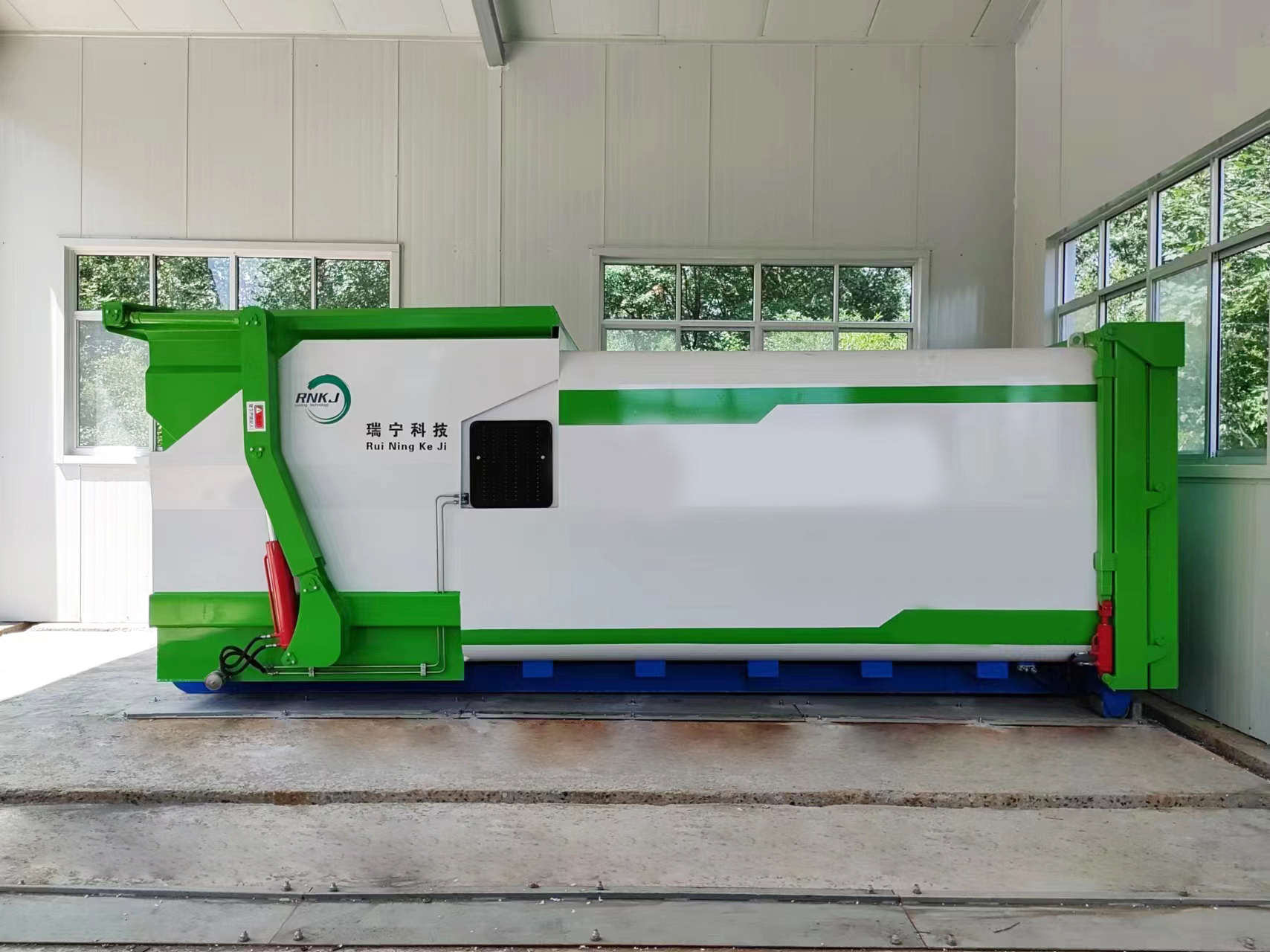

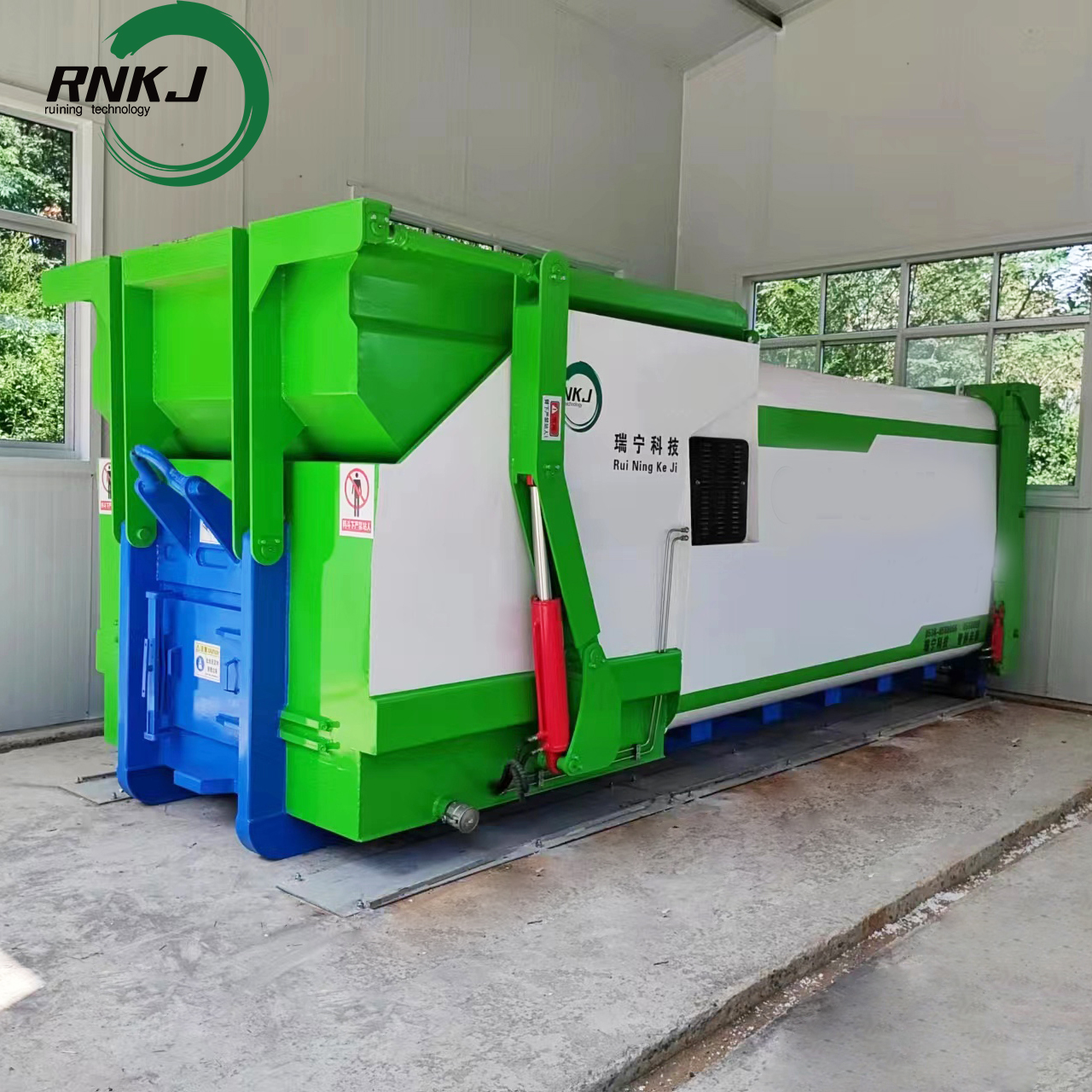

The Hopper Trash Compressor is a patented product that uses the company's independently developed advanced garbage treatment technology and process. It not only occupies a small area, but is also easy to manage. Since the entire process of garbage removal is closed, the garbage is in a closed state during the compression, loading and unloading and transfer operations, and there is no garbage spillage.
Product Advantage
Efficient compression capability: The Hopper Trash Compressor uses advanced compression technology to compress the volume of garbage to a fraction of its original size, thereby greatly improving transportation efficiency. For example, some models of Hopper Trash Compressor can achieve a compression ratio of 4:1 to 5:1, which means that garbage that originally required multiple transportations can now be transported in one go, greatly saving time and labor costs.
Environmentally friendly and closed design: The equipment adopts a fully closed design, which effectively prevents the scattering of garbage and the spread of odor during the transportation process, avoiding secondary pollution. At the same time, some high-end models are also equipped with a deodorization system and an air purification device to further improve the environmental performance.
Intelligent operation: Modern mobile compression garbage stations are generally equipped with intelligent control systems, which realize the automated management of garbage compression, storage, and transportation. Operators can complete all operations with simple buttons or remote controls, which greatly reduces labor intensity and improves work efficiency.
Flexible mobility: The biggest feature of Hopper Trash Compressor is their flexibility. The equipment is usually installed on a movable chassis and can be moved to different locations for operation at any time as needed. This flexibility makes garbage disposal more efficient and convenient, especially in areas with narrow roads and heavy traffic in cities, which reflects its unique advantages.
Product Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW, 5.5KW, 7.5KW |
Machine weight (kg) | 4800kg,5500kg, 6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Support Customization
Intelligent SMART technology
Work Flow
Garbage Collection and Loading
The sanitation workers pour the garbage into the hopper at the top of the compressor, or unload it directly using a bucket truck or a handcart.
The hopper is equipped with an automatic flipping mechanism, which transfers the garbage into the compression chamber.
Compression and Storage
The hydraulic push plate uses high pressure to push the garbage into the container. The compression cycle time is usually less than 35 seconds. Some equipment adopts bidirectional compression technology, further enhancing the compaction density.
During the compression process, the leachate is collected through the bottom drainage system to prevent environmental pollution.
Full-container processing and transfer
When the container is filled to capacity, the sensor triggers a full-container signal, causing the compressor to automatically stop and give an alarm.
The grab truck docks with the container and transports it to the landfill or incineration plant. The empty container is returned to the transfer station via the container transfer platform, enabling recycling.
Our advantage
1. Rational & Reliable Design
The compression head is mounted above the tank, which prevents backflow and avoids corrosion of the cylinder and compression head by wastewater, effectively keeping the tank clean.
The wastewater collection tank is equipped with a leak-proof device to eliminate leakage risks.
Wastewater can be discharged directly via a built-in pump or handled by transporting the entire tank, providing dual disposal options.
2. Compact & Flexible Layout
The compactor features a small footprint and strong maneuverability, allowing it to adapt to various work sites—even narrow or limited spaces—without compromising functionality.
3. Diverse Feeding Options
We offer multiple waste feeding solutions, including hoppers and tilting drums. You can select the most suitable feeding method based on your actual waste type and handling scenario.
4. Excellent Operational Performance
The main frame is made of high-strength steel, ensuring strong durability and a long service life.
It has a high compression ratio and short compression cycle, which significantly improves waste handling efficiency and reduces operational time.
5. Wide Compatibility with Standards
This waste compactor is compatible with most standard hook-type garbage trucks globally, eliminating matching issues with existing or subsequent transportation equipment.
6. Customizable to Your Needs
As a professional manufacturer, we provide full customization services to meet your specific requirements, covering color, tank capacity, overall size, voltage, and other key parameters.
Product Uses
Large Transfer Stations: Suitable for centralized garbage compression in urban core areas.
Community and Street-Level Applications: Small units can be deployed in residential and commercial areas to address the low transfer efficiency of small and medium-sized collection vehicles.
Temporary Events: Mobile compactors can be quickly deployed at music festivals and sports events to reduce waste accumulation and transportation pressure.
Manufacturing: Processes production waste, reducing storage space and transportation costs.
Retail: Supermarkets and shopping malls use compaction to reduce the volume of daily waste and prevent overflowing bins.
Catering: Processes food waste, reducing odor and pest infestation.
Rural and Remote Areas: No fixed station is required; only a leveled road surface and power supply are required, making it suitable for centralized waste transfer in rural areas.
Construction Sites: Processes construction waste, reducing the number of transport vehicles and landfill usage.
Product Feature
Hydraulic Hopper Garbage Compactor have become the preferred equipment for handling "large, mixed, and difficult-to-compress" garbage due to their large capacity, strong compression, and high adaptability. Their core value lies in significantly reducing the cost of the entire garbage disposal chain through physical volume reduction and process optimization, while reducing the negative impact on the environment through environmentally friendly design. They are particularly suitable for large-scale garbage disposal scenarios that require high efficiency and professionalism.
Productive Capacity
We have a professional team and the strength of the factory to support customization. Including type, volume, height, color and other requirements, free custom logo.
RNKJ as a leader in the Environmental Protection Industry field, we are committed to providing global customers with solutions that exceed their expectations through innovative technology, excellent quality and comprehensive services. With more than 20 years of industry experience, we have a professional design and development team. Equipped with advanced production equipment and automated production lines to meet large-scale order needs. International Certifications: Passed ISO, CE, UL and other international quality and safety certifications. Quality Commitment: We promise that all products undergo a strict quality control process, from raw material procurement to finished product delivery, every step follows the highest quality standards. Customized Service: "We provide customized services to adjust product specifications, packaging design, etc. according to your specific needs. We look forward to working with you.
Production Line
Liquid tight design.
Small footprint.
Compatible with collection vehicles from most manufacturers.Easy to connect with other existing loading equipment.
Strong, robust design and construction for a long service life.Equipped with hour counter and electric oil level sensor.
Complies with standards currently in force (CE, AFNOR and INRS).Numerous adaptions available and can be customized to your requirements.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
