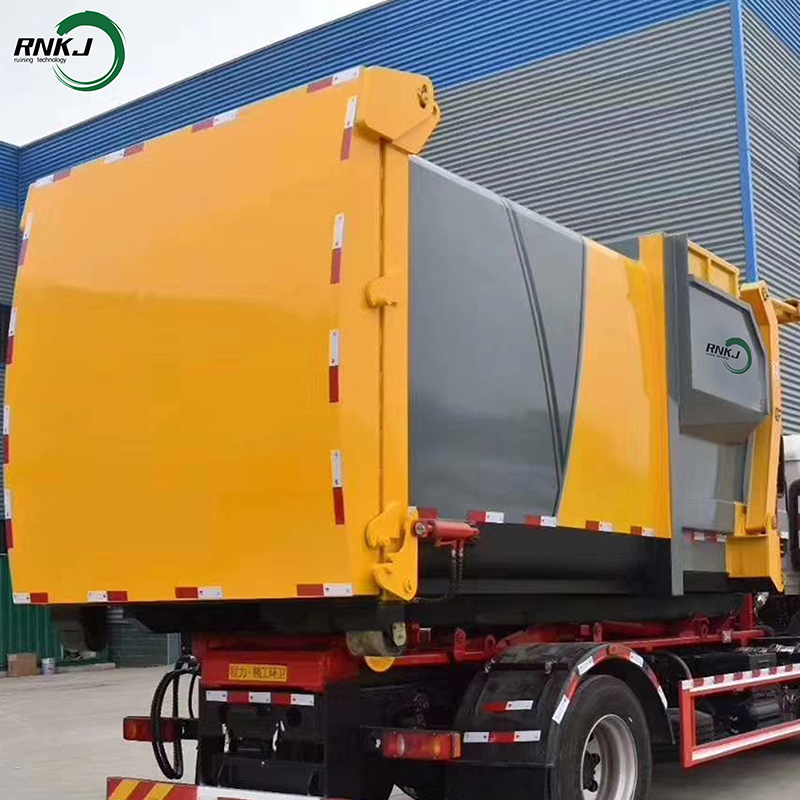

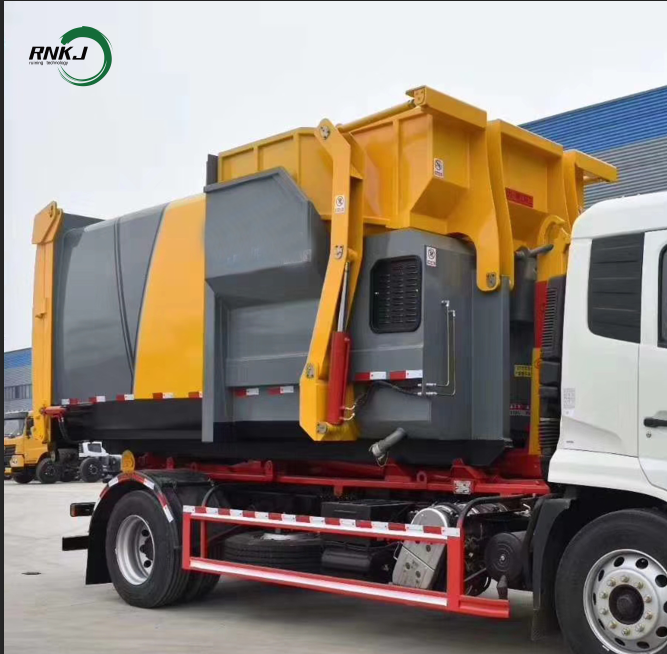

The Hopper Garbage Compressor is a garbage compression device designed for compressing and transferring loose waste. Its core function is to achieve "no transfer" and "no landing" of garbage through tipping bucket feeding and horizontal compression technology, effectively avoiding secondary pollution during garbage collection and transfer, while improving garbage transportation efficiency. It is widely used in centralized transfer scenarios for urban and rural domestic waste.
Product Advantage
Reduced secondary pollution: The entire process of garbage compression and transportation is sealed, preventing leakage, spillage, and odors. Leachate can be centrally treated through a dedicated collection device.
Wide applicability: Compatible with various loading methods such as garbage bins, bagged garbage, electric tricycles, and small motor vehicles, serving different scenarios including residential communities, towns, and urban sanitation systems.
High transportation efficiency: The density of garbage is significantly increased after compression, reducing the number of transportation trips and lowering transportation costs.
Flexible management: A "one truck, multiple containers" model can be adopted, allowing for flexible docking between the equipment and transfer vehicles with hooklift trucks, improving equipment utilization.
Product Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW, 5.5KW, 7.5KW |
Machine weight (kg) | 4800kg,5500kg, 6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Support Customization
Intelligent SMART technology
Features
High Automation: Employs a PLC control system, supporting intelligent functions such as fault self-diagnosis, overload alarm, and bin full alarm. The user interface is user-friendly, allowing for manual or remote operation.
Environmentally Friendly and Energy-Saving: Powered by electricity, resulting in low operating costs; the rail-free design reduces waste residue and cleaning workload; some units integrate a deodorizing spray system.
Durable Structure: Key components utilize high-strength, wear-resistant, and corrosion-resistant materials; the small gap between the compression head and the bin prevents waste rebound, extending equipment lifespan.
Easy Installation: Requires no complex civil engineering or only simple civil engineering, adaptable to different site plans, solving the problem of urban waste station site selection.
Work Flow
Equipment Placement: A hooklift truck transports the empty tipper garbage compactor to its designated parking space at the transfer station and unloads it.
Garbage Dumping: A collection vehicle (such as a tricycle or handcart) dumps garbage into the equipment's hopper, and the tipper lifts the garbage into the compression chamber.
Compression Processing: The pusher's hydraulic cylinder drives the pusher to repeatedly compress the garbage. During this process, leachate flows into the sedimentation well, settles, and is then discharged into the sewage pipe.

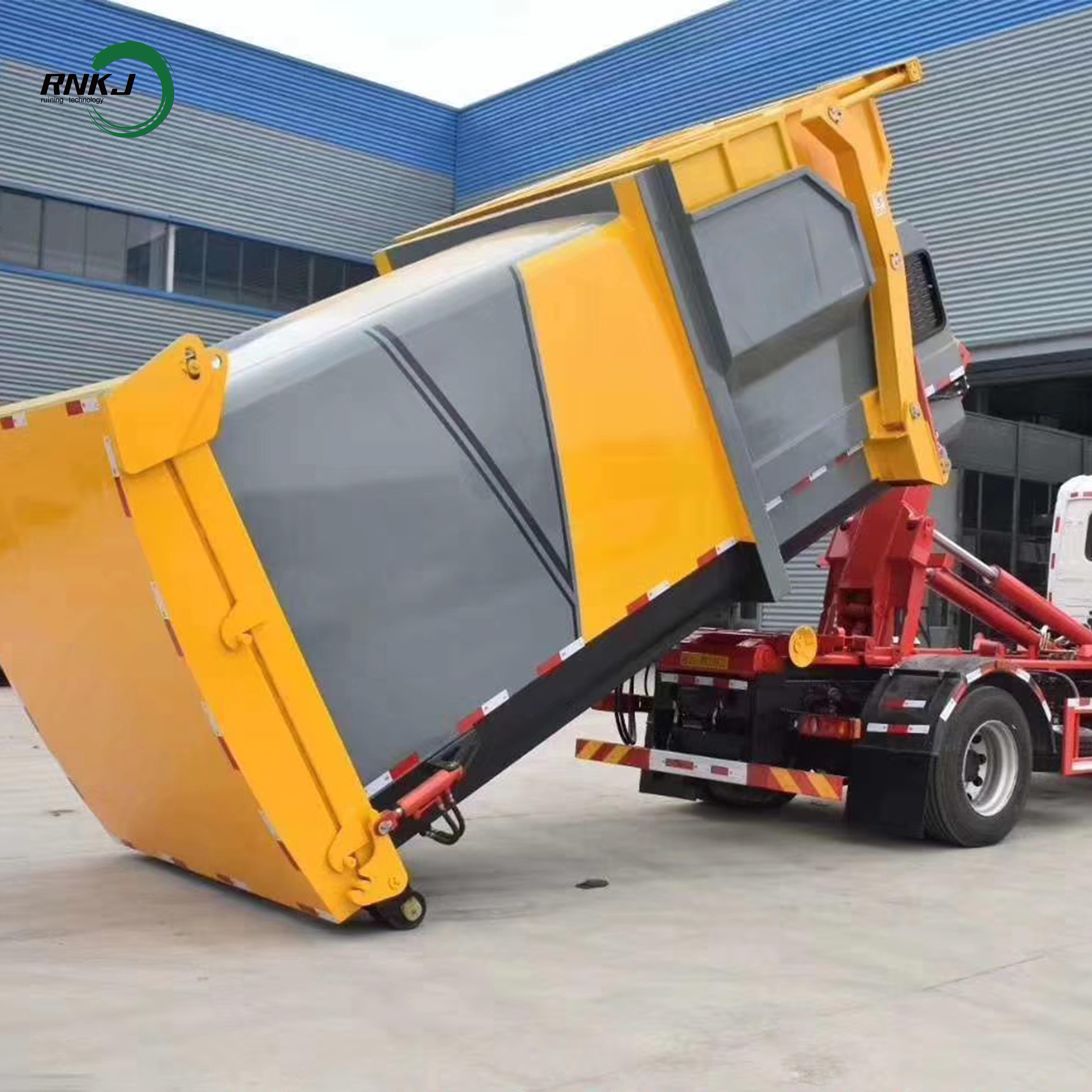

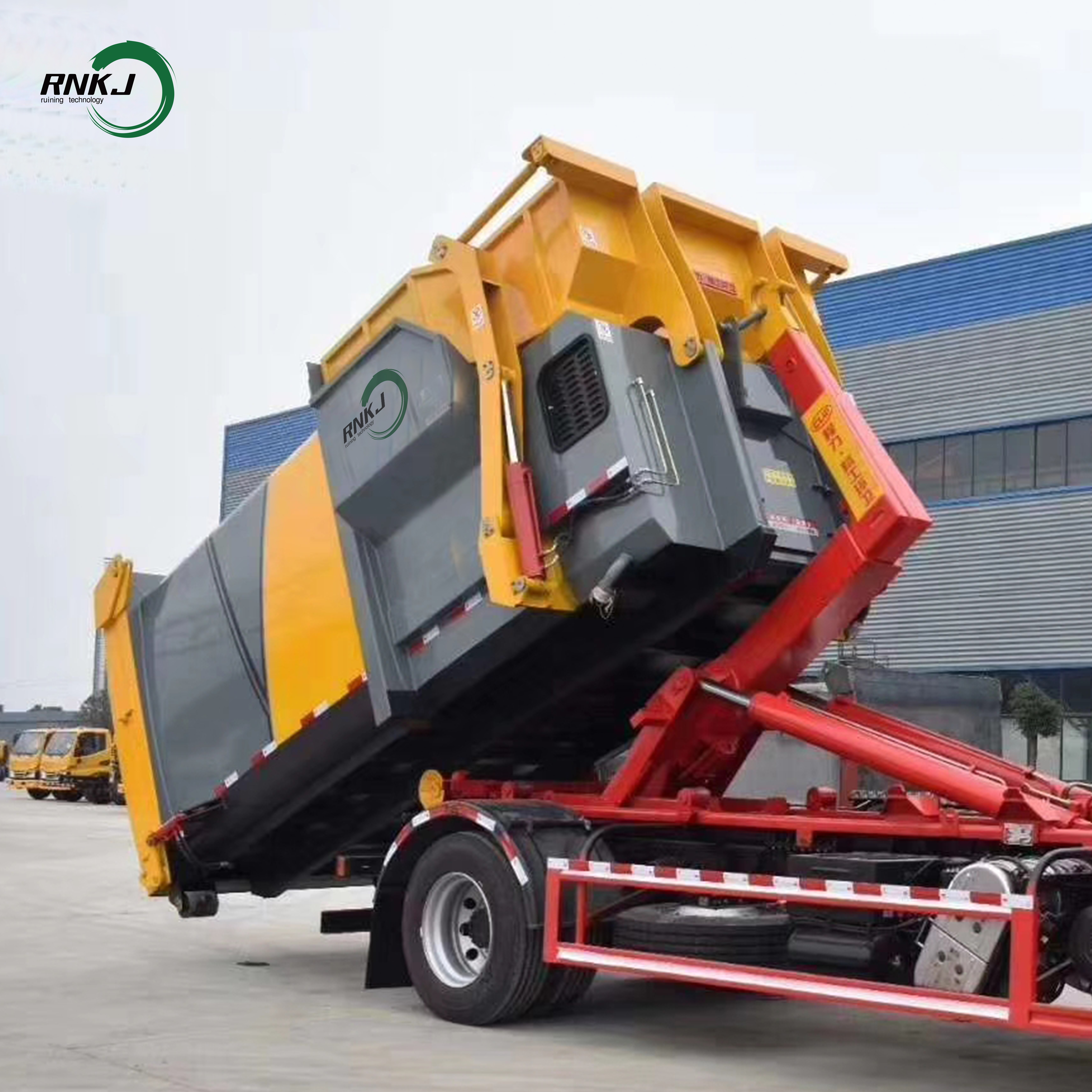

Full Container Transfer: Once the equipment signals a full container, compression stops. The hooklift truck then lifts the full container and transports it to the waste treatment plant (incineration plant or landfill).
Circular Operation: The empty container is returned to the transfer station to begin the next round of garbage collection and compression.
The Hopper Garbage Compressor is a waste compression processing equipment independently developed by our company based on market demands for sanitation equipment and waste collection and transportation methods. It utilizes advanced technology and processes.
The Hopper Garbage Compressor employs horizontal compression technology, with an integrated compressor and waste container design. It directly compresses collected bulk household waste into a sealed waste container, reducing volume and discharging wastewater and gases before transferring it to a detachable garbage truck. This equipment features low odor, no secondary pollution, small footprint, and flexible installation, making it particularly suitable for new transfer stations and the renovation of existing ones in urban areas where land acquisition is difficult and site space is limited.
Productive Capacity
International Certifications: We have obtained key international quality and safety certifications, including ISO, CE, and UL.
Quality Commitment: All our products undergo strict quality control—from raw material procurement to finished product delivery, every step adheres to the highest quality standards.
Customized Services: We offer tailored solutions to adjust product specifications, packaging designs, and more, based on your specific needs.
We look forward to partnering with you.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
