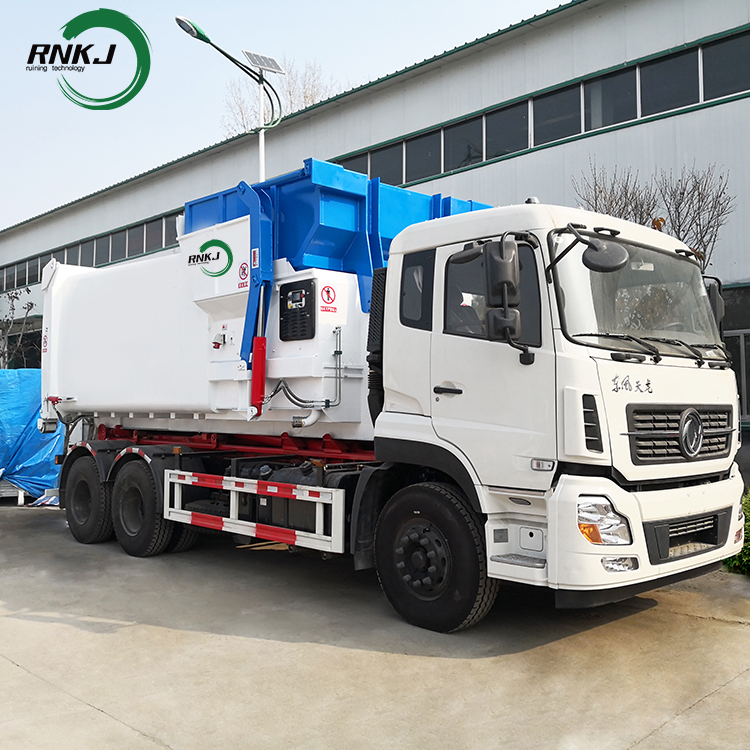

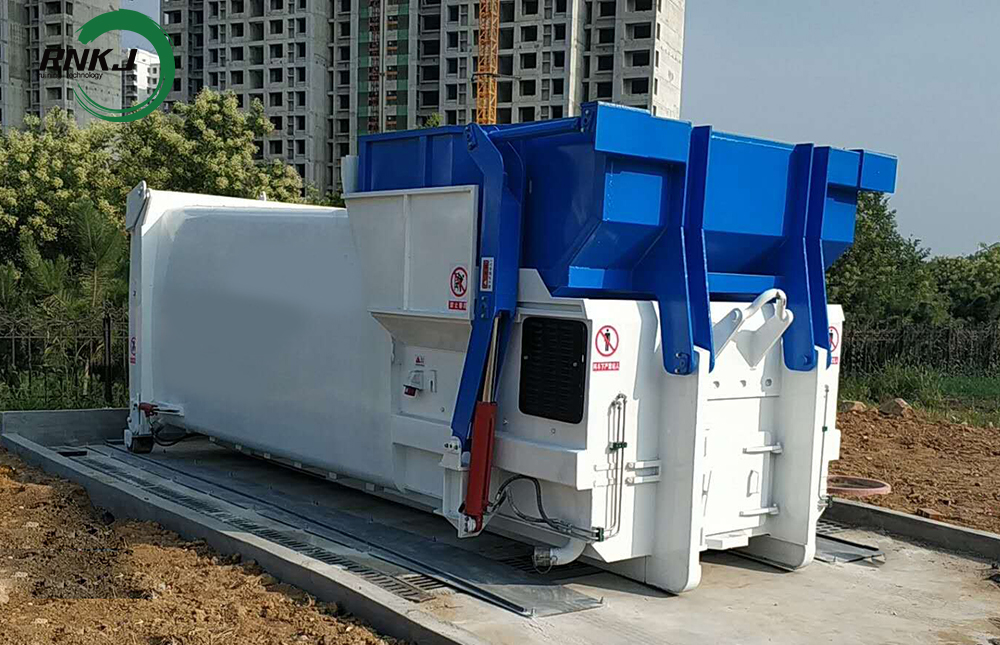

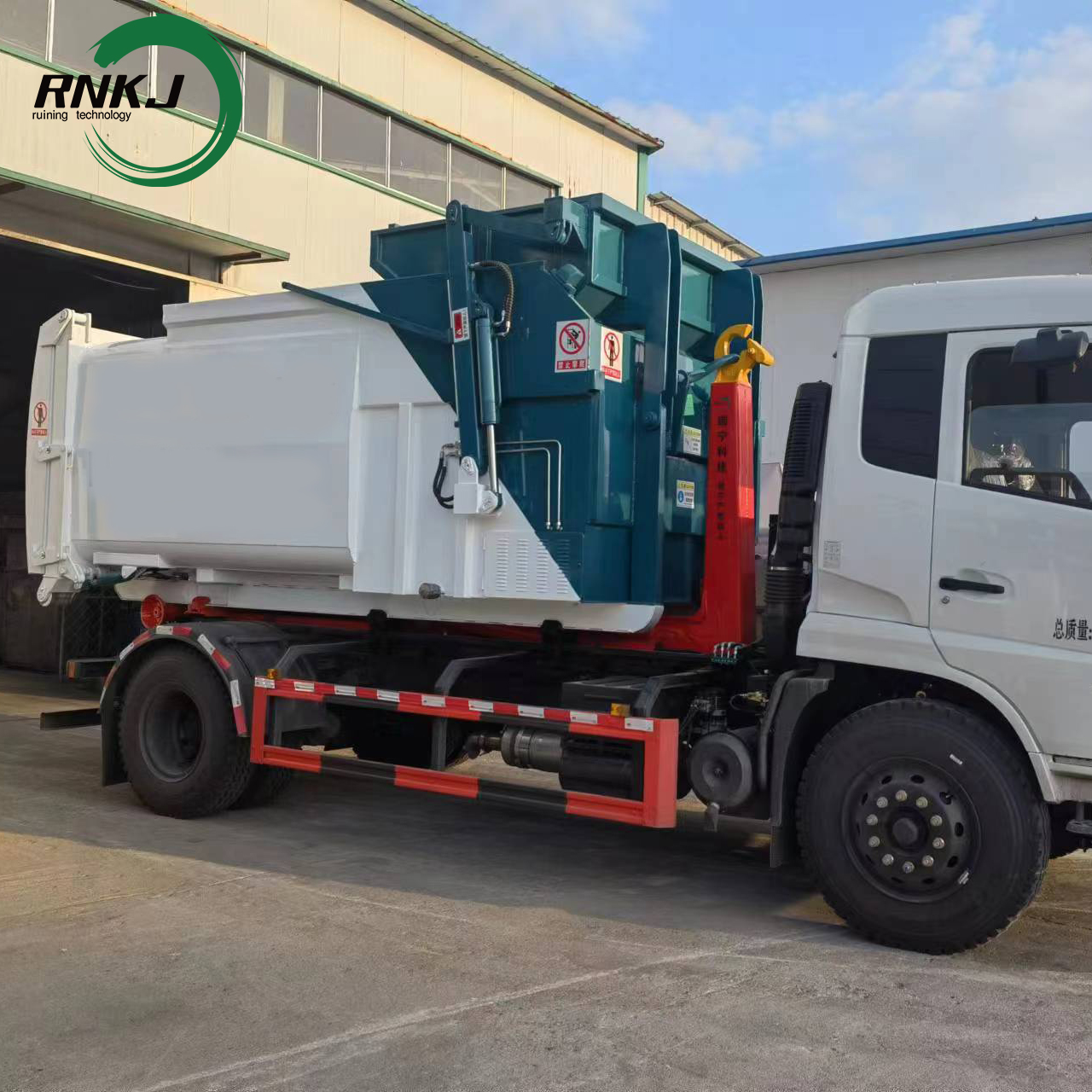

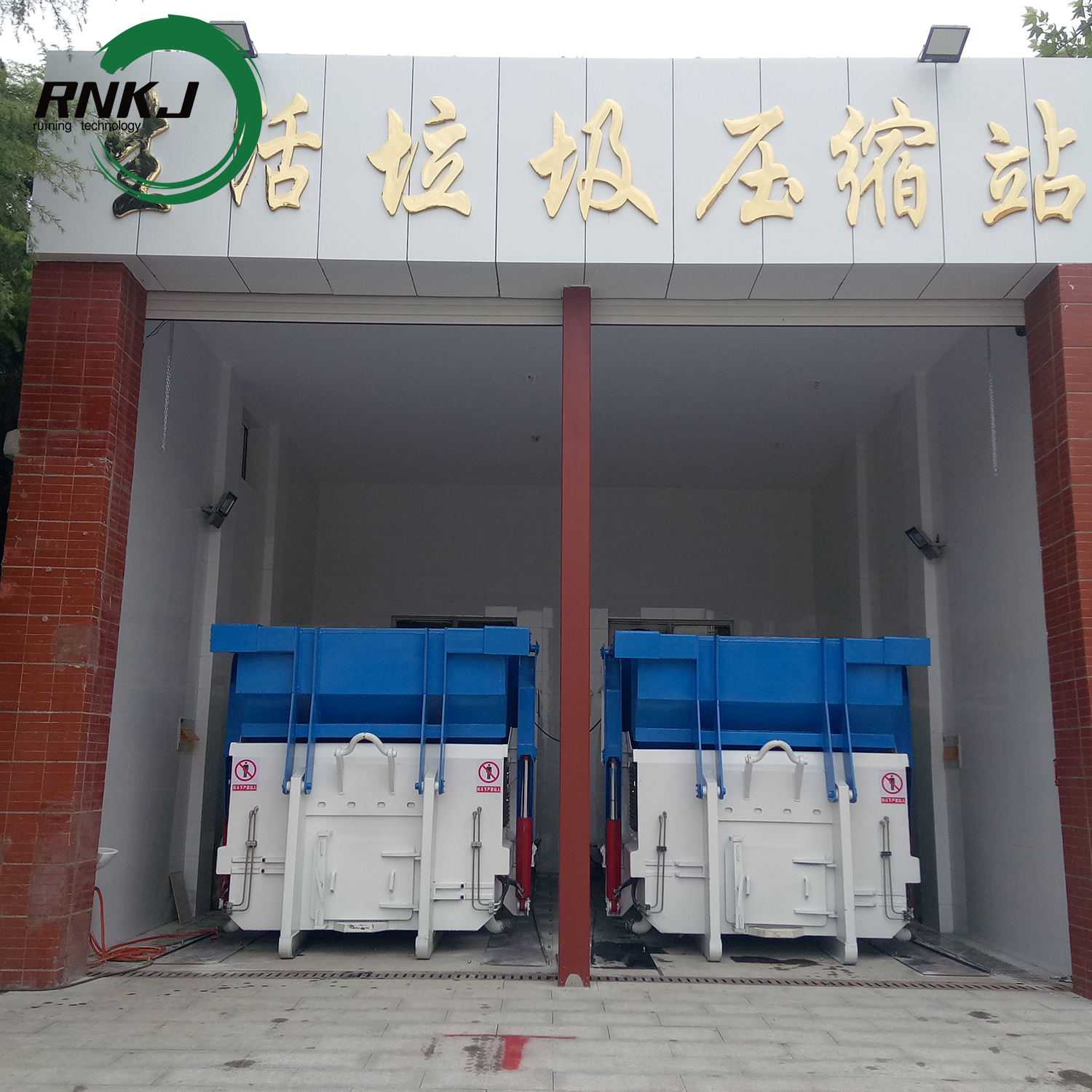

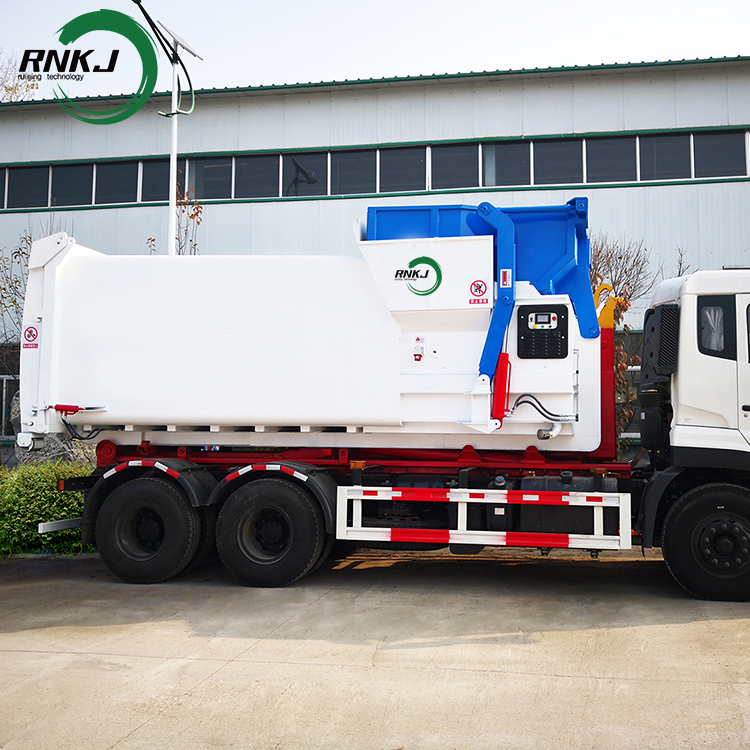

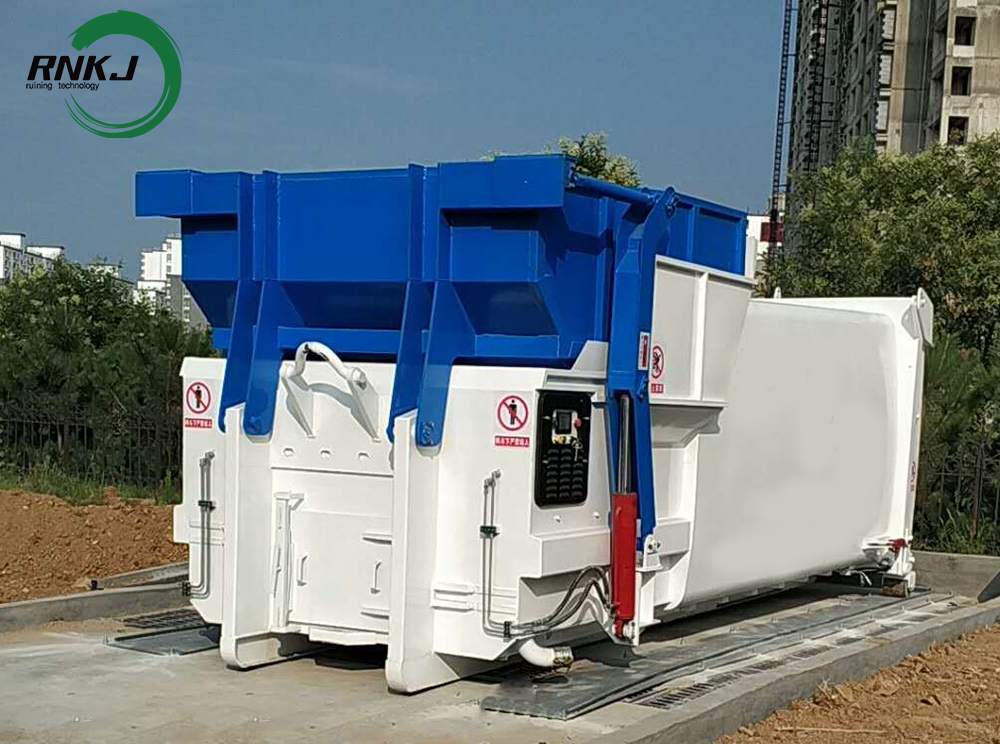

Hopper Garbage Compaction Station is a device used for garbage compression and is widely used in urban garbage transfer stations, community garbage collection points and other places.
RNKJ's Hopper Garbage Compaction Station can help you maximize savings and increase hauling efficiency for dry, wet, bulky or mixed waste streams. Our inventory of new and reconditioned equipment, combined with industry expertise and excellent customer service, will help optimize waste disposal for your business.
Product Advantage
1. Outstanding Environmental Friendliness, Solving Traditional Waste Collection Problems
Fully Sealed for Pollution Prevention:The fully enclosed hopper and container design prevents waste spillage, odor spread, and insect breeding, while also preventing rainwater seepage and soil contamination.
Centralized Wastewater Treatment:Equipped with a wastewater collection tank and diversion pipe, leachate generated during compression is collected centrally, meeting environmental standards.
2. Compression and Volume Reduction, Significantly Improving Transfer Efficiency
High Compression Ratio:Loose waste (such as plastic bags and cardboard boxes) can be compressed to 1/3 to 1/2 of its original volume.
Multi-Container Capacity:The hooklift truck can be equipped with multiple compression containers, covering multiple collection points in a single transfer, reducing the number of trips and fuel consumption.
3.Low Operating Costs, High Long-Term Cost-Effectiveness:
Low Energy Consumption:Electric drive, consuming only about 0.5 kWh per compression cycle, more than 70% cheaper than fuel-powered compression equipment. Simple Maintenance: The mature hydraulic system and mechanical structure have few vulnerable parts, requiring only daily cleaning and oil changes. Maintenance costs are 50% lower than large transfer stations.
4. Flexible Adaptability and Low Installation Threshold
Relaxed Site Requirements: No complex civil engineering is needed; installation can be quickly carried out in residential areas, towns, industrial zones, etc.
Customizable Capacity: Models are available from 6 cubic meters to 20 cubic meters to match different levels of waste generation.
5. Convenient and Safe Operation
Intelligent Control: The PLC system supports automatic compression, full bin alarm, and fault self-diagnosis. Manual/remote operation is possible, allowing one person to complete the operation.
Safety Protection: Equipped with overload protection, an emergency stop button, and an anti-misoperation lock to prevent accidental activation risks.
Product Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW, 5.5KW, 7.5KW |
Machine weight (kg) | 4800kg,5500kg, 6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Structural Composition
It mainly consists of a tilting mechanism, a compressor, a hydraulic and electrical control unit, a container, a locking mechanism, and a tailgate. The tilting mechanism is used to dump garbage into the compression chamber; the compressor, driven by the hydraulic and electrical control unit, presses the garbage into the container; the container stores the compressed garbage; the locking mechanism secures the tailgate; and the tailgate is the rear cover of the garbage container, which is opened at the waste treatment plant to dump the garbage.
Working Principle
Sanitation workers dump garbage into the compressor's hopper. Once full, the tipping mechanism activates, pouring the garbage into the compression chamber. Next, the hydraulic system operates, applying pressure to the garbage through components such as a pusher, compressing it into a compact block. When the garbage compression chamber is full, a full signal is emitted, and the compressor automatically stops compressing.
Support Customization
Intelligent SMART technology
Features
Increased Processing Efficiency: The entire process, from waste collection to compression, is fully automated. A single unit can process 5-80 tons per day, significantly reducing the workload of sanitation workers.
Reduced Odor Dispersion: The equipment typically features a fully enclosed design, and some are equipped with deodorization devices, effectively preventing odor leakage and improving the surrounding environment.
Small Footprint: No complex civil engineering is required; only a parking space-sized area is needed to operate, making it suitable for areas with limited land resources.
High Mobility: Some tipper garbage compactors are mobile and can be used with large hooklift trucks, employing a multi-unit operation mode on a single vehicle to improve transportation efficiency and reduce transportation costs.
Application Scenarios: Suitable for the compression and treatment of domestic waste in various locations such as cities, towns, residential areas, schools, parks, and factories, effectively improving the standardization and centralization of waste treatment.
What is the purpose of Hopper Garbage Compaction Station?
Waste compaction is the process of compacting waste, reducing it in size. Hopper Garbage Compaction Station and waste collection vehicles compress waste so that more of it can be stored in the same space. Waste is compacted again, more thoroughly, at the landfill to conserve valuable airspace and to extend the landfill's life span.
Productive Capacity
As a leading company in the environmental protection industry, RNKJ is committed to providing solutions that exceed the expectations of its global clients.
With over 20 years of industry experience, we have a professional design and R&D team, along with advanced production equipment and automated production lines, enabling us to efficiently meet the demands of large-scale orders.
International Certification Guarantee
We have obtained multiple core international quality and safety certifications, including ISO, CE, and UL, laying a solid foundation for product compliance.
Strict Quality Commitment
From raw material procurement to finished product delivery, we implement strict quality control throughout the entire process, adhering to the highest industry quality standards at every stage.
Customized Service Support
We can provide customized solutions such as product specification adjustments and packaging design optimizations to precisely match diverse scenarios based on your specific needs.
We eagerly look forward to cooperating with you to create value together.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
