The Hook Lift Bins are large, mobile containers specially designed to be used with the Hook Lift Truck. They are widely applied in fields such as garbage collection and transportation, construction waste disposal, and industrial material transportation. The core advantage lies in the ability to achieve quick loading, unloading, and dumping through the truck's hydraulic hook arm system, without the need for additional lifting equipment. This significantly enhances operational efficiency and is a key equipment in modern sanitation and material transportation sectors.
Looking for a Hook Lift Bins that will meet your specific needs?
Hook Lift Bins typically range in size from 10 – 50 Yd., but we can build them to fit your specific requirements. You will find the different standard specifications. And if you don’t find what you’re looking for, we can always customize a Hook Lift Bins to fit your specific requirements. So whatever your needs may be, we have a Hook Lift Bins that will meet them!
Product Advantage
Modular design: Each component can be independently replaced and repaired, reducing maintenance costs.
Center of gravity optimization: The center of gravity of the box is set relatively low, which ensures good transportation stability and reduces the risk of rollover.
Sealing technology: Double-layer sealing and durable rubber strip design to prevent leakage.
User-friendly operation: The rear door is equipped with a lever-type opening mechanism, allowing a single person to operate it easily; the external ladder and handrail design facilitate personnel's access and work.
Compatibility design: The hook arm connection points and slide rail interfaces comply with international standards, and can be compatible with mainstream brand hook arm trucks.
Efficient operation: Complete the loading and unloading of the containers within 5 minutes, significantly enhancing the transportation efficiency.
Cost savings: The "one vehicle, multiple containers" model reduces vehicle acquisition and operation costs, and lowers the demand for manpower.
Environmentally friendly: The sealed design prevents garbage from leaking and odors from spreading, meeting environmental protection requirements.
Durable and long-lasting: High-quality steel, advanced technology, long service life.
Safe and reliable: The hydraulic system is stable, and the box is firmly fixed, reducing the risk of operational accidents.
Flexible and versatile: It can be customized to the appropriate type based on different materials, and is compatible with various operation scenarios.
Core Definition and Working PrincipleThe Hook Lift Bins are heavy-duty containers equipped with a special connection mechanism. Their front end features a hook arm connection point, which can precisely align with the hydraulic arm of the hook arm truck.
Work process:
The Hook Lift Truck extends the hydraulic arm and hooks onto the connecting mechanism at the front of the container;
The hydraulic system is activated, lifting and pulling the container from the ground or base onto the sliding rails of the truck chassis;
After the container is securely fixed, it can be safely transported to the destination;

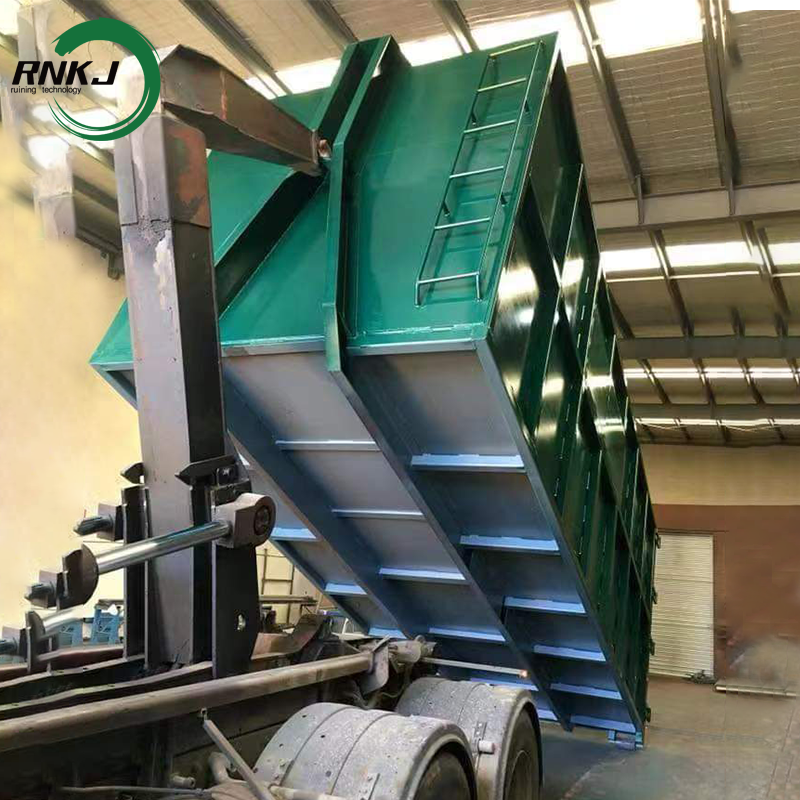

Upon arrival, the hydraulic arm is activated again to lower the container from the truck chassis or raise it to a certain angle to complete the automatic tipping;
Empty containers can remain in place for continued use, while the Hook Lift Truck can proceed to service the next container, achieving the efficient operation mode of "one truck for multiple containers".
This design enables a single Hook Lift Truck to serve 10 to 20 containers in a cycle, significantly enhancing the cleaning efficiency and greatly reducing operating costs.
Technical ParametersProduct name | Hook bin & Hook lift Bin & Roll on / roll off container |
Material | Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade |
Size Range | from 10 to 80 yd And OEM is also available. |
Thickness of plates used | 10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to your requirements. |
Other specifications | 1). RHS are used for top rails, and top edge of plate continuous welded to RHS 2). Fully and partly welded inside and outside |
Options | 1) Two openning door 2) Up openning door |
Painting | We will paint each bin you order in your company colour, enhancing your company image with great looking bins.Two times of primer |
Main MaterialThe choice of material for Hook Lift Bins directly affects their durability, load-bearing capacity and applicable scenarios.
Q235 steel
Moderate strength, reasonable cost, good welding performance General waste collection, light to moderate construction waste Side plate 2-3mm, bottom plate 3-4mm
Q345 high-strength steel
Higher yield strength, strong resistance to deformation Heavy construction waste, industrial waste residue, heavy-load materials
Tailgate Shape
Detailed Images
Manufacturing ProcessCutting: Utilize laser separation technology to ensure dimensional accuracy.
Forming: Use hydraulic presses and bending machines to press and bend the sheet metal, forming the box outline and reinforcing ribs.
Welding: Employ carbon dioxide gas shielded welding. For critical parts, use full welding process to ensure welding strength and sealing performance.
Surface treatment: Sandblast for rust removal, double-layer coating with primer and topcoat. Optional epoxy zinc-rich primer + polyurethane topcoat.
Some high-end models undergo hot-dip galvanizing treatment, with a corrosion resistance lifespan of over 15 years.
Quality inspection: Include size inspection, weld flaw detection, pressure test, load test, etc., to ensure compliance with industry standards.
Volume RangeCommon volumes range from 3m³ to 40m³.
Main specifications:
Small: 3m³, 5m³ (suitable for residential areas, small-scale commercial garbage collection)
Medium: 8m³, 10m³, 12m³ (suitable for municipal sanitation, medium-sized construction sites)
Large: 15m³, 20m³, 25m³ (suitable for large construction projects, industrial waste)
Extra large: 30m³, 40m³ (suitable for mines, large infrastructure projects)

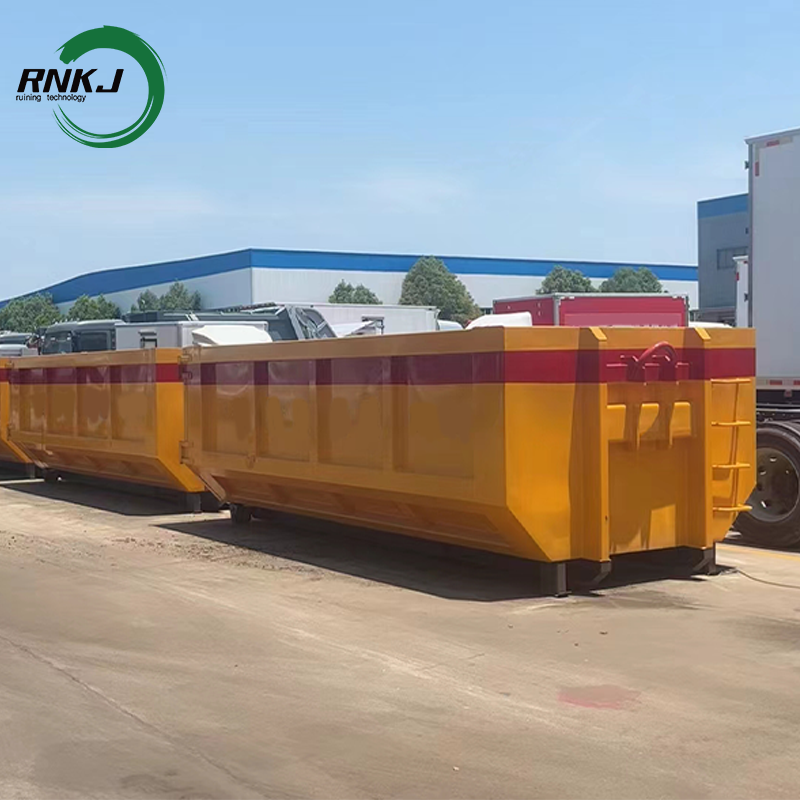

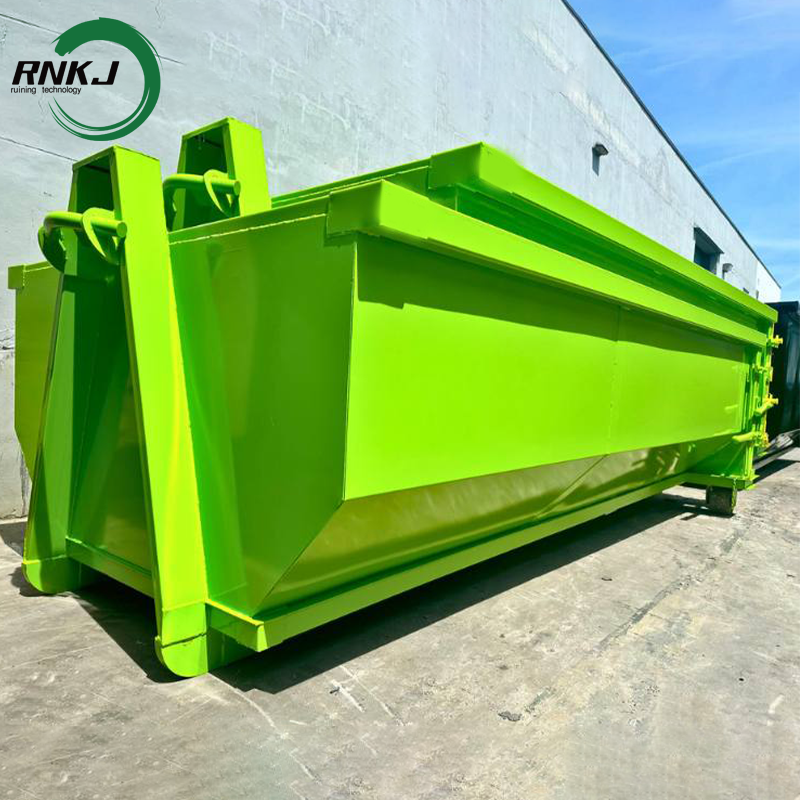

Structural Design ClassificationOpen-Top: No top cover, easy to load
Suitable for large construction waste, branches

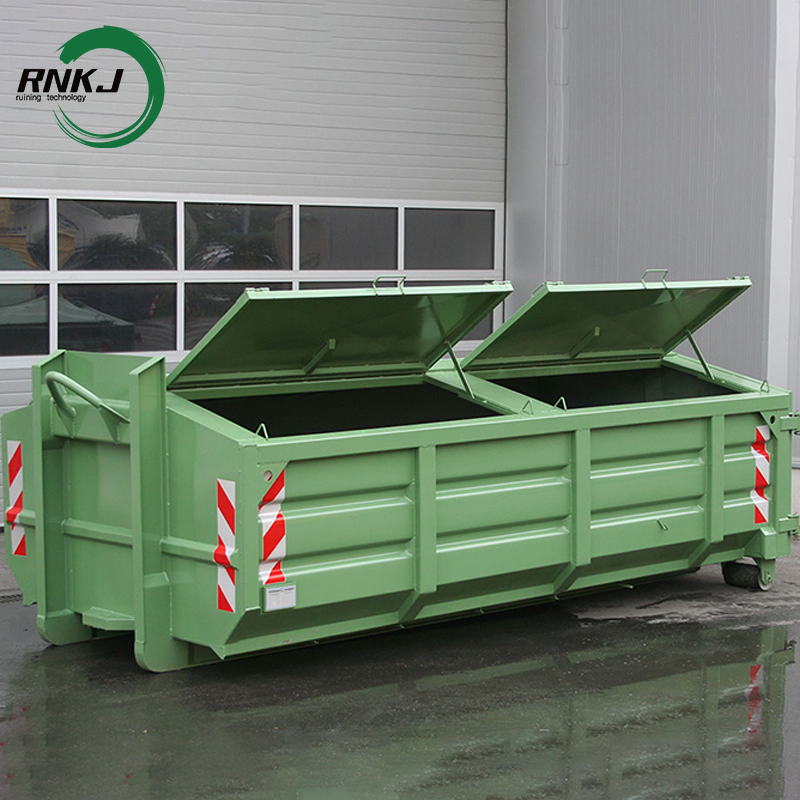

Enclosed: Fully enclosed structure with a sealed door
Suitable for household waste, food waste, and medical waste

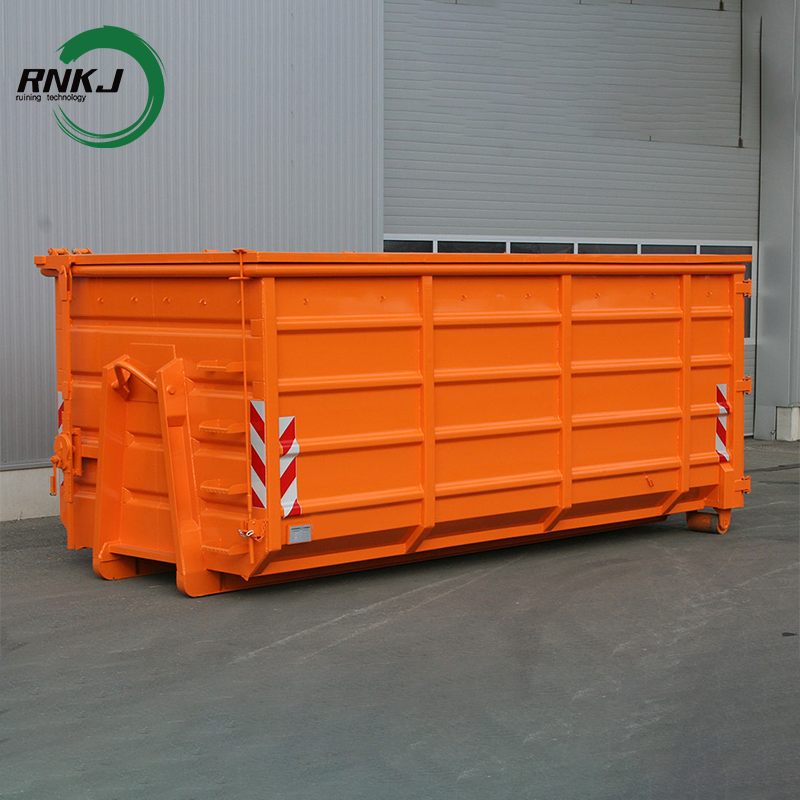

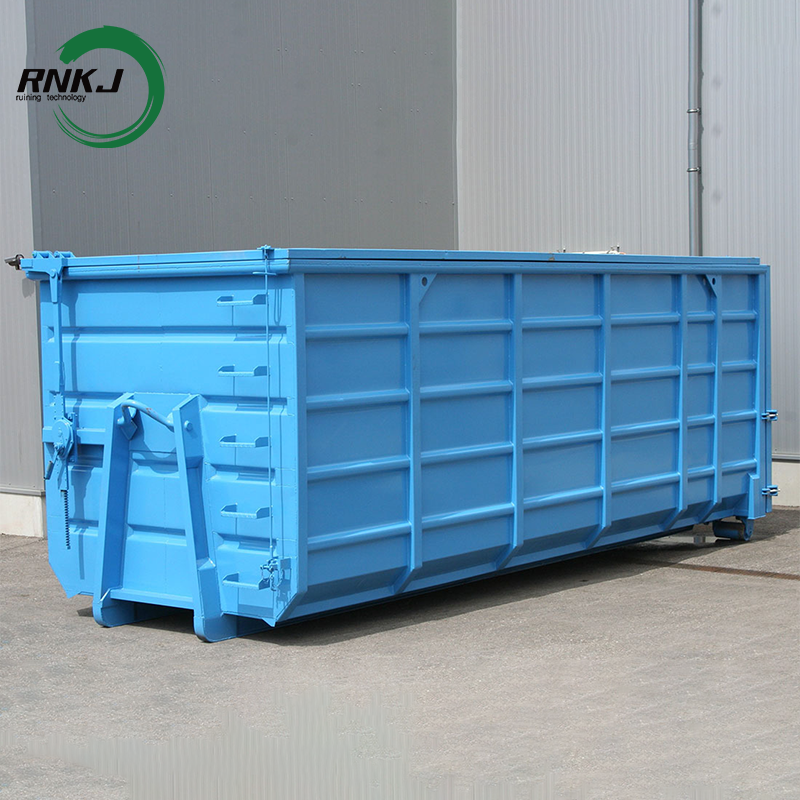

Ribbed Side: Side plate with reinforced ribs, providing greater strength
Suitable for heavy construction waste, industrial waste, and sharp materials
Tipper Tailgate: The tailgate can automatically open and align with the box for material discharge.
Suitable for viscous materials, wet waste, and materials that are difficult to be tipped over.
Roll-off: The bottom is equipped with wheels, allowing it to roll along the sliding track for loading and unloading.
Suitable for extremely large containers and scenarios requiring frequent movement.
Special Function Type: Features compartments for separation (for waste classification), spray system (for dust reduction), heating system (for frost prevention), etc.
Suitable for specific industry requirements, such as the medical, chemical, and food industries.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
