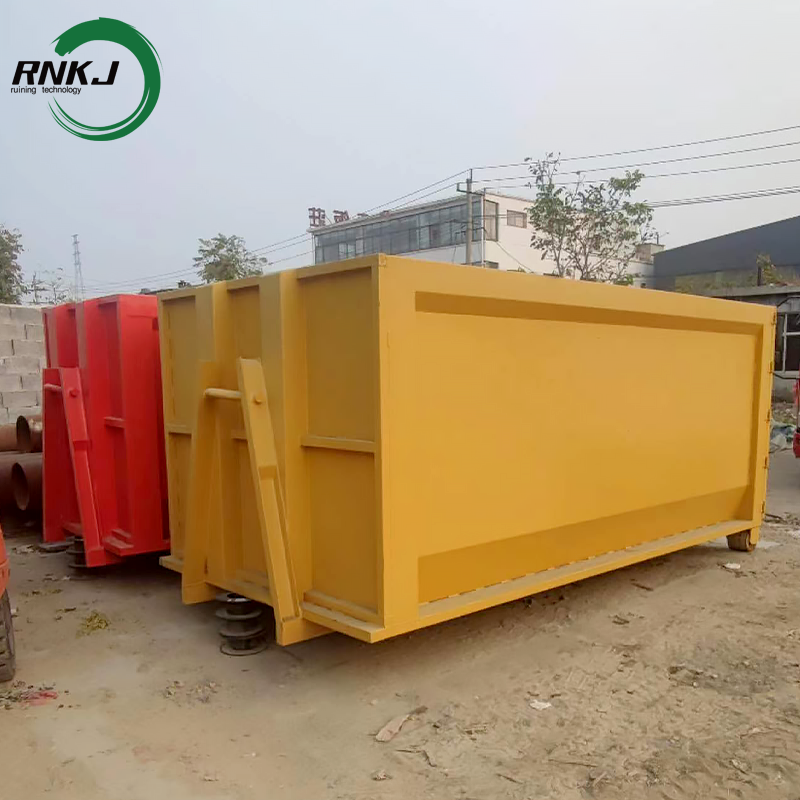

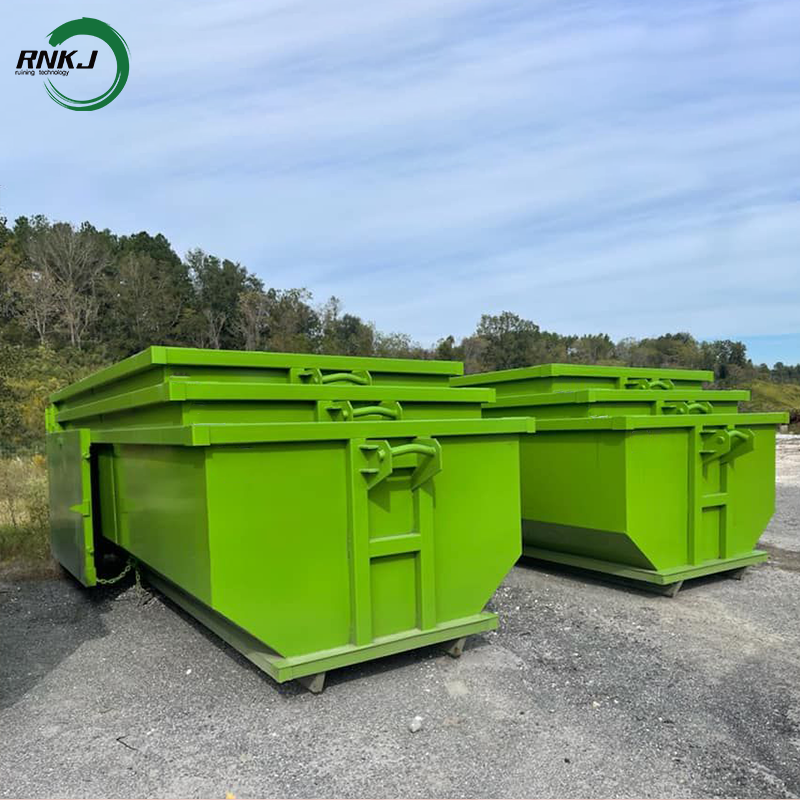

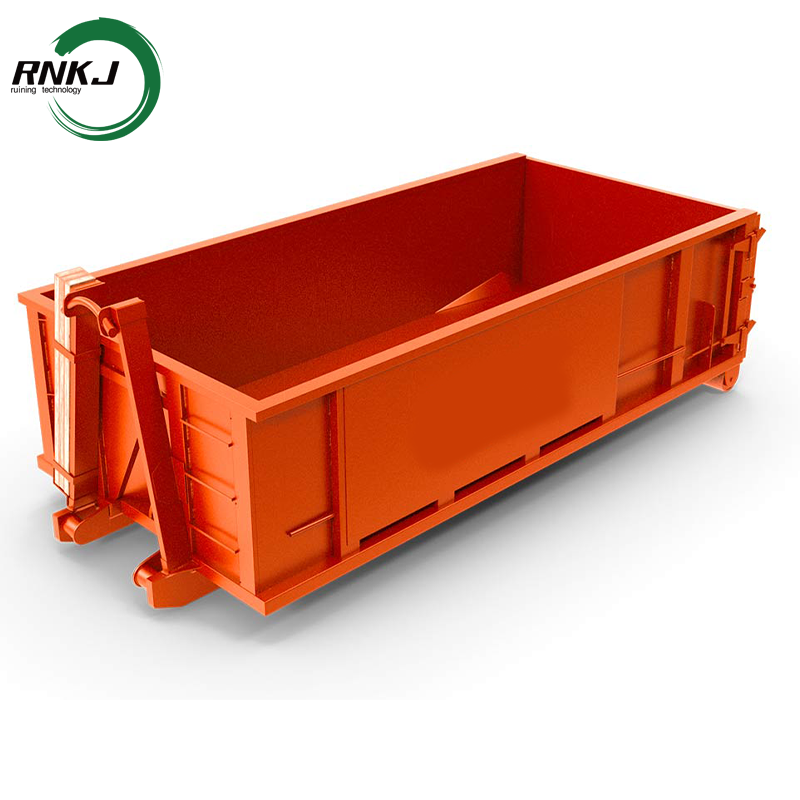

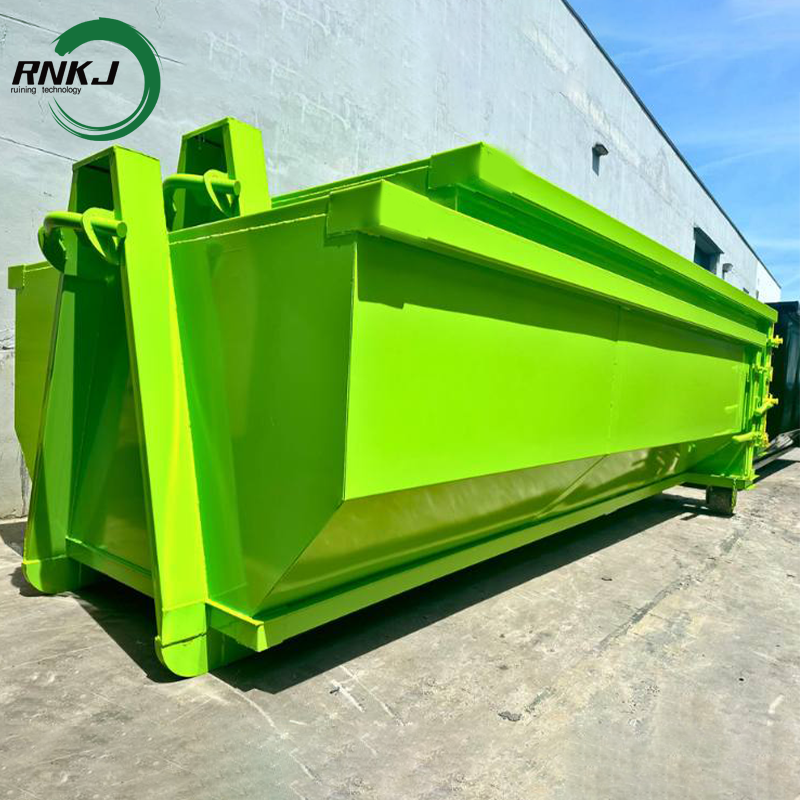

The Dumpster Hook Lift Bin is a large mobile sealed container that is compatible with the Hook Lift Truck and can be quickly loaded, unloaded and transported. It is mainly used for the collection, transfer and temporary storage of garbage, construction waste, industrial waste, and bulk materials. It is widely used in industries such as sanitation, construction, industry, and municipal services.
Self-dumping hoppers offer a safer, more efficient way to move and store material by reducing risk of accident to the forklift operator and limiting exposure to potentially hazardous materials.
Product Core Definition and PositioningAlias: Roll-on/Off Bin, Hooklift Container, Removable Garbage Bin, Pull-arm Bucket.
Core Features: Independent box body, built-in hook and latch interface, bottom with wheels, fully sealed or semi-sealed. Must be loaded and unloaded, transported and emptied by a dedicated Hook Lift Truck through the hydraulic system.
Core Value: Achieve multiple boxes per vehicle, cyclic operation, significantly improve collection and transportation efficiency, reduce manpower and secondary pollution. It is the mainstream equipment for modern sanitation and industrial material transfer.
Product AdvantageHighly efficient: The loading, transportation and unloading process can be completed in 3-5 minutes. One vehicle can be equipped with 5-10 containers. The daily transfer volume is high.
Fully sealed: Semi-sealed design, no secondary pollution, suitable for urban environmental protection requirements.
Sturdy and durable: Fully welded steel, thickened steel plates, anti-corrosion treatment.Resistant to impact， deformation and wear. Suitable for harsh environments such as construction sites and factory areas.
Flexible adaptation: Available in volumes ranging from 8 to 30 cubic meters. It can be used for garbage, construction waste,metal scraps,construction debris,industrial waste residue,etc.； customizable top covers， compression,inner linings,etc.
Safe and labor-saving: Fully hydraulic automation throughout the process,no manual handling or loading/unloading, reducing the risk of work-related injuries； controlled from the driver's cab， away from dust， odors and dangerous materials.
Economical cost: Reduces labor and equipment investment. Multiple containers per vehicle lowers vehicle procurement costs; sealed design reduces pollution fines,with long-term use offering high cost-effectiveness.
Technical ParametersProduct name | Hook bin & Hook lift Bin & Roll on / roll off container |
Material | Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade |
Size Range | from 10 to 80 yd And OEM is also available. |
Thickness of plates used | 10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to your requirements. |
Other specifications | 1). RHS are used for top rails, and top edge of plate continuous welded to RHS 2). Fully and partly welded inside and outside |
Options | 1) Two openning door 2) Up openning door |
Painting | We will paint each bin you order in your company colour, enhancing your company image with great looking bins.Two times of primer |
Structure DesignMain body box
Material: Mainly Q235/Q345 carbon steel; for heavy-load/maintenance scenarios, 6mm bottom plate + 4mm side plate; for standard scenarios, 4mm bottom plate + 3mm side plate; corrosion protection can be achieved through hot-dip galvanizing or epoxy zinc-rich primer and topcoat.
Structure: Fully welded, with reinforced rectangular tubes at the top; additional strengthening beams can be added inside for heavy-load protection against collapse.
Size specification:
Volume: 8 - 30 cubic meters, corresponding to 12 - 50 cubic feet.
Length, Width and Height: Customizable.
Hooking and lifting interface
Front hook plate: 50mm diameter round steel / thick steel plate forged and welded, with U-shaped hook groove, precisely matching the hydraulic hook head of the hook arm vehicle, with a load capacity of ≥ 30 tons.
Bottom rollers / slide rails: High-strength wear-resistant rollers or sliding plates are installed at the front and rear of the box body to facilitate smooth sliding on the guide rails of the auxiliary frame of the hook arm vehicle, reducing friction and deformation.
Accessory Doors and Sealing System
Door Type: Double doors, flip-up doors, hydraulic automatic doors; Large-opening double doors are commonly used for construction waste.
Locking Mechanism: Optional pneumatic/hydraulic locks; Hinges equipped with grease nipples for regular lubrication to prevent sticking.
Sealing: Chloroprene rubber sealing strips are embedded inside the rear doors, with watertight/airtight design to prevent sewage leakage, odor diffusion, and dust spillover.
Optional Accessories
Top Cover: Fixed metal top, sliding top, hydraulic flap cover, rain shelter cloth, grid top.
Safety Components: Side ladder, reflective marking, warning light, overflow net.
Functional Components: Sewage outlet, inner lining plate.
Product CustomizationRNKJ offers a wide range of hook lift containers is what we specialize in. Hook lift dumpster come in different sizes, so they can be suitable for any size project for proper waste disposal. Fill the bin with non-recyclable waste (such as concrete, bricks and tiles), and then the truck lifts the bin through a hook, which is the docking point on the back of the bin. The docking point is a sturdy curved metal strip that holds the bin in place when it is hung on the truck. Then, the truck is ready to take the trash can to where it needs to go.
Detailed Images
Working PrinciplePositioning hook: The truck reverses to the front of the container, the hydraulic hook arm extends and lowers, precisely engaging the lifting hook slot at the front of the container and locking it in place.
Lifting box: By operating the hydraulic valve, the hook arm rises upwards and is pulled backward. The box smoothly slides up along the guide rails and rollers of the truck's auxiliary frame and settles smoothly onto the frame, automatically locking and securing in place.
Safe transportation: After the box is securely locked, the truck can move normally; the entire process is sealed to prevent leakage, with no garbage scattering, no sewage dripping, and no odor leakage. It complies with environmental protection standards.
Self-unloading and discharging: After arriving at the processing site, unlock the box, raise the boom to tilt, and the rear door will automatically open under the force of gravity. The garbage will be unloaded by gravity; after discharging, the rear door will automatically close and lock.
Unloading of boxes: After the empty boxes are unloaded, the hook arm slowly descends to place the box on the ground smoothly. Then the hook head is disengaged and the truck drives away. The empty boxes remain at their original position for further collection, achieving a cycle of multiple boxes in one truck.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
