The Bucket-type Waste Compactor is a kind of environmental sanitation equipment that has the functions of automatic garbage collection, compression and volume reduction, and temporary storage. Bucket-type Waste Compactor core feature is that it directly connects to the common standard garbage bins (such as 240L, 360L, and 1100L garbage bins) available on the market through the accompanying bucket lifting mechanism. Without the need for manual handling of garbage, it can complete the feeding process. Then, through the hydraulic compaction mechanism, the volume of the garbage is compressed to achieve volume reduction and storage for centralized transfer, forming a closed-loop processing.
Product Advantage
Cost reduction and efficiency improvement: Reduce long-term operating costs, especially suitable for places with medium garbage production.
Automation and labor saving: Reduce manpower input, enhance operational safety and employee acceptance.
Environmental protection and pollution prevention: Improve the working environment on-site, comply with environmental protection requirements.
Flexibility and adaptability: No need for complex infrastructure, can be quickly implemented and used, suitable for spaces with limited availability.
Working process

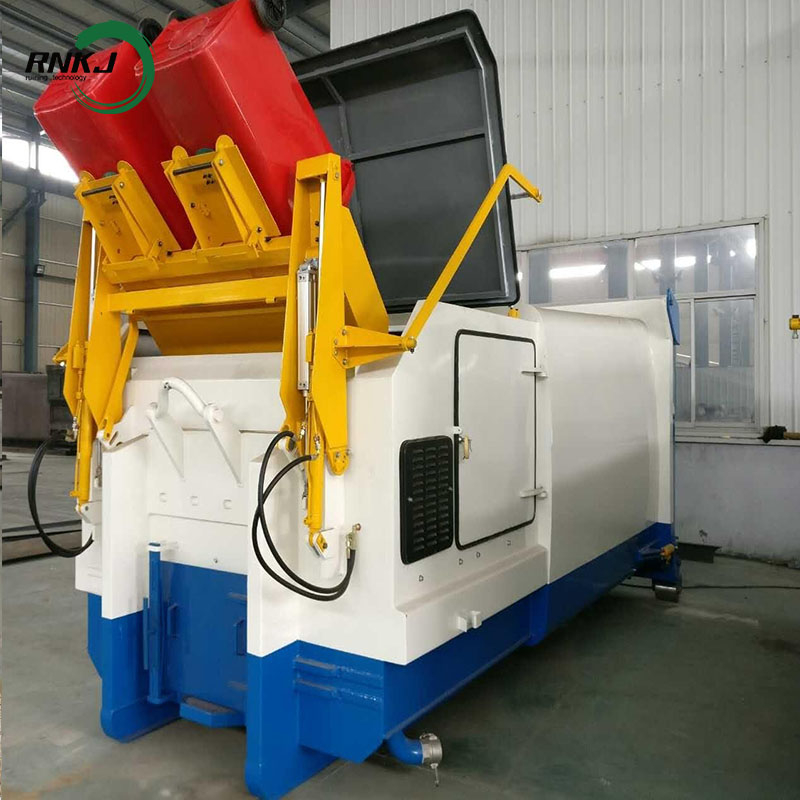

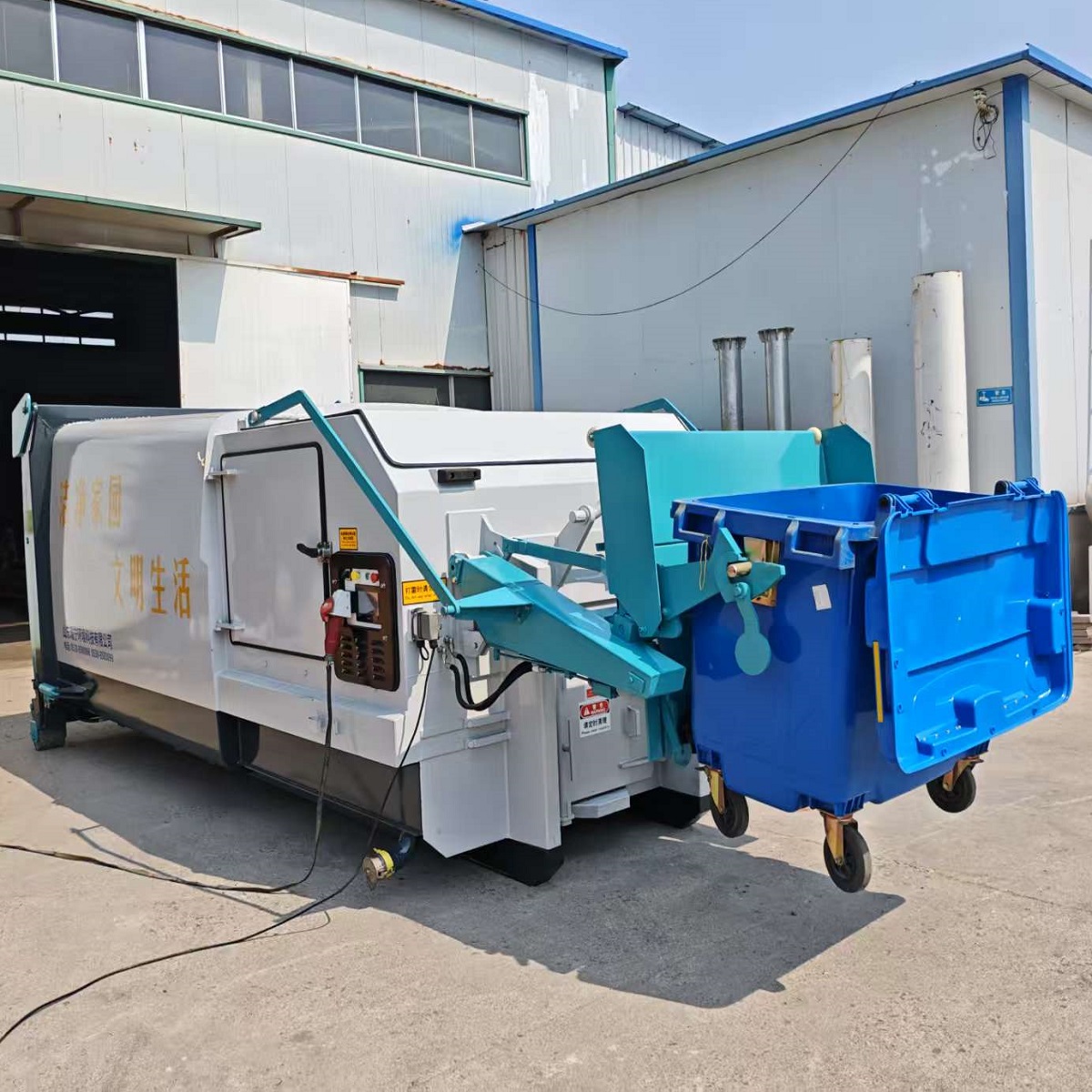

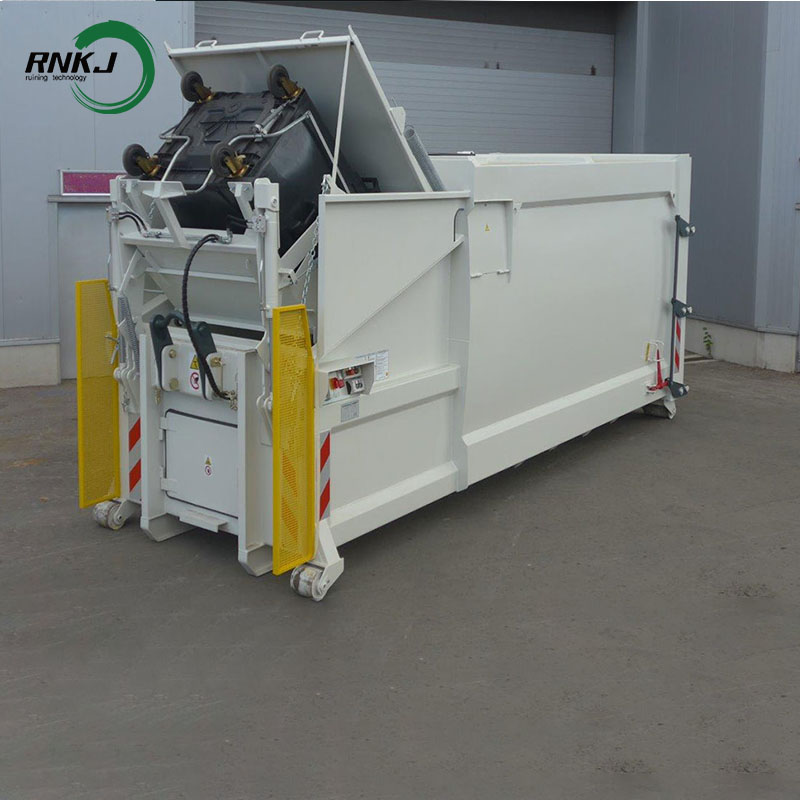

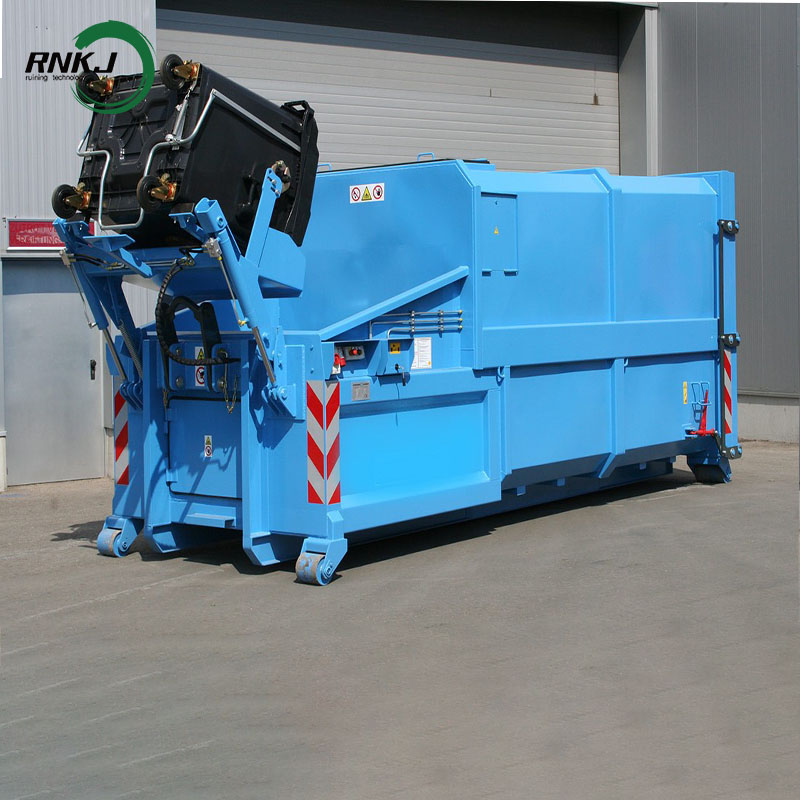

Bucket Loading: Hang the standard trash can on the equipment hook, press the "lift" button, and the hook will cause the trash can to flip, allowing the garbage to be automatically poured into the compaction bin;
Continuous Compaction: When the accumulated garbage reaches a certain amount, the compaction head will automatically move forward to compress the loose garbage into a compact state. After the head is reset, it can continue to load garbage, and this process repeats;
Full Storage Transfer: When the compacted garbage in the storage bin reaches the rated capacity, the equipment will give a "full bin" prompt. At this time, the garbage can be pushed into the transfer vehicle through the hydraulic dump function to complete one processing cycle.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Process Flow
1. Unloading: The loading arm vehicle will unload the empty Bucket Waste Compaction Station to the designated location.
2. Collection and compression of garbage: The cleaning staff will push the garbage to the side of the compactor and directly introduce it into the compression bin. Through the pusher in the compression head, the garbage is pushed into the box.
3. When the loading bin is 80% full, an automatic alarm will sound (the alarm light keeps flashing). The operator will operate the button to raise the loading device to the top of the compactor and place it there. Cut off all connections and prepare to lift the vehicle body.
4. Lifting: The loading arm vehicle lifts the fully loaded integrated garbage compactor bin.
5. Transfer: The loading arm vehicle locks the vehicle body and transports the fully loaded garbage vehicle to the garbage disposal site.
6. Disposal: The loading arm vehicle arrives at the garbage disposal site and disposes of the garbage by operating the control valve to open the rear door. It disposes the garbage in a dump truck manner. After the disposal, the operator closes and locks the rear door and completes the entire garbage disposal process in the driver's cabin. The empty vehicle body is unloaded to the designated location to collect the garbage.
Product Details
Rational Design
The compression head is on the upper side of the tank to avoid liquid back flow and ensure that the cylinder and compression head are not corroded by sewage immersion,and thus ensure that the tank is clean.
Reasonable sewage treatment
Sewage collection box is equipped to prevent sewage leakage. Sewage can be dis-charged directly through sewage pump or transported with the tank for disposal.
Standardization
The garbage compactor is applicable for most standard hook arm garbage trucks in the world.
Customization
As a professional factory and manufacturer,we are able to caters to our customers needs in every way, such as color,capacity,dimensions,voltage etc.
Good Performance
The system adopts high strength steel as main frame to ensure its long service life.And it has high compression rate and short cycle time to ensure high efficiency.
Multiple Choices
Multiple choices of garbage drop-off point are available,including hoppers,flipping buckets, etc.Customers can choose the most suitable pattern.
Productive Capacity
We have a professional team and the strength of the factory to support customization. Including type, volume, height, color and other requirements, free custom logo.
Equipment details
Laser cutting
Which is highly accurate and fast compared to traditional cut ting processes,and can precisely cut all types of metals.
Laser rust removal
Which is an efficient,energy saving and environmental protection way. It can remove the oil, oxide,rust, etc. On the surface of the object, and will not cause damage to the substrate.
Laser welding
Which is fast, deep,small deformation,better toughness of the weld, and we will detect the equipment.
Paint thickness
We spray one epoxy primer with a thickness of 20-25μm, two coats with a thickness of not less than 75μm,and varnish, if you have other requirements,you can customize the program.
Packaging and shipping
The shipping methods include: Ro-Ro, bulk shipping, 20ft container, 40ft container, 40 HQ container, flat rack container, open top, platform container express, etc.
FAQ
1. Who are we?
We are a factory with export license. We are headquartered in Shandong, China and sell to North America,Southeast Asia, Middle East, South America , Africa, Oceania, Eastern Europe, East Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market. We have a total of 51-100 people in our office.
2. How do we ensure quality?
Pre-production samples are always available before mass production; final inspection is always available before shipment;
3.What can you buy from us?
Underground garbage compactor、Trash compactor、Underground Collection System、Hook Lift Bin、Scrubber、Sweeper.
4.What services can we provide?
Accept customized dumpster. Someone will always be online 24 hours to answer your questions. We will provide pre-sale and after-sale service
5.What should we do if there is no drawing?
Please send your samples to our factory, then we can copy or provide better solution for you. If place an order, please send us pictures or drafts with dimensions (thickness, length, height, width), CAD or 3D files.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
