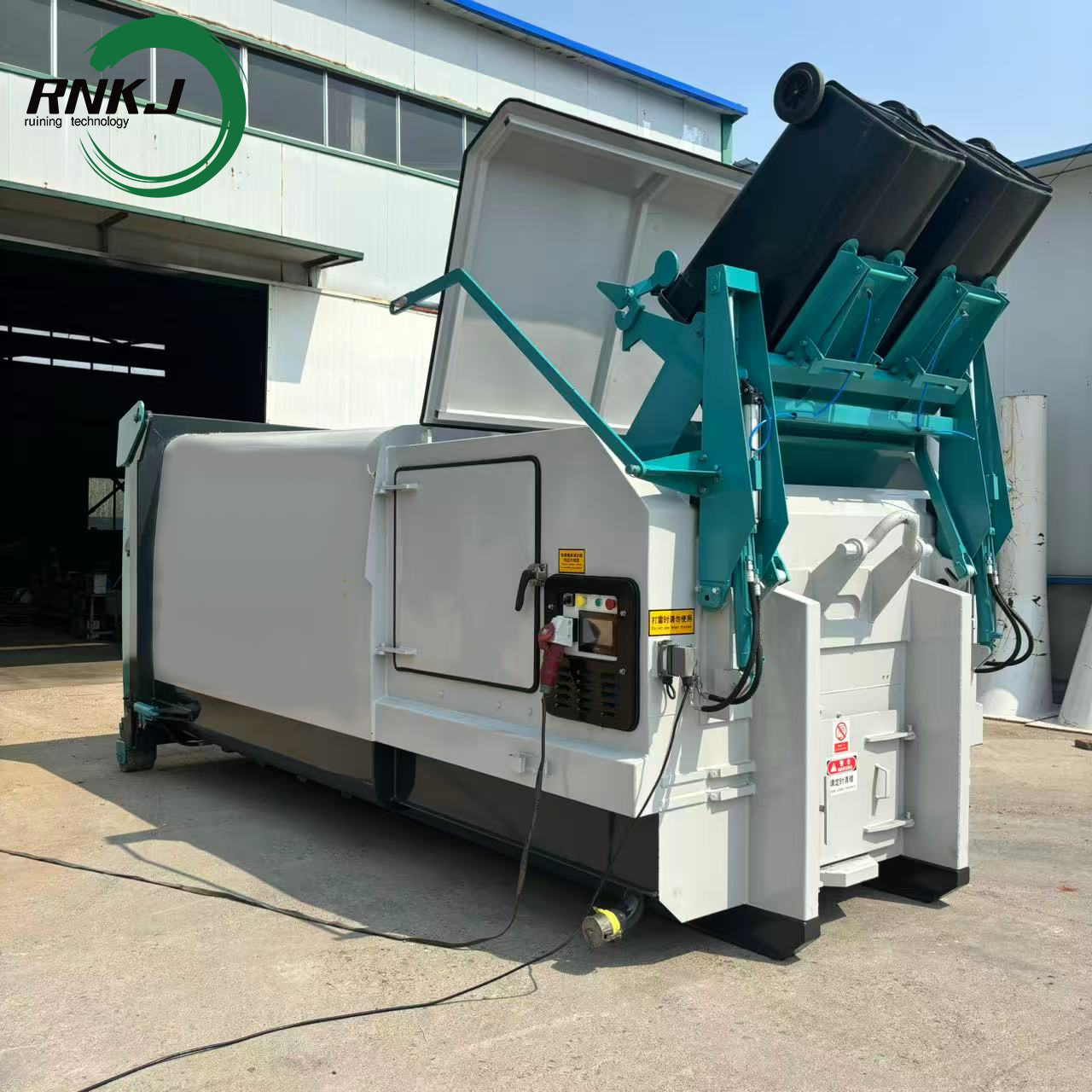

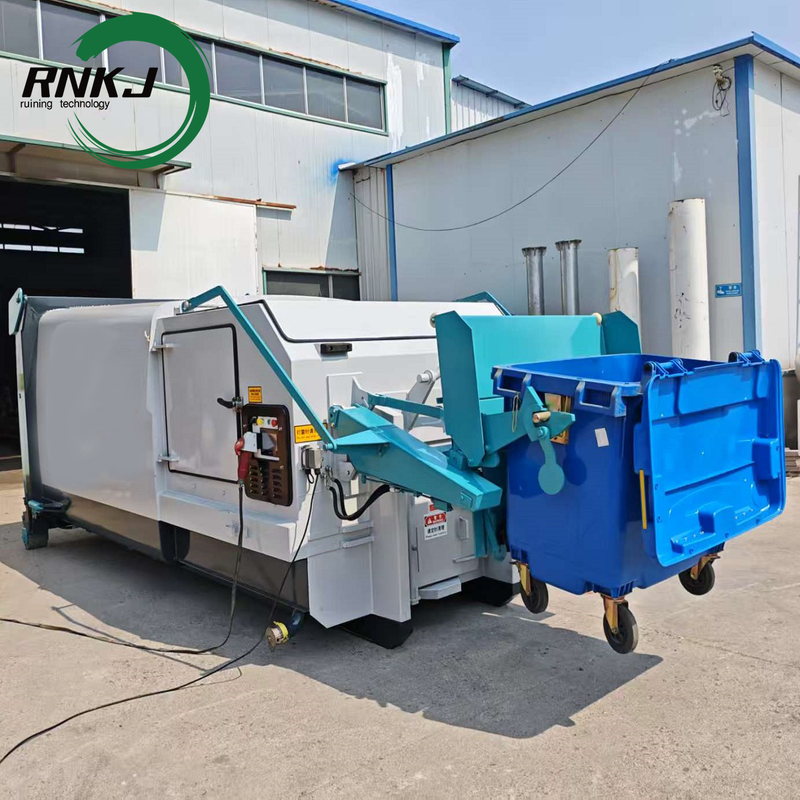

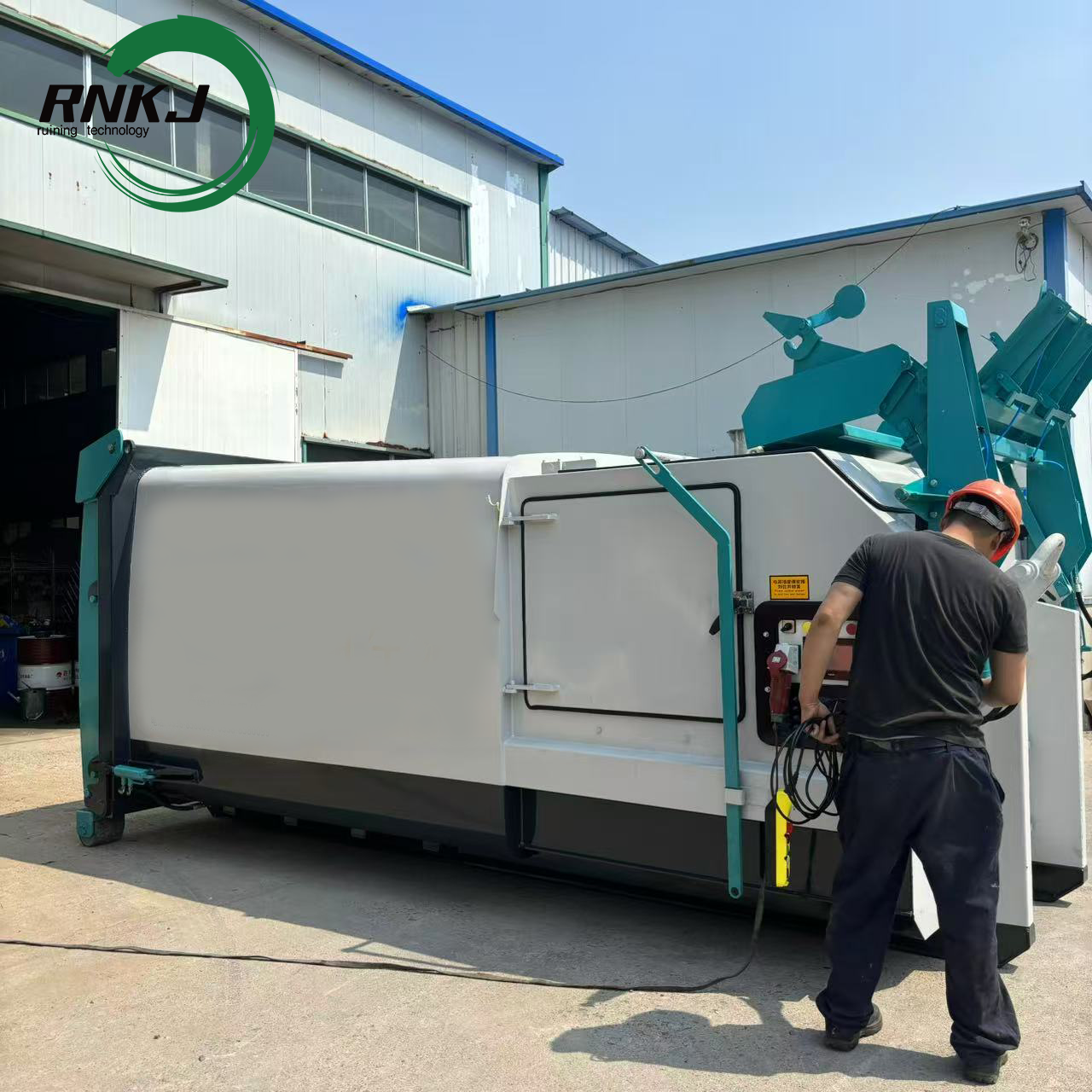

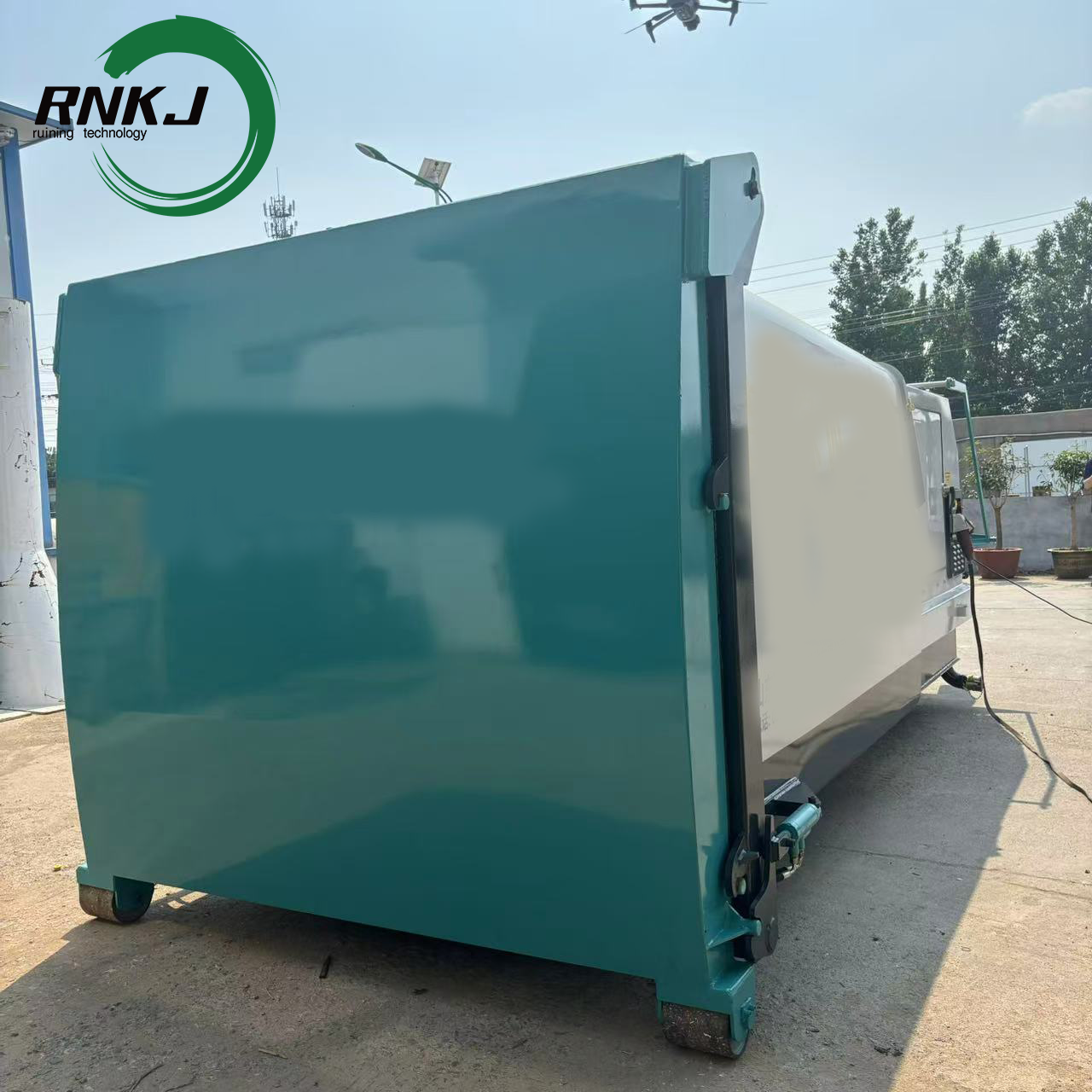

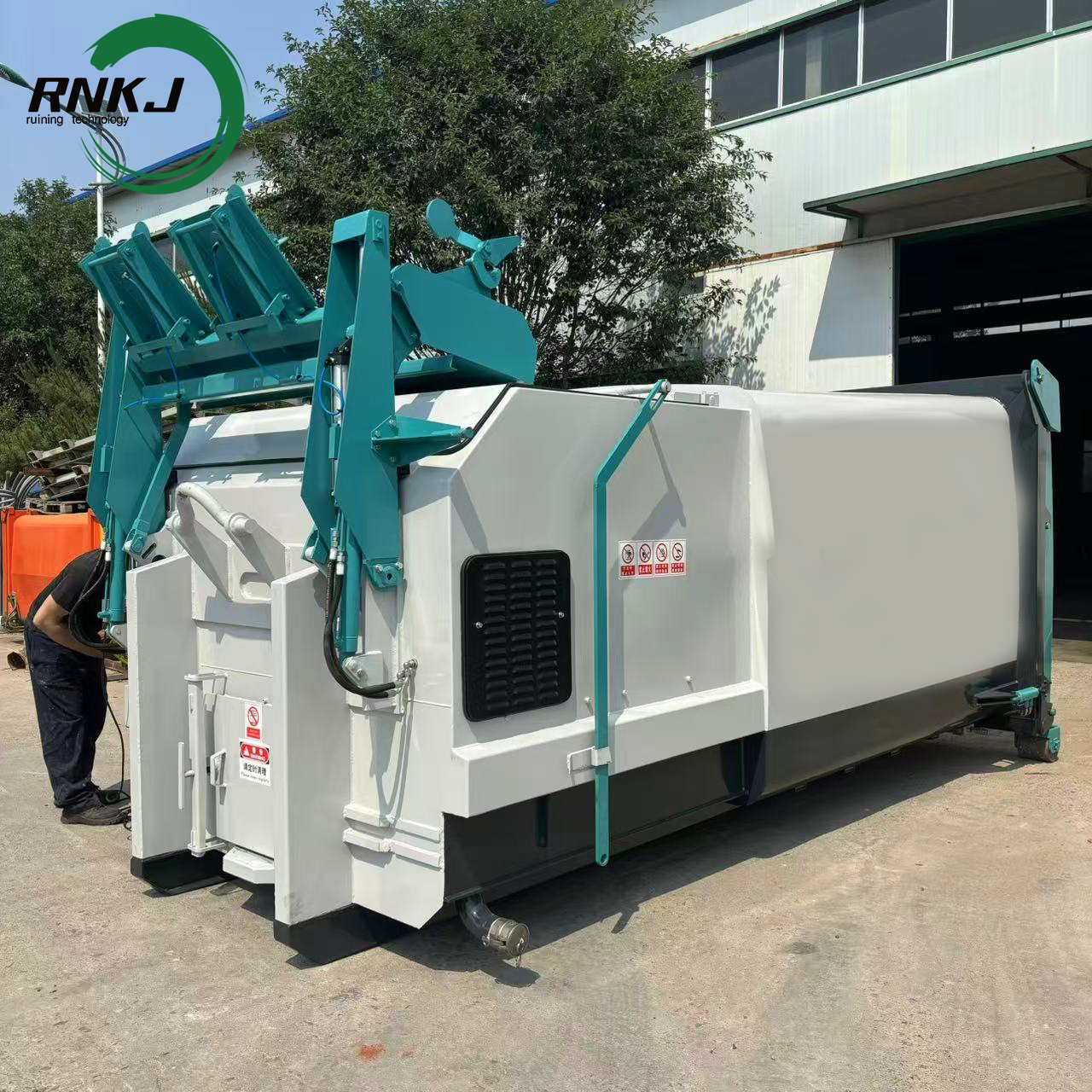

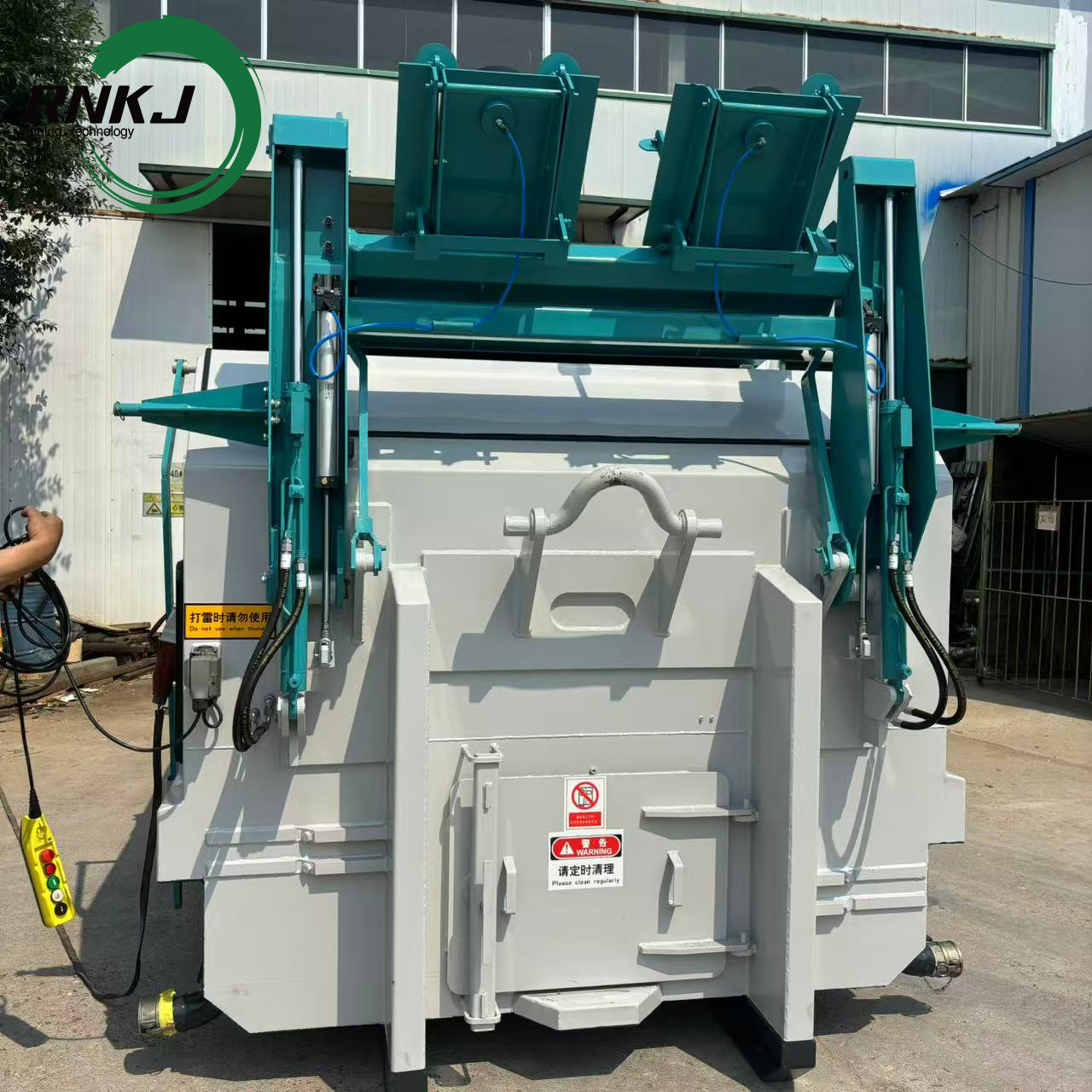

The Bucket-type Trash Compactor is a high-efficiency processing device designed for garbage bins. It has advantages such as high compression efficiency and convenient operation, and is widely used in small and medium-sized garbage processing scenarios.
Product Advantage
High compression efficiency: Significantly compresses loose waste, greatly increasing waste storage capacity and reducing the frequency of waste collection.
High degree of automation: Equipped with an automatic bin-tipping mechanism, it automatically pours waste from the bins into the compaction chamber, reducing manual labor intensity and improving operational efficiency.
Excellent environmental performance: Adopts a closed design, effectively reducing the spread of odors and the breeding of insects, improving the quality of the surrounding environment.
High mobility: Some equipment is mobile, allowing for flexible deployment based on waste generation volume and regional needs, adapting to different scenarios.
Cost savings: Reduces the frequency of waste collection, lowers transportation costs, and improves overall waste treatment efficiency, indirectly saving management costs.
Product Operation Process
1. Start the Equipment
Connect the power supply and start the hydraulic system according to the instructions on the control panel. Wait for the equipment to enter standby mode.
2. Load the Garbage Bin
Hang the matching garbage bin onto the loading mechanism (ensure the hook is securely connected to the bin handle).
Operate the control handle/button to rotate the loading mechanism, dumping the garbage into the compaction chamber. After dumping, the loading mechanism resets, and the empty garbage bin is removed.
3. Garbage Compression Cycle
Start the compression mechanism to gradually compact the garbage in the compaction chamber. Depending on the amount of garbage and the required compression density, the "loading bin → compression" cycle can be repeated multiple times until the compaction chamber is full or the preset compression level is reached.
During compression, closely observe the hydraulic system pressure and the equipment's operating sound. If any abnormality occurs, stop the machine immediately for inspection.
4. Unloading Operation
When the compressed garbage needs to be transferred, operate the unloading mechanism to push the compacted garbage block out and load it into a garbage truck.
5. Shutdown and Finishing Operations
After unloading, reset all equipment mechanisms and shut down the hydraulic system and power supply.
Clean debris from the equipment surface, inspect wear on vulnerable parts, and record the findings for future maintenance.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Applicable Scenarios
Urban residential areas: Densely populated areas with large and concentrated waste generation, requiring centralized compression and treatment to maintain a clean community environment.
Commercial districts: Numerous shops generate diverse and fluctuating types of waste, necessitating efficient waste management to prevent accumulation and negative impacts on the business environment.
Industrial parks: Large volumes of industrial waste are generated; compression reduces transportation costs and improves waste management within the park.
Urban-rural fringe areas: Waste collection points are relatively scattered; mobile, tipping-bin waste compactors are easily adaptable for use in different areas, filling gaps in waste treatment facility coverage.
Large public places: Such as parks, train stations, and airports, high pedestrian traffic leads to concentrated waste generation, requiring timely and efficient compression and treatment to maintain the aesthetics and hygiene of the location.
Product Details
Rational Design
The compression head is on the upper side of the tank to avoid liquid back flow and ensure that the cylinder and compression head are not corroded by sewage immersion,and thus ensure that the tank is clean.
Reasonable sewage treatment
Sewage collection box is equipped to prevent sewage leakage. Sewage can be dis-charged directly through sewage pump or transported with the tank for disposal.
Standardization
The garbage compactor is applicable for most standard hook arm garbage trucks in the world.
Customization
As a professional factory and manufacturer,we are able to caters to our customers needs in every way, such as color,capacity,dimensions,voltage etc.
Good Performance
The system adopts high strength steel as main frame to ensure its long service life.And it has high compression rate and short cycle time to ensure high efficiency.
Multiple Choices
Multiple choices of garbage drop-off point are available,including hoppers,flipping buckets, etc.Customers can choose the most suitable pattern.
Productive Capacity
We boast a professional team and solid factory capabilities to provide comprehensive customization support. Our services cover diverse requirements, including product type, capacity, height, and color. Additionally, we offer complimentary logo customization.
Equipment details
Laser cutting
Which is highly accurate and fast compared to traditional cut ting processes,and can precisely cut all types of metals.
Laser rust removal
Which is an efficient,energy saving and environmental protection way. It can remove the oil, oxide,rust, etc. On the surface of the object, and will not cause damage to the substrate.
Laser welding
Which is fast, deep,small deformation,better toughness of the weld, and we will detect the equipment.
Paint thickness
We spray one epoxy primer with a thickness of 20-25μm, two coats with a thickness of not less than 75μm,and varnish, if you have other requirements,you can customize the program.
Our Factory
As a manufacturer of environmental protection machinery, our company has efficiently operated production lines, a professional team of workers, perfect product quality system and global delivery capacity, and has passed the international ISO quality management system certification. We are serious and responsible for our products, and our company is committed to becoming a manufacturer for global users.
FAQ
1: Are you a manufacturer?
Yes,our factory was established in 2014 and we have our own trading company.
2. What payment method do you accept?
We accept T/T, L/C at sight, Western Union, Pay pal etc.
3. Can you put my brand name (logo) on these products?
Your logo and design can be created on the product.
4.Do you have any After-Sales service?
Yes!lf you have any technical problem or question with the goods, welcome tocontact our TechnicalSupport Dept. or our sales directly.
5.Are you just trading company or factory?
We are a professional factory, we can offer you the most competitive price,unparalleled quality and service.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
