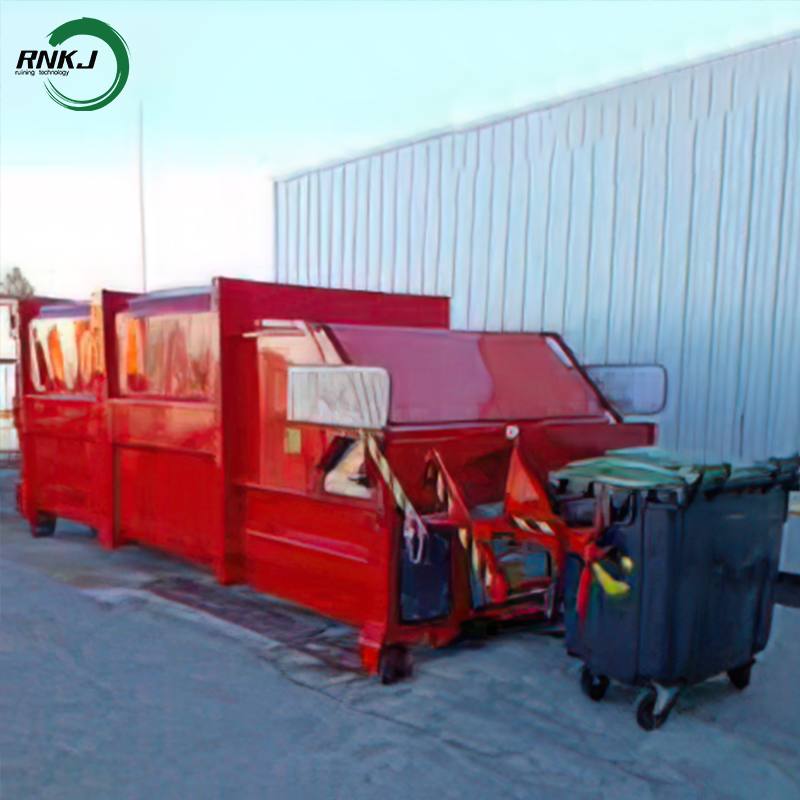

Bucket-type Garbage Compressor automatically compress large amounts of waste and reduce volume – for simple and efficient waste management.
Bucket-type Garbage Compressor are the ideal waste management solution for the hospitality, retail, and healthcare industries.
Not only do they feature exceptional design and materials to maximize longevity, they will reduce garbage hauling costs, help maintain a clean workplace, and cut offensive odors. As for usability? They’re a snap to operate.Equipped with a self-contained bucket device (suitable for different-sized trash cans), it can automatically pour the garbage in the bucket and then perform horizontal compression to achieve a one-stop processing of "collection - compression".
Product Advantage
Excellent compression effect, reducing garbage volume by 50%-60%, decreasing transportation frequency and costs.
Automated operation, automatically tipping and compacting the bins eliminates the need for manual garbage handling, reducing labor intensity.
Highly adaptable, compatible with common standard garbage bin sizes, requiring no additional bin modifications.
Excellent sealing performance reduces odor diffusion and leachate leakage during operation, promoting greater environmental hygiene.
Small footprint, integrating tipping and compaction functions, suitable for space-constrained environments such as residential areas and schools.
Core Structure
Tipping Feeding Mechanism: This is its signature structure, available in various volumes from 6m³ to 20m³. It adapts to different feeding methods, including garbage bins, handcarts, and small motor vehicles. The tipping action delivers garbage into the compression chamber, and the tipping bucket and feeding inlet fit tightly together, minimizing garbage and dust spillage.
Compression Mechanism: Primarily employs horizontal compression, equipped with an M-shaped pusher and a hydraulic system. The maximum compression ratio can reach 3:1, efficiently compressing loose garbage and reducing its volume, thus improving transfer efficiency.
Intelligent Control System: Generally equipped with an integrated PLC controller and human-machine interface, enabling functions such as fault alarms, full bin indication, and parameter visualization. Some models also feature remote fault monitoring, early warning, and automatic diagnostic capabilities, facilitating timely problem handling by operators.
Sealing and auxiliary structures: The rear door is locked and sealed with a hydraulic cylinder to prevent sewage leakage and odor leakage during transportation; some equipment is also equipped with sealed material receiving pipes, pressure plates and other components, and can be equipped with converters, intelligent spray deodorization devices and other devices to further reduce secondary pollution.
Product Operation Process
First, a hooklift truck places an empty garbage compactor container at the designated workstation, completing the positioning and locking operations.
Security workers dump garbage into the tipping bucket; once full, the tipping process is activated, sending the garbage into the compaction chamber.
The hydraulically driven pusher compresses the garbage and then pushes it into the compaction container; this process is repeated cyclically.
Once the container is full, the equipment sends a full signal, automatically stopping compression, and then unlocks the container.
The hooklift truck lifts the full container and transports it to the waste treatment plant. After unloading, the empty container is returned to the workstation, completing one work cycle.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
About Us
As a leader in the Environmental Protection Industry field, RNKJ are committed to providing global customers with solutions
that exceed their expectations through innovative technology, excellent quality and comprehensive services. With more than 20 years of industry experience, we have a professional design and development team. Equipped with advanced production equipment and automated production lines to meet large-scale order needs. International Certifications: Passed ISO, CE, UL and other international quality and safety certifications. Quality Commitment: We promise that all products undergo a strict quality control process, from raw material procurement to finished product delivery, every
step follows the highest quality standards.
Customized Service: We offer customized services, allowing us to adjust product specifications, packaging designs, etc. according to your specific requirements.
We look forward to working with you. If you have any questions or need further discussion, please feel free to contact us at any time.further discussion
Why should I use Garbage compactor?
Because compacting waste and packaging material significantly reduces the number of trips for the transport of material from the warehouse to the landfill where recycling takes place and consequently reduces fuel consumption and CO2 emissions, as well as road traffic.
Recycling is one of the most important actions to reduce resource consumption through the use of end-of-life products, for their transformation into raw materials to be used in production processes. Packaging materials, such as paper, cardboard and plastic, are among the most easily recyclable products as long as they arrive, correctly differentiated, to the appropriate supply chains.
The purchase of Garbage compactor is therefore an investment of great ecological value, but not only! This investment also has a beneficial economic impact, because the compaction of waste saves space, time, handling and transport costs.
Our garbage compactors are available as both mobile and stationary solutions and can be adapted to many types of waste – such as dry, wet organic, or mixed residual waste. They are ideal for businesses with large amounts of waste – for example in production, retail, or logistics – where efficiency and space utilisation are crucial.
With a press plate, the compactor pushes the waste into a closed container, where it is compressed and therefore takes up significantly less space. This means fewer collections, lower transport costs, and a more orderly workplace.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
