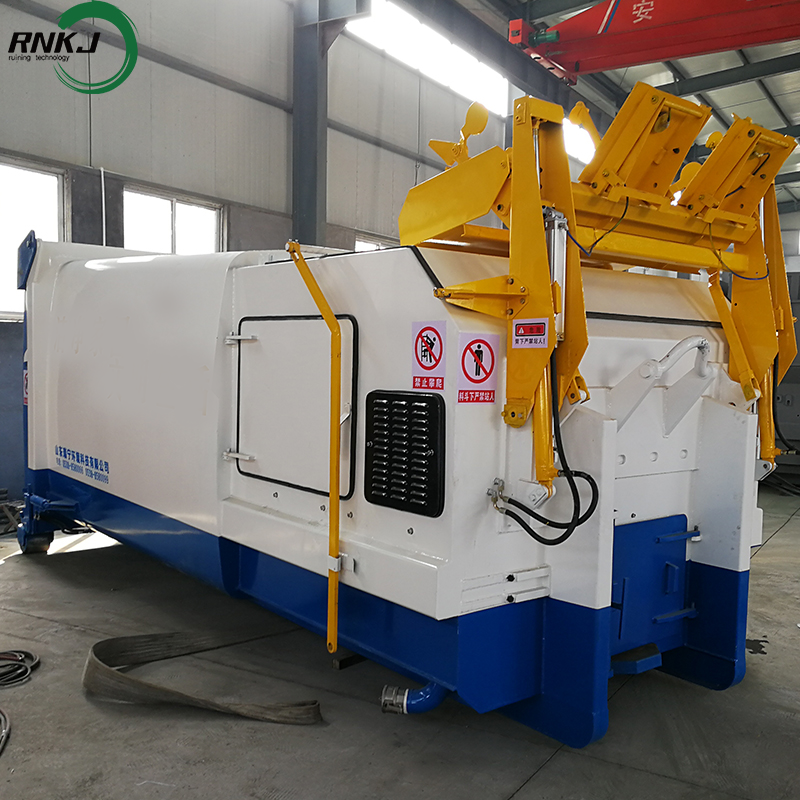

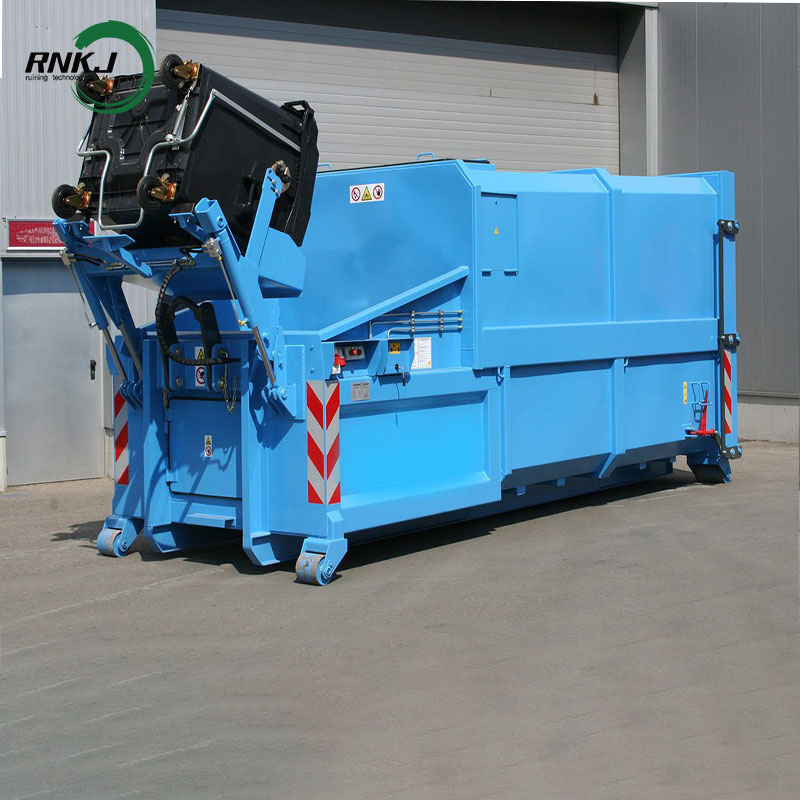

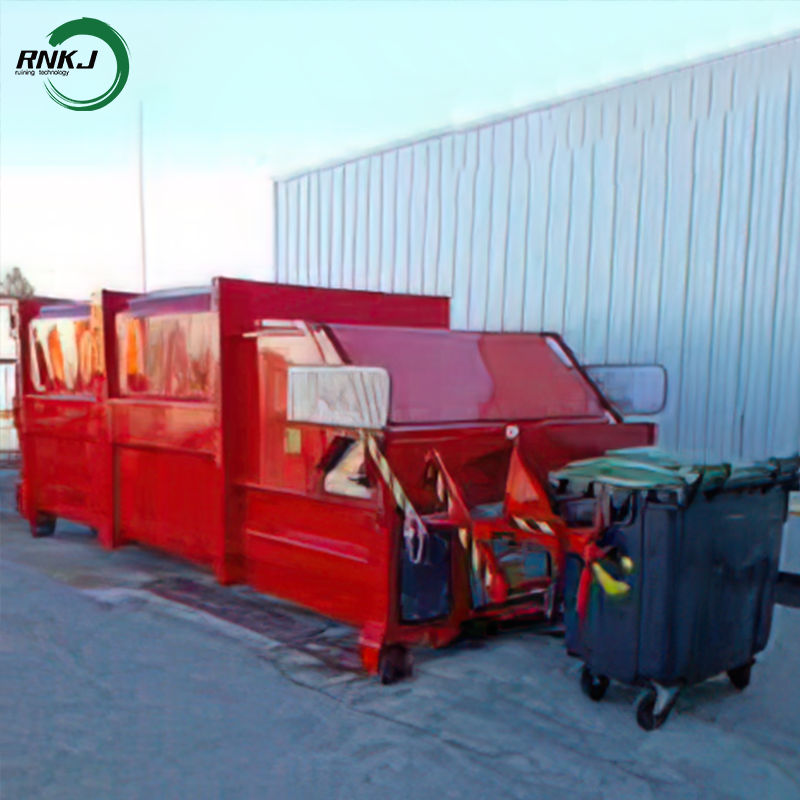

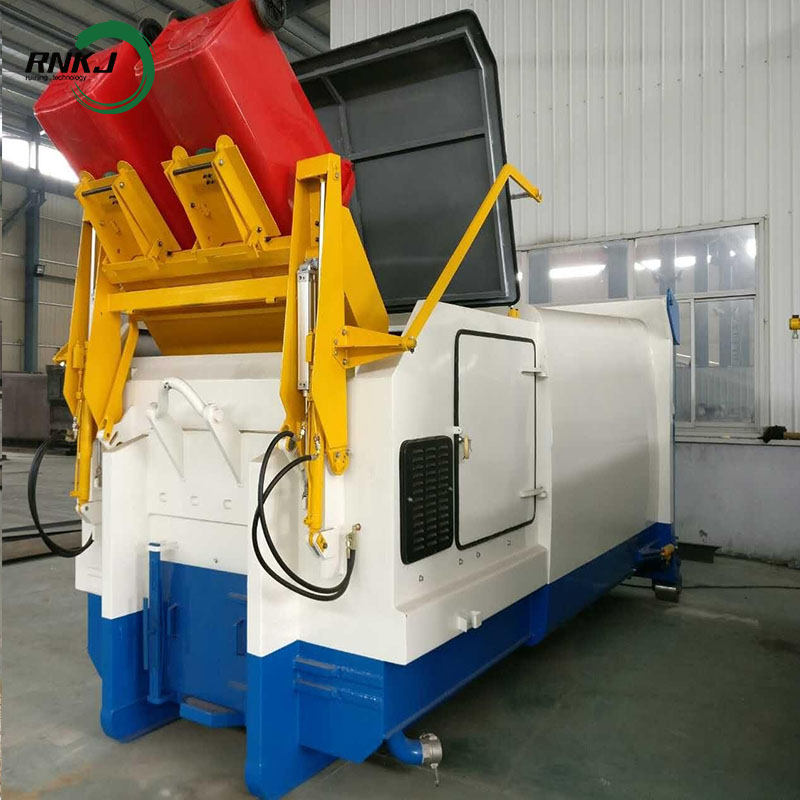

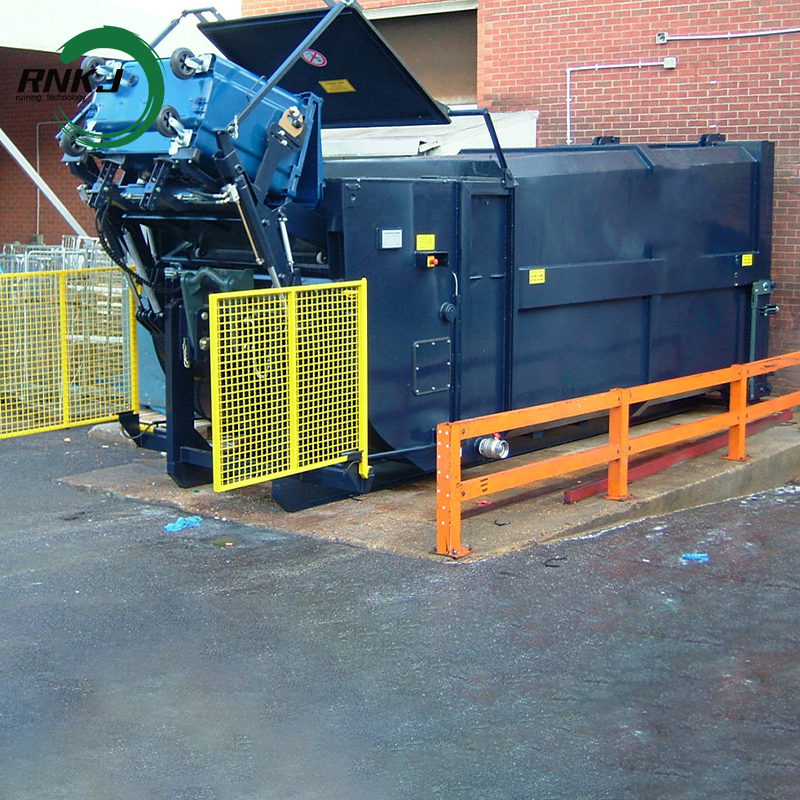

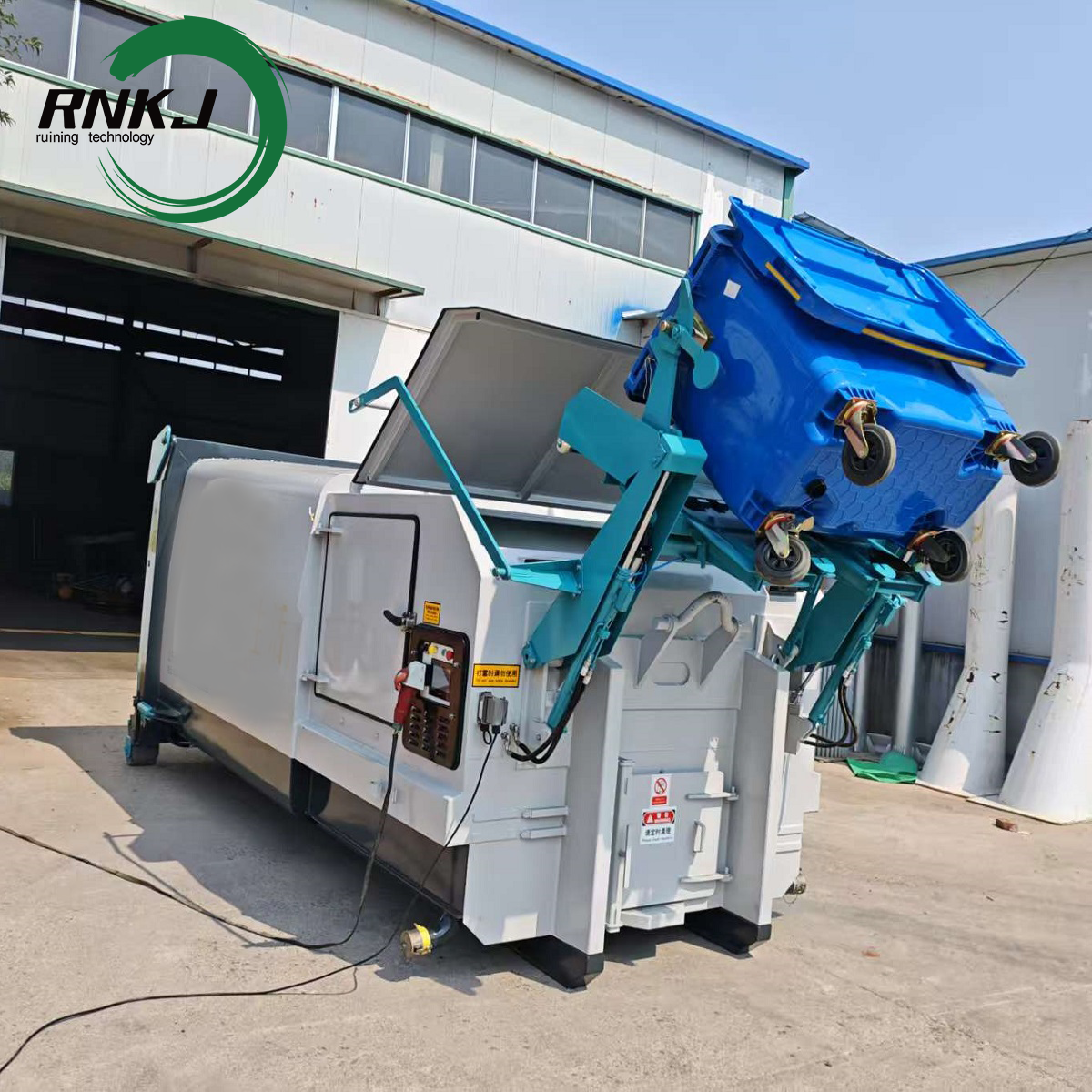

Bucket Trash Compressor is a device used for garbage compression processing. It mainly achieves garbage reduction through the bucket feeding mechanism and the compression mechanism.
The Bucket Trash Compressor uses a large-capacity bucket to lift the collected loose household waste and pour it into the main compression chamber. Utilizing the horizontal compression technology, the garbage is directly compressed into a closed garbage box, reducing the volume of the garbage and increasing its density, thereby increasing the carrying capacity.
Product Advantage
Environmental protection performance is excellent: 100% waterproof leakage prevention, the sealing ring has a long service life, which can effectively avoid secondary pollution, and the noise is low during compression.
Flexible use: No specific foundation or civil engineering is required, the utilization rate of the vehicle chassis is high. One boom truck can be equipped with 4 to 6 garbage stations.
Simple operation: Adopting an integrated PLC controller and human-machine operation interface, key parameters are visualized, and it can also be controlled through the wire button box. The operation is safe and hygienic.
Working principle
The Bucket Trash Compressor uses a large-capacity hopper to lift the collected loose household waste and pour it into the main compression chamber. By employing horizontal compression technology, the waste is directly compressed into a sealed garbage bin, reducing the volume of the waste and increasing its density, thereby increasing the carrying capacity.
Structural Characteristics
Dumping hopper feeding device: Usually, a rear-reversing hopper is used for feeding. The hopper can be tightly sealed with the feeding port, and while garbage is being poured in, the feeding port is immediately closed by the hopper, effectively preventing garbage and dust from spilling out.
Compression mechanism: Generally, a horizontal compression method is adopted. The compression head is driven by a hydraulic system to compress the garbage. The compression head is mostly an M-shaped pusher, with a stable structure and not prone to deformation.
Box body: There are two types: integrated type and split type. The integrated type combines the compressor and the box body into one. The split type separates the compressor and the box body, and can be transported by a hook-arm vehicle.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Applicable scenarios
The Bucket Trash Compressor, which is used for small-scale garbage transfer stations in towns and urban areas, is mainly designed to compress and reduce the volume of domestic garbage in the surrounding areas of towns and cities. The entire equipment is in a sealed state, and during the entire transfer process, there will be no situation of exposed garbage, spillage, or unpleasant odors, which would cause secondary environmental pollution. Moreover, it reduces the transportation costs of domestic garbage and saves costs.
Feature
Sanitary: Self-contained compactors have a built-in fluid collection chamber (sump).
Easy to use: Self-contained compactors are easy and safe to operate and require no special training.The user throws in the garbage and turns the compactor on with the touch of a button.
Cost-effective: Trash is compacted into blocks ,take up less space, saving your money on hauling trips.
Usage Notes
- Do not compress sharp items (such as glass shards, metal tools), or flammable and explosive items (such as batteries, lighters). This is to prevent damage to the equipment and potential safety hazards.
- For kitchen waste, it is recommended to drain the water as much as possible before compressing to reduce leakage and unpleasant odors.
- Regularly clean the box and the pressing disc to prevent the accumulation of garbage from breeding bacteria.
- For electric models, pay attention to power safety. Avoid operating with wet hands. Turn off the power when not in use for a long time.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
