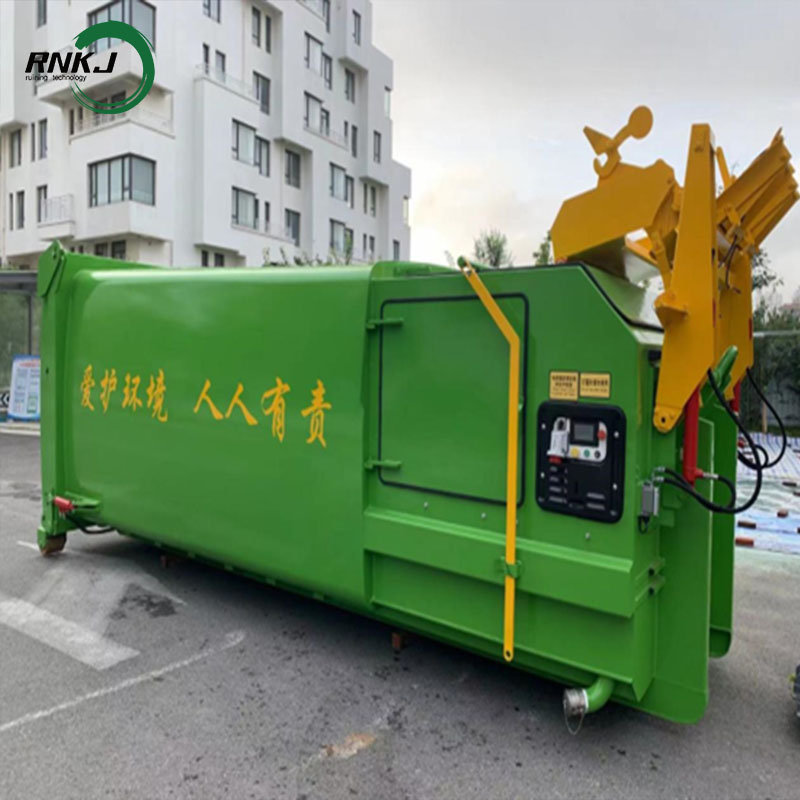

The RNKJ series of Bucket Trash Compaction Station enables customers to empty their waste bins safely and efficiently. Our systems can be customized to meet your needs. RNKJ wheelie bin tipping units can lift and empty nearly any type of wheelie bin or waste container, placing it into a compactor or roll-off bin.
These units are available in a wide variety, from stationary units with integrated compactors, mobile wheelie bin lifts, to floor-mounted bolt-on units designed to tip at a specific height for feeding material into larger bins or hoppers. Tipping heights range from 1000 mm to 3000 mm or more. These units offer a variety of power options, including fully hydraulic, hydraulic chain drive, or electric chain drive.

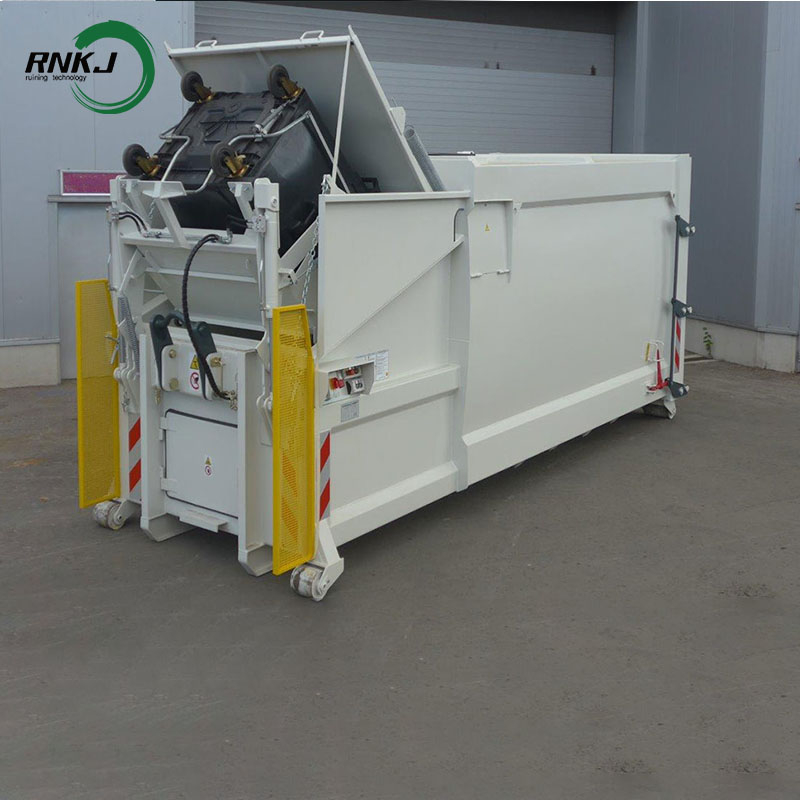

Our mobile wheelie bin lifts are ideal for lifting 80/120/240 liter wheelie bins, or larger 660/770/1100 liter wheelie bins, into a compactor. These units are equipped with two fixed casters and two swivel brake casters, allowing them to be easily moved from one location to another.
Product Advantage
High compression ratio, significant volume reduction: Utilizing hydraulic drive, the volume of loose waste (such as food waste, plastic, and paper) can be compressed to 1/3 to 1/5 of its original size. A single unit can handle 20 to 30 standard bucket-sized waste every hour, far exceeding the efficiency of manual operation;
Strong continuous operation capability: The equipment is designed with a stable power system, supporting continuous dumping, compression, and storage, avoiding garbage accumulation.
Product Operation Process
Trash cans are placed at the entrances of building corridors. Property management staff use garbage collection trucks to transport the garbage to a Bucket-type Garbage Compactor. After the garbage is compressed, a dedicated sanitation vehicle transports it to the waste disposal site, where it is unloaded and transported back to its original location.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Process Flow
1. Unloading: The loading arm vehicle will unload the empty Bucket Trash Compaction Station to the designated location.
2. Collection and compression of garbage: The cleaning staff will push the garbage to the side of the compactor and directly introduce it into the compression bin. Through the pusher in the compression head, the garbage is pushed into the box.
3. When the loading bin is 80% full, an automatic alarm will sound (the alarm light keeps flashing). The operator will operate the button to raise the loading device to the top of the compactor and place it there. Cut off all connections and prepare to lift the vehicle body.
4. Lifting: The loading arm vehicle lifts the fully loaded integrated garbage compactor bin.
5. Transfer: The loading arm vehicle locks the vehicle body and transports the fully loaded garbage vehicle to the garbage disposal site.
6. Disposal: The loading arm vehicle arrives at the garbage disposal site and disposes of the garbage by operating the control valve to open the rear door. It disposes the garbage in a dump truck manner. After the disposal, the operator closes and locks the rear door and completes the entire garbage disposal process in the driver's cabin. The empty vehicle body is unloaded to the designated location to collect the garbage.
Product Details
Rational Design
The compression head is on the upper side of the tank to avoid liquid back flow and ensure that the cylinder and compression head are not corroded by sewage immersion,and thus ensure that the tank is clean.
Reasonable sewage treatment
Sewage collection box is equipped to prevent sewage leakage. Sewage can be dis-charged directly through sewage pump or transported with the tank for disposal.
Standardization
The garbage compactor is applicable for most standard hook arm garbage trucks in the world.
Customization
As a professional factory and manufacturer,we are able to caters to our customers needs in every way, such as color,capacity,dimensions,voltage etc.
Good Performance
The system adopts high strength steel as main frame to ensure its long service life.And it has high compression rate and short cycle time to ensure high efficiency.
Multiple Choices
Multiple choices of garbage drop-off point are available,including hoppers,flipping buckets, etc.Customers can choose the most suitable pattern.
Productive Capacity
We have a professional team and the strength of the factory to support customization. Including type, volume, height, color and other requirements, free custom logo.
Equipment details
Laser cutting
Which is highly accurate and fast compared to traditional cut ting processes,and can precisely cut all types of metals.
Laser rust removal
Which is an efficient,energy saving and environmental protection way. It can remove the oil, oxide,rust, etc. On the surface of the object, and will not cause damage to the substrate.
Laser welding
Which is fast, deep,small deformation,better toughness of the weld, and we will detect the equipment.
Paint thickness
We spray one epoxy primer with a thickness of 20-25μm, two coats with a thickness of not less than 75μm,and varnish, if you have other requirements,you can customize the program.
Packaging and shipping
The shipping methods include: Ro-Ro, bulk shipping, 20ft container, 40ft container, 40 HQ container, flat rack container, open top, platform container express, etc.
Our Factory
As a manufacturer of environmental protection machinery, our company has efficiently operated production lines, a professional team of workers, perfect product quality system and global delivery capacity, and has passed the international ISO quality management system certification. We are serious and responsible for our products, and our company is committed to becoming a manufacturer for global users.
FAQ
1. Who are we?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2. How can we guarantee the quality?
Always have pre-production samples before mass production; Always have final inspection before shipment;
3. What can you buy from us?
Trash compactor,Underground garbage compactor,Underground collection system,Hook lift bin,Skip bin,Sweeper,sScrubber.
4. What services can we provide?
Customized bins are accepted.Someone will answer your questions at any time, 24 hours online.We will provide pre-sales and after-sales service
5.What shall we do if we do not have drawings?
Please send your sample to our factory, then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions (Thickness, Length, Height, Width), CAD or 3D file will be made for you if placed order.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
