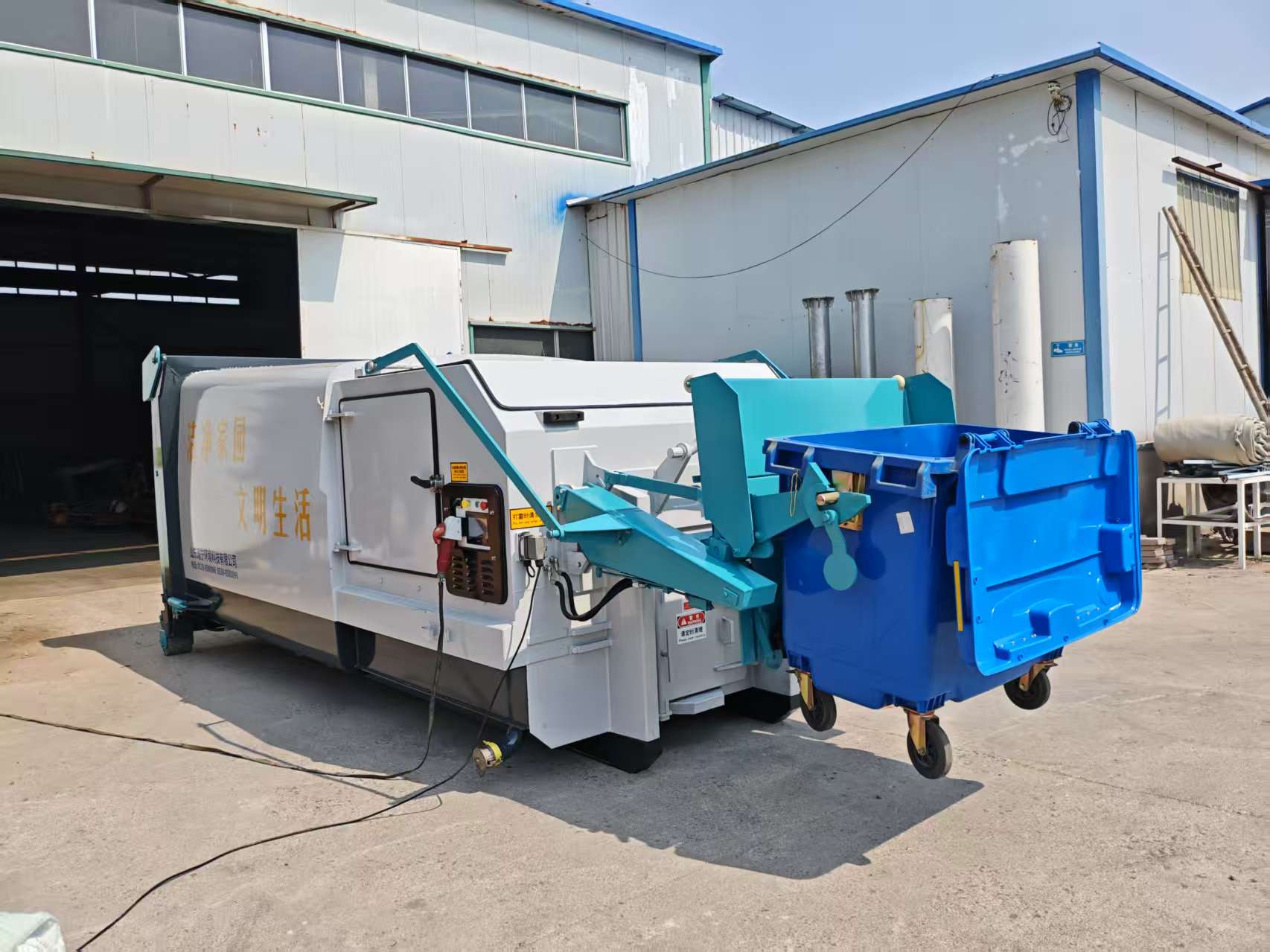

The Bucket Compression Waste Station is a high-efficiency processing equipment suitable for small and medium-sized garbage collection points. Its core function is to reduce the volume of garbage and improve the transfer efficiency through mechanical bucket-turning loading and hydraulic compression. It is commonly found in residential areas, towns and small commercial blocks.
Product Advantage
High Efficiency: The entire process of drum loading and hydraulic compression takes only 3-5 minutes per cycle, 3-5 times more efficient than manual handling and compression.
Effective Volume Reduction: The garbage compression ratio can reach 1:3-1:5, significantly reducing the number of garbage transfers and lowering transportation costs.
Environmentally Friendly: The sealed compression and storage silos reduce odor spread, and the integrated wastewater collection system prevents leachate from contaminating the soil or groundwater.
Easy Operation: The system is highly automated, allowing operators to take up the job with minimal training, eliminating the need for complex technical skills.
Product Operation Process
Trash cans are positioned at the entrances of building corridors for residents to dispose of waste. Property management staff then utilize garbage collection trucks to transport the collected waste to a Bucket Compression Waste Station. Once the waste is compressed, a dedicated sanitation vehicle conveys the compacted waste to the waste disposal site. After unloading the waste at the site, the sanitation vehicle returns to its original location to prepare for the next round of transportation.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Process Flow
Loading with a Tilting Bin: The operator pushes a full standard trash bin toward the equipment's tilting mechanism. Pressing the trigger button automatically clamps the bin, tilts it 120-180 degrees, and dumps the garbage into the equipment's compression chamber.
Hydraulic Compression: When the bin reaches the set volume, the hydraulic system drives the compression pusher plate, squeezing the garbage horizontally to reduce its volume to 1/3-1/5 of its original size. The expelled wastewater flows through the drainage holes at the bottom of the bin into a wastewater collection tank.
Storage for Transport: The compressed garbage blocks are temporarily stored in the equipment's storage bin. Once the bin is full, the garbage truck docks.
Unloading and Transfer: When the truck docks, the equipment uses a hydraulic push mechanism or tilts the storage bin to push the compressed garbage blocks into the truck, completing the processing cycle.
Applicable Scenarios
Residential communities: Process daily household waste. A single station typically processes 5-20 tons of waste per day, matching the waste volume of small and medium-sized communities.
Townships and rural-urban fringe areas: Compared to large compression stations, this equipment occupies a smaller footprint and has lower construction costs, making it suitable for decentralized waste collection points.
Small commercial districts, schools, and hospitals: The waste composition is relatively simple (primarily kitchen waste and household waste). The equipment is easy to operate and can quickly complete daily processing.
Product Details
Rational Design
The compression head is on the upper side of the tank to avoid liquid back flow and ensure that the cylinder and compression head are not corroded by sewage immersion,and thus ensure that the tank is clean.
Reasonable sewage treatment
Sewage collection box is equipped to prevent sewage leakage. Sewage can be dis-charged directly through sewage pump or transported with the tank for disposal.
Standardization
The garbage compactor is applicable for most standard hook arm garbage trucks in the world.
Customization
As a professional factory and manufacturer,we are able to caters to our customers needs in every way, such as color,capacity,dimensions,voltage etc.
Good Performance
The system adopts high strength steel as main frame to ensure its long service life.And it has high compression rate and short cycle time to ensure high efficiency.
Multiple Choices
Multiple choices of garbage drop-off point are available,including hoppers,flipping buckets, etc.Customers can choose the most suitable pattern.
Productive Capacity
We have a professional team and the strength of the factory to support customization. Including type, volume, height, color and other requirements, free custom logo.
Equipment details
Laser cutting
Which is highly accurate and fast compared to traditional cut ting processes,and can precisely cut all types of metals.
Laser rust removal
Which is an efficient,energy saving and environmental protection way. It can remove the oil, oxide,rust, etc. On the surface of the object, and will not cause damage to the substrate.
Laser welding
Which is fast, deep,small deformation,better toughness of the weld, and we will detect the equipment.
Paint thickness
We spray one epoxy primer with a thickness of 20-25μm, two coats with a thickness of not less than 75μm,and varnish, if you have other requirements,you can customize the program.
Packaging and shipping
The shipping methods include: Ro-Ro, bulk shipping, 20ft container, 40ft container, 40 HQ container, flat rack container, open top, platform container express, etc.
Our Factory
As a manufacturer of environmental protection machinery, our company has efficiently operated production lines, a professional team of workers, perfect product quality system and global delivery capacity, and has passed the international ISO quality management system certification. We are serious and responsible for our products, and our company is committed to becoming a manufacturer for global users.
FAQ
Q1: Are you a manufacturer?
A: Yes,our factory was established in 2014 and we have our own trading company.
Q2: Can you provide customers' design?
A: Sure, we can provide OEM and ODM service.
Q3. What payment method do you accept?
We accept T/T, L/C at sight, Western Union, Pay pal etc.
Q4. Do you have any After-Sales service?
Yes! If you have any technical problem or question with the goods, welcome to contact our Technical Support Dept. or our sales directly.
Q5. What can you buy from us?
Trash compactor,Underground garbage compactor,Underground collection system,Hook lift bin,Skip bin,Sweeper,Scrubber.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
