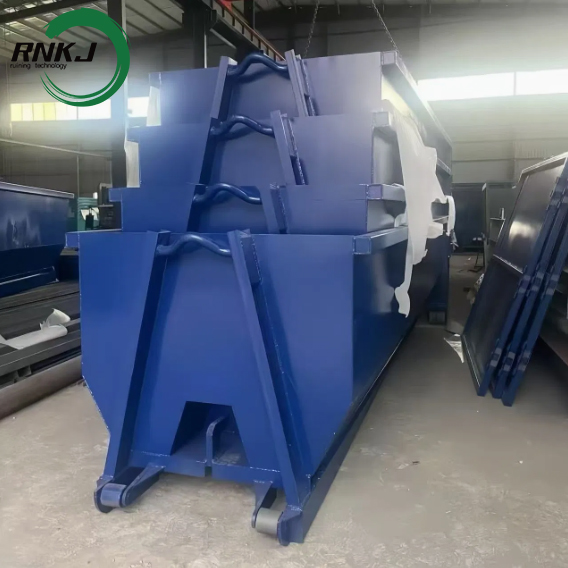

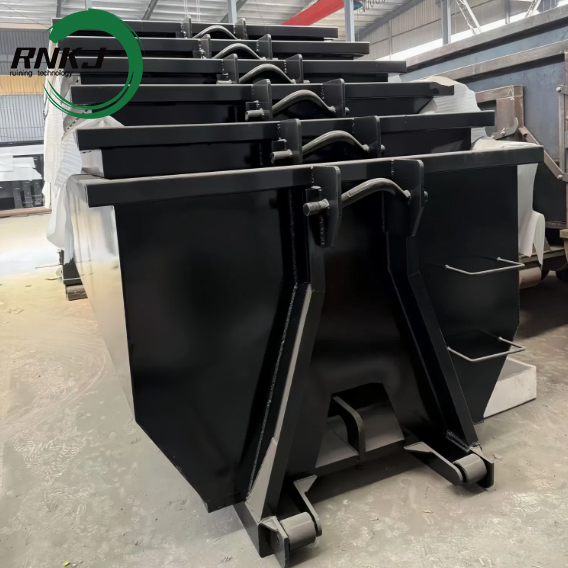

The 8 Cubic Roll Off Dumpster is a heavy-duty steel structure container specifically designed for temporary waste collection and transportation. It is transported and unloaded by a dedicated roll-off truck. With an appropriate capacity and flexible mobility, it is an ideal choice for residential renovations, small construction sites, yard cleanups, and small commercial projects, and holds an important position in the waste management field.
Looking for a Roll Off Dumpster that will meet your specific needs?
Roll Off Dumpster typically range in size from 10 – 50 Yd., but we can build them to fit your specific requirements. You will find the different standard specifications. And if you don’t find what you’re looking for, we can always customize a Hook Lift Bins to fit your specific requirements. So whatever your needs may be, we have a Roll Off Dumpster that will meet them!
Product Advantage
Moderate capacity: With a volume of 8 cubic meters, it can meet the needs of small projects without occupying excessive space due to its large size. It is suitable for residential driveways and narrow areas.
Flexible mobility: It can be quickly loaded, unloaded and moved, making it suitable for temporary projects and scenarios where frequent relocation is required.
Easy loading: The open design and low height facilitate the loading of various types of garbage, including large furniture, construction materials, and yard waste.
Sturdy structure: The full steel welding and reinforcement design ensure it can withstand the impact of heavy garbage and the pressure of frequent transportation.
Safe design: Rounded corners, stable door locks, and anti-slip bottoms enhance safety during use.
Leak-proof design: The rear door sealing strip and full welding at the bottom prevent the leakage of garbage leachate, complying with environmental protection requirements.
Reduce transportation frequency: Compared to small trash cans, the 8 Cubic Roll Off Dumpster can reduce the number of garbage transports, lowering carbon emissions and transportation costs.
Classification collection: Optional dividing plates can be equipped to achieve the classification collection of different types of garbage, supporting recycling.
Long-term usage value: High-quality steel and anti-corrosion treatment ensure a lifespan of 6-15 years, with low long-term usage costs.
Core SpecificationsVolume: 8 cubic yards: The effective volume is usually 85% - 90% of the rated volume.
External dimensions: The low-profile design makes it easy to load and unload, and is suitable for narrow passages.
Alternative size: Some manufacturers offer a high-profile design with the same capacity but a smaller footprint.
Weight limit: Adjusted according to the type of garbage and local regulations. Extra charges may apply for overweight items.
Load-bearing capacity: The actual load capacity is affected by the density of the garbage.
Empty box weight: Dependent on the thickness of the steel and the structural design.
Main StructureThe 8 Cubic Roll-off Dumpster is constructed with a fully welded steel structure, ensuring durability under heavy loads and frequent transportation conditions:
Box shape: The standard design is a rectangular open type, which is convenient for loading large and irregular items; some models can be optionally equipped with detachable or sliding lids to prevent garbage from spilling and odors from spreading.
Bottom structure: It uses thick steel plates, and the bottom has structural steel bars for reinforcement, combined with corner support plates, forming a load-bearing frame with strong load-bearing capacity.
Side wall design: The structural steel bars are used as the reinforcing top rails, improving the overall stability.
Edge and corner treatment: All edges and corners are treated with reinforced corner plates to prevent scratches and structural deformation during loading, and to enhance safety.
Working PrincipleTransportation and placement: The roll-off truck transports the empty garbage bins to the designated location. It then uses a hydraulic system to tilt the compartment and smoothly places the garbage bins on the ground using rollers.
Loading stage: Users can load garbage into the box through the open top or the sloping rear door.
Recycling stage: Once the garbage bin is full, the roll-off truck returns and is lifted back onto the compartment using the boom system.
Dumping process: The roll-off truck transports the garbage bin to the waste disposal site. It then tilts the compartment using the hydraulic system, allowing the garbage inside the bin to be dumped into the designated area.
Technical ParametersProduct name | Hook bin & Hook lift Bin & Roll on / roll off container |
Material | Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade |
Size Range | from 10 to 80 yd And OEM is also available. |
Thickness of plates used | 10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to your requirements. |
Other specifications | 1). RHS are used for top rails, and top edge of plate continuous welded to RHS 2). Fully and partly welded inside and outside |
Options | 1) Two openning door 2) Up openning door |
Painting | We will paint each bin you order in your company colour, enhancing your company image with great looking bins.Two times of primer |
Main MaterialQ235 steel
Moderate strength, reasonable cost, good welding performance General waste collection, light to moderate construction waste Side plate 2-3mm, bottom plate 3-4mm
Q345 high-strength steel
Higher yield strength, strong resistance to deformation Heavy construction waste, industrial waste residue, heavy-load materials
Tailgate Shape

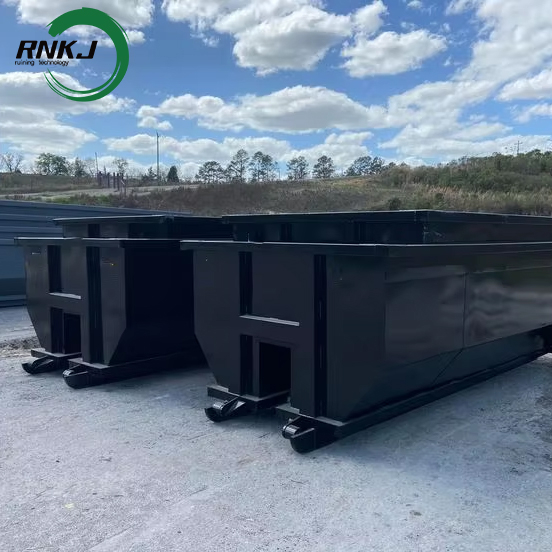

Detailed Images
Main Application ScenariosResidential projects:
Renovation and decoration of small houses
Yard cleaning and landscaping
Large-scale cleaning and clutter disposal before moving house
Business and Industry:
Renovation of small shops and inventory clearance
Office relocation and furniture replacement
Treatment of production waste from small manufacturing enterprises
Other purposes:
Community cleaning day activities
Post-disaster cleanup
Small-scale demolition and cleaning work at construction sites
Type Of GarbageConstruction waste: wood, gypsum board, bricks, tiles, concrete fragments, metal waste
Domestic waste: furniture, appliances, mattresses, cardboard boxes, plastic, old clothes
Yard waste: branches, leaves, lawn trimmings, shrubs, small trees
General commercial waste: packaging materials, office waste paper, expired goods
The 8 Cubic Roll Off Dumpster is an ideal choice for small-scale waste management projects due to its moderate capacity, flexible mobility, and sturdy structure. Its standardized design and diverse configurations enable it to adapt to various usage scenarios and types of waste. Whether it's residential renovations, yard cleanups, or small commercial projects, the 8 Cubic Roll Off Dumpster can provide efficient, safe, and environmentally friendly waste disposal solutions, helping users easily handle various waste disposal needs.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
