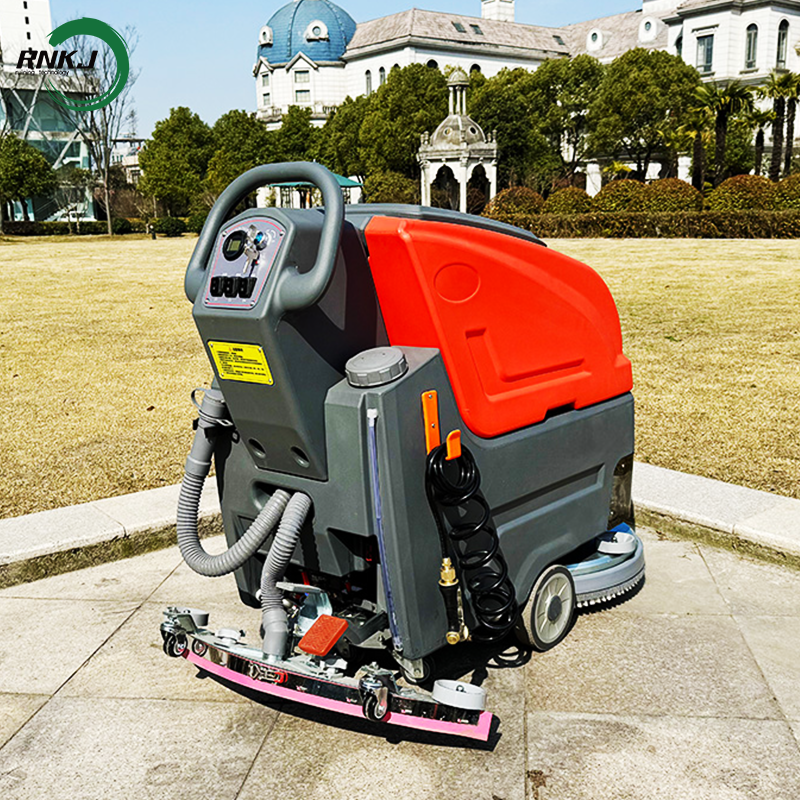

The Walk Behind Floor Cleaning Scrubber is a high-performance professional floor cleaning machine designed for efficient cleaning of medium to large commercial and industrial areas. Combining powerful scrubbing, water cleaning, and vacuum drying functions, this walk behind scrubber dryer machine provides an all-in-one solution for removing dirt, dust, oil stains, and stubborn contaminants from various hard floor surfaces.
Featuring a compact structure, easy operation, strong cleaning performance, and intelligent control technology, this commercial walk behind floor scrubber is widely used in shopping malls, warehouses, factories, supermarkets, hospitals, schools, airports, parking areas, and other public facilities.
Compared with traditional manual cleaning methods, this electric walk behind floor cleaning scrubber significantly improves cleaning efficiency while reducing labor costs and water consumption, making it an ideal choice for modern facility maintenance.
Main Features of Walk Behind Floor Cleaning ScrubberThis Walk Behind Floor Cleaning Scrubber is equipped with a high-efficiency brush motor and vacuum motor, providing strong scrubbing force and excellent water recovery performance.
The rotating brush effectively removes:
Dust and debris
Mud stains
Oil stains
Footprints
Industrial dirt
Daily accumulated contaminants
The integrated suction system quickly recovers wastewater after scrubbing, leaving the floor clean and dry immediately after operation.
The ergonomic walk-behind design allows operators to easily control the machine in different working environments.
Benefits include:
Compact body structure
Small turning radius
Flexible movement
Easy transportation and storage
Suitable for narrow spaces
With a minimum turning radius of only 270mm, this compact floor scrubber machine can easily clean around shelves, corners, aisles, and equipment areas.
The machine features:
Cleaning width: 520mm
Suction width: 830mm
Cleaning efficiency: up to 2600㎡/h
The wide cleaning path allows operators to cover more floor area in less time, improving productivity compared with traditional mop cleaning.
This makes the machine suitable for:
Commercial buildings
Industrial workshops
Logistics warehouses
Retail stores
Public transportation facilities
The battery powered walk behind floor scrubber uses a rechargeable battery system, providing excellent mobility without the limitation of power cables.
Advantages:
No cable restrictions
Flexible operation
Low noise performance
Suitable for indoor environments
Easy maintenance
The machine is equipped with a 24V/100Ah battery system, providing approximately 2.5–3 hours working time on a single charge.
The machine adopts a separate clean water tank and recovery water tank design.
65L
75L
The large-capacity tanks reduce frequent water replacement and improve continuous cleaning efficiency.
The recovery tank efficiently collects wastewater, preventing secondary pollution and keeping the working environment clean.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Walk Behind Floor Cleaning Scrubber |
| Model | R-X520-Z |
| Cleaning Width | 520mm |
| Suction Width | 830mm |
| Brush Diameter | 500mm |
| Cleaning Efficiency | 0-2600㎡/h |
| Clean Water Tank | 65L |
| Recovery Water Tank | 75L |
| Working Time | 2.5-3 Hours |
| Battery Type | Lead Acid Battery |
| Battery Voltage | 24V/100Ah |
| Brush Motor | 24V/550W |
| Vacuum Motor | 24V/500W |
| Water Pump | 24V/120W |
| Machine Weight | 145kg |
| Machine Size | 1300×830×1010mm |
| Packing Size | 1360×660×1220mm |
| Turning Radius | 270mm |
Product Overview
Applicable Scenarios
Optional Charger And PlugFor any other chargers and plugs, please contact us.
Product Details
Adjustable Driving SpeedThe walking drive system supports adjustable speed control, allowing users to select the appropriate working speed according to different floor conditions.
It provides better cleaning results for:
Smooth tile floors
Concrete floors
Epoxy floors
Marble floors
Commercial flooring
Brush Pressure Adjustment SystemThe machine uses a pressurized brush cleaning structure, increasing contact pressure between the brush and floor surface.
This improves cleaning ability for stubborn stains while maintaining stable operation.
Efficient Water Recovery SystemThe upgraded vacuum system provides powerful suction performance.
After cleaning:
Less residual water
Faster drying time
Safer walking environment
Reduced slip risks
It is especially suitable for high-traffic areas where floors need to be quickly reused.
Applications of Walk Behind Floor Cleaning ScrubberThe Walk Behind Floor Cleaning Scrubber Machine is widely used in various industries.
Shopping malls
Supermarkets
Hotels
Restaurants
Office buildings
Exhibition centers
Manufacturing plants
Warehouses
Automotive workshops
Production facilities
Logistics centers
Hospitals
Schools
Airports
Train stations
Parking garages
Advantages Compared with Traditional Cleaning MethodsA professional walk behind floor scrubber dryer can clean thousands of square meters per hour, greatly improving productivity.
One operator can complete large-area cleaning tasks quickly, reducing dependence on manual labor.
The combination of brushing and vacuum drying provides deeper cleaning compared with traditional mopping.
Controlled water usage reduces water waste and minimizes wastewater generation.
The fast drying function helps prevent slipping accidents caused by wet floors.
Why Choose This Walk Behind Floor Cleaning Scrubber?The Walk Behind Floor Cleaning Scrubber is an ideal solution for customers looking for a reliable, efficient, and cost-effective commercial cleaning machine.
Key advantages include:
Powerful 550W brush motor
Strong 500W vacuum motor
Large 65L/75L dual tank system
Long battery working time
520mm cleaning path
High cleaning efficiency up to 2600㎡/h
Compact and flexible design
Suitable for multiple floor types
Easy operation and maintenance
Whether used for daily facility maintenance or heavy-duty industrial cleaning, this electric walk behind floor scrubber dryer delivers professional cleaning performance and long-term reliability.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
