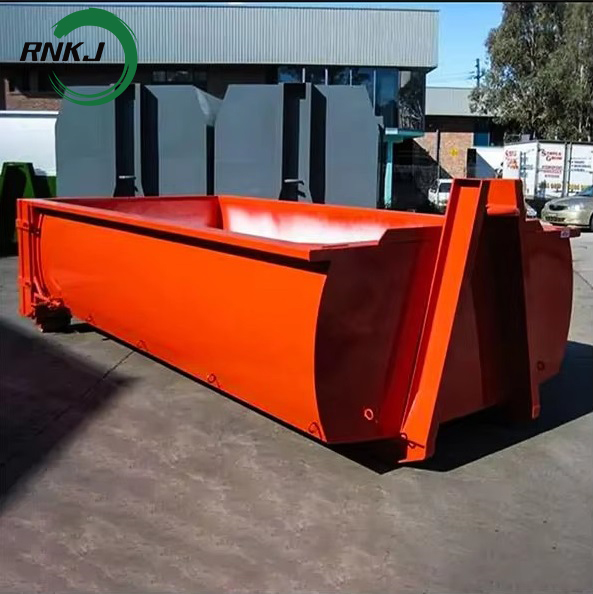

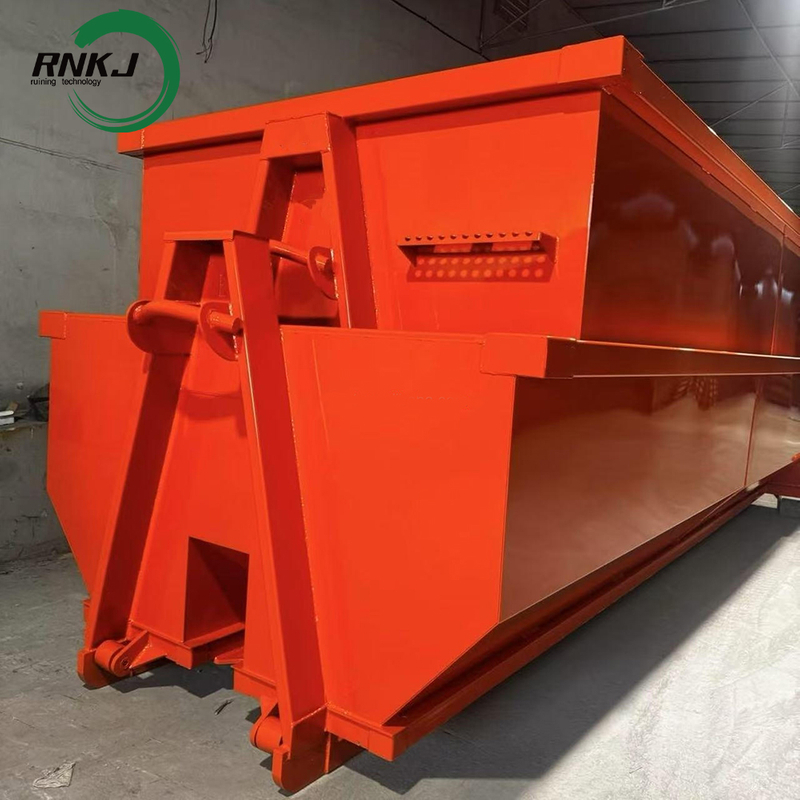

Hook-lift Bin is a large, mobile, sealed garbage collection container specifically designed for use with boom-type garbage trucks. It mainly serves the functions of temporary storage and transfer of garbage, and is widely applied in various types of garbage processing scenarios such as household waste, construction waste, and industrial waste.
Product Advantage
Efficiency improvement: The automated loading and unloading process can usually be completed within 5 minutes. The "one truck, multiple containers" mode enables a telescopic crane vehicle to serve multiple collection points simultaneously. Compared to traditional fixed garbage bins, the operational efficiency can be increased by more than 30%.
Wide adaptability to scenarios: There are various volume specifications available, ranging from 6-10 cubic meters for community models to 20-40 cubic meters for construction/industrial models. It can meet the garbage storage needs of different scenarios such as residential areas, commercial streets, towns, construction sites, industrial parks, etc.
Environmental protection and anti-pollution: Most adopt a fully sealed structural design, which can effectively prevent garbage leakage and odor dispersion, avoiding secondary pollution to the surrounding environment.
High durability: The main body is made of high-strength steel welded together, with a sturdy structure, strong corrosion resistance and wear resistance, and relatively low annual maintenance costs. The service life can reach 5-8 years or even longer.
Work mode
The loading and unloading are accomplished by the hydraulic hook arm system of the hook-arm vehicle: The hook-arm vehicle can place an empty hook-lift Bin at the designated collection point. Once the bin is filled with garbage, the hook-lift Bin will be lifted and transported to the vehicle through the hydraulic system, and then unloaded at the waste disposal site. Subsequently, the empty bin can be returned to the original collection point for reuse, achieving an efficient turnover of "one vehicle with multiple bins".

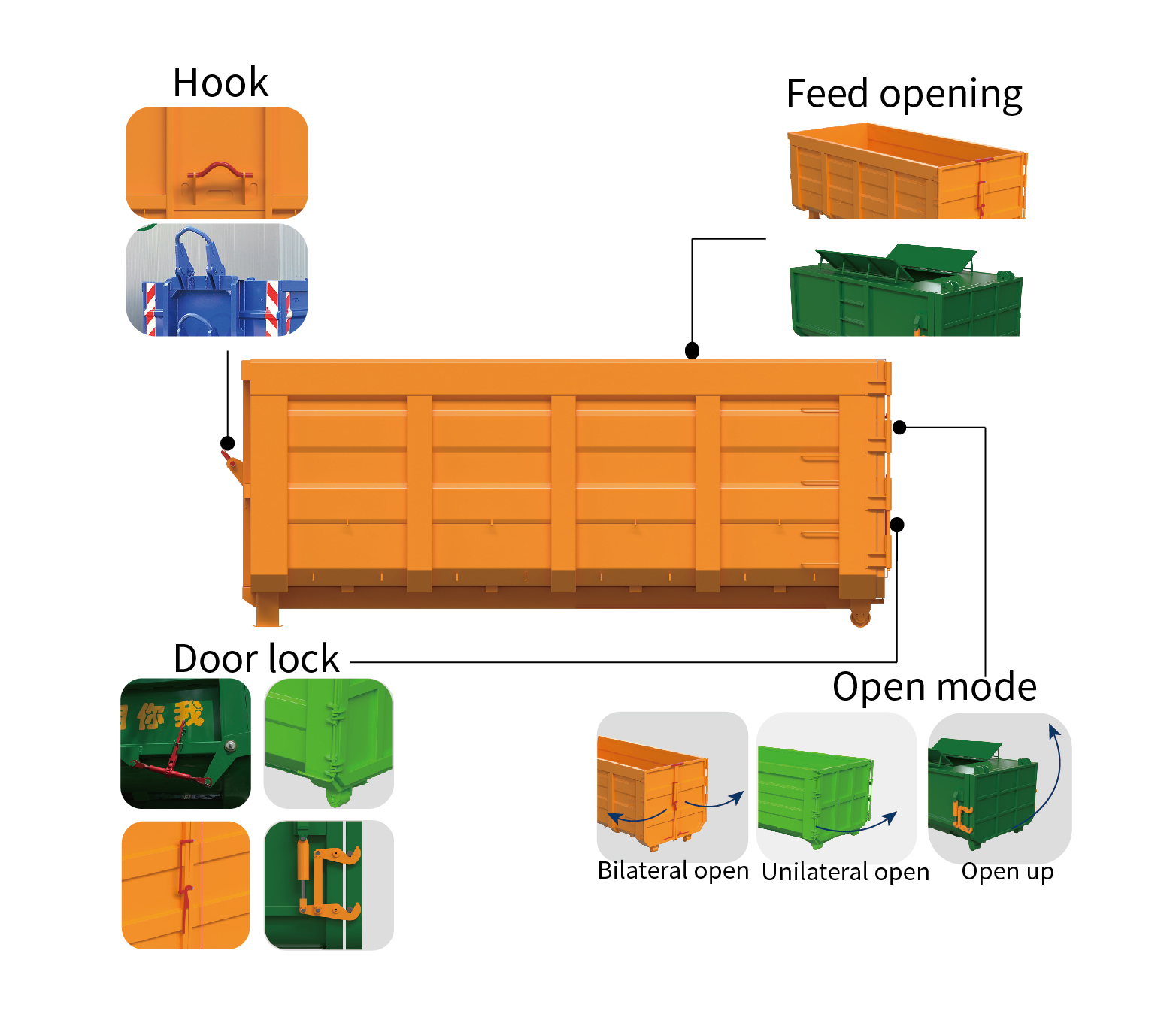

Main Structural Components
Box: Made of Q235 or Q345 carbon steel, welded as a whole. The side plates are 2-3mm thick, and the bottom plate is 3-5mm thick. It has a wave-proof partition to enhance structural strength.
Hook arm hanger: Welded at the front end, precisely matching the sliding rail of the hook arm vehicle, used for hooking and connecting.
Disposal opening: Top equipped with a flip cover or sliding cover, facilitating garbage disposal and with an arc-shaped design to reduce rainwater accumulation.
Roller: Installed at the bottom, facilitating the movement of the box and sliding during vehicle loading and unloading.
Locking mechanism: Ensuring a stable connection between the box and the vehicle, preventing shaking during transportation.
Working Process
The hydraulic system of the boom vehicle drives the boom to lower and engage the box body lifting ears.
The boom is raised, pulling the box along the guide rails to the vehicle chassis and locking it.
After being transported to the waste disposal site, the hydraulic system controls the boom to flip, automatically dumping the garbage.
Empty boxes return to the collection point or replace with other full boxes to continue the operation.
Features
Multi-box mode for one vehicle: One boom truck can be equipped with 10 to 50 boom box units for cyclic operation, significantly increasing vehicle utilization and reducing operating costs.
Capacity specifications: Common capacities range from 2 to 18 cubic meters, much larger than the ordinary 240L garbage cans, suitable for centralized collection scenarios.
Sealing design: The box body is fully sealed, effectively preventing garbage leakage, odor dispersion, and mosquito breeding, avoiding secondary pollution.
Provide transportation solutions
We provide customized solutionsengineers will make 3D modelingdrawings according to customerrequirements, CAD drawings to solvepractical problems for more customers.
Our products support 100% customization, including size, color, plate thickness, hook height, etc.We believe that our factory can meet your special needs.
Technical Parameters
Product name | Hook bin & Hook lift Bin & Roll on / roll off container & Dumpster Bin |
Material | Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade |
Size Range | from 10 to 80 yd And OEM is also available. |
Thickness of plates used | 10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to your requirements. |
Other specifications | 1). RHS are used for top rails, and top edge of plate continuous welded to RHS 2). Fully and partly welded inside and outside |
Options | 1) Two openning door 2) Up openning door |
Painting | We will paint each bin you order in your company colour, enhancing your company image with great looking bins.Two times of primer |
How to choose the Hook-lift Bin in different scenarios?
Residential Area/Community Scenario
Core Requirements: Storage for daily household waste, considering space compatibility, odor control, and ease of use for residents
Selection Suggestions:
Volume: Opt for small hook-lift bin with a capacity of 6-8 cubic meters, suitable for the width of community roads and the placement space beside the apartment buildings
Material: Choose a box body with double-layer galvanized and spray-painted finish on both the inside and outside. This material is corrosion-resistant and easy to clean, reducing the accumulation of odors
Commercial Street/Office Building Scenario
Core Requirements: Frequent garbage disposal, clean appearance, odor and insect prevention
Selection Suggestions:
Capacity: It is recommended to choose a medium-sized hook-lift bin with a capacity of 8-10 cubic meters, which can meet the daily 1-2 times collection frequency requirements
Material: Stainless steel material containers can be selected, which are resistant to oil stains, easy to clean, and have a more beautiful appearance suitable for commercial environments
Additional Configurations: Must be equipped with a full-sealed lock and sealing strip to prevent odor diffusion; a classification storage compartment can be added to accommodate recyclable materials and other types of garbage for separate storage
Construction site/demolition site scene
Core requirement: Large volume, high load-bearing capacity, impact resistance, suitable for heavy storage of construction waste and building material scraps
Selection suggestion:
Volume: Choose a heavy-duty hook-lift bin with a capacity of 12-25 cubic meters. Each bin can accommodate more construction debris and brick waste.
Material: Use high-strength steel plates with a thickness of 10mm or more, and reinforce the edges and corners of the box to have strong impact resistance.
Additional configuration: It is recommended to equip with a self-unloading function for the box, which can be quickly emptied of heavy garbage when paired with a hook-arm vehicle; add wear-resistant lining at the bottom to extend the service life of the box.
Industrial park/factory scenario
Core requirements: Compatible with industrial waste, anti-corrosion, safety compliance
Selection suggestions:
Volume: Choose a hook-lift bin with a capacity of 8-20 cubic meters based on the output volume of the waste. For chemical industrial parks, it is recommended to select a box with a slightly smaller capacity to shorten the cleaning cycle.
Material: For ordinary industrial waste, a reinforced steel plate box can be selected.
Additional configuration: For hazardous industrial waste, a dedicated box with an explosion-proof air vent and corrosion-resistant sealing strips should be selected to meet the safety storage standards.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
