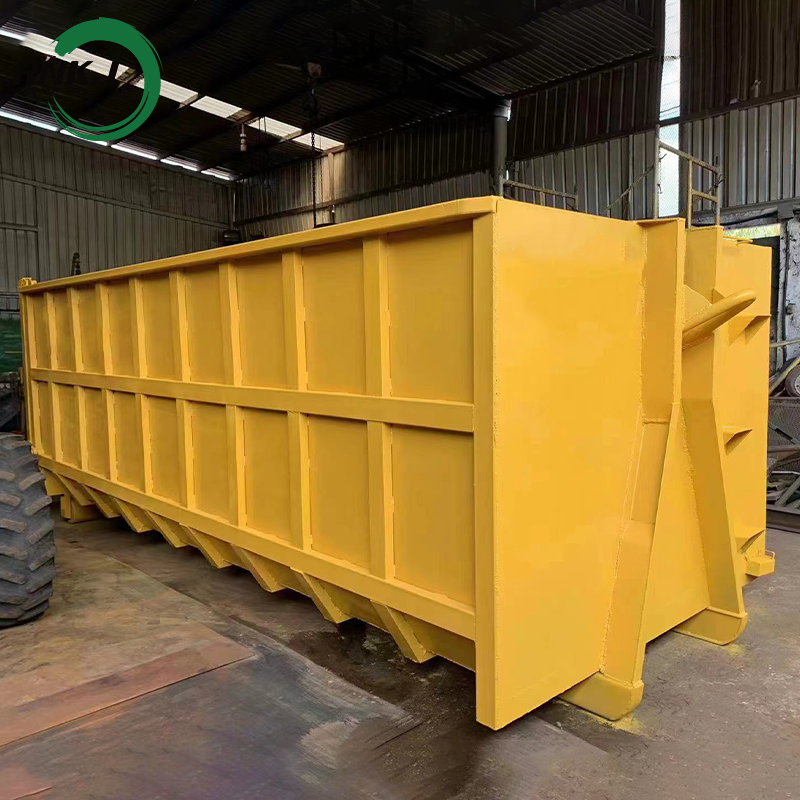

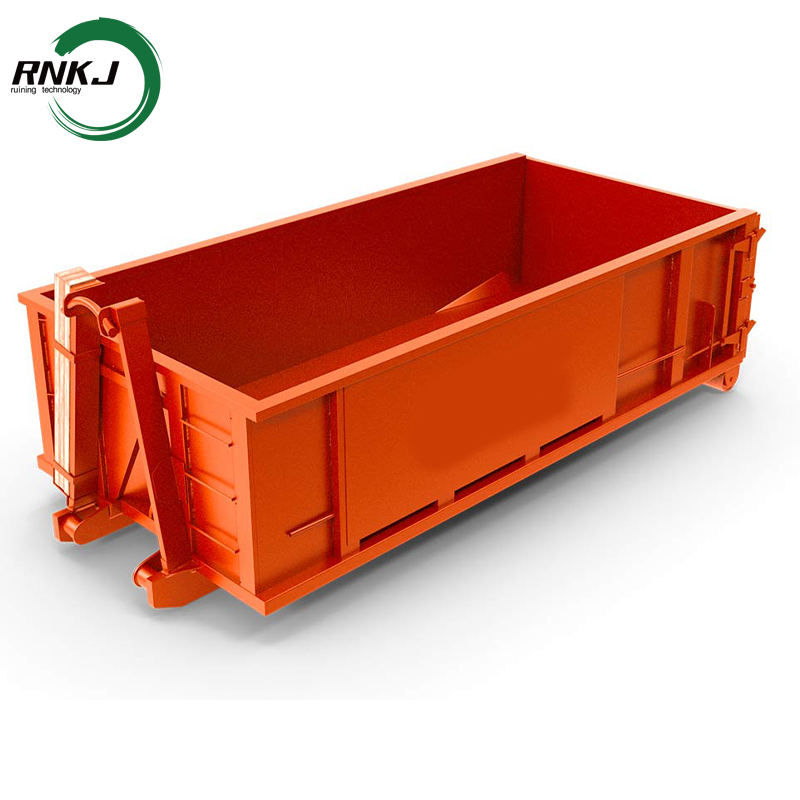

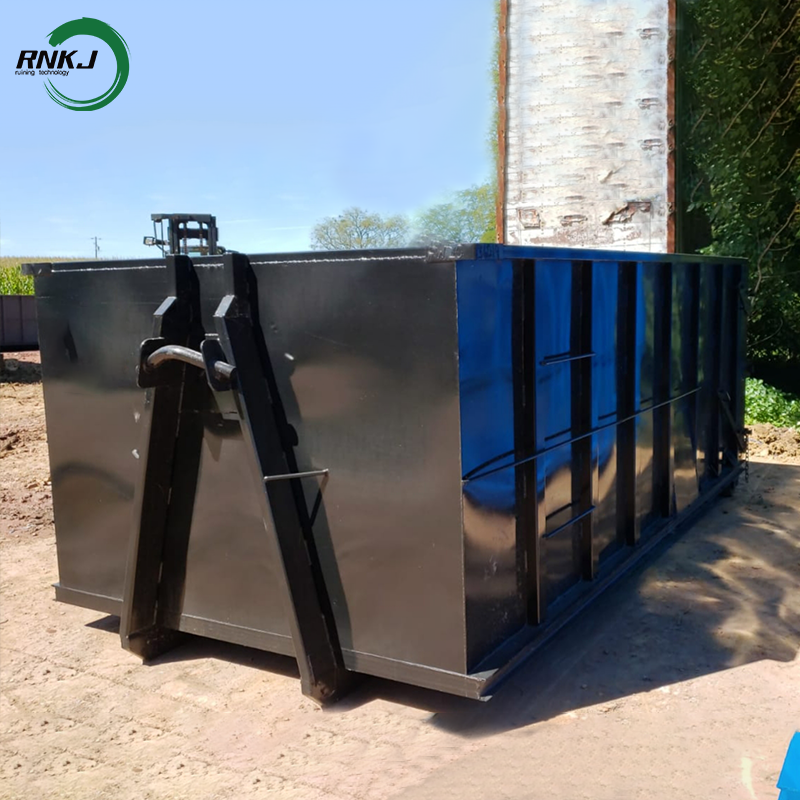

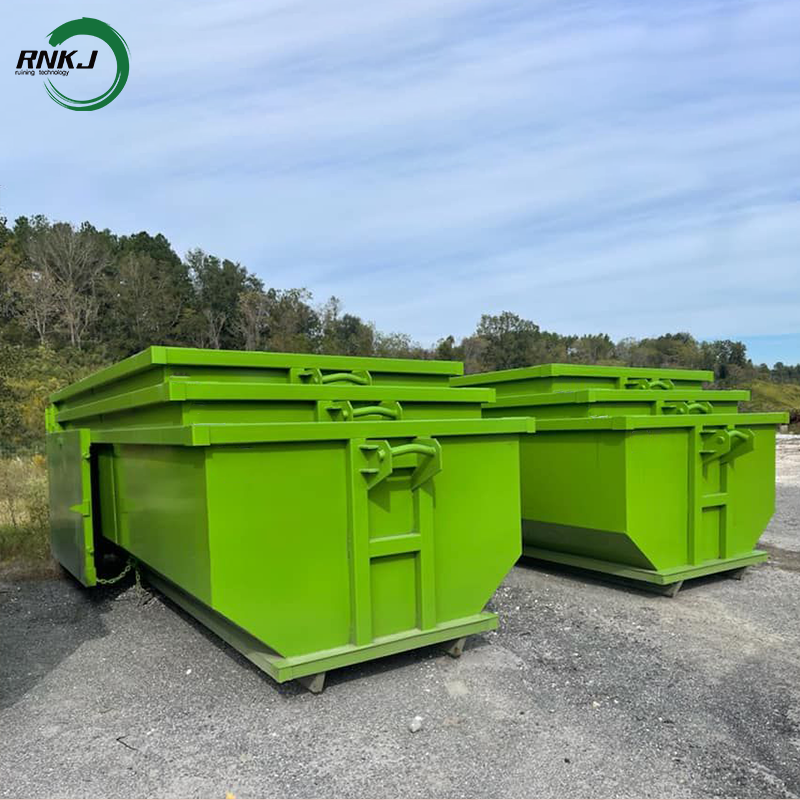

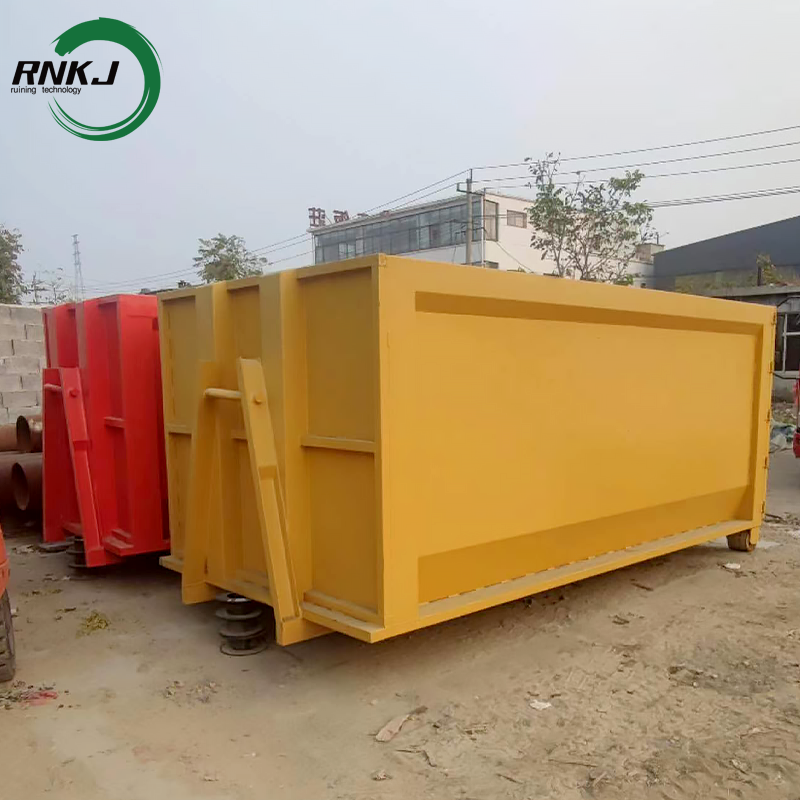

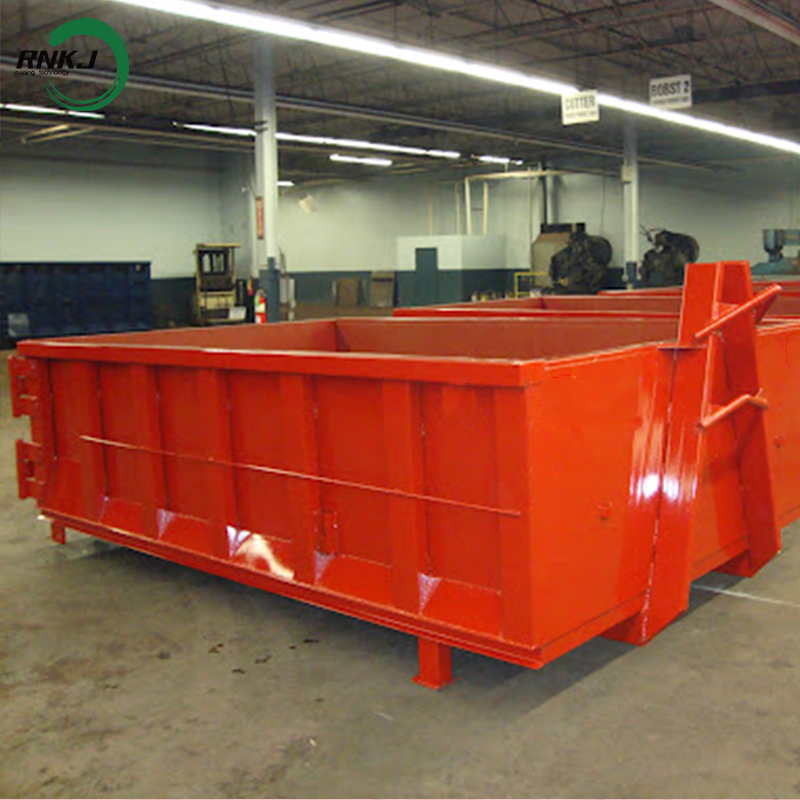

The Garbage Hook Lift Bin is a mobile garbage collection and transfer equipment that is used in conjunction with the telescopic garbage truck (arm lift truck). The core function of the Garbage Hook Lift Bin is to achieve the integrated operation of "centralized collection - sealed transportation - efficient dumping", and it is widely applied in municipal, community, industrial and infrastructure scenarios. It is a key supporting equipment in the modern garbage collection and transportation system.
Product Advantage
1.Convenient loading and unloading and adaptable design
By adopting standardized hooking interface, it can be quickly connected with the boom truck. It can be loaded and unloaded by a single person or a small number of workers, without the need for complex lifting equipment. The box body is designed for lightweight, taking into account both load-bearing capacity and flexibility for transportation. Empty boxes can be stacked for storage, saving storage space.
2. Durability of structure and protective design
The main body is made of high-strength steel or wear-resistant composite materials, which are resistant to impact and corrosion, and are suitable for harsh working environments such as outdoors and construction sites. The sealed box design ensures waterproofing, dustproofing, and leak-proofing, allowing for the safe storage of liquids, bulk goods, or moisture-sensitive materials. The bottom is reinforced, and a non-slip, wear-resistant base is provided to extend the service life and reduce maintenance frequency.
3. Flexible multi-functionality and modular design
The volume can be customized and it supports splitting and combining for use. It is suitable for various scenarios such as waste transportation, engineering materials, and emergency supplies.
Reserved installation interfaces can be equipped with accessories like covers, partitions, and discharge ports to meet different loading requirements. Some models support multiple opening methods such as side opening and rear opening, making it convenient for loading and unloading different types of goods.

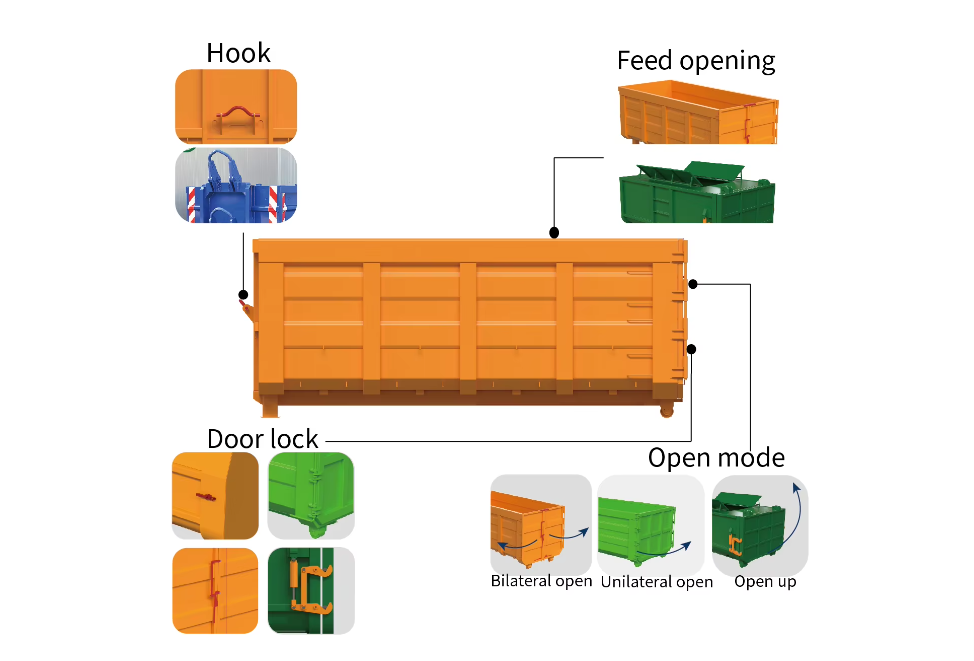

Product Design
Hook
Technical Parameters
Product name | Hook bin & Hook lift Bin & Roll on / roll off container |
Material | Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade |
Size Range | from 10 to 80 yd And OEM is also available. |
Thickness of plates used | 10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to your requirements. |
Other specifications | 1). RHS are used for top rails, and top edge of plate continuous welded to RHS 2). Fully and partly welded inside and outside |
Options | 1) Two openning door 2) Up openning door |
Painting | We will paint each bin you order in your company colour, enhancing your company image with great looking bins.Two times of primer |
Feature Of Hook Lift Container

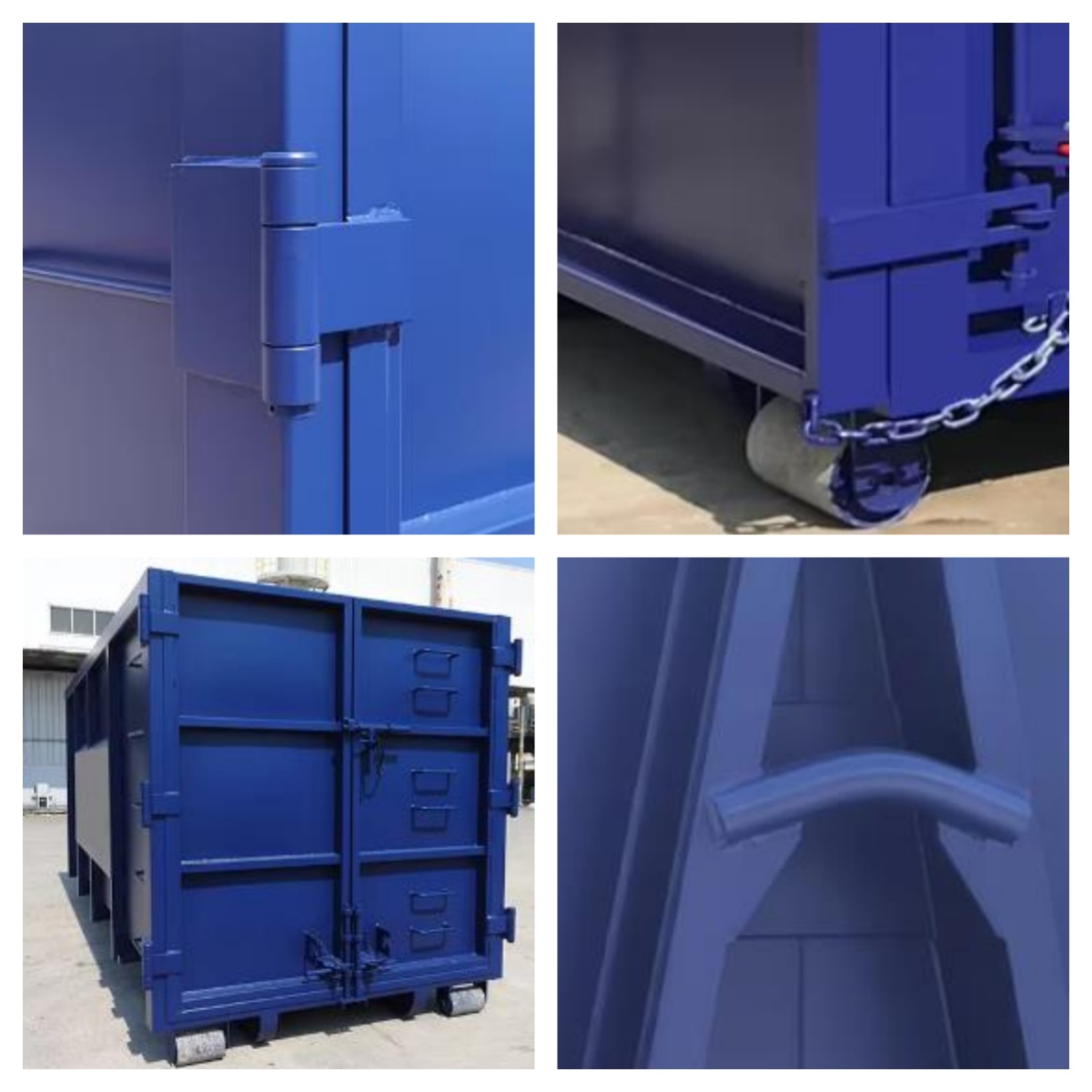

Detailed Images
Product Design
Structural Design: The box body has a simple structure and a smooth outer surface, which is easy to clean and has no dead corners.
Material Selection: Carbon steel is commonly used. Carbon steel has low cost and high strength, making it suitable for regular scenarios. Some key parts, such as the front panel, bottom panel, and rear door panel, have a thickness of 4mm or more, while the side panels, discharge door cover panels have a thickness of ≥4mm, and the reinforcement ribs have a thickness of ≥6mm.
Component Design:
Loading and Unloading Components: Multiple loading ports are set, the number can be adjusted according to the volume. The loading door opening angle is in line with ergonomics, and the opening methods include mechanical spring hinges, spring support rods, etc.; the unloading door is a manual quick locking device, and some are equipped with hydraulic locking devices, and are installed with sealing rubber strips.
Moving Components: Rolling wheels are installed at the bottom of the box, usually 4 in total, of which 2 are universal wheels with self-locking functions, facilitating the movement and fixation of the box, and reducing friction with the ground.
Sealing Design: The rear door is equipped with labyrinth-type sealing rubber or double lip structure sealing rubber strips. Some boxes are overall sealed structures, ensuring that the garbage does not fly during transportation, no odor is emitted, and no sewage leaks.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
